Get the ultimate off-grid power solution with the KickAss 12V Wireless Canopy Power System Bundle. Featuring a 40A DCDC charger, integrated Bluetooth, a Smart 120Ah Lithium Slimline Battery, a heavy-duty plug-and-play wiring kit, and a slimline battery tray. Perfect for canopies, caravans, and 4WDs, providing reliable and efficient power for all your adventures. Easy to install and built tough fo.

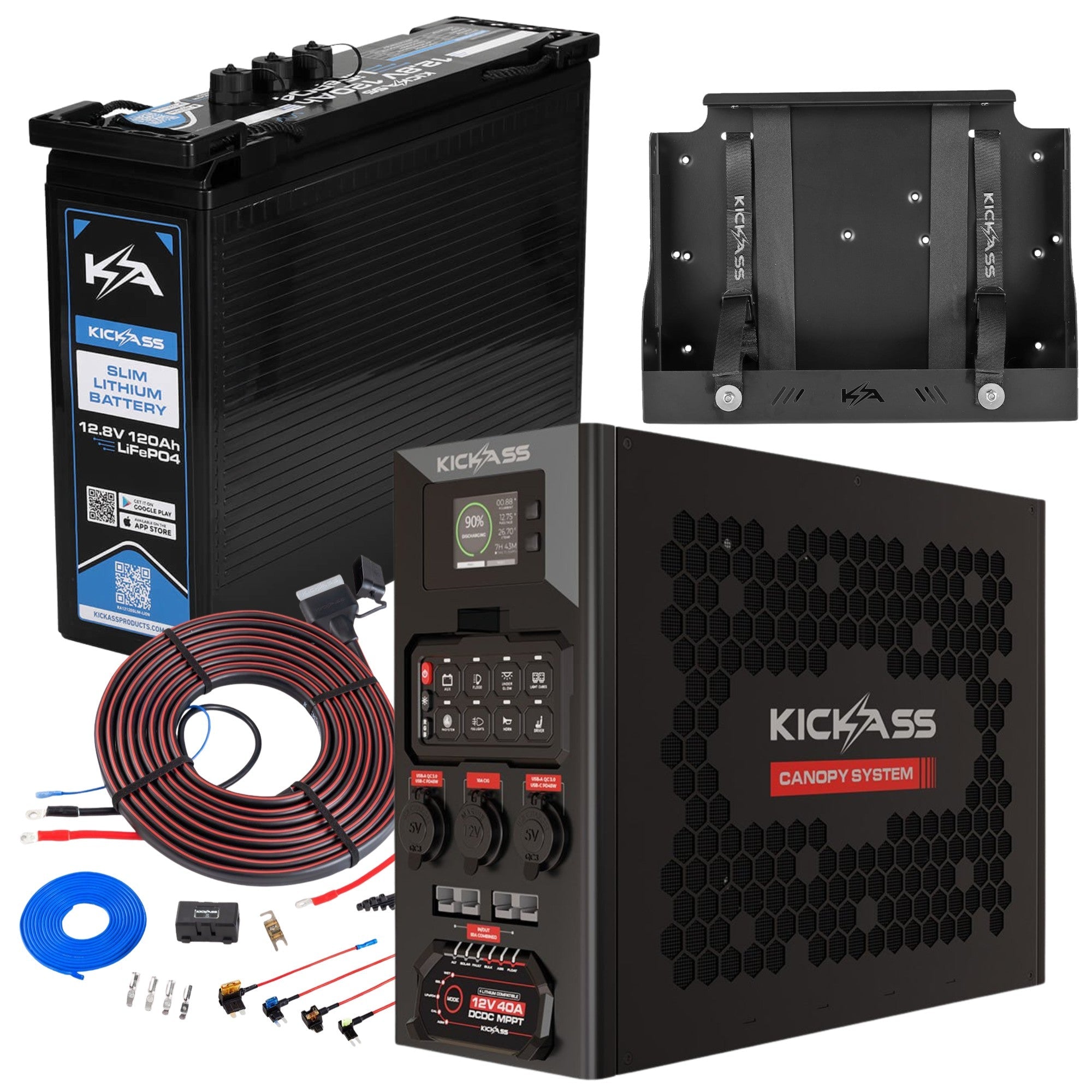

Everything that is included in this KickAss kit!

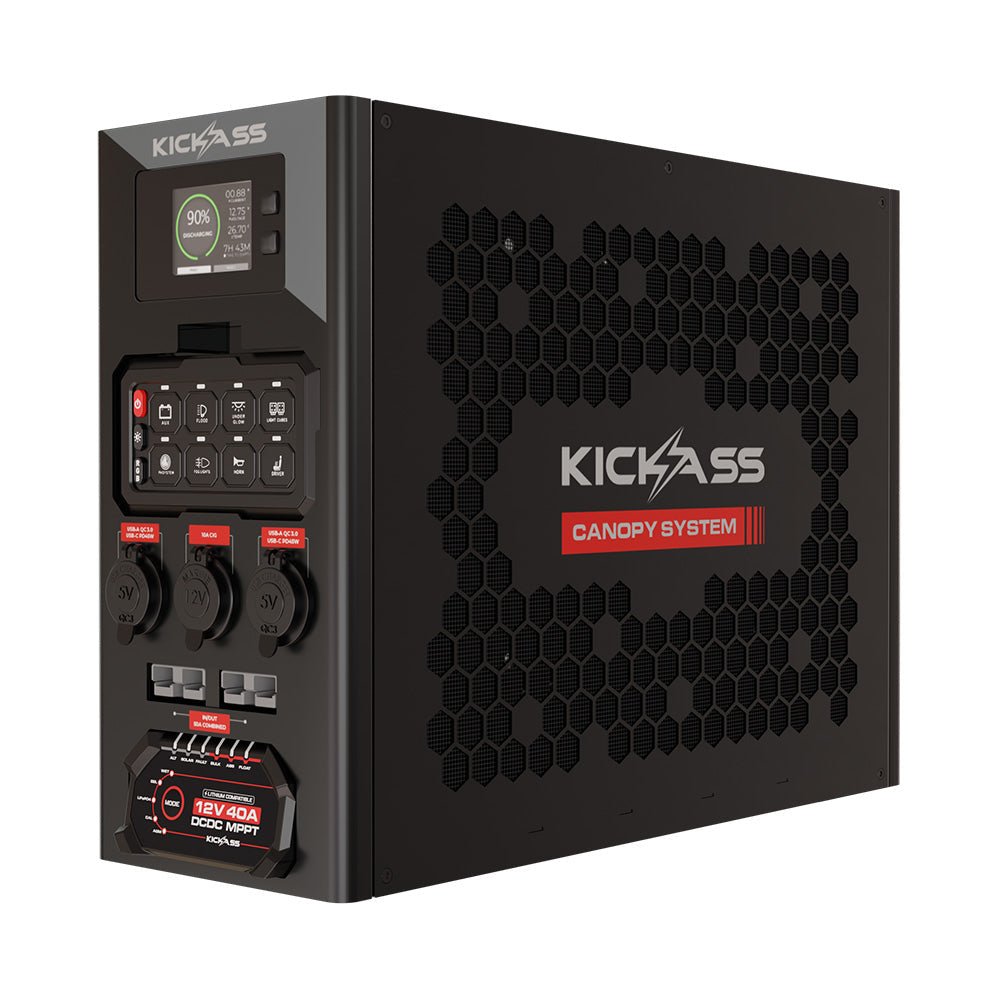

The new and improved KickAss Canopy System makes 12V setups even easier. It now features wireless digital switching and built-in Bluetooth, so you can monitor charging status and performance straight from your phone. With its MPPT solar controller, 40A DCDC charger, and fast-charging outputs, it’s specifically designed to be an off-grid solution for canopies.
The new and improved KickAss Canopy Power System takes the hassle out of building a reliable 12V setup. Instead of sourcing multiple components and wiring them together, this upgraded all-in-one unit brings everything into a single, streamlined package that’s easy to install and ideal for DIYers. It integrates your MPPT solar controller, 40A DCDC charger, USB fast-charging outputs, and a fully redesigned wireless 8-gang switching panel.
This latest version now features wireless digital switching, giving you the freedom to control your accessories from a detachable panel you can carry anywhere around your setup. When the switch panel’s battery runs low, simply return it to the magnetic charging dock… it snaps in securely and tops up automatically. The system also includes new Bluetooth monitoring of the DCDC charger, allowing you to connect via the supporting app to configure the device and view real-time charging data such as solar and alternator input current, battery charge current, charging stage, and system alerts.
Engineered for seamless pairing with KickAss Smart Series and KickAss Ultra-X LiFePO₄ batteries, the updated Canopy Power System delivers maximum compatibility, safety, and efficiency. Select the KickAss lithium battery that suits your build and enjoy a complete, modernised off-grid power solution.
Note: The display and Bluetooth app monitoring features are compatible only with KickAss Smart Series and KickAss Ultra-X Lithium Batteries.

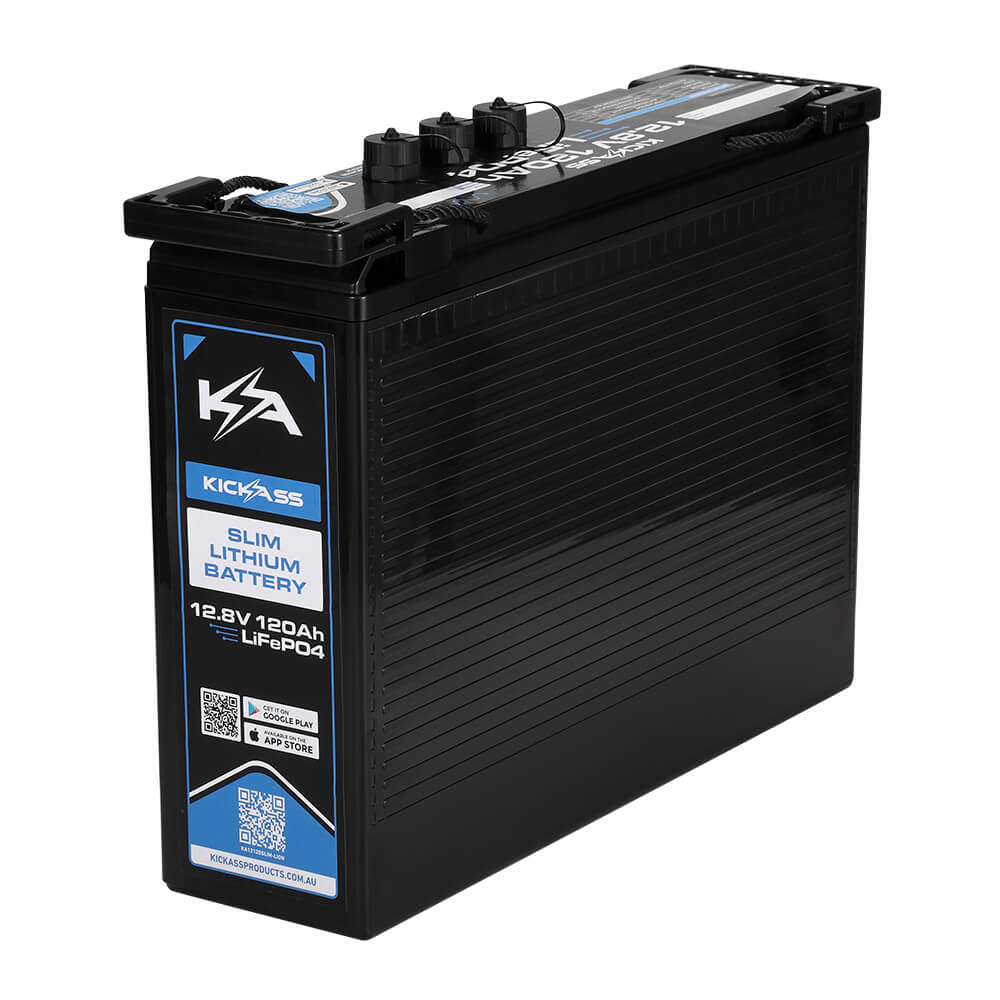

120AH Slim Lithium Battery with a fully integrated BMS system and 100Amp continuous discharge. Perfect for camping, caravanning & 4WD. Ideal for mounting behind the rear seat of dual cab ute.
KickAss 12V 120Ah LiFePO4 Lithium Battery & Remote Display Unit Feature Overview
Monitor Your Battery Status: Never question your lithium battery's health again! The colour screen takes the guesswork out of battery maintenance. Monitor your battery temperature, voltage, current draw, time to empty, charge status and more.
Safe Lithium Iron Phosphate Chemistry (LiFePO4): LiFePO4 is one of the most stable and safest 12V lithium chemistries available. This means KickAss LiFePO4 batteries are safe even for the toughest of tracks, with 200+ battery cycles at 100% depth of discharge.
More Usable Capacity: Unlike AGM batteries that can only safely use up to 50% capacity, the KickAss 120Ah Lithium Battery can safely use up to 80% capacity, giving you a full 96 usable amps.
Lightweight: Weighing only 14.3kg—about half the weight of a similar sized sealed lead acid battery—makes it far easier to move and install the KickAss 12V Lithium Battery into your setup.
KickAss Integrated Battery Management System (BMS): The KickAss BMS ensures your battery remains safely within all parameters, protecting your 12V lithium battery from short circuits, low voltage, overloads and more.
Durable ABS Casing: With high tensile strength and superb resistance to impacts and chemical erosion, our high-quality ABS container ensures long lifespan.

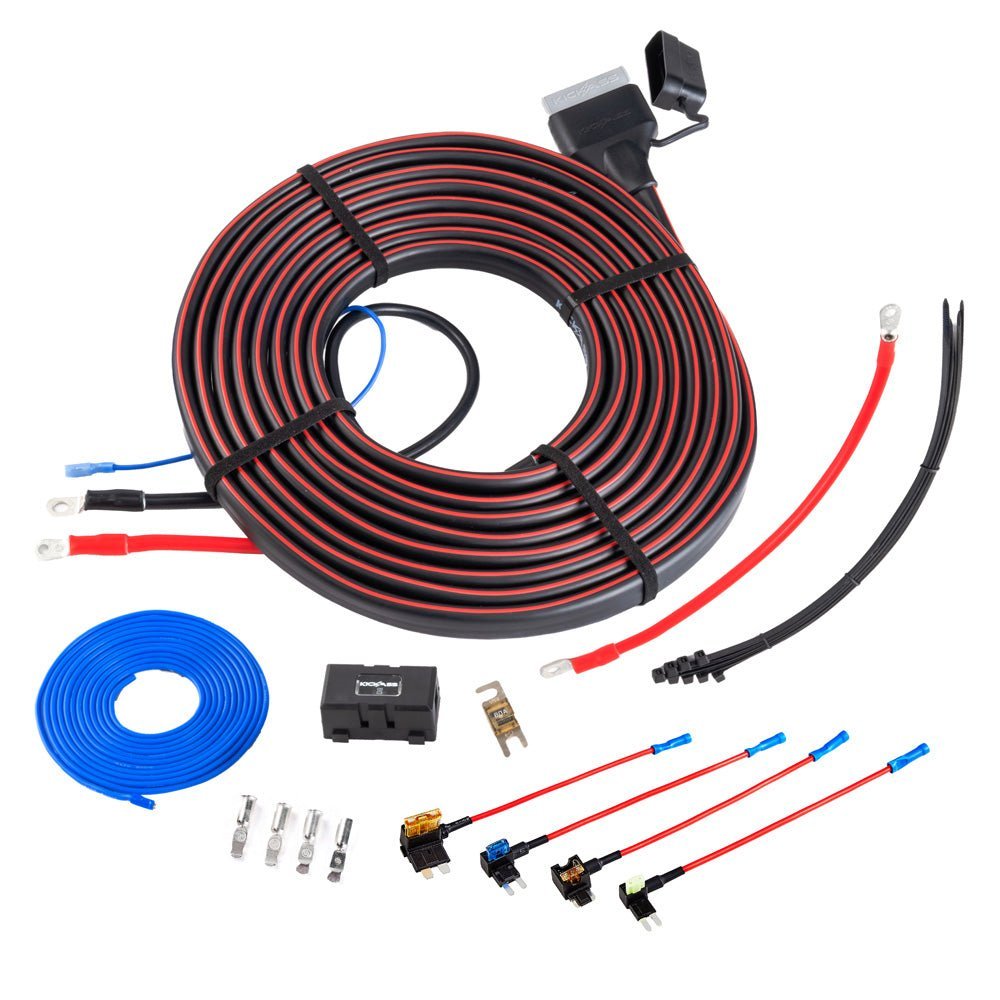

This 3-pin Anderson-style connector with built-in ignition wire makes connecting your 12V dual battery system easy. Perfect for wiring DC/DC chargers, battery boxes & auxiliary batteries.
This 3-pin Anderson-style connector with built-in ignition wire makes connecting your 12V dual battery system easy. Perfect for wiring DC/DC chargers, battery boxes & auxiliary batteries.

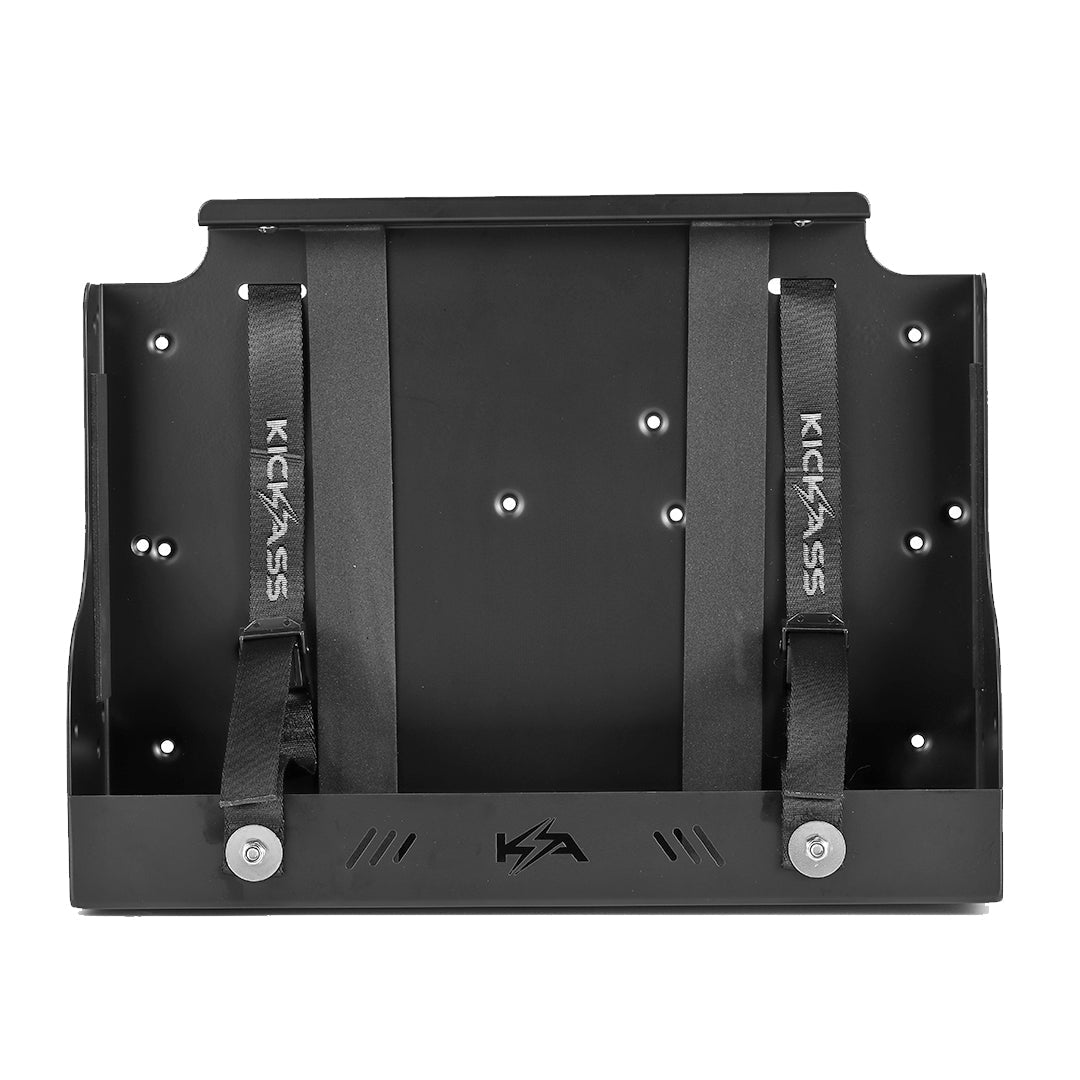

Specially designed to fit KickAss Slim Batteries, this tray allows easy installation behind the rear seats in a dual cab ute, or any other confined space. Made of durable, lightweight aluminium.
Built specifically for our range of Slimline batteries, our brand-new slimline battery trays are the solution to securing your KickAss slimline battery. These KickAss battery trays are perfect for installation behind the rear seats of a modern 4WD dual cab, or in its canopy.
Store your battery out of sight and maximise storage space for your other belongings.
Constructed with a lightweight & strong aluminium frame to protect and secure your battery. A heavy duty slim battery tray designed for the toughest Australian Terrain.
Our slimline battery holder features 2 heavy duty straps that hold your battery in place. These can easily be detached, allowing easy access your battery.
Simply mount your slim battery tray via the factory mounting holes. Comes with all bolts and screws included, so you don’t have to shop around for extras.
Please Note - Please check the product specifications before purchase. KickAss is not responsible or liable for any modification performed on your vehicle.
| Main Cable Length | 6.5M - 3 Core |
| Ignition Cable Extension | 3M - 14AWG Single Core |
| Cable Size - 3 Core | 2x 6AWG (13.5mm²), 1x 14AWG (1.8mm²) |
| Insulation Material | Inner - Silicon / Outer - PVC |
| Rated Temperature | Max. 105°C |
| Ring Terminals | M8 - Battery / M6 - Fuse |
| Fuse | 80A MIDI Fuse with Holder |
| Connections | 3 Pin Anderson Style / Bullet |
| Cig Socket Outputs | 1 x 10A |
| USB Outputs | 2 x USB-C 45W | 2 x QC3.0 |
| Anderson Input / Outputs | 5 |
| Anderson Inputs | 3 Pin Alternator | Unregulated Solar |
| Digitally Switched Outputs | 8 |
| Battery Connection | 175A Anderson |
| Operating Temperature | -20°C to +50°C |
| Product Dimensions | 440 x 160 x 320mm (L x W x H) |
| Product Weight | 9.35kg |
| DCDC-MPPT | |
| Charger Output Voltage Range | 3–16V DC |
| Alternator Input Voltage Range | 9–32V DC |
| Solar Input Voltage Range | 9–32V DC |
| Maximum Input Current | 56A |
| Maximum Continuous Charging Current | 40A |
| Efficiency | Solar - 99% Max | Alternator - 92% Max |
| No Load Current Draw | 10 mA |
| Charge Profile | |
| Absorption Voltage | GEL - 14.1V | WET - 14.4V | AGM - 14.7V | CAL - 15.3V | LiFePO4 - 14.5V |
| Float Voltage | GEL - 13.5V | WET - 13.4V | AGM - 13.4V | CAL - 13.6V | LiFePO4 - NA |
| Minimum Auxiliary Battery Voltage | GEL/WET/AGM/CAL - 9V | LiFePO4 - 0V |
| Alternator Charge Conditions | |
| 12V Alternator Input (Ignition OFF) | CUT-IN 13.2V | CUT-OUT 12.6V |
| 12V Alternator Input (Ignition ON) | CUT-IN 12.2V | CUT-OUT 10.5V |
| 24V Alternator Input (Ignition OFF) | CUT-IN 26.4V | CUT-OUT 25.2V |
| 24V Alternator Input (Ignition ON) | CUT-IN 24.4V | CUT-OUT 21V |
| Voltage | 12.8V |
| Capacity | 120Ah |
| Cell Type | Prismatic |
| Max Continuous Discharge | 120A |
| Max Continuous Charge | 120A |
| Peak Discharge | 240A (30s) |
| Max Charge Temp | 60°C |
| Min Charge Temp | 0°C |
| Max Discharge Temp | 65°C |
| Min Discharge Temp | -20°C |
| Cycle Life | 4000+ cycles | 80% DOD | 1C charge / 0.5C discharge |
| Bluetooth | Yes |
| Remote Display | Optional |
| Parallel / Series | 4 / 4 |
| Parallel / Series Remote Monitoring | Bluetooth | Remote Display |
| Dimensions | 395 x 110 x 307mm |
| Weight | 14.35kg |
| Certifications | IEC62619 |
| Warranty | 3 Years + 2 Pro Rata |
| KickAss 120Ah Slimline Battery Tray | |
| KickAss Heavy Duty Plug and Play DCDC Wiring Kit - 6.5m | |
| KickAss 12V Wireless Canopy Power System with 40A DCDC Charger + Integrated Bluetooth | |
| KickAss Smart 12V 120Ah Lithium Slimline Deep Cycle Battery LifePO4 |

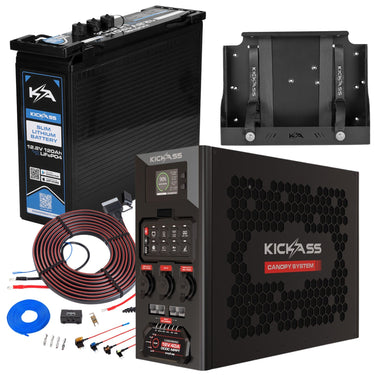

Power up your canopy, caravan, or 4WD with the ultimate KickAss Power System Bundle. This comprehensive package combines our top-tier 12V Wireless Canopy Power System with a powerful Smart 120Ah Lithium Slimline Deep Cycle Battery, ensuring you have reliable, long-lasting power wherever your adventures take you.
The heart of this bundle is the KickAss 12V Wireless Canopy Power System, featuring an integrated 40A DCDC charger and Bluetooth connectivity for seamless monitoring. Paired with the KickAss Smart 120Ah Lithium Slimline Battery, you get exceptional energy density, rapid charging, and a long cycle life, all in a space-saving design. The included Heavy Duty Plug and Play DCDC Wiring Kit makes installation a breeze, while the dedicated 120Ah Slimline Battery Tray ensures secure mounting. Get ready for off-grid freedom with KickAss!
Loving my canopy power system, plug n play, just the best!
deadly
Works great, highly recommend
So far so good. Installation part of the process was straightforward, everything is working as it should. Off on our first adventure just now and we have some rough corrugated tracks coming up that will test the quality of the unit, but for right now, on the smooth tracks, we are very happy with this purchase.
Product 10/10 - Easy to add your 12V accessories. Happy with the purchase !
