KickAss 12V Control Hub / Panel with 20A DCDC Charger
Pickup currently unavailable at Acacia Ridge Store
1 Year Warranty
This product is covered by a 1 Year Limited Warranty.
Description

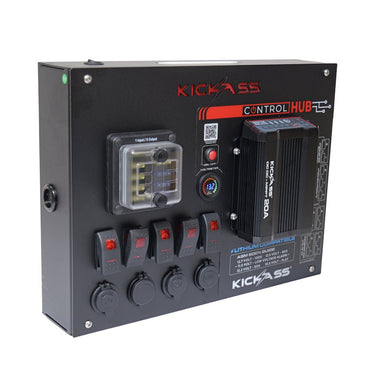

KickAss 12V Control Hub With 20A DCDC Charger
Our KickAss engineers have selected the essentials you need when setting up your 12V system. Featuring accessory switches, USB ports, cig sockets, and more, the fully customisable Control Hub is perfect for wiring up your canopy, van, or motorhome. It includes a pre-installed 20A DC-DC charger, ideal for charging your 12V battery from your vehicle’s alternator.
Power up to 10 different appliances at once!
With more connections than any other control hub on the market, the KickAss Control Hub can power up the whole family. Includes 4 x flush mount Anderson style connectors, 2 x cig sockets, 2 x 4.8A USBs, 1 x QC3.0 USB, and 1 x USB-C port.
Five Light-Up Rocker Switches
Control all your accessories with ease using the five backlit rocker switches, clearly visible day or night. Each switch includes a replaceable fuse to protect your battery.
Heavy-Duty Cables for Higher Current Loads
The internal pre-wired cables have been upgraded to deliver a fully fused, vibration-free setup. Ensures a secure connection between your battery and accessories.
Includes Extra Fuses for Your Convenience
Always be prepared. The easily accessible 6-way external fuse panel and extra fuses mean fast and easy replacements on the go.
Pre-Drilled Holes for Mounting
Pre-drilled holes and a removable foam block give you flexibility to mount your own DCDC charger—ideal for building your 12V setup in stages.
Designed to Look Kick-Ass
The matte black powder-coated aluminium design elevates your setup. Includes an LED light with an on/off switch for nighttime visibility.
Versatile Mounting Options
Mount using pop rivets, bolts, or screws via 6 pre-drilled holes. Three different cable entry points let you choose your preferred input/output direction.
Specifications
| Dimensions | 400 x 305 x 110mm (Includes fuse height) | |||
| Weight | 4.15kg | |||
| Construction | Powder Coated Aluminum | |||
| Lid Thickness | 2mm | |||
| Box Thickness | 1.5mm | |||
| Voltage | 12V | |||
| Max Current | 120A | |||
| Low Voltage Alarm | Below 11.0V | |||
| Battery Connection | 1.5m | |||
| Light | LED Flush Mount | |||
| Cable Size | ||||
| Battery Connection Leads | 4 AWG | |||
| Optional DCDC Charger Connection | 8 AWG | |||
| Anderson Plug Connections | 8 AWG | |||
| Fuse Box Connection | 10 AWG | |||
| Switch Connections | 12 AWG | |||
| Cigarette and USB Socket Connections | 12 AWG | |||
| Fuse Sizes | ||||
| 4x Anderson Style Plugs | 50A | |||
| Optional DCDC Connection | 50A | |||
| Light & Volt Meter | 5A | |||
| Switch 1 & 2 | 20A | |||
| Switch 3 | 20A | |||
| Switch 4 | 20A | |||
| Switch 5 | 20A | |||
| Cigarette 1 & 2x 2.4A USB | 15A | |||
| Cigarette 2 & QC3.0 USB + Type C PD | 15A | |||
| Spare Fuse 1 | 20A | |||
| Spare Fuse 2 | 15A | |||
| Switch Rating | 20A | |||
| Cigarette Socket | 10A | |||
| USB | ||||
| USB Rating | 2.4A | |||
| USB QC3.0 Rating | 18W | |||
| USB Type C Rating | 45W | |||
| KickAss 20A DCDC Charger Specifications | ||||
|---|---|---|---|---|
| Charger Model | KADCDC 20A-CAR | |||
| Alternator Input Voltage Range | 9-32V DC | |||
| Input Current | <20mA | |||
| Efficiency | App. 93% | |||
| Max Output Current | Input 5-32V DC 20A | |||
| Minimum Auxiliary Battery Voltage | WET, GEL, AMG, CAL, 9V LifePO4 0V | |||
| Input Fuse Rating | 50A | |||
| Output Fuse Rating | 50A | |||
| Maximum Output Power | 300W | |||
| Solar Panel Input Voltage | 10-32V DC | |||
| Solar Input Maximum Current | 27A | |||
| Ambient Operating Temperature | -20°C to +80°C | |||
| Dimensions | 151 x 121 x 44mm | |||
| Weight | 870g | |||
| Battery Type Specifications | ||||
| Charger Model | WET, GEL, AGM, CAL / LifePO4 | |||
| Battery Capacity Range | 80-500AH / 50-500AH | |||
| 12V Input / 24V Input | ||||
| Integrated Isolator Cut In / Cut Out Voltage | 13.2V / 12.6V and 26.4V / 25.2V | |||
| Integrated Isolator (Ignition Override On) | 12.2V / 10.5V and 24.4V / 21.0V | |||
