Pre-order estimated arrival date 28 October 2026
Pre-orders close in . This product will ship within 2 days of the pre-order estimated arrival date.
Complete your off-grid setup with a powerful and reliable 460Ah lithium battery kit, featuring a 3200W inverter and comprehensive wiring.

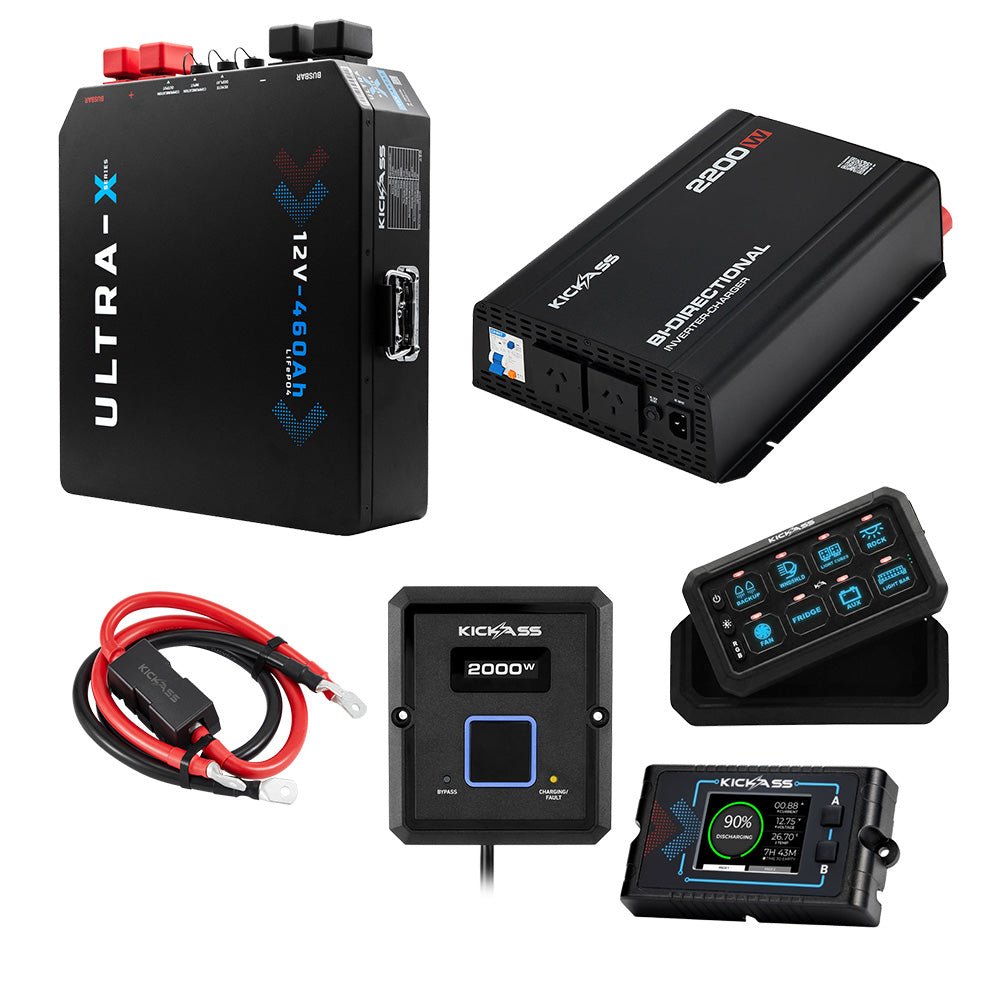

Everything that is included in this KickAss kit!

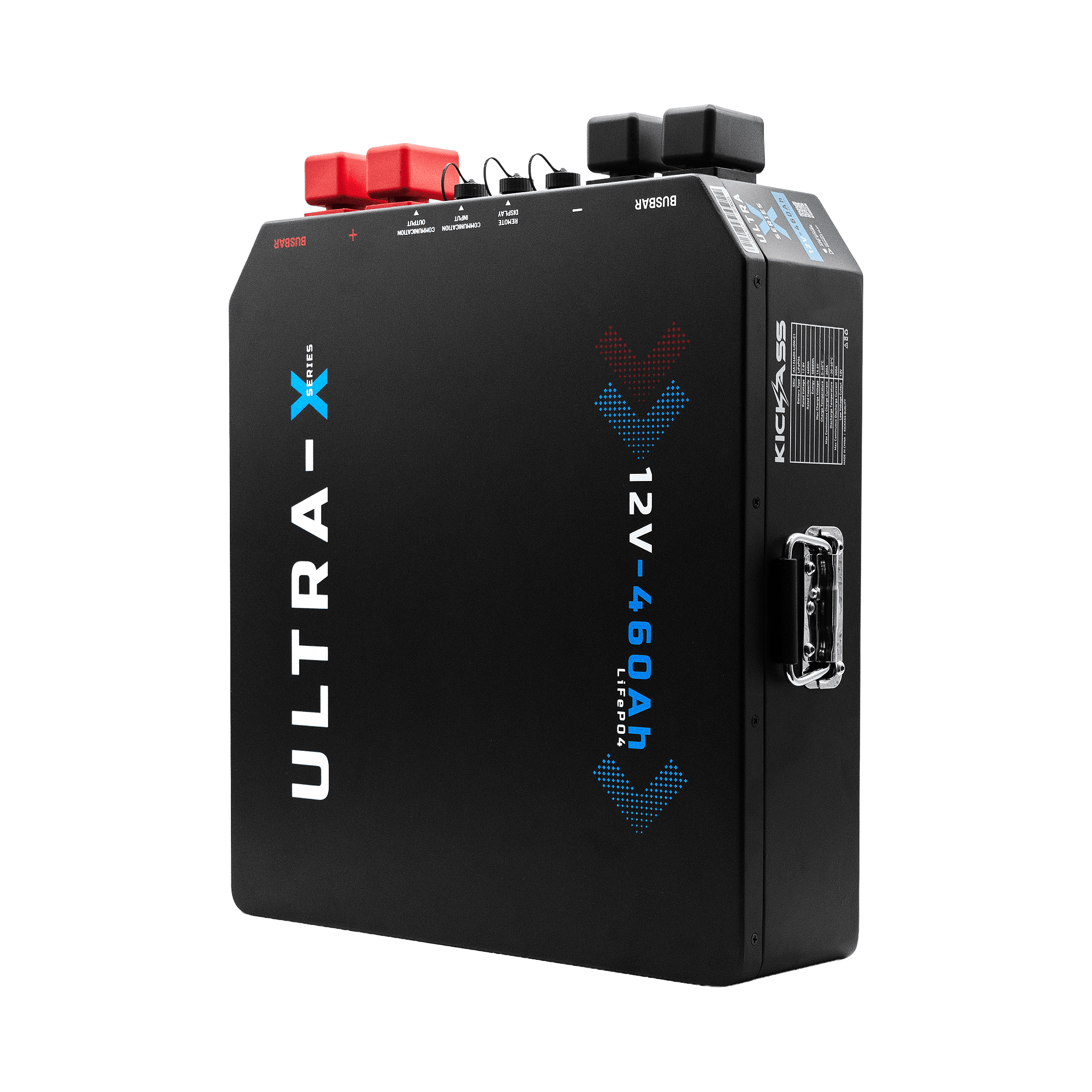

This Ultra-X battery delivers a massive 460Ah of useable capacity; enough to run your air con, induction cooktop & extra 12V gear. Built for large setups, it delivers 300A of continuous discharge with a smart BMS. Connect up to 4 in parallel to build a 12V battery bank of up to 1840Ah, or in series to create a 48V battery bank at 460Ah. Install vertically or horizontally.
When you're running a full caravan setup far from the nearest power point, you need a battery that won't let you down. The KickAss Ultra-X 460Ah Deep Cycle Lithium Battery is built for exactly that, delivering massive useable capacity, intelligent protection, and the flexibility to scale your system as your needs grow.
460Ah of Useable Capacity, Run Everything, Go Anywhere
At the heart of the Ultra-X is a huge 460Ah of useable capacity, giving you the freedom to run high-draw appliances like air conditioners and induction cooktops simultaneously, without constantly watching your power levels. Whether you're parked up for a week in the outback or running a fully loaded caravan, this battery has the grunt to keep everything running exactly the way you want it.
300A Continuous Discharge, Stable, High-Output Power
The Ultra-X delivers strong, consistent 300A output capable of running a 3000W inverter while still leaving headroom for additional 12V appliances. With a surge capacity of up to 660A for 30 seconds, it handles the demands of multiple high current devices starting simultaneously.
Stackable Design, Maximum Capacity, Minimum Space
Space is always at a premium in a caravan or camper build, and the Ultra-X is designed with that in mind. It is specifically designed to be installed lying down flat in a locker or cabinet to make the most of tight spaces. When you need more capacity, simply stack multiple units together. A linking kit is included, complete with busbars for parallel connection and mounting brackets to lock the batteries together securely.
Intelligent BMS, Built-In Protection You Can Count On
The Ultra-X features an intelligent multi-level BMS that continuously monitors key internal components to keep the battery operating safely under all conditions. Protection covers temperature extremes, overcharge, over-discharge, and short circuits, so whether you're in the middle of a scorching summer or a frosty alpine night, the battery manages itself so you don't have to.
Bluetooth Monitoring, Your Power System in Your Pocket
Stay on top of your power with the KickAss Bluetooth app. Monitor state of charge, wattage, voltage, current, temperature, and real-time system alerts, all from your smartphone. No more guesswork, no more surprises. Having live data at your fingertips means you can make smarter decisions about your power usage and get the most out of every charge cycle.
Remote Display Monitoring, At-a-Glance Power Data
The Ultra-X pairs seamlessly with the KickAss Smart Lithium Battery Remote Display Unit (sold separately), letting you monitor battery levels, temperature, current, time to full/empty, voltage and more from inside your vehicle's cabin or wherever you choose to mount it. Clear, real-time data, always within sight.
Parallel & Series Configuration, Scale Your Setup Your Way
The Ultra-X is built to grow with your power needs. Connect up to four batteries in parallel to build a 12V bank of up to 1840Ah, or wire them in series to create a 48V system at 460Ah. The Ultra-X gives you the flexibility to configure your system exactly the way you need it.
Whole-System Monitoring, No External Shunt Required
Monitoring a multi-battery setup usually means adding an external shunt to the equation, but not with the Ultra-X. Simply connect each battery using an RJ45 cable, and both the optional KickAss Remote Display Unit and the Bluetooth app can monitor the entire bank as a single unit. Consolidated data, no extra hardware, no hassle.
Built to Last, Rugged, Certified, and Ready for Anything
The Ultra-X is housed in a tough metal case with integrated mounting points and anti-vibration pads, making it equally at home in a hard-working caravan, 4WD, or off-grid setup. With a cycle life of 4000+ cycles at 80% depth of discharge and IEC 62619 certification confirming it meets stringent international safety standards, this is a battery engineered for the long haul.

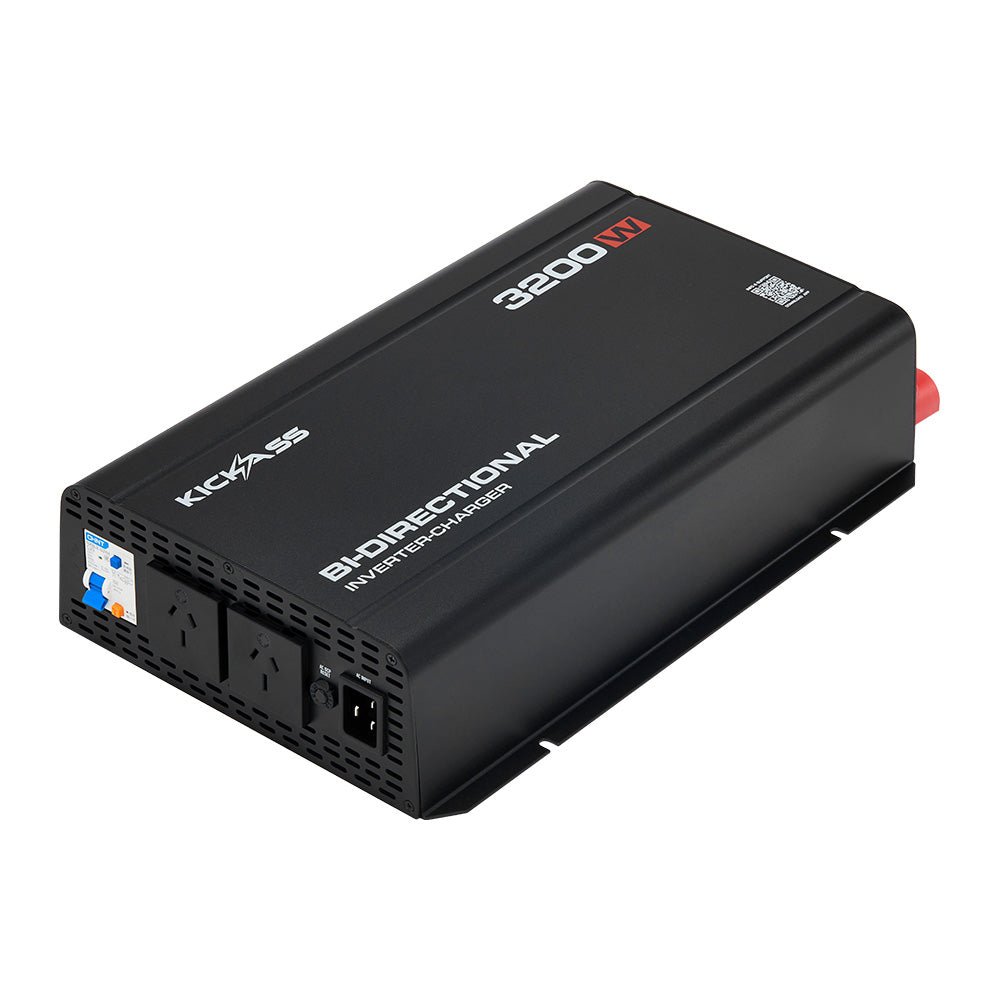

Built for larger setups and power-hungry appliances, this 3200W pure sine wave inverter-charger delivers clean, stable power when you need serious capacity. It rapidly recharges your battery from shore power via 2200W AC ultra-fast charging, with Bluetooth monitoring, plug-and-play install, built-in safety protection, and support for multiple battery chemistries.
The KickAss 3200W Bi-Directional Inverter-Charger delivers mains-quality power for larger setups and high-demand appliances. Combining a 3200W pure sine wave inverter with a 2200W AC ultra-fast charger, it provides both AC power and battery charging without the need for separate devices, additional wiring or extra installation space.
The 3200W pure sine wave inverter converts 12V DC battery power into clean, stable 230V AC power, making it suitable for demanding appliances, sensitive electronics, motor-driven equipment and inductive loads. When connected to shore power, the automatic transfer switch powers connected loads directly from the AC supply while the built-in 2200W AC charger provides up to 180A of charging current.
Bluetooth monitoring and control via the KA Charge app allows you to select battery chemistry, choose a charging mode, switch the unit on or off and view up to 32 hours of performance history. An optional remote switch with OLED display and LED indicators provides additional control and system status monitoring.
Dynamic power adjustment technology balances charging current against connected AC loads, helping keep equipment powered without overloading the available AC supply.
Plug-and-play AC connectivity includes an IEC input and two AC outlets, eliminating the need for hardwiring. Integrated RCBO protection provides overload and earth leakage protection, while intelligent variable-speed cooling fans help regulate operating temperature and minimise unnecessary fan noise.
The compact slimline design is suited to space-limited vehicle and off-grid installations. The unit supports LiFePO4, AGM, CAL and GEL battery chemistries and also includes a USB-A output for charging compatible phones, tablets and other devices.
Note: An additional switch panel must be purchased separately. Panels must be the same model to pair – for example, two 8-Gang panels or two 12-Gang panels. Different models cannot be synced together.

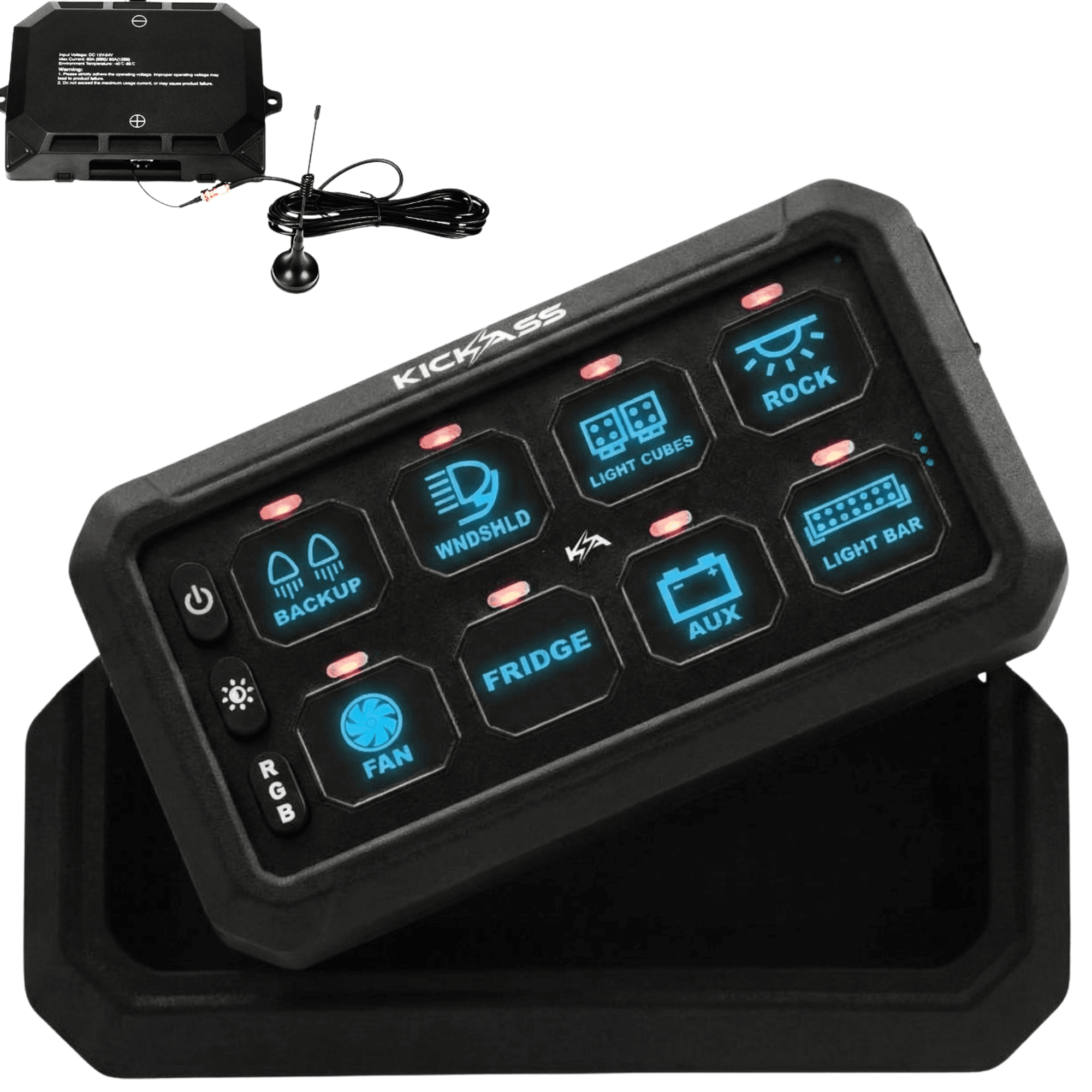

Control your DC switch gear from this sleek, premium 8-Gang Switch Panel. Enjoy app-free, wireless control from a range of up to 60 meters. Comes with a magnetic charging dock, so you can recharge straight from your switch panel’s cradle. No messy cables or loose USB ports – just a sleek, elegant setup.
NOTE: Not compatible with previous MKI control box and switch panels. A complete new MKII control box and switch panel upgrade is required.
KickAss Features:
Wireless control
Operate your DC appliances remotely from a distance of up to 60 meters, which is a much greater range than Bluetooth offers. No need to download apps or have your phone with you, or worry about complex cable routing between the panel and your control box. Simply grab your panel and go!
Rechargeable battery
The switch panel comes with a convenient, built-in rechargeable battery, meaning you can say goodbye to the hassle and expense of replacing disposable batteries – simply plug it in via the USB cable provided.
The battery charges fully in just 2-3 hours and can last for an impressive 5-6 days. Keep track of your battery status easily with the convenient battery indicator, which displays three clear levels: low, medium, and full.
High current capability
The 8 Gang Switch Panel has a high current capability, and can handle up to 60A at either 12V or 24V. This means you can simultaneously use high and low current devices – for example a speaker, camping fridge, camping lights, winch, air compressor, etc.
Multi battery capability
The control box switch offers two options to obtain power: you can connect ACC (Accessory power) to the starter battery, or alternatively to the auxiliary battery. If you prefer to operate your electrical devices (for example your horn, lights, and radio) only in ACC mode, selecting the ACC setup allows you to do so.
IP65 Dust & Water Resistance Rating
With an IP65 rating, the 8 Gang Switch Panel is perfect for outdoor adventures. It can withstand some dust and moisture exposure and continue to function. It should not be submerged in water.
Double sided outlet
The switch panel features a current control box that splits the output into two sides, allowing for versatile wiring configurations and minimising wire clutter. It includes two 30A, two 20A, two 15A, and two 10A outlets, with one of each type on either side of the panel.
Prewired ACC fuse tap
The pre-wired ACC fuse adapter makes it easy to connect the control box to the vehicle’s fuse box, without having to cut, splice or damage the vehicle’s existing wiring. Quick, easy installation!
Enhanced safety features
The 8 Gang Switch Panel is equipped with a 60/80A circuit breaker, blade fuses (plus a spare), and compact solid-state relays. This protects the switch panel from damage caused by thermal, overload and over-currents.
Multiple mounting options
Comes with two bracket mounting options for the switch panel and control box. All essential mounting hardware is included, as well as instructions and suggestions for optimal placement within your vehicle.
Adjustable lighting & on/off switch
There are three lighting modes: a constant light, a momentary light, and strobe modes. You can also choose between five brightness levels, as well as a number of colours and a dedicated switch to turn the backlight on and off. Enjoy total control of your setup.
DIY switch panel labels
Comes with 140 stickers to label each switch and its connection. Almost everything is covered!
Magnetic Charging Cradle
The unit comes with a magnetic charging cradle, which will keep your switch panel powered up without the hassle of loose cables or worn-out USB ports. Just line up the panel with the dock and it snaps neatly into place, delivering a safe, secure charge every time. It’s a seamless way to ensure your unit is always ready to go – clean, simple, and completely cable-free.
Power your 3200W inverter setup with heavy-duty cabling built to handle serious current. This premium wiring kit pairs 95mm² tinned copper cable with a flexible silicone sheath for easier routing and installation, plus a MEGA fuse and spare. Purpose-built for the KickAss 3200W Bi-Directional Inverter Charger.
Give your KickAss 3200W Bi-Directional Inverter Charger the heavy-duty connection it needs. This premium inverter wiring kit uses substantial 95mm² tinned copper cable to support high-current power transfer, while helping resist corrosion in tough touring and off-grid environments. It’s a purpose-built solution for high-powered inverter installations in caravans, camper trailers, 4WDs and other 12V setups.
Despite its heavy-duty construction, the cable features a flexible silicone outer sheath that makes routing through your setup easier, including around bends and through tighter spaces. A high-current MEGA fuse is included for circuit protection, along with a spare, giving you the key cabling and protection components needed for a clean, dependable 3200W inverter installation.
The KickAss Remote Smart Lithium Battery Display Unit is compatible with the KickAss Smart and Ultra-X series batteries. Simple plug-and-play via the RJ45 connector, it allows you to monitor State of Charge (SOC), voltage, real-time current, and temperature of either a single battery or multiple batteries connected in parallel or series. Includes 5m extension cable. No shunt required!
The KickAss Remote Smart Lithium Battery Display Unit is compatible with the KickAss Smart and Ultra-X series batteries. Simple plug-and-play via the RJ45 connector, it allows you to monitor State of Charge (SOC), voltage, real-time current, and temperature of either a single battery or multiple batteries connected in parallel or series. Includes 5m extension cable.
Take full control of your battery system with the KickAss Battery Display Monitor – your window into real-time performance, protection, and peace of mind.
Monitor Your Battery Like a Pro
Never guess your battery’s health again. With a full-colour screen, you can instantly view:
Built-In Battery Management System (BMS)
The integrated KickAss BMS keeps your battery safe — actively protecting against:
Stay alerted with smart error messages and stay in control from your display or compatible mobile device.
Easy Flush-Mount Design
Install it where you need it most. Whether it's in your canopy, van, or camper setup, the flush-mount design with included screws and universal hole spacing makes installation fast and secure.
Compact Dimensions
The KickAss Battery Display Monitor isn’t just for looks – it’s your off-grid command centre. Whether you're heading bush or running gear off your canopy, this screen keeps your system protected and your trips worry-free.
Control and monitor your KickAss Bi-Directional Inverter Charger from a convenient location. This plug-and-play remote features an OLED screen displaying real-time AC output power, dedicated status LEDs, flexible flush or surface mounting and an included two-metre RJ45 cable. Compatible with both 2200W and 3200W models.
Put convenient inverter control and monitoring within easy reach with this remote for KickAss 2200W and 3200W Bi-Directional Inverter Chargers. Switch your inverter on and off without needing direct access to the unit, while the integrated OLED screen displays real-time AC output power so you can keep an eye on appliance loads at a glance. Dedicated LED indicators also provide quick confirmation of bypass and battery-charging status.
Designed for a clean, flexible installation, the inverter remote can be flush mounted or surface mounted using the included frame, making it easy to position where it works best in your caravan, camper trailer, 4WD or off-grid setup. The included two-metre RJ45 cable provides a simple plug-and-play connection, while multi-remote capability lets multiple connected remotes work together for convenient inverter control from different locations.
| Voltage | 12V/24V DC |
| Power | 720W at 12V / 1440W at 24V |
| Maximum Current | 60A Total |
| Operating Temperature | -40°C to 85°C |
| Standby Power | <3mA |
| Battery | Rechargeable |
| Operation | Wireless |
| Weight | 2kg |
| Switch Panel Dimensions | 127mm x 69mm x 14mm |
| Fuse Panel Dimensions | 192mm x 133mm |
| Certification | EN 6100 |
⚠️ Voltage Warning
This switch panel is designed for 12V and 24V Nominal DC electrical systems only. Do NOT connect it to any power source exceeding 24V DC. Using an input voltage higher than 24V may cause permanent damage to the switch panel and will void the warranty.
⚠️ Wiring Warning
Only connect compatible output devices (such as lights, fridges and other 12V/24V accessories) to the panel's output ports. Do NOT connect input devices (such as battery chargers, solar panels or control signals), to the output ports. The switch panel is not designed for these connections. Incorrect wiring may cause permanent damage to the product and will void the warranty.
| Voltage | 12.8V |
| Capacity | 460Ah |
| Cell Type | Prismatic |
| Max Continuous Discharge | 300A |
| Max Continuous Charge | 300A |
| Peak Discharge | 660A @ 30 Seconds |
| Max Charge Temp | 60 Deg C |
| Min Charge Temp | 0 Deg C |
| Max Discharge Temp | 65 Deg C |
| Min Discharge Temp | -20 Deg C |
| Cycle Life | 4000 + Cycles @ 80% DoD |
| Bluetooth | Yes |
| Remote Display | Optional |
| Parallel / Series Remote Monitoring | Yes, up to 4 |
| Dimensions (Battery) | 550 x 460 x 126mm (LWH) |
| Weight | 48kg |
| Certifications | IEC 62619 Certification |
| DC Input Voltage | 10.5–15 VDC |
| Charger Output Voltage | AGM 14.8V | STD 14.4V | GEL 14.2V | LiFePO4 14.4V |
| Charger Output Power | 2200W Fast Charge - 165A DC Output | 800W Slow Charge - 50A DC Output |
| Supported Battery Chemistries | AGM, Standard (STD), GEL, LiFePO4 |
| AC Input Voltage | 196–264 VAC (nominal 230V / 50Hz) |
| AC Output Power | 3200W | 230VAC ±5% | 50Hz ±1 | Pure Sine Wave |
| AC Output Surge Power | 6400W |
| AC Max Input Current | 15A |
| Inverter Efficiency | ≥88% (tested 88.9%) |
| Transfer Time | Inverter -> Grid 10ms Max | Grid -> Inverter 15ms Max |
| THD | ≤4% |
| Standby Power | ≤20mA |
| USB | 2 x USB-A (18W Max) |
| Bluetooth | Yes |
| Communications | RS485 |
| Operating Temperature | -20 to +40°C |
| Dimensions | 478mm x 277mm x 96mm |
| Weight | 9.0kg |
| Protection | Integrated RCBO | USB SC Protection | DC UVP/OVP | DC Reverse Polarity Protection | AC Overload Protection | AC SC Protection | AC UVP/OVP | OTP/UTP |
| Certifications | CISPR14 | CISPR32 | IEC60335-1 | IEC60335-2-29 | AS/NZS4763 | AS/NZS4268 |
| Input Voltage | 9-16V |
| Communications | RS485 |
| Standby Power | 10mA |
| Operating Temperature | -20 to +50°C |
| Dimensions | 79mm x 68mm x 20mm |
| Weight | TBC |
| Certifications | RCM |
| Wire Size | 95mm² |
| Cable Length | 1000mm |
| Insulation | Silicone |
| Conductor | Tinned Copper |
| KickAss 12V/24V 8 Gang Wireless Switch Panel with Magnetic Charging Cradle - MKII | |
| KickAss Smart Lithium Battery Remote Display Unit + 5m Extension Cable Bundle | |
| KickAss 12V 460Ah Ultra-X Deep Cycle Lithium Battery - Compact | |
| KickAss 12V to 230V Pure Sine Wave 3200W Bi-Directional Inverter-Charger + Integrated Bluetooth |
Embrace off-grid living with the KickAss Triple 12V 460Ah Lithium Complete Dual Battery Kit. Designed for serious adventurers, this top-tier kit includes everything you need for a reliable power system no matter where you are. The 460Ah Ultra-X Deep Cycle Lithium Battery delivers long-lasting power, while the 3200W Bi-Directional Inverter-Charger ensures efficient energy conversion. With a DCDC to Alternator Wiring Kit and a state-of-the-art 8 Gang Wireless Switch Panel, this kit is the complete package for powering your off-road escapade. Stay connected with the Smart LCD Remote Switch & Display Unit and monitor everything through the Smart Lithium Battery Remote Display. Enjoy seamless integration and unparalleled reliability on every trip.
