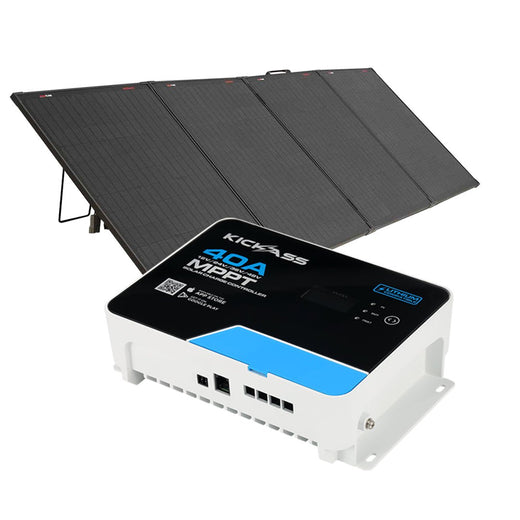

KickAss 12V 300W Super Thin Portable Camping Solar Panel - 40A MPPT Controller

KickAss Super Thin 300W Portable Camping Solar Panel

The all NEW KickAss Super Thin 12V 300W Solar Panel Range is revolutionising the 12V portable solar panel market.

Constructed from A-Grade Monocrystalline Solar Cells and a 17mm lightweight aluminium frame, KickAss has created an exceptional 300W solar panel that is designed to travel Australia with you.

But what makes these so KICKASS?

• They are hail-proof and shockproof, making them the perfect portable solar panels for the toughest Aussie tracks.
• They are 100% weatherproof, including the pre-wired (and bypassable) PWM solar controller mounted on the back of the panel, meaning you can leave them out no matter what the weather.
• They are constructed with stainless steel and aluminium fittings which means you never have to worry about rust damaging your portable folding solar panels.
• They feature a smart-magnet system to keep your 300W solar panel closed without the need for bulky latches.
• They are constructed using a 1.2mm fibreglass, heat resistant PCB backing to ensure the portable solar panels remain strong and are resistant to sagging over time.
• KickAss 300W Folding solar panels are simple to set up, pack down, and carry around. They are the best choice when it comes to solar power for camping.

Solar Cells

They have outstanding solar efficiency rating, up to 20% thanks to the high quality A-Grade Monocrystalline Solar Cells used.

The Solar Controller:

-The included waterproof PWM Solar Controller with anderson style plugs can be connected directly to AGM, Lead Acid, Gel & Calcium batteries.

solar controller can easily bypassed if you have an existing solar controller or KickAss DCDC Battery Box with built in MPPT.

The Extras:

They come in a high quality, heavy duty carry bag with YKK zips.

They pack down smaller than most metal frame solar panels on the market and weigh over 50% less! The perfect portable solar panels for camping.

Here’s a quick weight comparison between each Super Thin model and their equivalent Glass Panel:

KickAss Super Thin 300W Solar Panel’s are highly durable, impact-resistant and shatterproof, making them the most heavy duty portable camping solar option on the market and the perfect solar panels for camping.

What’s in the box?

1 x KickAss Super Thin Solar Panel

1 x Heavy Duty Carry Bag with Accessory Pocket

1 x Built-in PWM Solar Controller (10A - 150W, 20A - 200W / 300W)

1 x 5M Anderson to Anderson Extension Cable (2.5mm² 10B&S)

1 x Anderson to Alligator Clip Adaptor

*Manual available online to download

*Not fit for Marine applications

Features:

The KickAss 40A 12/24V MPPT Solar Controller features the most advanced dual-peak / multi-peak tracking technology available on the market.

Highly Efficient MPPT

With a high tracking efficiency rating of no less than 99.5% and a peak conversion efficiency rating of 98%, you can rest assured knowing you’ve got the best of the best charging your dual battery system.

The KickAss 12/24V MPPT Solar Controller range accurately recognizes and tracks multiple power points and features a built-in self diagnostic technology that can help prevent damaged caused by installation and system failures.

Battery Temperature Sensor

Including a Temperature Sensing Probe, when connected from the KickAss 12/24V MPPT Solar Controller to your battery, the MPPT unit will limit the amount of current output to your battery, to prevent overheating and over-charging in the event there is a fault with the connected battery

LCD Display

With an easy to read LCD display, the KickAss 40A 12/24V MPPT Solar Controller will dynamically display all of the most important charging information (Please Note the LCD is not backlit).

Pair with either:

• KickAss Bluetooth LED Remote Control Display
• KickAss Bluetooth MPPT Module

For ease of viewing when your controllers are in tight spots. Both of these devices can connect to the Solar App on your smartphone, for even more convenience!

**Please Note: this unit is not a full battery management system, it is simply an MPPT with a load output**

Key Features:

• 99.5% Tracking Efficiency
• 98% Peak Conversion Efficiency
• Built-in Self Diagnostic Technology
• LCD Easy Read Display
• LED Indicators for Charging, Battery, Load and Faults
• RJ12 Communication Interface
• Temperature Sensing Probe
• Lithium Compatible

Electronic Protections:

• Input Power Limit Protection
• Battery Reverse Polarity Protection
• Solar Input High Voltage Protection
• Solar Input Short Circuit Protection
• Solar Panel Reverse Polarity Protection
• Load Overpower Protection
• Load Short Circuit Protection
• Reverse Charge Protection
• Over Temperature Protection for internal heat protection of the MPPT unit
• Over Temperature Protection for your battery (Temperature Sensing Probe must be attached)

Please Note: This MPPT Controller is not waterproof.

This unit is not a full battery management system, rather a charge controller that can supply power to small accessories such as LED lights. Due to the relationship between the load output and solar input (daylight/darkness etc) the load output does not supply consistent power suitable for operating appliances such as a fridge/freezer. We therefore do not recommend connecting electronics such as a fridge/freezer that require reliable consistent power directly to the MPPT Solar Controller. Instead, all accessories should be directly connected to your battery bank via appropriately fused circuits.
