Power your adventures with this complete dual battery kit, featuring a 300Ah lithium battery, DCDC charger, and wiring kit for seamless off-grid power.

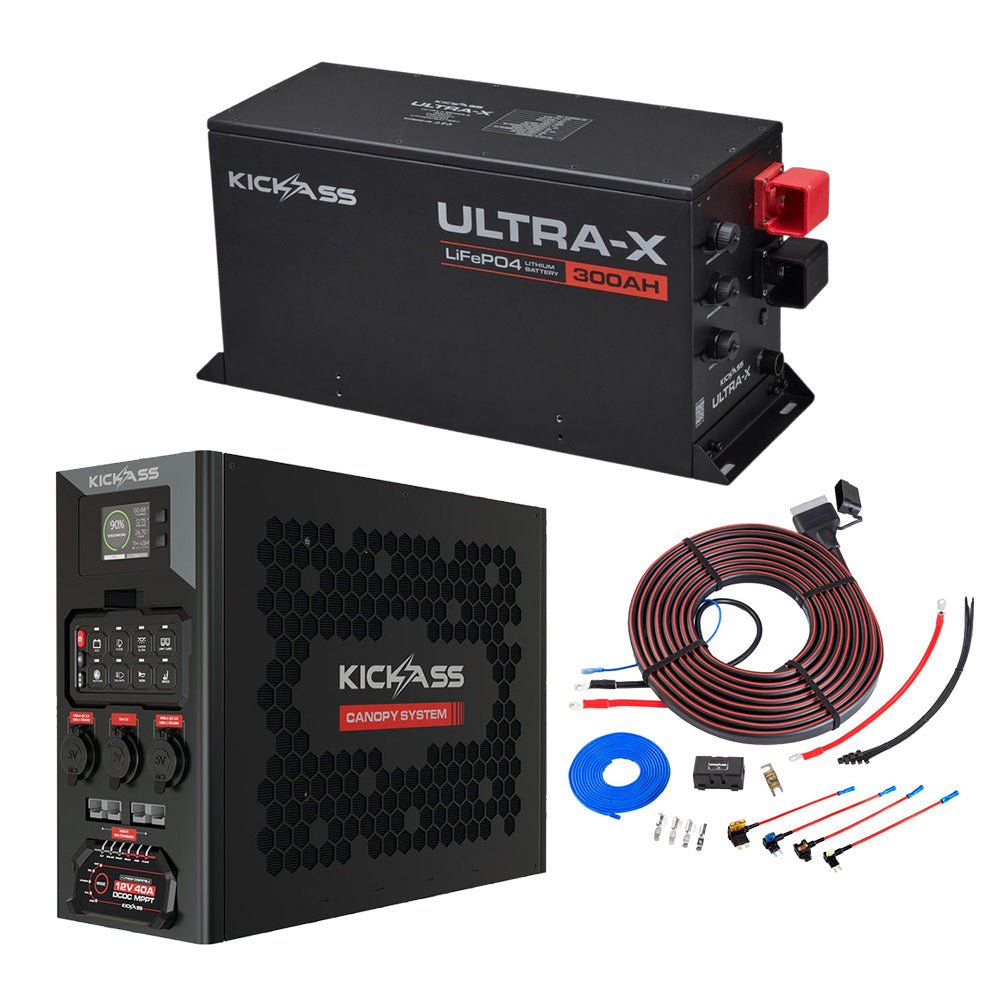

Everything that is included in this KickAss kit!

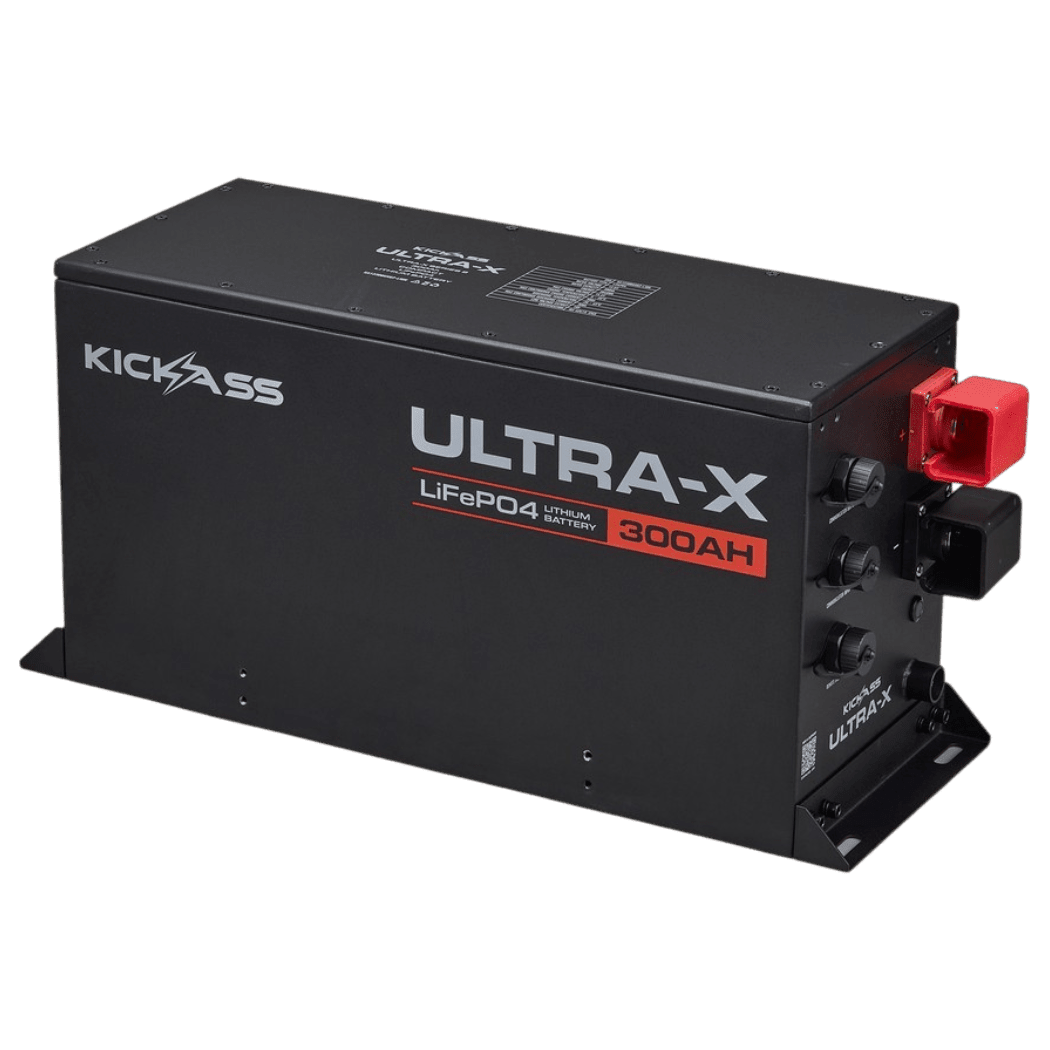

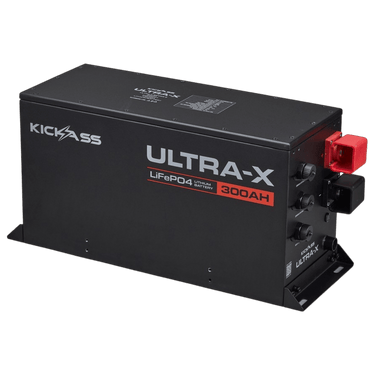

The first release in the new Series 2 Ultra-X battery range, this 300Ah lithium power house packs 300Ah of usable capacity into a compact design that can be installed anywhere from under beds in caravans to the back of ute tubs. Connect up to four in parallel or series & monitor the entire battery bank remotely via Bluetooth – no external shunt required. Supports AS/NZS:3001 compliance.
The KickAss Smart 12V 300Ah Ultra-X Lithium Compact Deep Cycle Battery LiFePO4 is the first battery in the second series of our premium Ultra-X range, building on everything customers already love. This second series introduces a new look along with key upgrades including an IP65-rated enclosure, integrated Low Voltage Recovery (LVR) button, and supports AS/NZS 3001.2 compliant installations. It's the next evolution of KickAss Ultra-X Lithium Batteries, delivering the same premium performance with even more capability.
With 300Ah of usable capacity and a 300A continuous discharge, it's built to power demanding off-grid setups, making it the ideal battery to pair with a 3000W inverter for running fridges, induction cooktops, coffee machines, power tools, lighting and other 12V and 240V appliances at the same time. This high-performance 12V lithium battery gives you more power without taking up valuable space.
Its compact form factor opens up installation options that simply aren't possible with many large-capacity batteries. Mount it neatly beneath caravan beds or bench seats, inside ute tubs under roller covers, within canopies or in camper trailers. A built-in vent means that the battery supports AS/NZS 3001 compliant installations, while the rugged metal housing, IP65 rating and intelligent Battery Management System ensure reliable performance in harsh Australian conditions.
Bluetooth monitoring lets you check battery status, capacity, voltage, temperature and current directly from your smartphone, while the optional Remote Display provides the same information for those who prefer a dedicated screen. If you accidentally run your battery too flat, then the integrated Low Voltage Recovery (LVR) button makes it easy to reawaken the BMS after an over-discharge, helping you get back on the road with the touch of a button.
As your power needs grow, your battery system can grow with them. Connect up to four Ultra-X 300Ah lithium batteries in series or parallel to create a powerful battery bank, then monitor the entire system through the KickAss app or Remote Display without needing an external shunt. The KickAss Ultra-X 300Ah LiFePO4 Battery delivers a cleaner, simpler and smarter way to build a scalable off-grid power system.

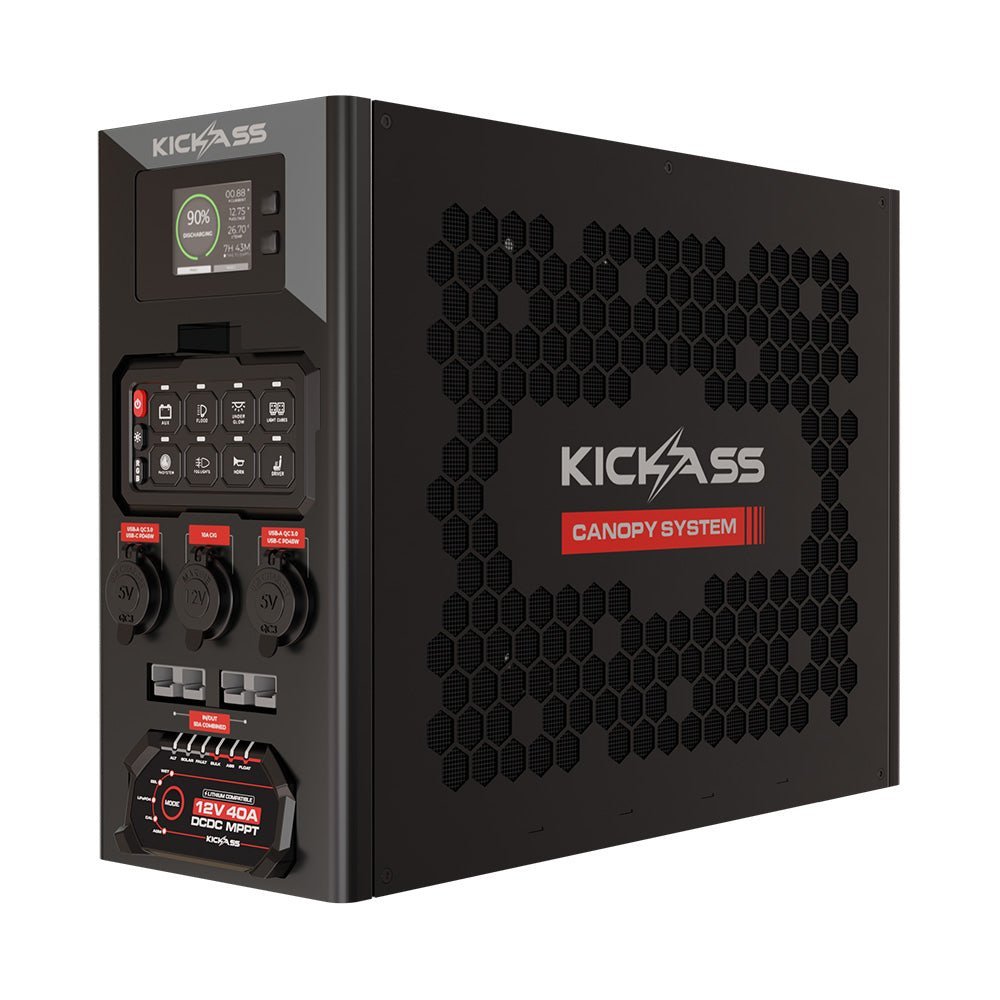

The new and improved KickAss Canopy System makes 12V setups even easier. It now features wireless digital switching and built-in Bluetooth, so you can monitor charging status and performance straight from your phone. With its MPPT solar controller, 40A DCDC charger, and fast-charging outputs, it’s specifically designed to be an off-grid solution for canopies.
The new and improved KickAss Canopy Power System takes the hassle out of building a reliable 12V setup. Instead of sourcing multiple components and wiring them together, this upgraded all-in-one unit brings everything into a single, streamlined package that’s easy to install and ideal for DIYers. It integrates your MPPT solar controller, 40A DCDC charger, USB fast-charging outputs, and a fully redesigned wireless 8-gang switching panel.
This latest version now features wireless digital switching, giving you the freedom to control your accessories from a detachable panel you can carry anywhere around your setup. When the switch panel’s battery runs low, simply return it to the magnetic charging dock… it snaps in securely and tops up automatically. The system also includes new Bluetooth monitoring of the DCDC charger, allowing you to connect via the supporting app to configure the device and view real-time charging data such as solar and alternator input current, battery charge current, charging stage, and system alerts.
Engineered for seamless pairing with KickAss Smart Series and KickAss Ultra-X LiFePO₄ batteries, the updated Canopy Power System delivers maximum compatibility, safety, and efficiency. Select the KickAss lithium battery that suits your build and enjoy a complete, modernised off-grid power solution.
Note: The display and Bluetooth app monitoring features are compatible only with KickAss Smart Series and KickAss Ultra-X Lithium Batteries.

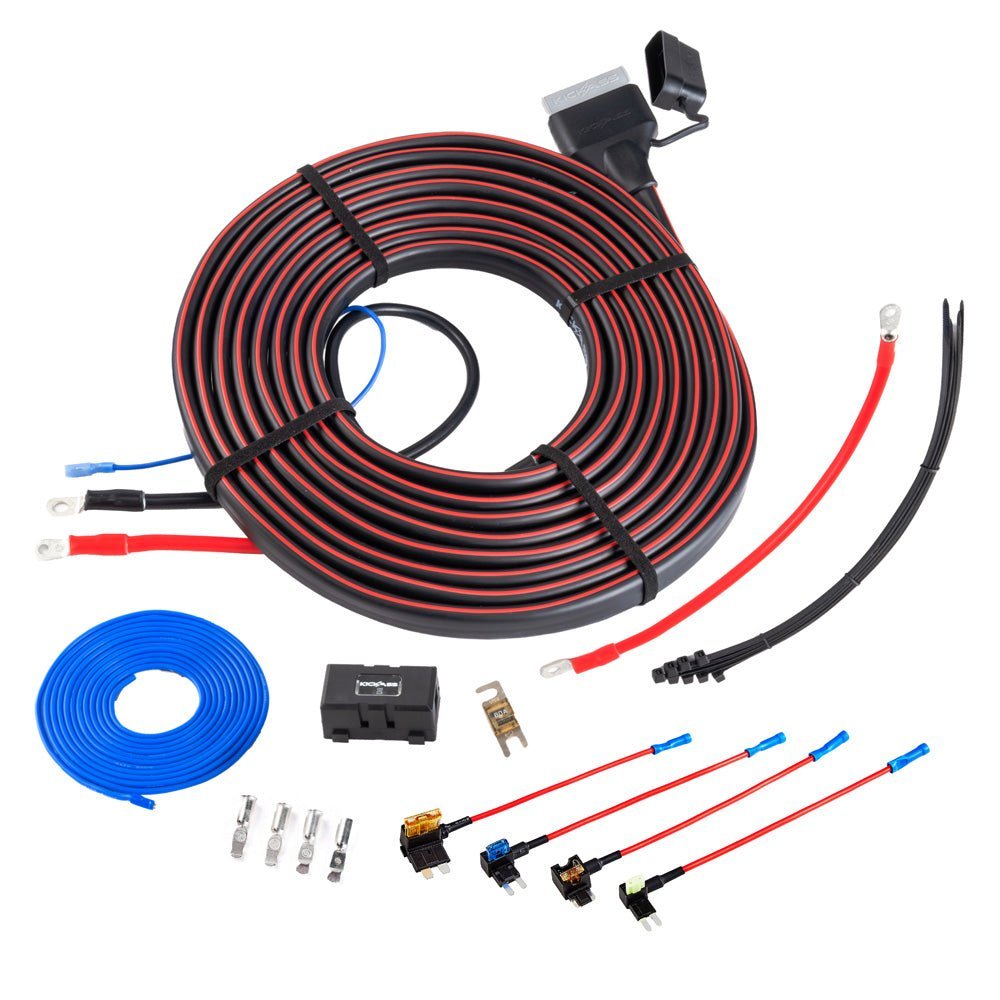

This 3-pin Anderson-style connector with built-in ignition wire makes connecting your 12V dual battery system easy. Perfect for wiring DC/DC chargers, battery boxes & auxiliary batteries.
This 3-pin Anderson-style connector with built-in ignition wire makes connecting your 12V dual battery system easy. Perfect for wiring DC/DC chargers, battery boxes & auxiliary batteries.
| Main Cable Length | 6.5M - 3 Core |
| Ignition Cable Extension | 3M - 14AWG Single Core |
| Cable Size - 3 Core | 2x 6AWG (13.5mm²), 1x 14AWG (1.8mm²) |
| Insulation Material | Inner - Silicon / Outer - PVC |
| Rated Temperature | Max. 105°C |
| Ring Terminals | M8 - Battery / M6 - Fuse |
| Fuse | 80A MIDI Fuse with Holder |
| Connections | 3 Pin Anderson Style / Bullet |
| Cig Socket Outputs | 1 x 10A |
| USB Outputs | 2 x USB-C 45W | 2 x QC3.0 |
| Anderson Input / Outputs | 5 |
| Anderson Inputs | 3 Pin Alternator | Unregulated Solar |
| Digitally Switched Outputs | 8 |
| Battery Connection | 175A Anderson |
| Operating Temperature | -20°C to +50°C |
| Product Dimensions | 440 x 160 x 320mm (L x W x H) |
| Product Weight | 9.35kg |
| DCDC-MPPT | |
| Charger Output Voltage Range | 3–16V DC |
| Alternator Input Voltage Range | 9–32V DC |
| Solar Input Voltage Range | 9–32V DC |
| Maximum Input Current | 56A |
| Maximum Continuous Charging Current | 40A |
| Efficiency | Solar - 99% Max | Alternator - 92% Max |
| No Load Current Draw | 10 mA |
| Charge Profile | |
| Absorption Voltage | GEL - 14.1V | WET - 14.4V | AGM - 14.7V | CAL - 15.3V | LiFePO4 - 14.5V |
| Float Voltage | GEL - 13.5V | WET - 13.4V | AGM - 13.4V | CAL - 13.6V | LiFePO4 - NA |
| Minimum Auxiliary Battery Voltage | GEL/WET/AGM/CAL - 9V | LiFePO4 - 0V |
| Alternator Charge Conditions | |
| 12V Alternator Input (Ignition OFF) | CUT-IN 13.2V | CUT-OUT 12.6V |
| 12V Alternator Input (Ignition ON) | CUT-IN 12.2V | CUT-OUT 10.5V |
| 24V Alternator Input (Ignition OFF) | CUT-IN 26.4V | CUT-OUT 25.2V |
| 24V Alternator Input (Ignition ON) | CUT-IN 24.4V | CUT-OUT 21V |
| Voltage | 12.8V |
| Capacity | 300Ah |
| Cell Type | Prismatic |
| Max Continuous Discharge | 300A |
| Max Continuous Charge | 250A |
| Peak Discharge | 660A @ 30 Seconds |
| Ingress Protection | IP65 |
| Max Charge Temp | 60°C |
| Min Charge Temp | 0°C |
| Max Discharge Temp | 65°C |
| Min Discharge Temp | -20°C |
| Cycle Life | 4000+ |
| Bluetooth | Yes |
| Remote Display | Optional |
| Parallel / Series Remote Monitoring | Yes, up to 4 |
| Dimensions (Battery with terminals) | 242 x 180 x 460 |
| Dimensions (With Mounting Brackets) | 242 x 180 x 500 |
| Weight | 30kg |
| Certifications | IEC 62619, UN38.3, FCC, EMC |
| KickAss Heavy Duty Plug and Play DCDC Wiring Kit - 6.5m | |
| KickAss 12V Wireless Canopy Power System with 40A DCDC Charger + Integrated Bluetooth | |
| KickAss Smart 12V 300Ah Ultra-X Lithium Compact Deep Cycle Battery LiFePO4 - Series 2 |
Take your off-grid adventures to the next level with the KickAss 12V 300Ah Smart Lithium Complete Dual Battery Kit. This top-tier kit is designed to provide you with robust and reliable power solutions. It includes the powerhouse 300Ah Ultra-X Lithium Compact Deep Cycle Battery for exceptional energy storage.
The Wireless Canopy Power System features a 40A DCDC Charger with Bluetooth connectivity, allowing you to monitor and control your setup with ease. The Heavy Duty Plug and Play DCDC Wiring Kit ensures a seamless and efficient installation.
Built to withstand harsh Australian conditions, this comprehensive kit will let you explore further and stay powered up longer, without the hassle of running out of juice when you need it most.
