KickAss Wired Switching Canopy Power System with 40A DCDC Charger
Pickup available at Acacia Ridge Store
Usually ready in 1 hour
1 Year Warranty
This product is covered by a 1 Year Limited Warranty.
Description
The Canopy System simplifies your setup by eliminating the need to buy separate devices and wire them together yourself. This all-in-one, plug-and-play unit is very simple to install and is perfect for the DIY enthusiast. It integrates essential components for your four-wheel-drive vehicle, including an MPPT solar controller, DC to DC charger, Eight-Gang Switching Panel, and USB fast charging capabilities.
Designed to work in conjunction with the KickAss range of Lifepo4 lithium smart batteries, the Canopy System ensures optimal compatibility and performance. Choose the KickAss smart battery that best suits your installation needs for a complete power solution.
Note: The KickAss Wired Switching Canopy Power System is designed to work with KickAss Smart Series and KickAss Ultra-X Lithium Batteries. The display screen will not work with other battery types.
Specifications
| Assembled Dimensions | 44 (L) x 32 (H) x 16 (W) |
| Specifications | |
|---|---|
| Cig Socket Outputs | 1 x 10A |
| USB Outputs | 2 x USB-C 45W | 2 x QC3.0 |
| Anderson Input / Outputs | 5 |
| Anderson Inputs | 3 Pin Alternator | Unregulated Solar |
| Digitally Switched Outputs | 8 |
| DCDC-MPPT | |
| Input Voltage Range | 5-32V DC |
| Alternator Input Voltage Range | 9-32V DC |
| Solar Input Voltage Range | 10-32V DC |
| Maximum Input Current | 47A |
| Maximum Continuous Charging Current | 40A |
| Maximum Output Power | 500W |
| Fuse Size | 60A |
| No Load Current Draw | <15 mA |
| Efficiency | Approx. 93% when full load |
| Ambient Operating Temperature | -20 °C to +80 °C |
| Recommended Battery Capacity | |
| Lead Acid (WET, GEL, AGM, CAL) | 200 – 500Ah |
| LiFePO4 | 50 – 500Ah |
| Charge Profile | |
| Compatible Battery Type | GEL, WET, AGM, CAL, LiFePO4 |
| Absorption Voltage | 14.1V, 14.4V, 14.7V, 15.3V, 14.5V |
| Float Voltage | 13.5V, 13.4V, 13.6V |
| Minimum Auxiliary Battery Voltage | 9V, 0V |
| Alternator Input Conditions | |
| Input Voltage (Ignition OFF) | CUT IN 13.2V | CUT OUT 12.6V |
| Input Voltage (Ignition ON) | CUT IN 12.2V | CUT OUT 10.5V |
| Alternator Input Voltage (Ignition OFF) | CUT IN 26.4V | CUT OUT 25.2V |
| Alternator Input Voltage (Ignition ON) | CUT IN 24.4V | CUT OUT 21.0V |
User Manual and Support
KickAss has warehouses located on both the East and West Coast of Australia. Express orders are dispatched same business day if ordered before 12pm AEST. Standard orders are dispatched within 2-3 business days. Deliveries are made during business hours, Monday to Friday.
At KickAss, we take full control of our product journey - from concept to creation - by designing, engineering, and manufacturing our own batteries and 12V accessories in our wholly owned facilities located in Australia, China, and the USA. This end-to-end approach allows us to maintain strict quality standards, drive innovation, and deliver unbeatable value. By owning our production facilities, we ensure every product that carries the KickAss name is built tough, tested rigorously, and ready for off-grid adventure.
Change your mind? No worries, our quick & easy online or in-store returns process has you covered. Learn more.
BUNDLE & SAVE!
Getting started with the KickAss Canopy Power System is easy with the Essential Kit. This kit provides all the essentials to get your canopy system up and running.

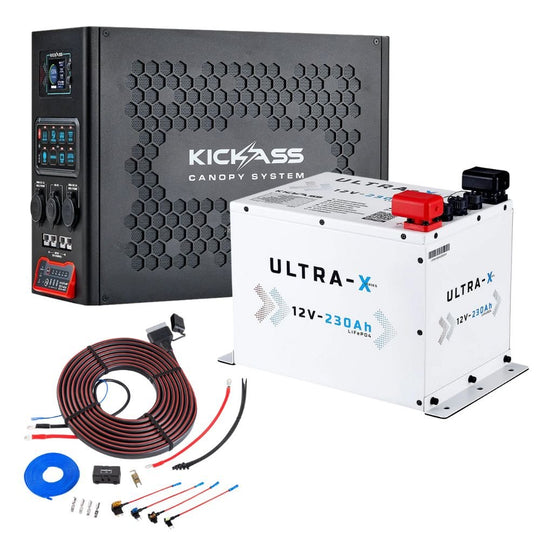

Complete canopy power system with 230Ah Ultra X battery and wiring kit for serious off-grid setups.
Upgrade your canopy to a complete off-grid power system with this Complete Kit. This all-in-one solution includes everything you need for reliable off-grid power.

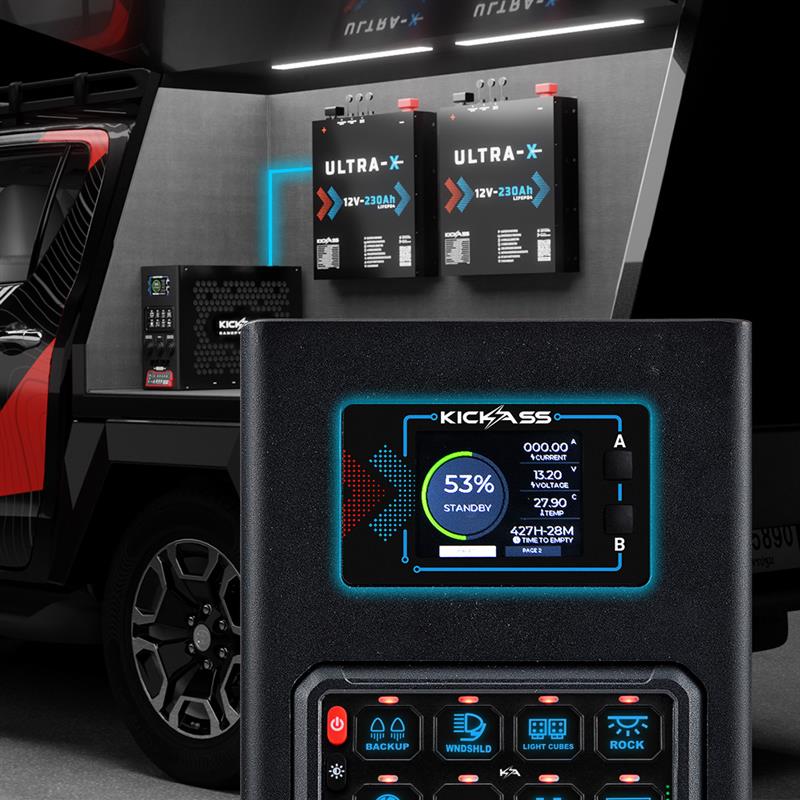

The front display shows the status of connected KickAss Lifepo4 lithium smart batteries, providing real-time insights into your power levels. This display will also indicate how much power is going in or out of the unit, as well as the estimated time remaining for charging or discharging.

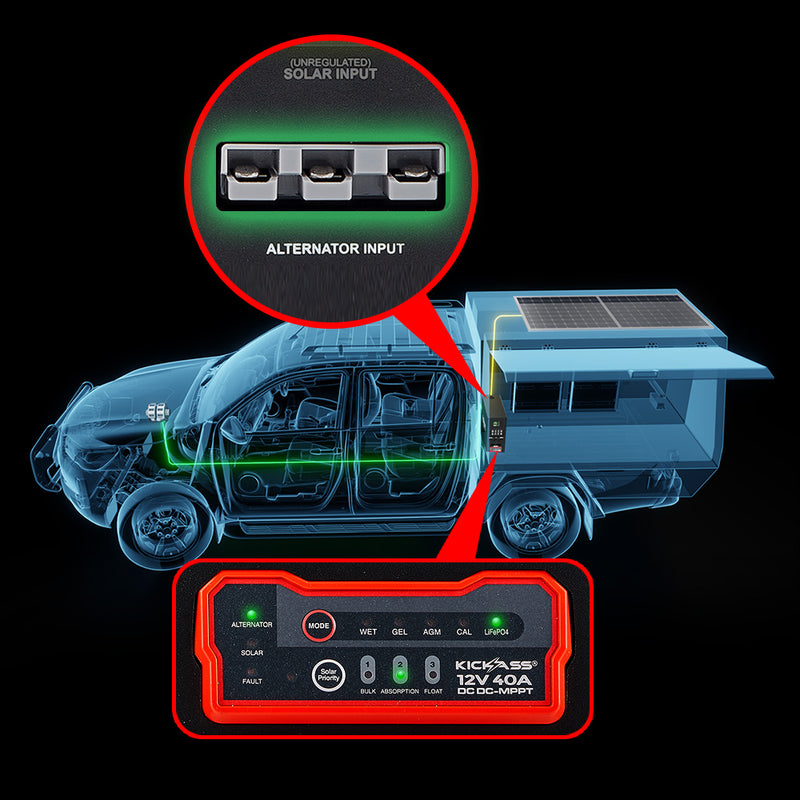

Allows your batteries to be charged quickly while driving.
Select the length of the vehicle charging cable you require in the kit builder at checkout.

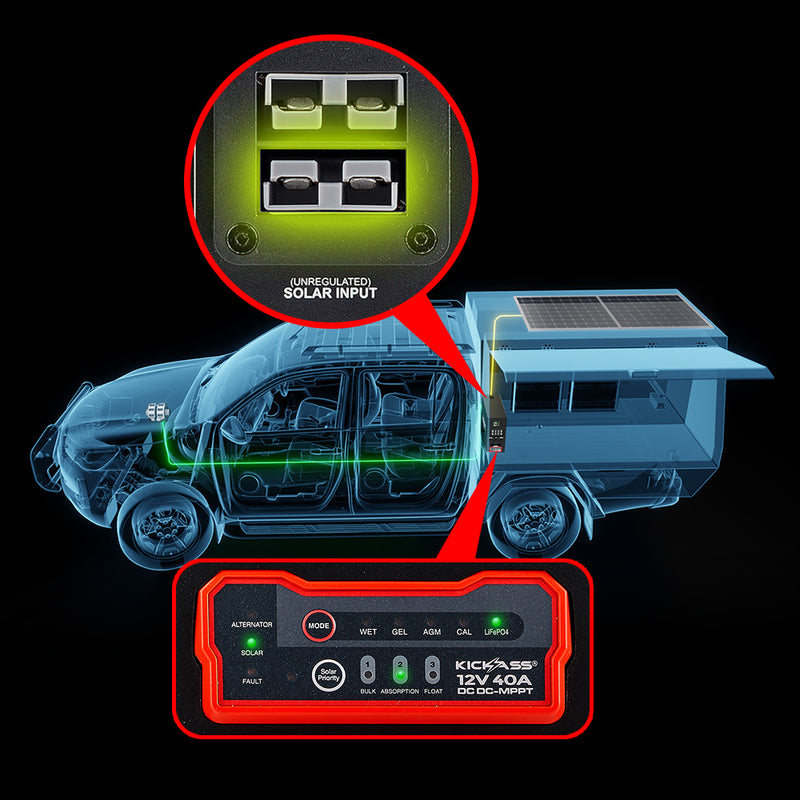

Allows for easy connection of solar panels. Use your own compatible panels if preferred or choose from a range of fixed and portable solar panels in the kit builder at checkout.

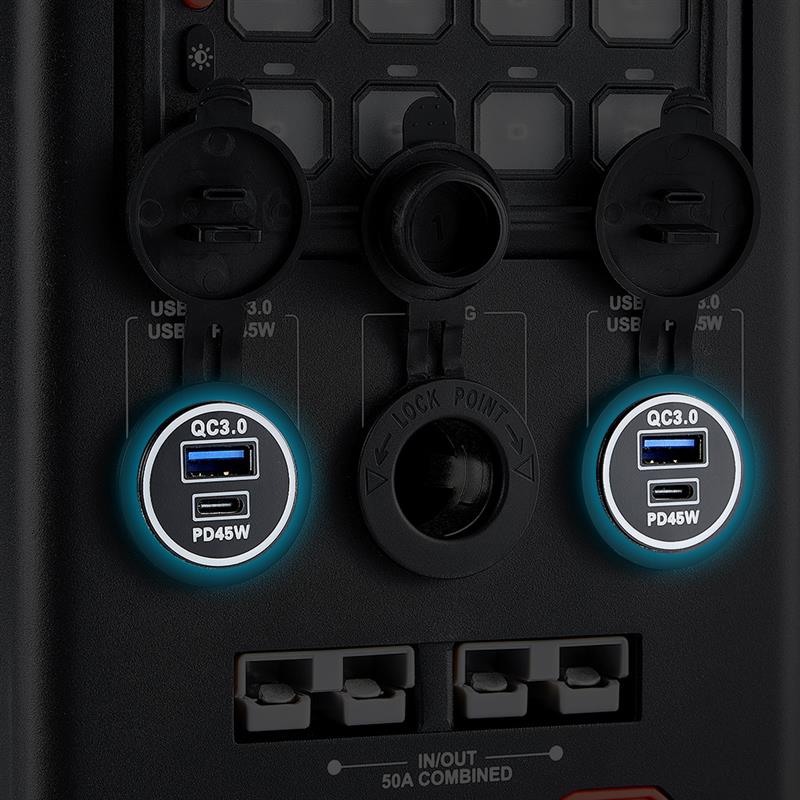

Charge your devices quickly with integrated fast charging USB ports (two USB-C and two USB-A), allowing you to power laptops, smartphones, tablets, and other devices efficiently.

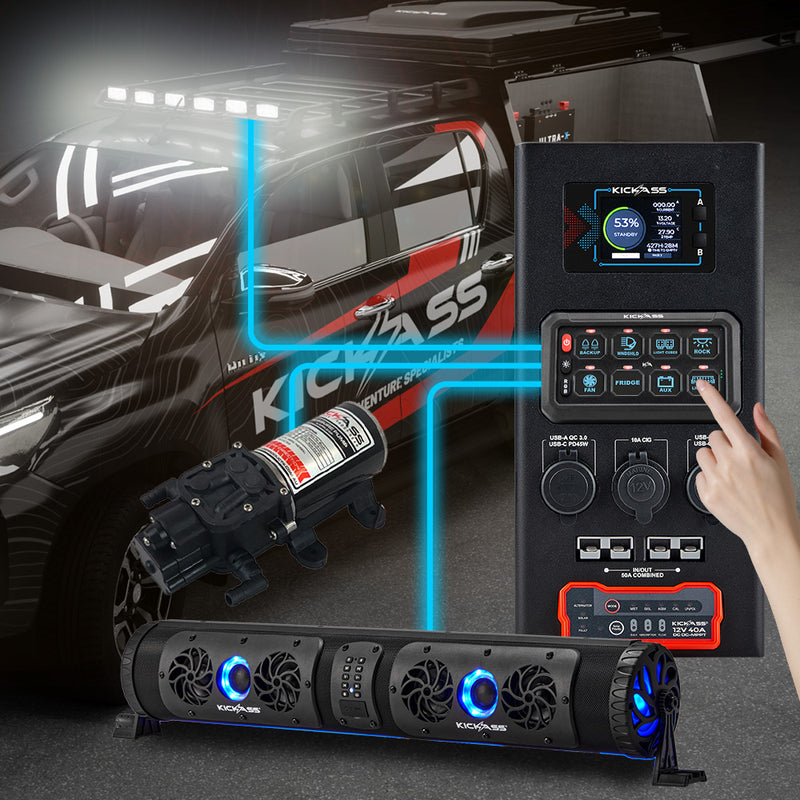

The switch panel on the front of the unit controls the internal switching module, allowing you to connect up to 8 devices.
Please note that the cigarette socket on the front is connected to one of the switches.

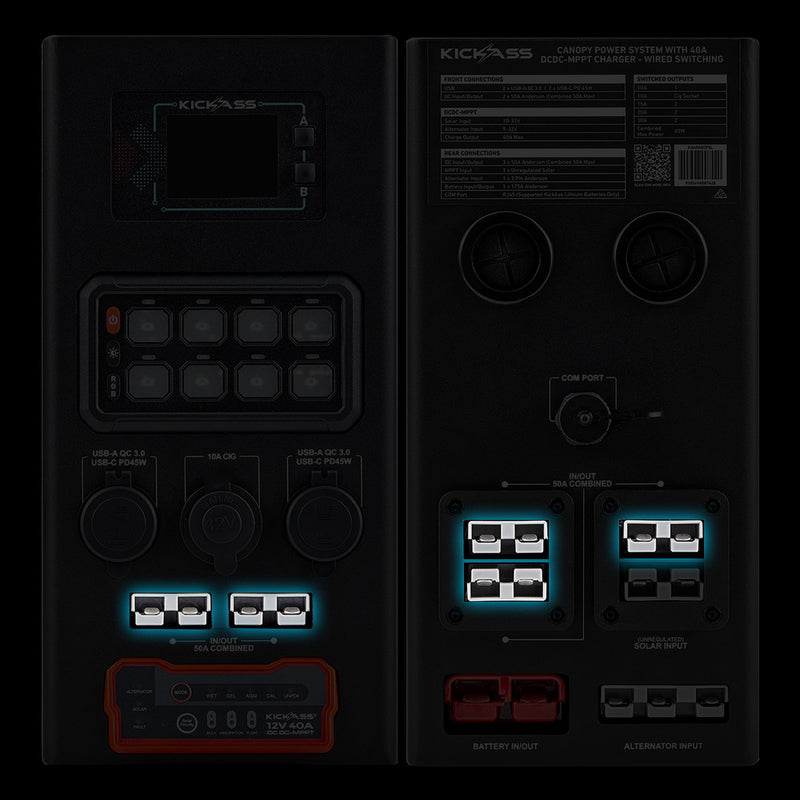

The unit features a total of five Anderson plugs for your convenience, which can be used as inputs or outputs. The front two Anderson plugs have a combined maximum current of 50 amps, while the back three Anderson plugs share a combined 50 amps as well.

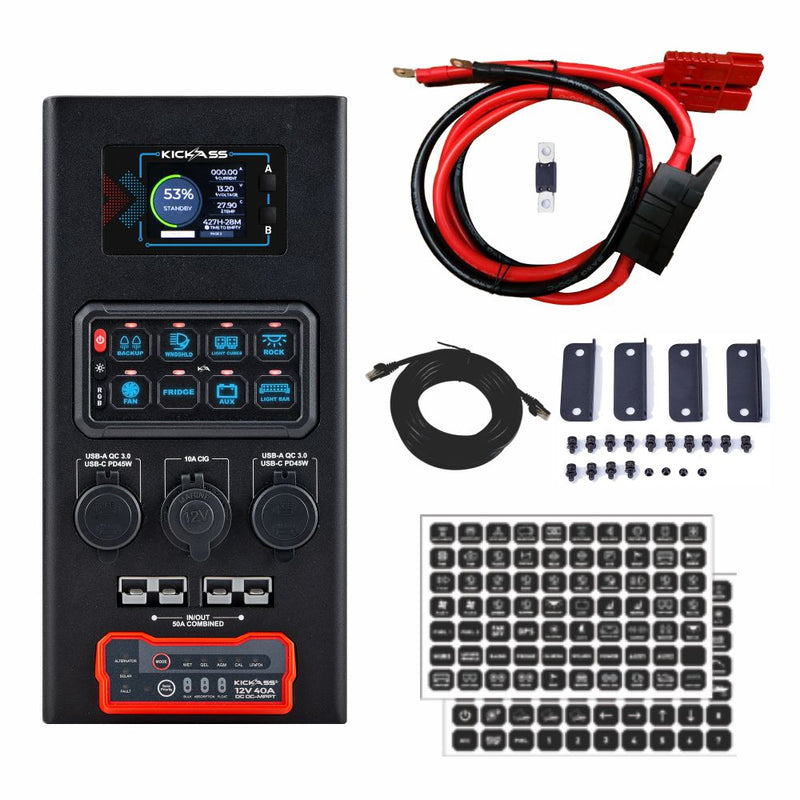

- 1x Canopy Power System
- 1x 2AWG/175A 1.6 Meter Long Auxiliary Heavy-Duty Battery Connection Cable: High quality, plug-and-play battery connection cable equipped with a large Anderson plug to connect to the Canopy System and fuse, ensuring a secure connection to your KickAss Lifepo4 lithium smart batteries.
- 1x RJ45 Cable
- 1x Mounting Kit
- Switch Panel Sticker Sheet

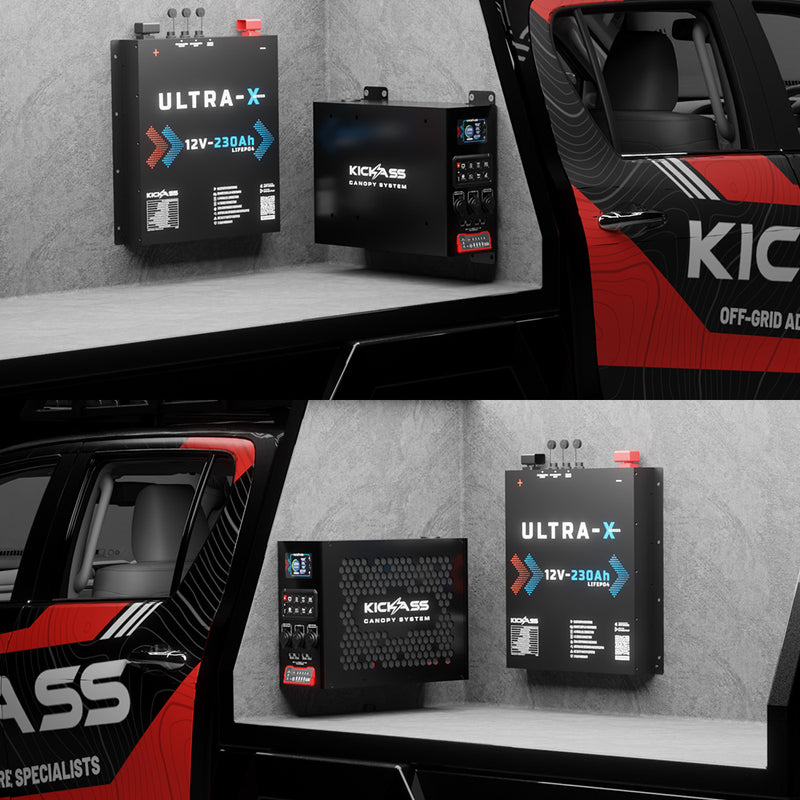

The Canopy System is designed to be installed on the passenger side of the canopy (footpath side of the vehicle) for safety & convenience. However, for added flexibility, brackets are included for installation on the driver side of the canopy.

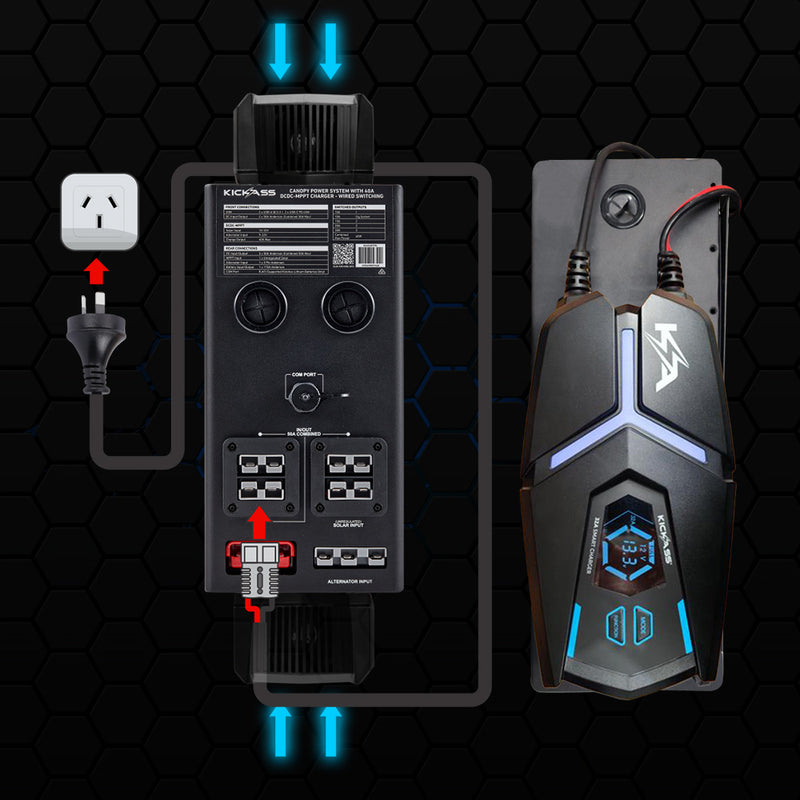

Charge your batteries and power any connected loads such as 12v Fridges with the optional KickAss 32 Amp AC to DC battery charger which can be mounted on the top, bottom of the unit or a separate location of your choice.
You can add your charger in the kit builder at checkout.

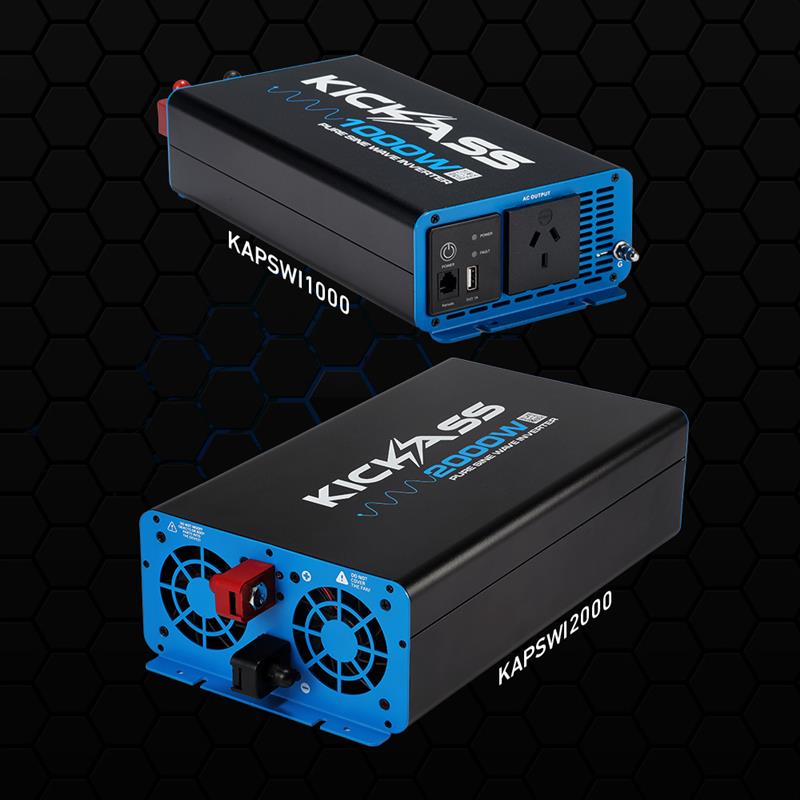

If you would like to power AC devices, an inverter can be added to the system.
- If your batteries are less than 200 amps of capacity, choose the 1000W inverter.
- For batteries with 200 amps or more, select the 1000 or 2000W inverter.
You can choose your inverter in the kit builder at checkout.

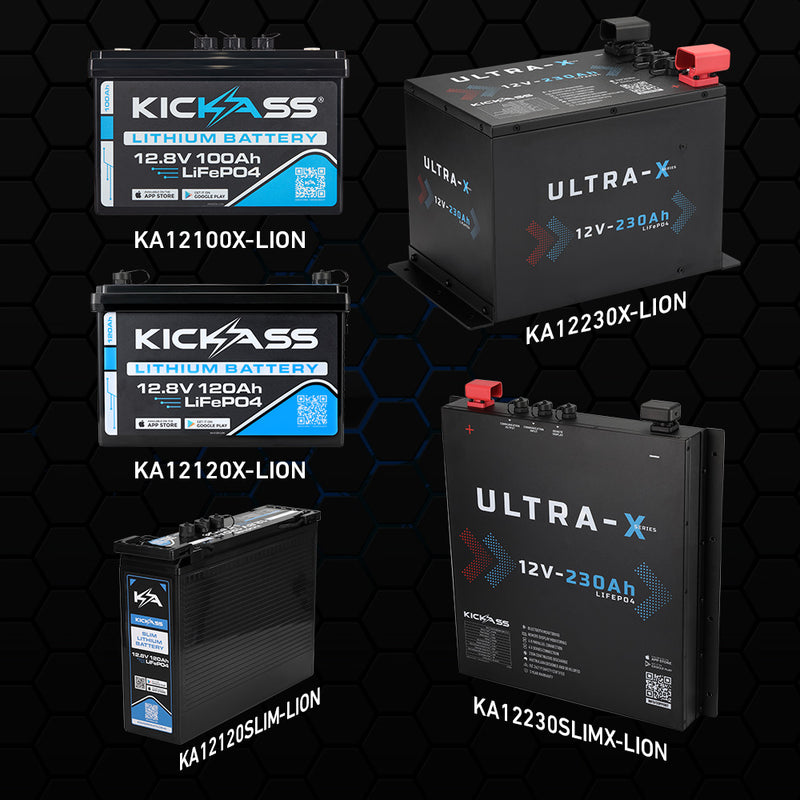

The KickAss Canopy Power System is exclusively compatible with KickAss Smart Series and Ultra X batteries, ensuring seamless integration and peak performance.
