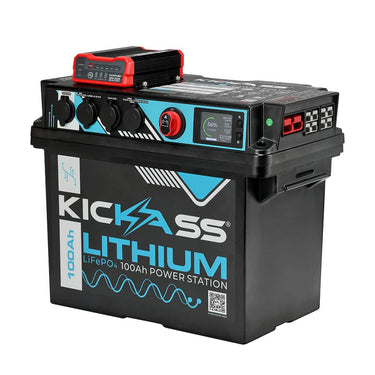

KickAss Portable Lithium Battery Box Power Station with 20A DCDC & 100Ah Battery
Pickup available at Acacia Ridge Store
Usually ready in 1 hour
5 Year Battery & 1 Year DCDC Charger, Lid & Components Warranty
This product is covered by an Australian warranty and easy in-store or online returns.
This power station includes a 100Ah lithium battery with 100A continuous discharge BMS (enough to run a 1000W inverter). Plus 20A DCDC charger for simple recharging. Supported by a Bluetooth app.
BUNDLE & SAVE!
SPECIFICATIONS
Technical Details
| Battery Weight | 21.45 kg |
|---|---|
| Battery Chemistry | LiFePO4 |
| Nominal Voltage | 12.8V |
| Battery Capacity | 100Ah |
| Max Charge Current | 100A |
| Max Discharge Current | 100A |
| Operating Temperature | Charge 0°C ~ 55°C, Discharge -20°C ~ 60°C |
| Self Discharge | <3% per month @ 25°C |
| 6 x (50A) Anderson Style Plugs |
Input / Output Capable Maximum Combined 50A Current Rating WARNING: 1. Do not plug in multiple chargers as inputs simultaneously 2. Do not use with an external charger while the integrated DCDC is charging 3. Exceeding the 50A combined rating will trigger the auto-resettable circuit breaker |
|---|---|
| 1 x (175A) Anderson Style Plug |
High Current Inverter Output The main battery isolator does not disconnect the battery from this terminal |
| 2 x Cigarette Socket Outputs | Maximum 10A output per socket |
| 2 x Dual USB-C / QC3.0 Outputs |
2 x PD 45W USB-C Output 2 x QC3.0 Output (5V/3.1A, 9V/2A, 12V/1.5A) |
User Manual & Support Docs
| KickAss Portable Lithium Battery Box Power Station with 20A DCDC & 100Ah Battery |
Detailed Description
KickAss 100Ah Lithium Battery Box With DCDC Charger - 20A
Feature Overview:
-
Integrated 20A DCDC Charger in Battery Box Lid
-
Supporting Bluetooth app
-
Integrated Battery Cells and BMS in the battery base with A-Grade LiFePO4 cells
-
100A BMS Discharge
-
Integrated Smart Display
-
Multiple Input/Output Ports
-
45W Quick Charge (perfect for laptops)
-
11 Levels of Safety Protection in the BMS
-
Integrated tie-down slots
-
Quick connect charging for Alternator & Solar
-
Lightweight
Integrated 20A DCDC Charger in Battery Box Lid
Comes with an integrated 20A DCDC charger, so no complex installations are required and you can recharge your battery easily using the plug-and-play Anderson-style connections. Lightning fast, on-the go charging – the 100Ah battery should recharge in under four hours.
Supporting Bluetooth app
Monitor your system from the convenience of your smartphone. The handy Bluetooth app will display data from your 100Ah Battery Box, including Voltage, Current, SOC, Temperature, and any relevant safety information from the BMS.
Integrated Battery Cells and BMS in the battery base with A-Grade LiFePO4 cells
The box has an integrated 12V battery with state-of-the-art BMS, featuring 100Ah of usable capacity and A-Grade lithium cells. It’s rated for over 3000 cycles at a 0.5C discharge/charge rate, so you can enjoy guaranteed performance.
100A BMS Discharge
The 100A continuous discharge BMS enables you to power 12V devices effortlessly, including up to a 1000W inverter.
Integrated Smart Display
Monitor your battery’s performance at a glance via the integrated smart display. Find comprehensive data on Voltage, Current, SOC, Temperature and more, and receive audible and visual warnings if your SOC gets low.
Multiple Input/Output Ports
The battery box features 2 x USB Socket Outputs, 2 x (USBA-2.4A + USBC-45W PD), and 6 X Anderson Input / Output, as well as Anderson Solar Input / 3 Pin Anderson Alternator Input. Charge all your 12V devices from the Cig and Anderson outputs, and experience ultra-fast charging for your smart devices via the 45W PD technology – the fastest charging available from any battery box on the market. Power up your laptop & iPad directly from your battery box, and stay connected and productive on the go.
11 Levels of Safety Protection in the BMS
The integrated BMS offers 11 levels of battery protection, so you’ll have peace of mind knowing that your power source is secure, protected, and will always operate safely.
Integrated tie-down slots
The integrated tie-down slots enable multiple mounting methods, making it easy to install your battery in your chosen spot. The tie-down slots are compatible with KickAss battery box mounting trays, and for some mounting methods eliminate the need for a battery tray altogether.
Quick Connect Charging for Alternator and Solar inputs
Quick connect charging options for both alternator and solar inputs allow seamless integration with your vehicle or solar setup for convenient, on-the-go charging. Staying fully charged has never been easier.
Lightweight
At only half the weight of an AGM equivalent, you also get double the capacity! So you get more power for your money.
