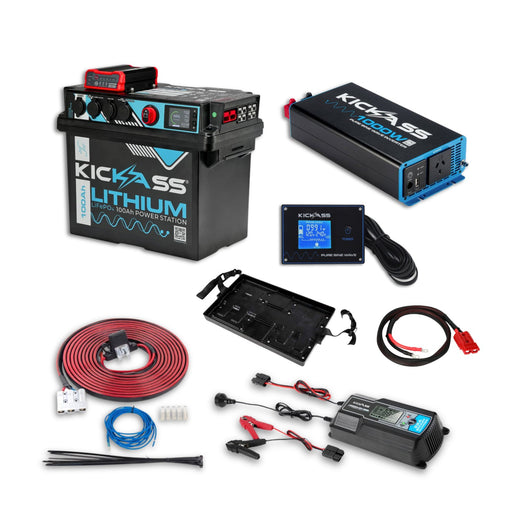

KickAss 100Ah Complete Lithium Dual Battery Box Kit

KickAss Features:

• 1000W Continuous Output
• Pure Sine Wave
• 94% Efficiency Max
• Multi-level Protection
• Surge Power: 2000W in 2 seconds
• Intelligent Fan
• Integrated Charging Port
• Multiple Mounting Options
• Optional remote control display

1000W Continuous Output

Seamlessly convert 12V DC power from your battery into 240V AC power that can be used to run everyday household appliances. Your next camping trip will be a lot more fun if you take your coffee machine and electric BBQ!

Pure Sine Wave

The inverter produces a clean and reliable pure sine wave which replicates the AC power you get from your wall-based power point at home. It is much cleaner and more reliable than a modified sine-wave, and is so stable that you can use it to run sensitive electronic devices like laptops, Starlink and CPAP machines. It will also reduce electromagnetic interference, extend equipment life, and run so quietly you'll barely hear it.

94% Efficiency

The inverter is highly efficient and will convert your power at a rate of 94% max efficiency. That means minimal waste during the conversion from DC to AC, and you won’t waste your battery’s capacity.

Multi-level Protection

The multi-level safety protection utilises both software and hardware features to protect you, your inverter and your devices. The inverter continuously monitors the input and output signals and will trigger a protection mode if the unit is detected to be operating in an unsafe state. Safety protection includes over voltage, overload, overcurrent, short circuit and reverse polarity.

Surge Power: 2000W in 2 seconds

With a peak surge rating of 2000W for up to 2 seconds, the inverter can power devices with a high inrush current, making it perfect for power tool battery chargers, microwaves, and induction cooktops.

Intelligent Fan

Your inverter will never overheat thanks to the intelligent fan system, which dynamically adjusts the fan’s speed. The smart fan ensures that the inverter stays cool and efficient – a cool inverter is an efficient inverter, and this will maximize your power output.

Integrated Charging Port

Recharge your gadgets easily directly from the inverter via the integrated 5V 2.1 USB port.

Multiple Mounting Options

The inverter has four convenient mounting points, which make it a breeze to install it in your camper, caravan, or canopy.

Optional remote control display

The optional remote control display unit enables you to track your power usage anytime and anywhere. The screen is low-profile and discreet and is easy to flush-mount. Install it in your camp kitchen to keep an eye on power usage when operating high-powered appliances like coffee machines or kettles. Once finished, shut down the inverter via the integrated on/off switch to save your battery.

KickAss 12V 22AMP - 9 Stage Automatic Battery Charger For Lead Acid, AGM & Lithium Batteries

Fast Charge Automatic Smart 22A Peak Output

Don’t let a dead battery ruin your weekend! Keep your vehicle’s battery healthy, charged & ready to use with the new KickAss 22 Amp Charger. The charger will automatically detect damaged batteries, intuitively repair them & actively provide long-term battery maintenance. Keeping your battery at its peak performance for years.

Multi-Chemistry Battery Compatibility Including Lithium (LiFePO4)

Compatible with AGM, GEL, Sealed Lead Acid, Flooded Lead Acid & LifePO4 Batteries. Perfect for charging several battery types including starter, deep-cycle, marine, powersports & more.

Connect Via Anderson Connectors or Alligator Clips

Connect the charger directly to a charge input Anderson connection on your battery box, or use the included Anderson to alligator clip attachment to connect directly to your battery.

AGM Recondition Mode

AGM Batteries are made to last for years without the need of reconditioning. However, if you have an AGM Battery that has not been used in a long period or has gone through a deep discharge, there’s now hope! The recondition mode can bring old AGMs back to life.

Lithium (7A) & Standard (7A) Trickle/Slow Charge Battery Modes

Charge smaller capacity lithium & STA Batteries. Ideal for charging batteries between 10-50AH for Gel, SLA, FLA & 15-120AH for Lithium Batteries (Related to batteries BMS setting).

Lithium Activation Mode

If your Lithium battery drops below the safety voltage parameters of the Lithium battery, toggle the 22A Charger Activation mode and the Charger will trickle Charge the battery until it reaches the cut-in voltage and will automatically start normal Charging cycles.

Quiet Night Mode (5A)

Enjoy a good night's sleep while your battery charges overnight. Quiet night mode will lower the output to 5A allowing you to get a peaceful sleep without any noisy fans keeping you awake! This can be activated on any charging setting.

Multiple Mounting Points & Hook Mounting

Four convenient mounting points allow for an easier and simpler installation to your caravan, camper or canopy’s 12V power setup. It also includes a hook mounting option if you wish to hang the charger from a wall or ceiling.

Easy Single Button Mode selection with LCD Screen

With the touch of a button, you can change your device’s charging modes. The LCD screen will indicate battery voltage level, charge mode & display any fault codes at any given moment, to exhibit what is occurring with your battery & charger.

Diverse Protection Features & Charge Memory

Polarity Protection, Short Circuit Protection, Over Temperature Protection & Charge Memory.

Built with comprehensive protection to protect your charger and battery.

Charge Memory

If the AC connection is disconnected for any reason during the charging process, the charger will automatically reconnect using the same charge mode.

KickAss Premium Plug & Play DC-DC Wiring Kit

Introducing our all new ultimate dual battery system wiring kit now featuring three pin 50 amp Anderon style connector with ignition wire.There is nothing like having the right parts to get the job done and the team at KICKASS have done just that in developing a premium plug and play wiring kit for installing a range of dual battery systems. We have carefully designed this premium kit for ultra easy DIY fittings. This wiring kit is now even easier to install with the pre-installed 80amp maxifuse and now features a three pin 50 amp Anderson connector with an ignition wire.

These kits are completely plug and play for any system that uses Anderson connectors for chagrin input and have everything you need for a professional wiring installation.The premium wiring kit now has our famous Maxifuse cable pre-installed into 6 Metres of Heavy Duty 8 B&S Cable, providing 50A of circuit protection. Now featuring the all new 3 Pin Anderson plug. Take the hassle out of connecting your 12V dual battery system. The built-in ignition wire into a three pin Anderson connector allows for easier installation, and removes the need to run multiple cables through your vehicle.

This cable is pre-crimped with Anderson connector terminals which makes it easy to run through holes and grommets. Once the cable is run, all you need to do is clip the Three Pin Anderson connector on. The kit also includes cable ties for securing the main cables, a spare 80A Maxifuse, 3m tail ignition wire and spare Anderson connector terminals

Backwards compatibility

The three pin Anderson is backwards compatible, meaning a two pin Anderson connection will work even if the ignition wire is not connected.

The KICKASS Premium DC-DC wiring kit is specifically designed for our DCDC charger and will not work with VSRs

Please use Dual Battery Wiring Kit for the following:

• Wiring to Battery System in the cargo area of the vehicle
• VSR's see our KAVSRAND which is fully compatible with this kit
• KickAss battery boxes and power packs
• Auxiliary Batteries - By using our KickAss Maxifuse Cable and Optional VSR

This kit includes:

• 6 x 50 Amp Anderson terminals
• 1 x 50 Amp 3 Pin anderson Connector
• 1 x 80Amp spare Maxifuse
• 10 x Black cable ties (300mm )
• 1x 3M tail Ignition cable

KickAss Battery Box Inverter Cables

Designed to connect KickAss inverters to battery boxes, these cables feature ring terminals that fit all KickAss products.

Safety Warning

Using high-powered inverters at full capacity for long durations may cause DC supply cables to become hot. Use the inverter at full power for no more than 30 minutes at a time.

Easy 175Amp Anderson-Style Connection

Features a 175Amp Anderson-Style plug for easy, optimal power connection to the battery box, ensuring plug-and-play convenience.

High Quality M8 Ring Terminals

Copper M10 ring terminals connect via the inverter screws for seamless connection between the battery box and inverter.

Superior Crimped Connections

Heavy-duty crimped connections on both ends ensure reliability.

Heavy Duty PET Braid Insulation

The cables are coated in PET insulating braid that is highly flexible and resistant to abrasion. It’s lightweight with a high thermal resistance, making it perfect for insulating and protecting your cables even in extreme weather and harsh environments.

KickAss Pure Sine Wave Inverter Remote Display Panel Feature Overview

Real Time Monitoring:

Unexpected power fluctuations can damage your equipment and waste your power. With real-time monitoring, you can track your energy generation and power usage, and spot any problems early on. This will keep your setup running smoothly and efficiently at all times.

Remote Control

Monitor and manage your power consumption from a distance – for example, if you’re sitting in the front seat, and have your inverter installed in the back of your truck. You’ll be able to access and manage your inverter system from anywhere within reach of the 3 metre cable.

Fault diagnostics

If your system malfunctions, it can be challenging and time consuming to figure out the cause. This KickAss Inverter Remote Display automatically identifies and reports faults within the inverter system, and delivers detailed diagnostics. Troubleshooting made easy!

Intuitive User Interface:

Information on the screen is clear and easy to understand. You can easily navigate through the settings, view energy metrics, and set alerts. No more guesswork – just clear data.

Compatible With Most KickAss Inverters

The remote display unit is compatible with KickAss 2000W and 3000W Inverters (not compatible with 700W or 1200W inverters). You can seamlessly integrate it into your existing setup, or upgrade your existing components easily.

Please note: This remote screen is not compatible with the older 700W, 1200W, 2000W or 3000W red KickAss Inverters.

KickAss Battery Box Tray

Materials

Tray: Hard durable anti-flex plastic.

Buckles: Metal

Straps: Thick anti-tear nylon
