Oricom UHF Handheld Radio 2 watt Twin pack
Pickup available at Acacia Ridge Store
Usually ready in 1 hour

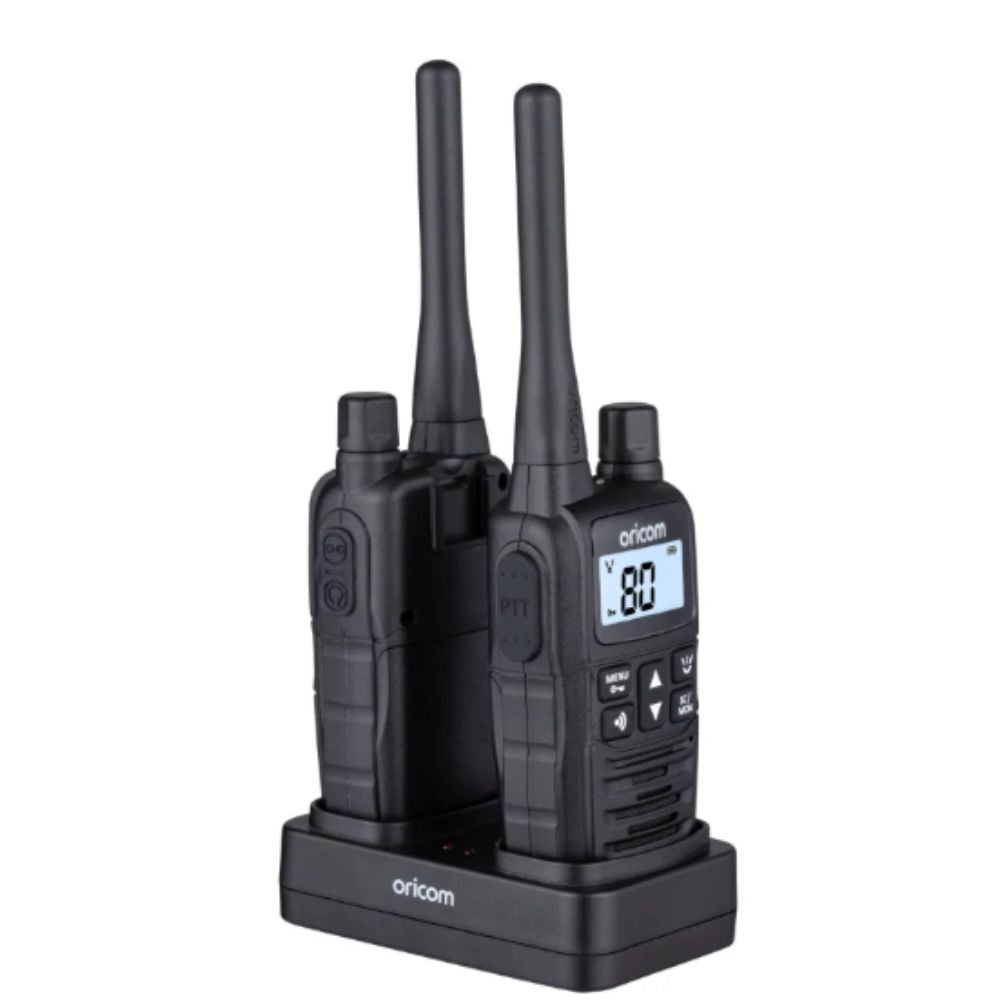

Introducing the UHF2400 Handheld UHF CB Radio Twin Pack, complete with a convenient charging pod. These powerful 2 Watt radios are specifically designed for outdoor activities such as camping, hiking, and recreational adventures. Stay connected and well-informed in remote locations with their impressive coverage range and crystal-clear audio quality. The integrated LED torches provide reliable illumination, while the included charging pod ensures easy recharging between adventures.
SPECIFICATIONS
Technical Details
| TECHNICAL SPECIFICATION – GENERAL | |
| Compliance | AS/NZS 4365:2011 and NZS2772.1 |
| Frequency Range TX/RX | 476.425 - 477.4125 MHz |
| Number of Channels | 80 (75 permitted voice channels) |
| Channel Spacing TX/RX | 12.5KHz |
| Channel Spacing RX | 12.5KHz |
| Operating Modes | Simplex, Duplex |
| Battery Capacity | 4 × AAA Ni-MH 600mAh batteries. 8 hours operating time (low power, duty cycle: 5% transmit, 5% receive, 90% standby) |
| Frequency Stability | +/- 2.5ppm |
| TRANSMITTER | |
| RF Output Power | 2 Watts max. |
| Modulation | FM |
| Maximum Deviation | +/- 2.5KHz |
| Tx Frequency Response | +1 to -3dB of 6dB/octave from 300Hz to 3000Hz |
| Audio Signal to Noise Ratio | > 30dB |
| RECEIVER | |
| Circuit Type | Direct conversion by Single DSP chip |
| Intermediate Frequencies | IF = 0KHz |
| Sensitivity | < -118dBm at 12dB SINAD |
| Intermodulation Immunity | > 70dB |
| Spurious Response Immunity | > 60dB |
| Audio Signal to Noise Ratio | > 30dB |
| Receive Frequency Response | -2.5dB from 300Hz to 2500Hz |
User Manual & Support Docs
| Oricom UHF Handheld Radio 2 watt Twin pack |
Detailed Description

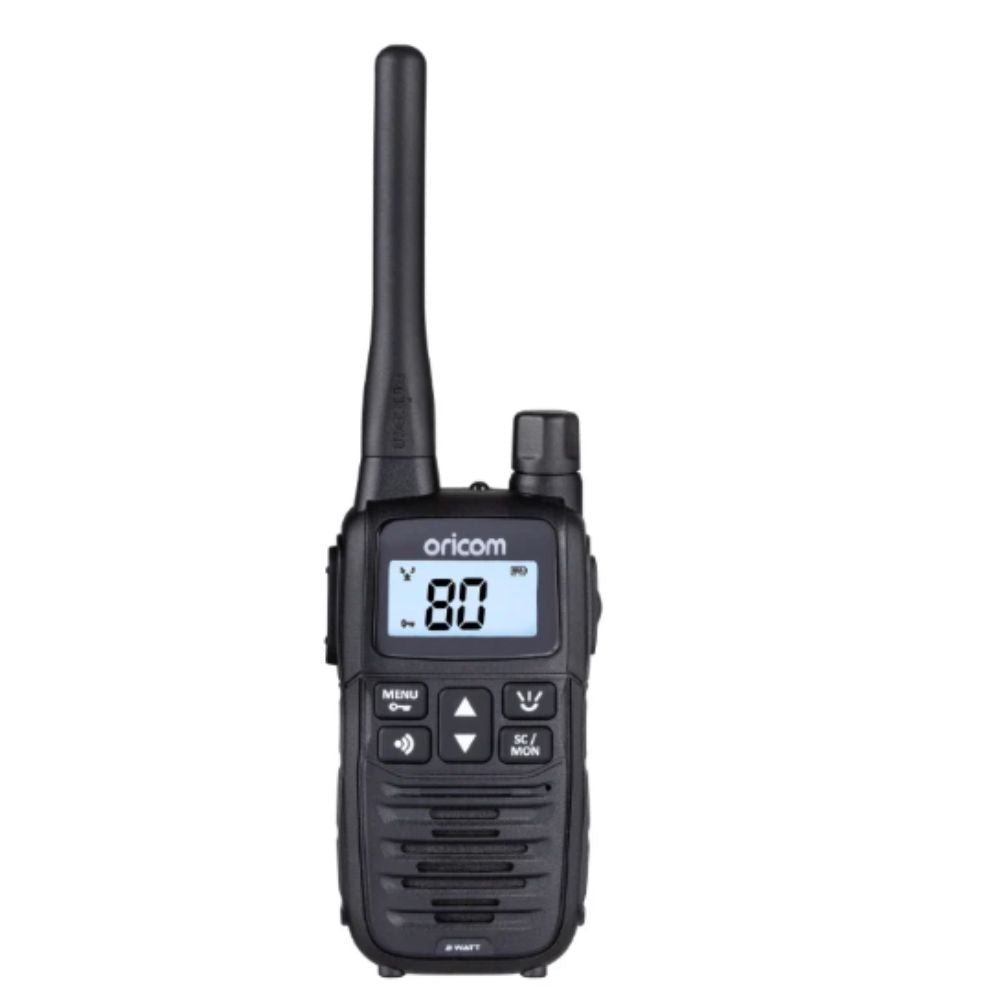

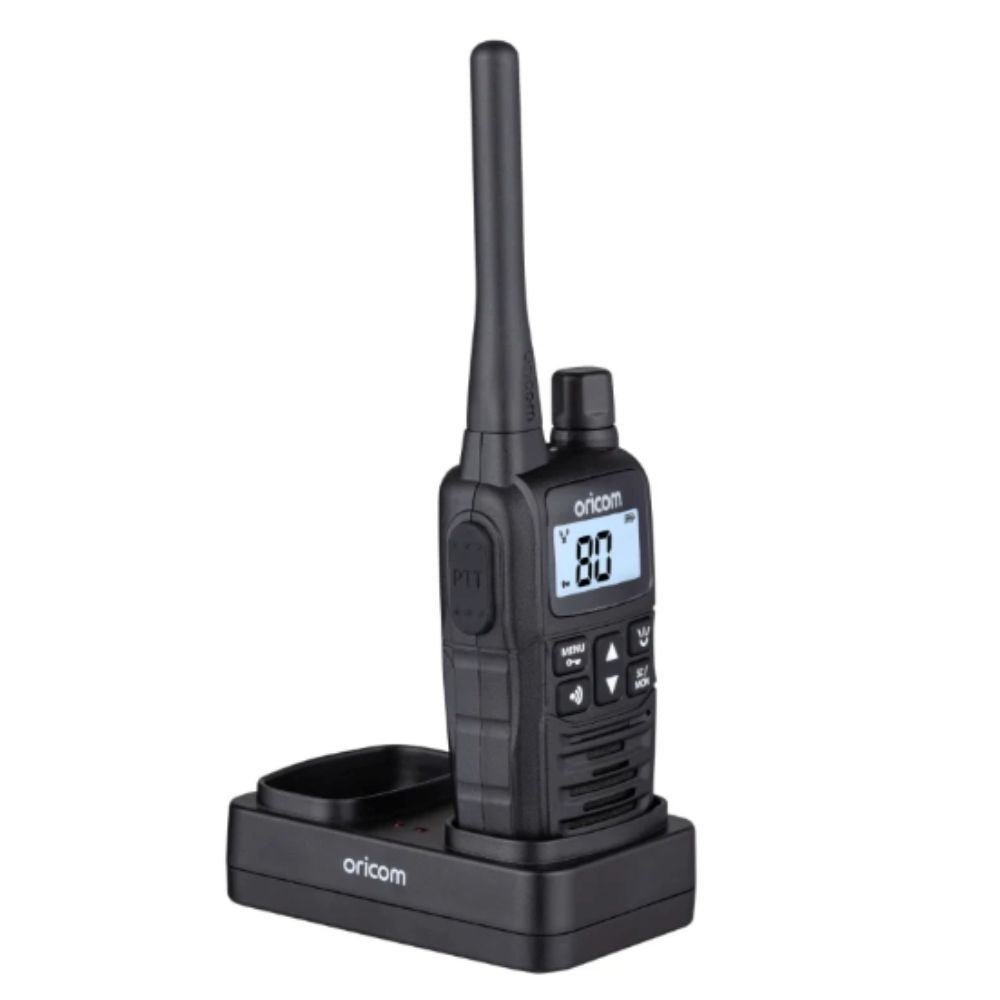

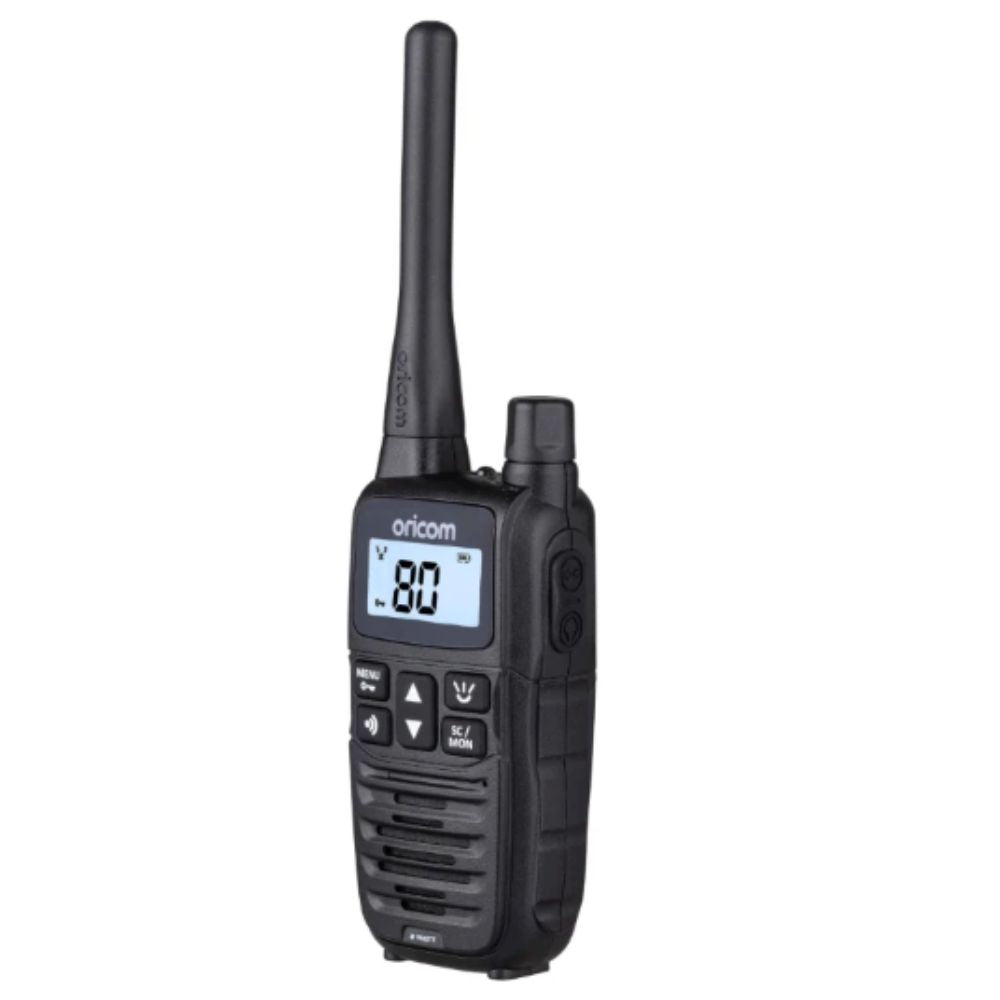

UHF2400 Handheld UHF CB Radio Twin Pack
Stay connected on every adventure with this compact twin pack of 2 Watt handheld UHF CB radios. Designed for camping, hiking, and recreational use, they deliver clear audio, reliable range, and convenient features to keep your crew in touch. Integrated LED torches provide useful light on the go, while the twin charging pod makes top-ups simple between outings.
Key Features
- 2 watt transmit power
- 80 channels with duplex (range extender)
- 38 CTCSS and 83 DCS codes
- Backlit display, dual watch, and channel scan
- Automatic squelch control and keypad lock
- Hands-free (VOX) capable
- LED torch
- 3 year warranty
Pack Includes
- 2 × UHF CB Radios

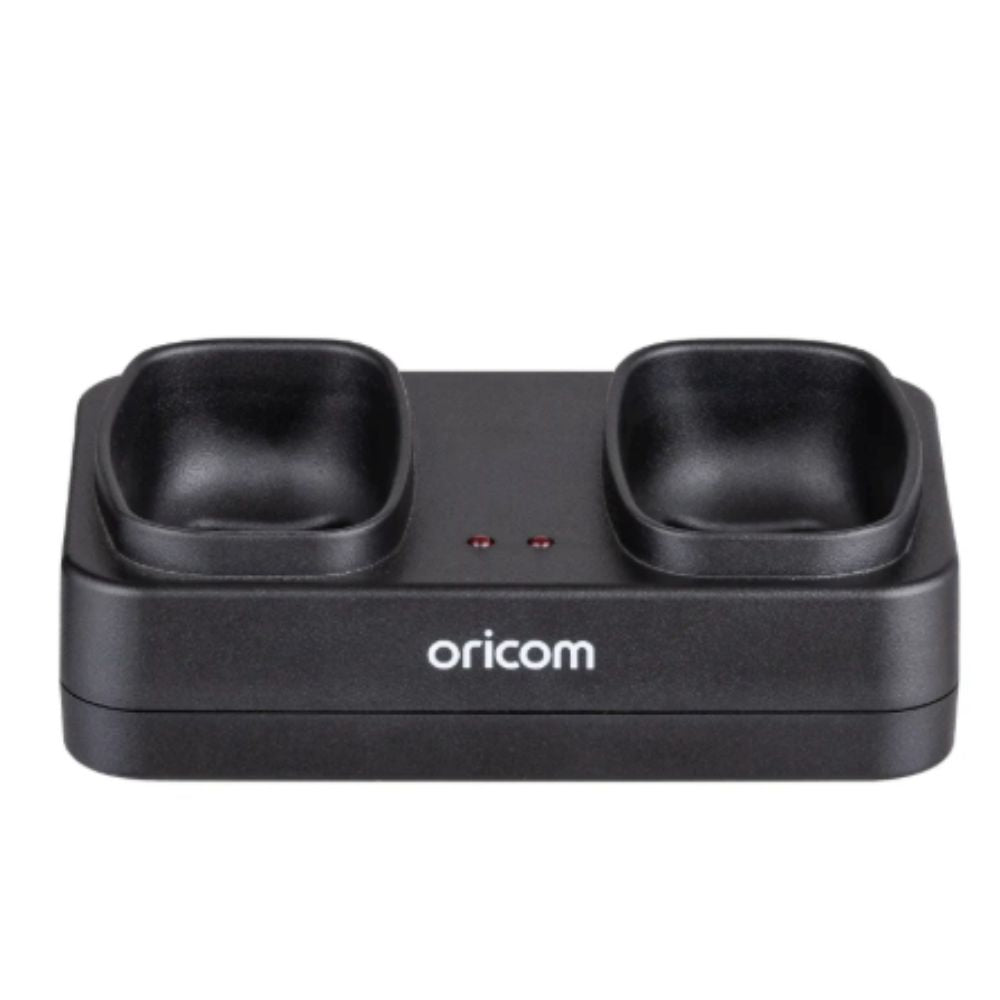

- 1 × Twin Charging Pod
- 1 × USB Charging Cable
- 8 × Rechargeable Batteries

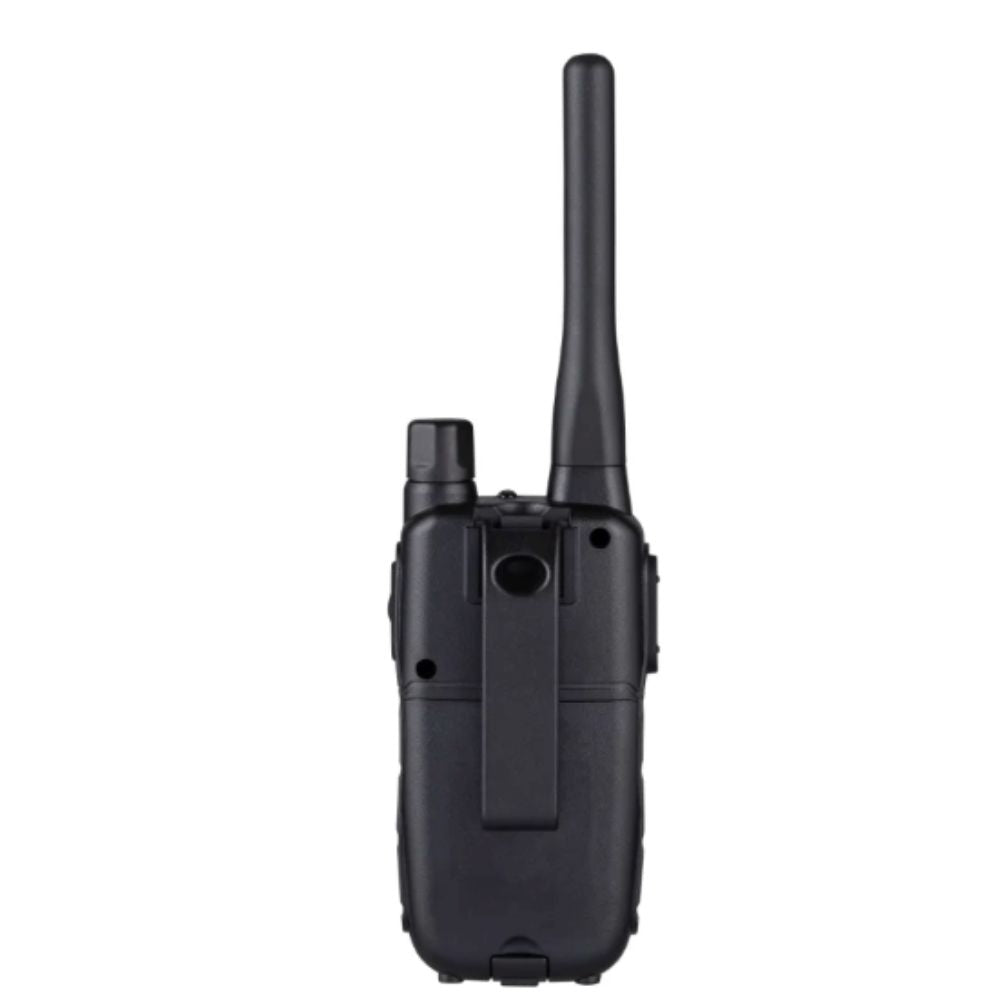

- 2 × Belt Clips
