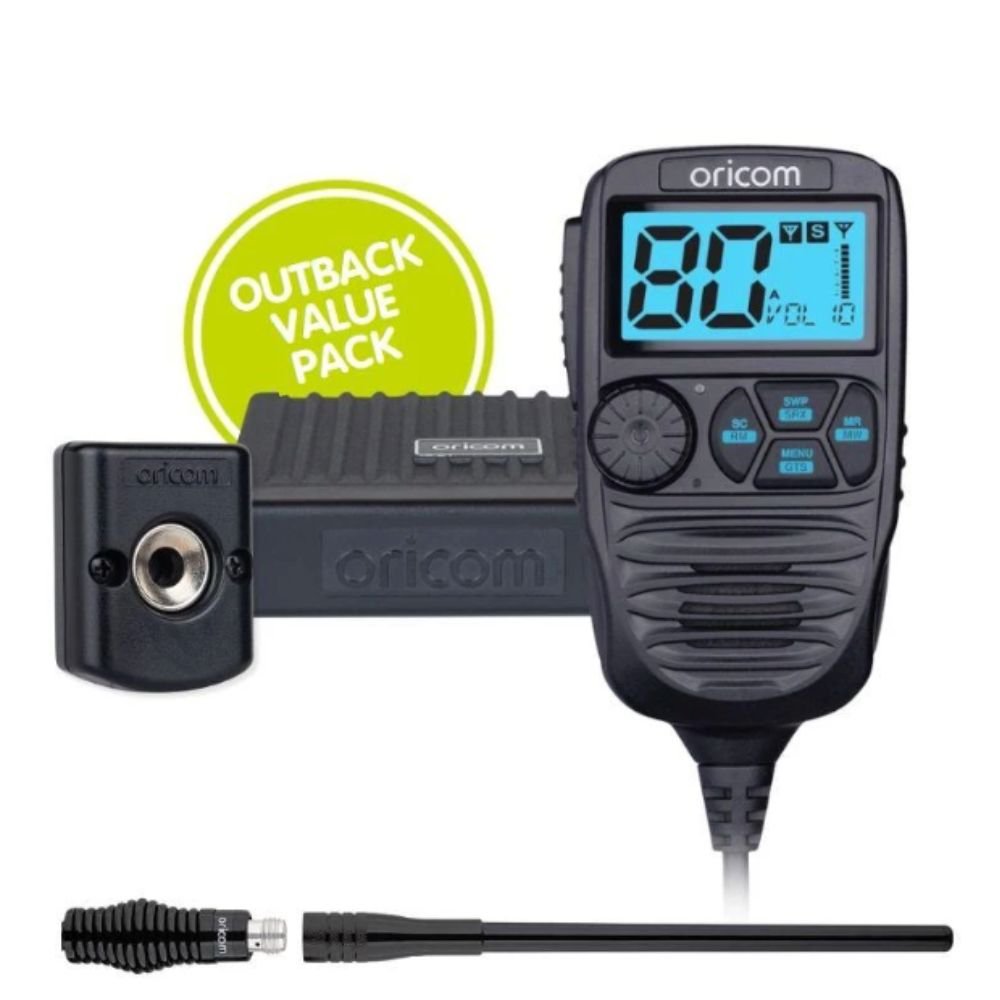

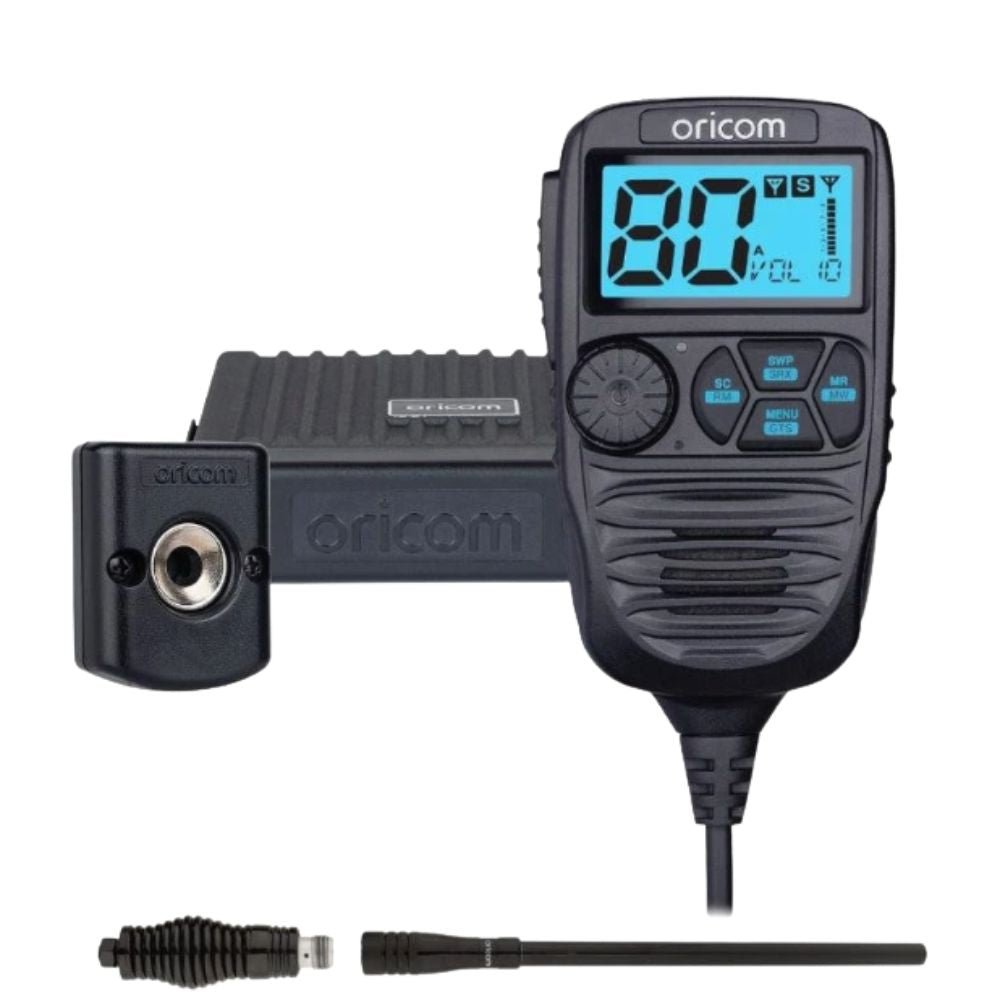

Oricom DTX4200XP with ANU913 / MMM100 Outback Value Pack
Pickup currently unavailable at Acacia Ridge Store
Available to ship
Description
DTX4200X Key Features
- Ergonomic, professional grade controller speaker microphone
- IP54 dust and splash resistant
- Loud, clear audio with speaker in the microphone and the transceiver
- Easy-to-see extra large backlit display
- Intuitive jog wheel for primary functions
- Heavy duty die-cast metal chassis
- 3 memory groups of 16 channels per group
- Large 96 multi-colour backlit display
- Backlight brightness: 5 preset levels plus auto
- Fast scanning: 80 channels within 3 seconds
- Jog wheel volume/channel and squelch control
- Duplex
- 38 CTCSS & 104 DCS codes
- Transmit power indicator
- Slide-in mounting bracket
- Auto power off: off/1h/2h/4h
- 3.5mm external jack (optional external speaker)
- Included: 2m microphone extension cable and mounting hardware
- Transceiver dimensions: 31mm × 128mm × 147mm
ANU913 Pack Includes
- Heavy duty barrel spring base
- Fibreglass radome
- Antenna length: 640mm*
- Grub screw and hex key to secure fibreglass whip
- Low-loss coaxial cable (4.5m)
- Pre-terminated FME connector and PL259 adaptor
Specifications
| TECHNICAL SPECIFICATION – GENERAL | |
| Compliance | AS/NZS 4365:2011 |
| Frequency Range TX/RX | 476.425 - 477.4125 MHz |
| Number of TX/RX Channels | 80 UHF CB Channels (75 voice) |
| Channel Spacing TX/RX | 12.5KHz |
| Operating Modes | Simplex, Repeater TX offset (+750KHz) |
| Scanning Speed | 50 msec per channel |
| Antenna Impedance | 50 Ohms |
| Operating Volts Nominal | 13.8VDC |
| Operating Volts Range | 10 to 15VDC |
| Over Voltage Protection | Diode and Voltage regulator system |
| Over Current Protection | 2 AMP fuse |
| Reverse Polarity Protection | Shunt diode |
| Frequency Stability | +/- 5 ppm |
| TRANSMITTER | |
| RF Output Power | 5 Watts max |
| Modulation | F3E (FM) |
| Maximum Deviation | 2.5KHz |
| Spurious Emissions | < -30dBm |
| TX Audio Pre-emphasis | +6dB/Octave from 300Hz to 3KHz |
| Current Consumption During TX | 1.7 AMP with 50 ohm antenna termination |
| RECEIVER | |
| Circuit Type | Dual conversion super heterodyne |
| Intermediate Frequencies | 1st IF: 21.4MHz, 2nd IF: 450KHz (Main RX) 1st IF: 38.85MHz, 2nd IF: 455KHz (Sub RX) |
| Receiver Sensitivity | -123dBm for 12dB SINAD |
| Audio Output Power | > 2 Watts at 8 ohm load |
| RX Audio De-emphasis | +6dB/Octave from 300Hz to 3KHz |
| Signal to Noise Ratio | > 40dB |
| Conducted Spurious Emission | > -57dBm |
| MECHANICAL | |
| Dimensions (H × W × D) | 31 × 128 × 147 mm |
| Weight | 548g Transceiver, 700g Controller speaker microphone |
User Manual and Support
