Oricom 5 Watt CB Radio with Controller Speaker Microphone & Ariel
$
299
95
Out of Stock
Fast Dispatch
30 Day Returns
5W max TX power with instant replay (up to 10 mins recording)

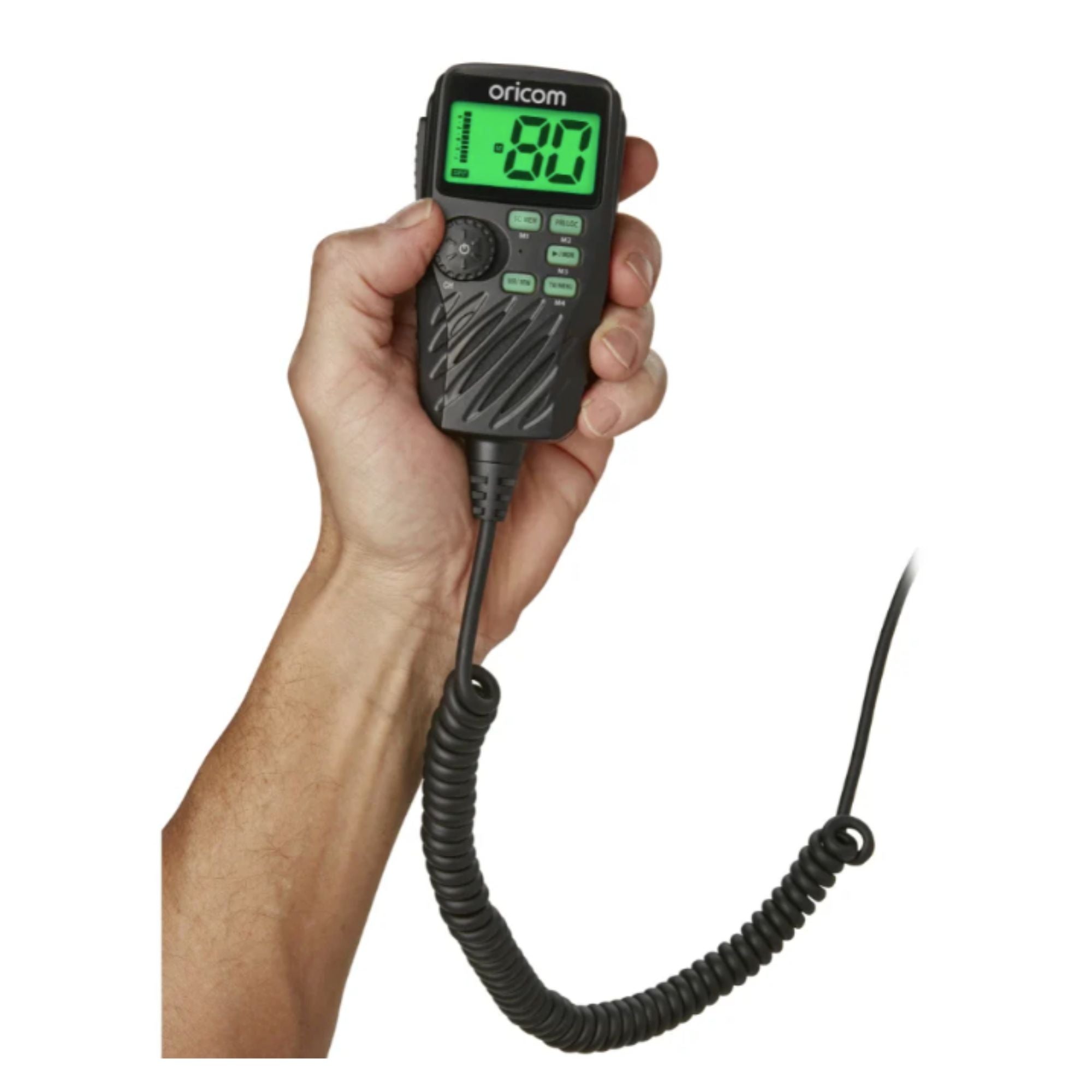

Heavy duty controller microphone with built-in speaker

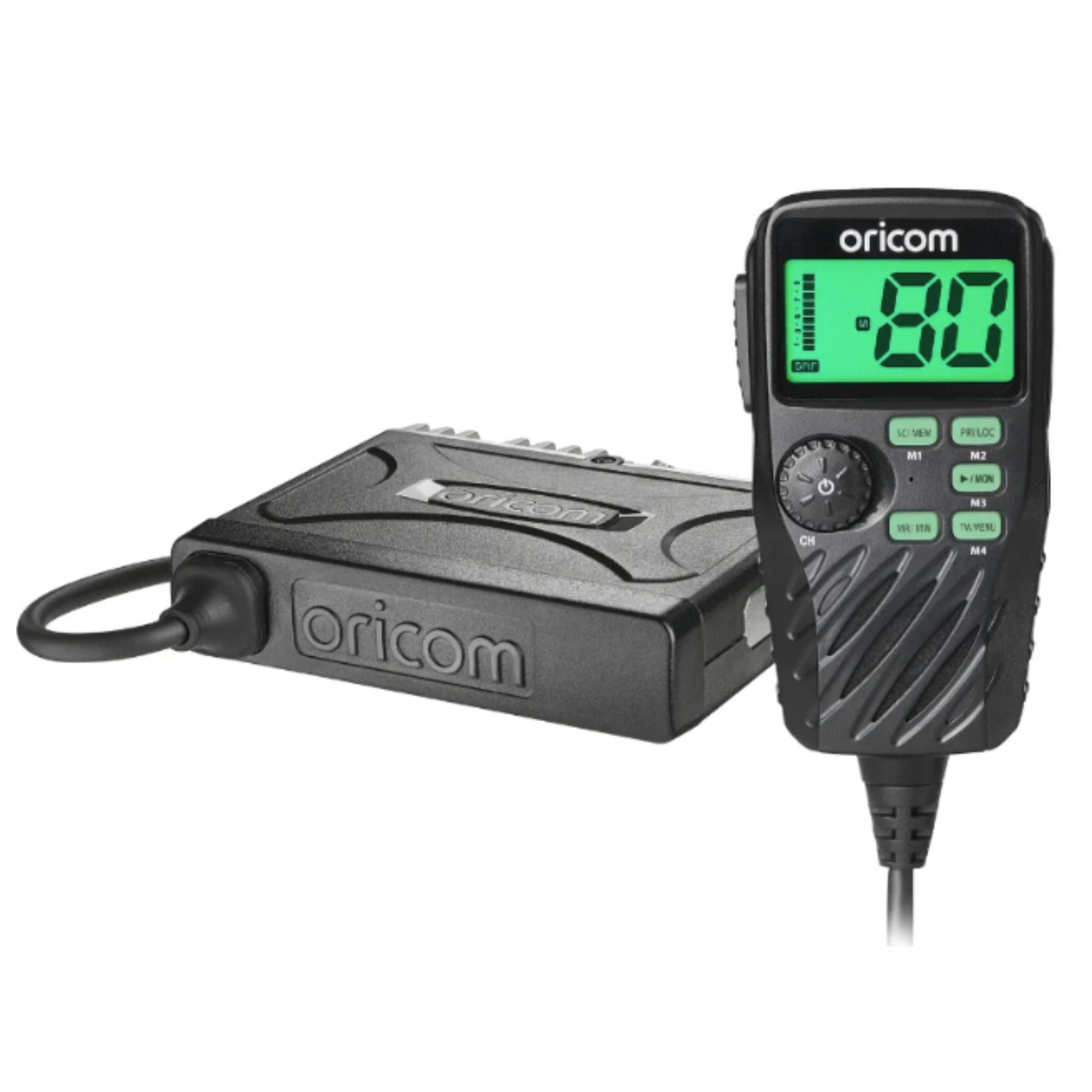

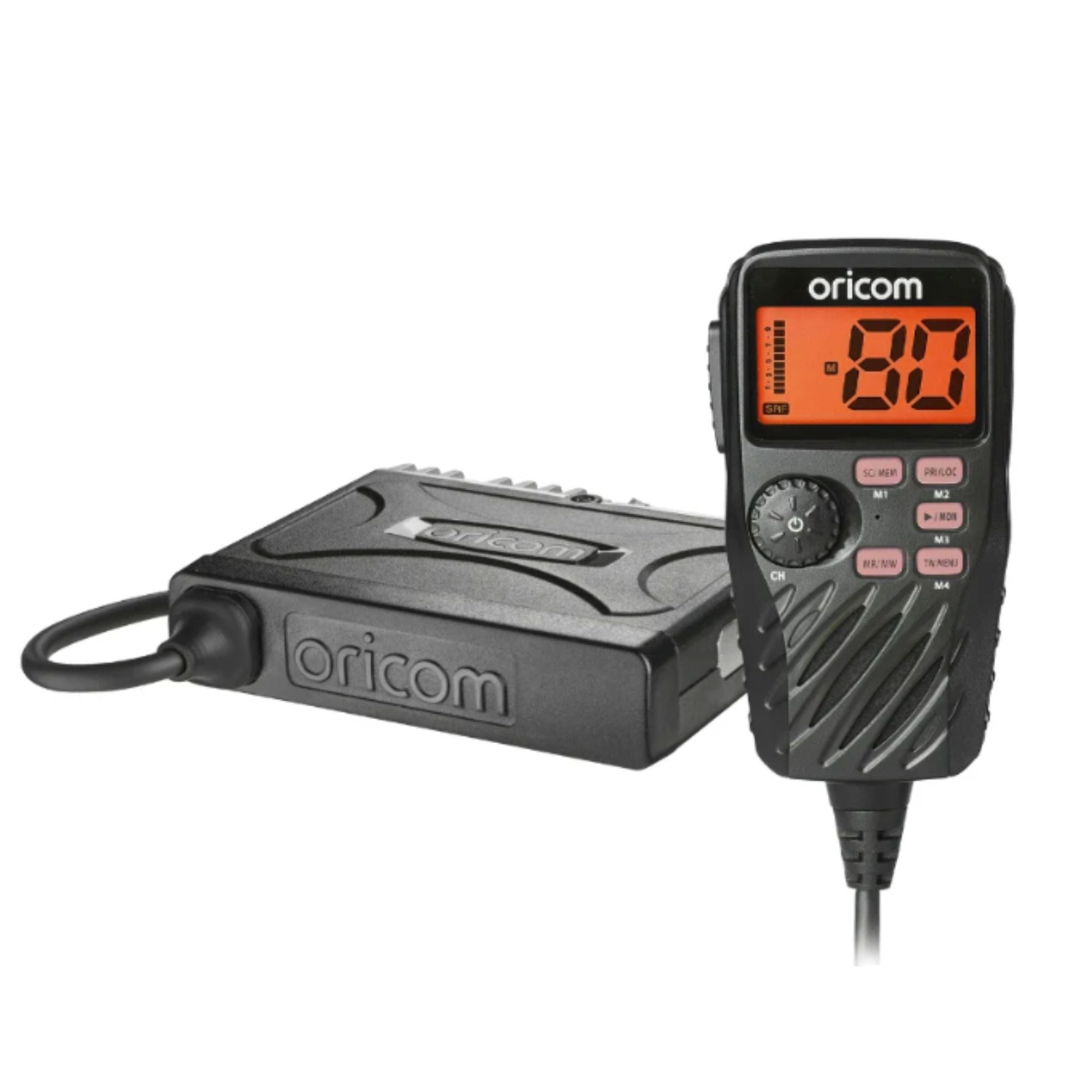

Compact, rugged transceiver ideal for tight installs
Large tri-colour LCD display with easy controls
Pickup currently unavailable at Acacia Ridge Store
About This Item
The UHF390R offers an instant replay feature with up to 10 minutes of recording. This compact unit eliminates the need for a separate head unit by integrating all radio controls into the microphone. The microphone also includes a built-in speaker that works alongside the transceiver’s speaker, delivering excellent sound quality and volume. Perfect for modern vehicles with limited space, the compact transceiver can be conveniently hidden under the dashboard or driver’s seat, maximizing both functionality and space efficiency in your vehicle.
SPECIFICATIONS
Technical Details
| Compliance | AS/NZS 4365:2011 |
| Frequency Range TX/RX | 476.425 - 477.4125 MHz |
| Number of TX/RX Channels | 80 UHF CB Channels (75 voice) |
| Channel Spacing TX/RX | 12.5KHz |
| Operating Modes | Simplex, Repeater TX offset (+750kHz) |
| Scanning Speed | 130 msec per channel |
| Antenna Impedance | 50 Ohms |
| Operating Volts Nominal | 13.8VDC |
| Operating Volts Range | 10 to 15VDC |
| Over Voltage Protection | Voltage regulator system |
| Over Current Protection | 2 AMP fuse |
| Reverse Polarity Protection | Shunt diode |
| Frequency Stability | +/- 2.5 ppm |
| Transmitter | |
| RF Output Power | 5 Watts max |
| Modulation | F3E(FM) |
| Maximum Deviation | 2.5KHz |
| Spurious Emissions | <-70dBc |
| TX Audio Pre-emphasis | 6dB/Octave from 300Hz to 3KHz |
| Current Consumption during TX | 1.7 AMP with 50 ohm antenna termination |
| Receiver | |
| Circuit Type | Direct conversion by single DSP chip |
| Intermediate Frequencies | IF = 137KHz |
| Maximum Usable Sensitivity | Less than -122dBm at 12dB SINAD |
| Audio Output Power | 3 Watts Maximum |
| RX Audio De-emphasis | -6dB/octave 300Hz to 3kHz |
User Manual & Support Docs
| Oricom 5 Watt CB Radio with Controller Speaker Microphone & Ariel |
Detailed Description
Key Features:
- 5 watt (max TX power)
- Instant replay (with up to 10 mins of recording)
- Heavy duty controller speaker microphone
- Rugged micro size transceiver
- Large easy to read LCD display
- Automatic Level Control (ALC) for consistent audio levels
- 38 CTCSS and 104 DCS codes
- Duplex (range extender)
- Open/Priority scan
- Priority channel

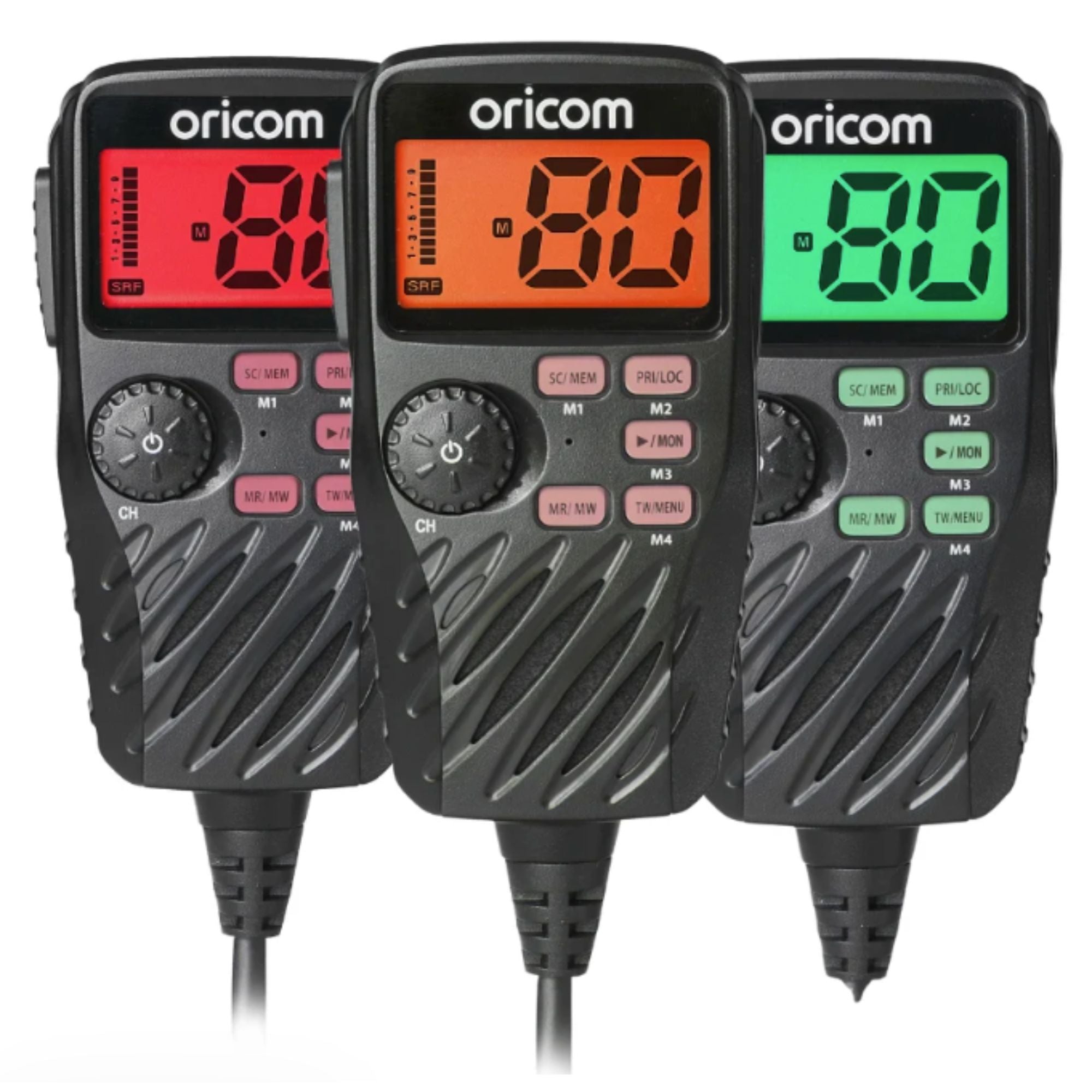

- Tri colour backlit LCD display (Amber/Red/Green)
- 3.5mm external speaker jack
- Designed for Australian conditions. Made in Korea.
- Includes 2 microphone extension cables, one for use with pass through connector (not supplied)
- Transceiver dimensions: 27mm x 102mm x 85mm
Frequently Asked Questions
How much power does the Oricom UHF390GP CB radio transmit, and what features help with clear communication?
The Oricom UHF390GP transmits at 5 Watts and includes a heavy duty controller speaker microphone, a microphone extension cable, and a clear LCD display with signal strength and channel indicators. These features ensure strong, reliable communication with easy volume and channel control. The 5 Watt output provides excellent range for off-road and adventure use, while the controller microphone’s robust design allows comfortable, hands-free operation. The LCD display and multiple memory channels help you quickly access your preferred frequencies for smooth communication.
Can I use this Oricom UHF radio with older wideband radios, and how does it handle compatibility?
Yes, the Oricom UHF390GP is compatible with both narrowband and wideband radios, but when receiving transmissions from older wideband radios, audio may sound louder or distorted, and you can adjust the volume for best clarity. This radio is designed to comply with Australian and New Zealand standards and includes features to manage mixed wideband and narrowband use, ensuring you stay connected even in diverse radio environments.
How do I install and connect the controller speaker microphone to the Oricom UHF390GP?
The controller speaker microphone connects via a 6-pin telephone-style plug, which clicks securely into the socket with the plastic flap facing upward. The rubber boot fits neatly into the entry hole for a tidy, protected installation. The microphone can be extended using the supplied extension cables, allowing flexible mounting options such as under a seat or behind the centre console, perfect for vehicle installations.
What power supply does the Oricom UHF390GP require, and can it be wired to turn off with my vehicle’s ignition?
The radio is designed for a 12 Volt battery system and includes wiring options to either stay on continuously or turn off with the vehicle ignition. The positive lead connects via a 3 Amp fuse either directly to the battery or to an accessory point in the fuse box, while the negative lead connects to the vehicle chassis or battery negative terminal. This flexibility lets you configure the radio to your preferred power setup for convenience and safety.
Is it safe to use the Oricom UHF390GP in potentially explosive environments or near blasting operations?
For safety, the radio should be turned off in potentially explosive atmospheres such as fuel areas or near blasting caps, as required by regulations. The Oricom UHF390GP is designed to comply with all relevant Australian and New Zealand safety standards, and following these guidelines ensures safe operation. Its robust design and clear warnings help you use the radio responsibly in all environments.
Can I improve the audio volume and clarity of the Oricom UHF390GP with external accessories?
Yes, the radio supports an optional external 8 ohm speaker with a 3.5mm plug (not supplied), which can enhance volume and sound clarity. This is ideal for noisy environments or when the built-in speaker volume is insufficient. The external speaker connection is simple to use and adds flexibility to your setup, ensuring you never miss important communications.
What kind of antenna should I use with the Oricom UHF390GP to get the best performance?
To maximise performance, use a high-quality antenna designed for the 477MHz frequency band. Proper antenna selection and installation are critical for achieving the full 5 Watt output power and excellent receiver sensitivity. Mount the antenna in a good location away from heaters or air conditioners, and always connect it before powering on the radio to protect the unit and ensure optimal signal quality.
How do I operate the main controls on the Oricom UHF390GP controller speaker microphone?
The controller speaker microphone features an On/Off/Volume control, channel and squelch adjustment, and memory recall buttons for quick access to saved channels. The LCD display shows channel, signal strength, and other status icons, making operation intuitive. These controls allow you to easily scan channels, adjust volume, and monitor transmissions, providing a user-friendly experience tailored for adventure and off-grid communication.
