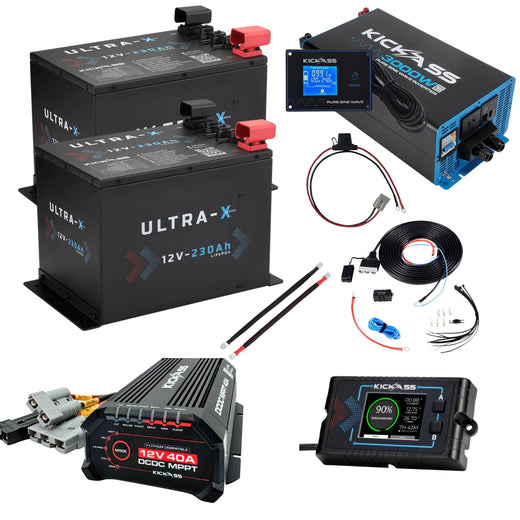

KickAss Twin 12V 230Ah Ultra-X Compact Lithium Dual Battery Kit with 3000W Inverter, 40A DCDC Charger, Display Panel, Wiring - 460Ah Capacity

KickAss 12V to 240V Pure Sine Wave 3000W Inverter Feature Overview

3000W Continuous Output

Plenty of power to run all your AC essentials while on the move—induction cooktops, coffee machines, battery chargers for your power tools, and more!

Pure Sine Waveform

Delivers a clean and reliable sine wave output that replicates the AC signal you get from a home power point. Unlike modified sine wave inverters that don't produce a true sine wave, the KickAss Pure Sine Wave Inverter is ideal for running sensitive electronic devices like laptops, Starlink, and CPAP machines.

AC Automatic Transfer Switch

Simplify your off-grid installation with the Automatic Transfer Switch. Power your AC devices from your batteries, then once you’re back on-grid, simply plug in the AC input cable to switch over to mains power. If the mains supply cuts out, the inverter will seamlessly switch back to battery power.

Multiple Protective Features

Multi-level safety protection utilises both software and hardware features to protect you, your inverter, and your devices. The inverter continuously monitors operation and will trigger protection mode if an unsafe condition is detected. Integrated Residual Current Devices (RCD) and Circuit Breakers (CB) provide additional hardware protection, making the inverter suitable for commercial environments.

Optional Remote Control Display (Not Included in Base Version)

The optional remote display allows you to monitor and manage power usage wherever needed. The low-profile screen is discreet and can be flush-mounted into any panel—for example, near your camp kitchen. The remote also features an integrated on/off switch to conserve battery power.

Note: Only compatible with the blue KickAss remote inverter screen.

Surge Power – Reaches 6000W in 2 Seconds

With a peak surge rating of 6000W for up to 2 seconds, this inverter is ideal for supporting devices with a high current draw, like power tool battery chargers, microwaves, and induction cooktops.

High 94% Conversion Efficiency

Inefficient inverters waste energy when converting DC to AC. The KickAss 3000W Pure Sine Wave Inverter achieves 94% efficiency, maximising the usable capacity of your battery bank.

Integrated USB Charging Ports

Includes an integrated 5V 2.1A USB port for convenient charging of your small devices directly from the inverter.

Smart Cooling System

The smart fans automatically adjust their speed to keep the inverter cool, increasing efficiency and maintaining optimal power output.

High Quality Circuitry Components

Built using premium quality components and the latest technology, this inverter delivers reliable performance. Even under heavy loads and peak surges up to 4000W, it remains protected against spikes and surges.

Multiple Mounting Options

Four convenient mounting points allow easy installation into your caravan, camper, or canopy 12V power setup.

Powerful 40A Dual Battery Charging

With a high 40A output, this charger is perfect for keeping larger lithium and lead acid battery systems topped up and ready for action. It ensures fast, safe charging for demanding off-road or touring applications.

Bluetooth Monitoring & App Control

Connect your charger to your smartphone via Bluetooth to monitor performance in real time. The KickAss App gives you complete visibility over charging status, voltages, current flow, and system alerts – all from your pocket.

Simple Plug & Play Installation

Thanks to Anderson-style connectors, installation is quick and hassle-free with no complex wiring required. It’s designed for DIY setups and easy integration into your existing system.

Dual Input: Alternator & Solar Charging

Charge from your vehicle’s alternator while driving or connect a solar panel when stationary – this charger handles both. Its built-in MPPT solar regulator ensures maximum efficiency when using solar input.

Built for Aussie Conditions

Rated IP66, the KickAss 40A DCDC Charger is waterproof, dustproof, and rugged enough to handle corrugated tracks, extreme heat, and remote adventures. It’s built tough for Australian conditions.

Compatible with 12V & 24V Alternators

Highly versatile, this charger is compatible with both 12V and 24V alternators, making it suitable for a wide range of vehicle types including trucks, commercial vehicles, and 4WDs.

Adjustable Max Input Current – Hybrid Compatible

The maximum input current can be configured via the Bluetooth app, allowing the charger to limit the draw from your vehicle’s alternator, without reducing the maximum charge current when charging from solar. This makes it ideal for some hybrid vehicles or those with low-output alternators, helping prevent overload and ensuring stable, efficient charging without placing strain on your electrical system.

Smart Alternator Ready

Modern vehicles with smart alternators are no problem. The unit supports both smart and fixed-voltage alternators and includes an ignition trigger wire to start or stop charging based on engine status.

Lithium Battery Compatible

Fully lithium-ready, this charger includes an automatic lithium wakeup function that can safely restore LiFePO4 batteries from low voltage protection or sleep mode – no manual intervention needed.

Advanced Multi-Stage Charging

Precision charging algorithms help extend the life of your auxiliary battery. The charger delivers multi-stage charging tailored to the battery type, helping maintain peak performance over the long haul.

Starter Battery Isolation

To protect your starting battery, the charger only delivers current to your auxiliary battery when the engine is running, and automatically disconnects when the vehicle is off – eliminating unwanted drain.

Supports Multiple Battery Chemistries

Whether you’re using lithium, AGM, wet, gel, or calcium batteries, this charger has you covered. It’s a versatile solution designed to support a wide range of battery types.

Perfect for 4WDs, caravans, camper trailers, and off-grid touring setups, the KickAss 40A DCDC Charger with Solar MPPT and Bluetooth delivers intelligent charging for serious adventurers.

KickAss Features:

• Ultra compact design
• Supporting Bluetooth app
• BMS with multiple safety features
• Connect in parallel or series
• Monitor your battery bank remotely
• 230Ah usable capacity
• 230A continuous charge & discharge with 460A pulse capacity
• 4000+ Cycles @ 80% DoD 0.5C
• Metal case with integrated mounting points
• Australian Safety Certified
• Designed & developed in Australia

Ultra Compact Design

The ultra-compact design is ideal for those who have minimal space but need maximum power. Despite being only slightly larger than a standard N70 battery, it delivers double the usable capacity – perfect for tight spots & tricky installations. This KickAss battery delivers big power in a small package.

Supporting Bluetooth App

No more guesswork – stay in control of your power system by using the supporting Bluetooth app. Monitor critical battery parameters such as SoC, level, voltage, current, temperature, and real-time system alerts right from your smartphone. Having real-time data at your fingertips ensures optimal performance and peace of mind during all your off-grid adventures.

BMS with Multiple Safety Features

The KickAss 12V 230Ah Deep Cycle Lithium Battery is equipped with an advanced Battery Management System (BMS) that ensures safety and reliability. The BMS actively monitors and protects the battery from common issues such as overcharging, over-discharging, short circuits, and overheating, ensuring safe operation at all times.

Create a Battery Bank with Over 900Ah of Usable Capacity

These batteries support parallel and series configurations for maximum versatility. Link up to four in parallel to create a massive battery bank with over 900Ah of usable capacity, delivering serious power for extended off-grid use. This capability allows you to tailor your power setup to your exact needs.

Monitor Your Battery Bank Remotely

Monitoring multiple batteries in a series or parallel setup usually requires an external shunt, but these batteries eliminate that need. Simply connect each Ultra-X series battery using an RJ45 cable, and the optional KickAss Remote Display Unit (RDU) will seamlessly interface with the entire battery bank. Alternatively, use the supporting Bluetooth app for system monitoring without additional hardware.

230Ah Usable Capacity

With 230Ah of usable capacity, the KickAss 12V Deep Cycle Lithium Battery offers an abundance of power for extended off-grid adventures. This large capacity means you can run devices and appliances for longer periods without frequent recharges.

230A Continuous Charge & Discharge with 460A Pulse Capacity

This battery delivers exceptional performance with its 230A continuous charge and discharge capability, ensuring a steady and reliable flow of power for demanding applications. The impressive 460A pulse capacity allows it to handle sudden power surges, making it incredibly versatile.

4000+ Cycles @ 80% DoD 0.5C

Designed for longevity, this battery offers over 4000 charge and discharge cycles at 80% Depth of Discharge (DoD) and a 0.5C charge/discharge rate. This durability ensures a long-lasting, high-performance battery for years to come.

Metal Case with Integrated Mounting Points

The durable metal housing with integrated mounting points eliminates the need for a separate battery tray. The heavy-duty metal casing not only protects the battery from the elements and rough conditions but also makes installation easier and more secure.

This 3-pin Anderson-style connector with built-in ignition wire makes connecting your 12V dual battery system easy. Perfect for wiring DC/DC chargers, battery boxes & auxiliary batteries.

The KickAss Remote Smart Lithium Battery Display Unit is compatible with the KickAss Smart and Ultra-X series batteries. Simple plug-and-play via the RJ45 connector, it allows you to monitor State of Charge (SOC), voltage, real-time current, and temperature of either a single battery or multiple batteries connected in parallel or series. Includes 5m extension cable.

Take full control of your battery system with the KickAss Battery Display Monitor – your window into real-time performance, protection, and peace of mind.

Monitor Your Battery Like a Pro

Never guess your battery’s health again. With a full-colour screen, you can instantly view:

• Battery temperature
• Current draw
• Voltage
• Charge status
• Time to empty/full
• Cell balance and more

Built-In Battery Management System (BMS)

The integrated KickAss BMS keeps your battery safe — actively protecting against:

• Overvoltage and undervoltage
• Short circuits
• Overload
• High temperatures

Stay alerted with smart error messages and stay in control from your display or compatible mobile device.

Easy Flush-Mount Design

Install it where you need it most. Whether it's in your canopy, van, or camper setup, the flush-mount design with included screws and universal hole spacing makes installation fast and secure.

Compact Dimensions

• Display: 126mm (W) x 66.61mm (H) x 23mm (D)
• Cable Length: 440mm
• Mounting holes for quick surface installation

The KickAss Battery Display Monitor isn’t just for looks – it’s your off-grid command centre. Whether you're heading bush or running gear off your canopy, this screen keeps your system protected and your trips worry-free.

400mm Length Pair (Black & Red) Battery Joiner Pack

Combine batteries in parallel to create a battery bank and boost your power storage capacity. These cables can also be used in series to achieve 24V from two 12V batteries.

Note: Always ensure your batteries are connected correctly for your intended application.

KickAss Pure Sine Wave Inverter Remote Display Panel Feature Overview

Real-Time Monitoring

Unexpected power fluctuations can damage your equipment and waste valuable energy. With real-time monitoring, you can track your energy generation and power usage, spotting any problems early. This keeps your setup running smoothly and efficiently at all times.

Remote Control

Monitor and manage your power consumption from a distance—for example, from the front seat while your inverter is installed in the back of your truck. The included 3-metre cable allows you to access and control your inverter system easily.

Fault Diagnostics

When a system malfunction occurs, diagnosing the problem can be challenging and time-consuming. The KickAss Inverter Remote Display automatically identifies and reports inverter faults, providing detailed diagnostics to simplify troubleshooting.

Intuitive User Interface

The display screen is clear and easy to navigate. View energy metrics, adjust settings, and set alerts with confidence—no guesswork, just clear and precise information.

Compatible with Most KickAss Inverters

The remote display unit is compatible with KickAss 2000W and 3000W inverters (not compatible with 700W or 1200W models). Seamlessly integrate it into your current setup or upgrade your system with ease.

Please note: This remote display is not compatible with older red KickAss 700W, 1200W, 2000W, or 3000W inverters.

KickAss MAXI Fuse Anderson Cable

The KickAss MAXI Fuse Anderson Cable is the perfect solution for connecting a battery to virtually any device. It offers superior circuit protection through an inline 80A MAXI Fuse, safeguarding against short circuits and potential system damage.

With a purpose-designed length, this cable easily reaches vehicle starting batteries and integrates seamlessly with dual battery setups. The built-in weatherproof MAXI Fuse holder simplifies installation, eliminating the need for mounting traditional fuse holders or circuit breakers.

One end of the cable features a 50 Amp Anderson style connector for effortless connection to battery boxes, solar panels, or other compatible devices. The other end includes high-quality 8mm ring terminals for secure battery attachment. A spare 80A MAXI Fuse is included for added convenience.

Features:

• In-line weatherproof MAXI Fuse holder with 80A MAXI Fuse
• Length: 750mm
• Cable type: Twin 8B&S (7.71mm²) Red/Black Sheathed
• 1 x 80A MAXI Fuse pre-installed in holder
• 1 x 80A MAXI Fuse spare
• 8mm ring terminals

See links below for replacement fuses:

Spare 50A MAXI Fuse - Red
