Pre-order estimated arrival date 28 October 2026
Pre-orders close in . This product will ship within 2 days of the pre-order estimated arrival date.
Equip your adventure rig with a complete off-grid power setup featuring dual 230Ah lithium batteries, a 2200W inverter-charger, and integrated controls.

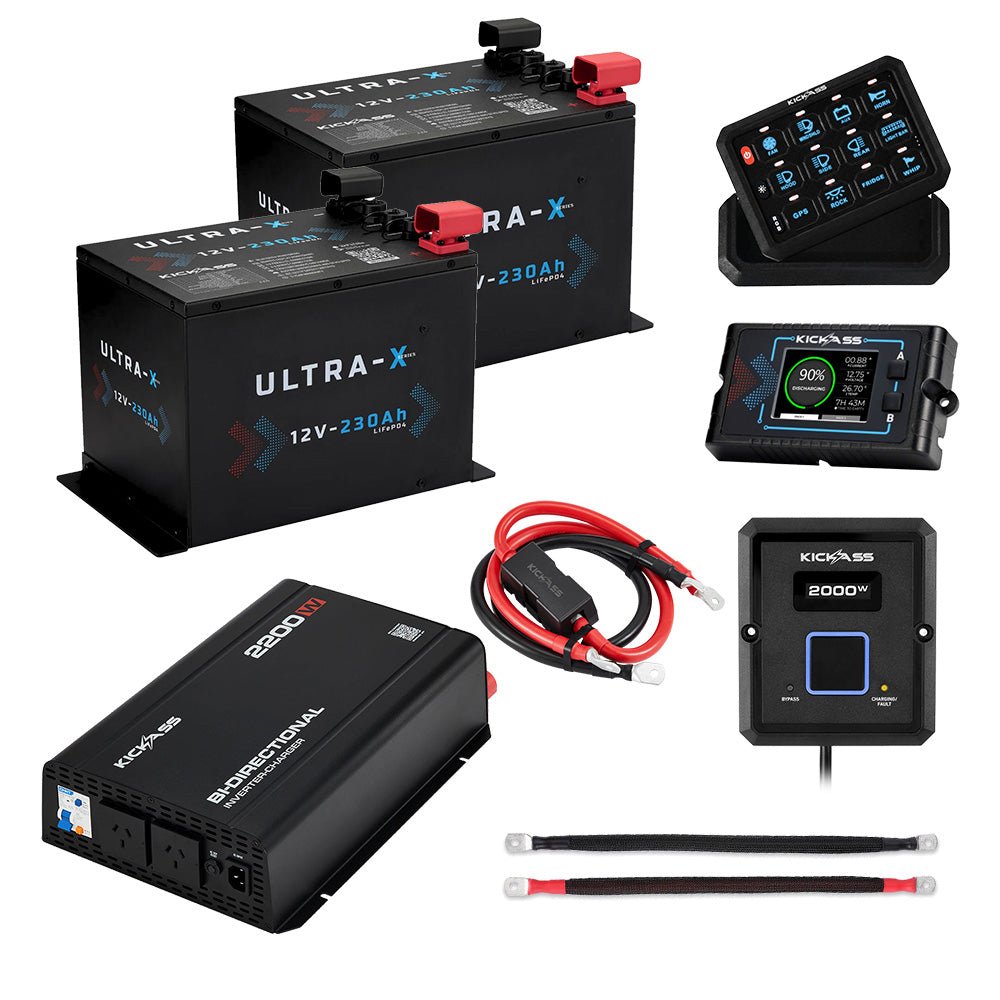

Everything that is included in this KickAss kit!

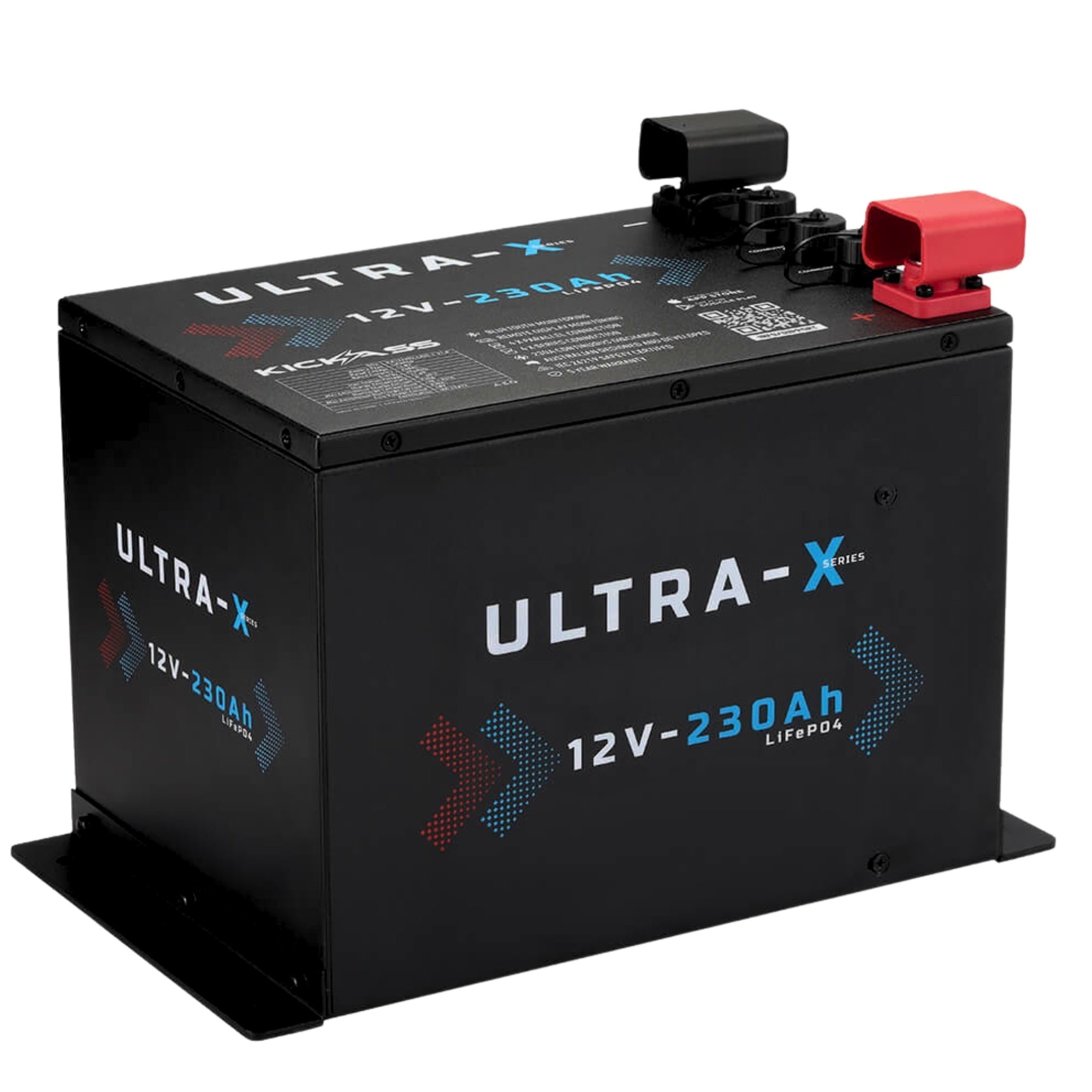

The KickAss 12V 230Ah Lithium Battery delivers huge power in a compact, advanced design. With 230Ah of useable energy, 4000+ cycles at 80% DoD, Bluetooth monitoring, and support for series or parallel setups, it’s perfect for serious off-grid use. Link up to four for over 900Ah, with a built-in BMS for safety.
The ultra-compact design is ideal for those who have minimal space but need maximum power. Despite being only slightly larger than a standard N70 battery, it delivers double the usable capacity – perfect for tight spots & tricky installations. This KickAss battery delivers big power in a small package.
No more guesswork – stay in control of your power system by using the supporting Bluetooth app. Monitor critical battery parameters such as SoC, level, voltage, current, temperature, and real-time system alerts right from your smartphone. Having real-time data at your fingertips ensures optimal performance and peace of mind during all your off-grid adventures.
The KickAss 12V 230Ah Deep Cycle Lithium Battery is equipped with an advanced Battery Management System (BMS) that ensures safety and reliability. The BMS actively monitors and protects the battery from common issues such as overcharging, over-discharging, short circuits, and overheating, ensuring safe operation at all times.
These batteries support parallel and series configurations for maximum versatility. Link up to four in parallel to create a massive battery bank with over 900Ah of usable capacity, delivering serious power for extended off-grid use. This capability allows you to tailor your power setup to your exact needs.
Monitoring multiple batteries in a series or parallel setup usually requires an external shunt, but these batteries eliminate that need. Simply connect each Ultra-X series battery using an RJ45 cable, and the optional KickAss Remote Display Unit (RDU) will seamlessly interface with the entire battery bank. Alternatively, use the supporting Bluetooth app for system monitoring without additional hardware.
With 230Ah of usable capacity, the KickAss 12V Deep Cycle Lithium Battery offers an abundance of power for extended off-grid adventures. This large capacity means you can run devices and appliances for longer periods without frequent recharges.
This battery delivers exceptional performance with its 230A continuous charge and discharge capability, ensuring a steady and reliable flow of power for demanding applications. The impressive 460A pulse capacity allows it to handle sudden power surges, making it incredibly versatile.
Designed for longevity, this battery offers over 4000 charge and discharge cycles at 80% Depth of Discharge (DoD) and a 0.5C charge/discharge rate. This durability ensures a long-lasting, high-performance battery for years to come.
The durable metal housing with integrated mounting points eliminates the need for a separate battery tray. The heavy-duty metal casing not only protects the battery from the elements and rough conditions but also makes installation easier and more secure.

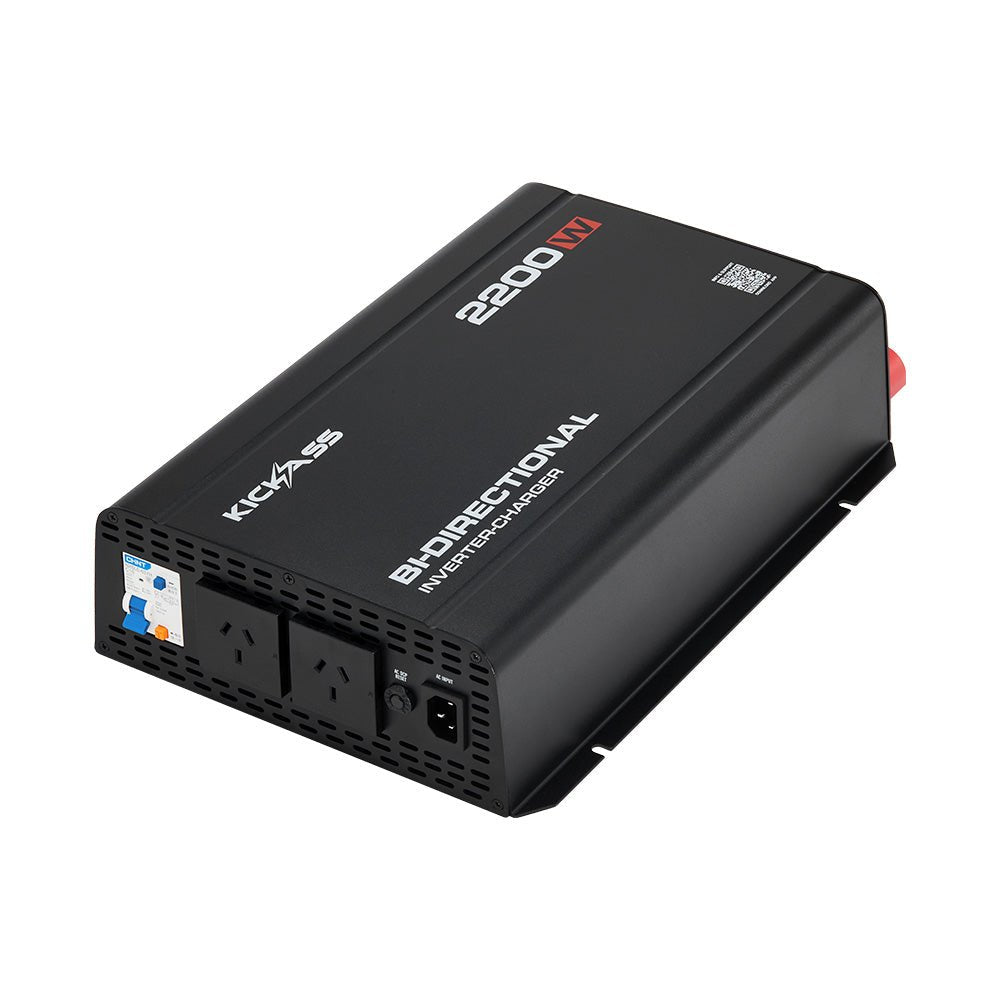

This 2200W pure sine wave inverter-charger delivers clean, stable power for your everyday appliances, and rapidly charges your battery from shore power via 1800W AC ultra-fast charging. Bluetooth monitoring, plug-and-play install, built-in safety protection, and support for multiple battery chemistries make it a smart, space-saving upgrade for any setup.
The KickAss 2200W Bi-Directional Inverter-Charger delivers mains-quality power in a compact, all-in-one unit. Combining a 2200W pure sine wave inverter with an 1800W AC ultra-fast charger, it provides both AC power and battery charging without the need for separate devices, additional wiring or extra installation space.
The 2200W pure sine wave inverter converts 12V DC battery power into clean, stable 230V AC power, making it suitable for everyday appliances, sensitive electronics and motor-driven equipment. When connected to shore power, the built-in 1800W AC charger provides up to 135A of charging current.
Bluetooth monitoring and control via the KA Charge app allows you to select battery chemistry, choose a charging mode, switch the unit on or off and view up to 32 hours of performance history. An optional remote switch with OLED display and LED indicators provides additional control and system status monitoring.
Dynamic power adjustment technology prioritises available power to connected AC equipment, helping maintain operation when the incoming power supply fluctuates.
Plug-and-play AC connectivity includes an IEC input and two AC outlets, eliminating the need for hardwiring. Built-in RCBO protection provides overload and earth leakage protection, while intelligent variable-speed cooling fans help regulate operating temperature and minimise unnecessary fan noise.
The compact slimline design is suited to space-limited vehicle and off-grid installations. The unit supports LiFePO4, AGM, CAL and GEL battery chemistries and also includes a USB-A output for charging compatible phones, tablets and other devices.
Note: An additional switch panel must be purchased separately. Panels must be the same model to pair – for example, two 8-Gang panels or two 12-Gang panels. Different models cannot be synced together.

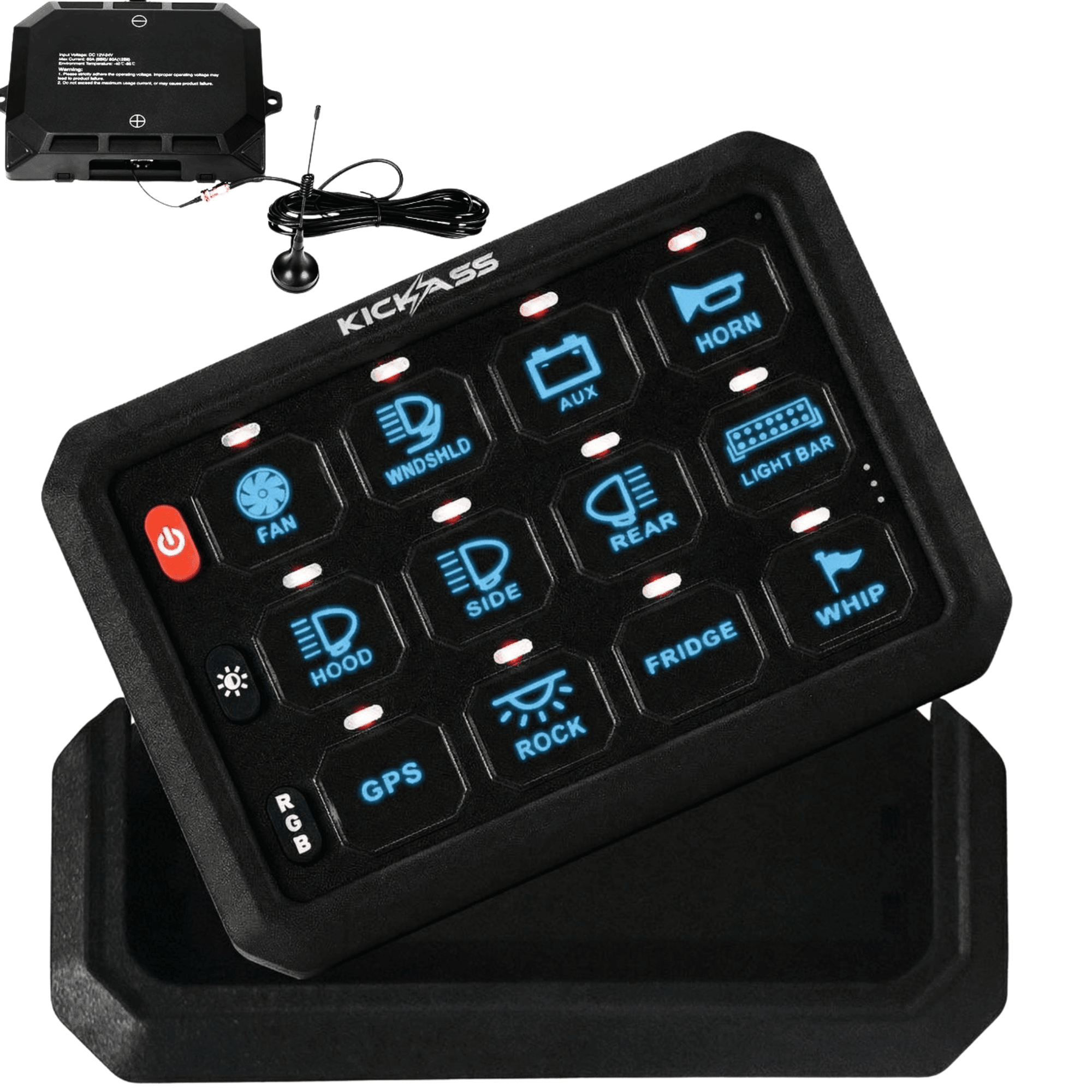

Enjoy full control of your 12V system from one simple device. The KickAss 12 Gang Switch Panel gives you complete control of up to 12 circuits and lets you manage all your gear from up to 60 metres away. When you’re ready to recharge, simply slot it into the magnetic charging cradle – no USB connections, no tangled cables. Just a tidy, wireless setup.
NOTE: Not compatible with previous MKI control box and switch panels. A complete new MKII control box and switch panel upgrade is required.
KickAss Features:
Have full control of up to 12 circuits
Control all of your 12V appliances and gear from this one handy unit. The 12 switches are RGB programmable, and backlit for easy viewing.
3 Programmable Switch Modes
Choose from three switch modes: Toggle, Momentary, or Pulsed, giving you flexibility and control over your devices.
RGB Backlighting
Customise the look of your 12 Gang Switch Panel by adjusting the brightness and selecting from a range of colours to suit your personal preferences. The panel also comes with 50 individual graphic labels, helping you align your switch setup with your configuration.
Wireless control
Control your DC appliances from up to 60 meters away – far beyond the typical range of Bluetooth. No apps to download, no need for your phone, and no hassle with tricky cable routing between the panel & the control box. Just grab the panel, and you’re good to go.
Rechargeable battery
The switch panel features a built-in rechargeable battery, so you won’t need to worry about the hassle or cost of replacing disposable batteries - just recharge it using the included USB cable.
The battery charges completely in 2-3 hours and can last up to 5-6 days on a full charge. You can easily monitor the battery status with the handy indicator, which clearly shows three separate levels: low, medium, and full.
High current capability
The 12 Gang Switch Panel delivers a high current capacity, managing up to 80A at both 12V and 24V. This allows you to run both high and low current devices at the same time, such as speakers, camping fridges, lights, winches, air compressors, and more.
Multi battery capability
The control box switch provides two power options: you can connect to either the starter battery via ACC (Accessory power) or to the auxiliary battery. If you want to run your electrical devices, such as your horn, lights, and radio, exclusively in ACC mode, choosing the ACC setup will enable you to do just that.
IP65 Dust & Water Resistance Rating
Encased in aluminium and rated IP65, the 12 Gang Switch Panel is built for outdoor adventures. It’s designed to handle some dust and moisture exposure, but should not be completely submerged in water.
Double sided outlet
The switch panel comes with a current control box that divides the output into two sections, offering flexible wiring options and reducing wire clutter. It includes five 30A, two 20A, two 15A, and three 10A outlets, with one of each type positioned on each side of the panel.
Prewired ACC fuse tap
The pre-wired ACC fuse adapter simplifies connecting the control box to your vehicle’s fuse box, eliminating the need for cutting, splicing, or damaging your existing wiring. Speedy, straightforward installation!
Enhanced safety features
The 12 Gang Switch Panel comes with a 60/80A circuit breaker, blade fuses (including a spare), and compact solid-state relays. These features safeguard the switch panel from any potential damage from thermal issues, overloads, and excessive currents.
Multiple mounting options
Includes two bracket mounting options for both the switch panel and control box. All necessary mounting hardware is provided, along with instructions and recommendations for the best placement within your vehicle.
Adjustable lighting & on/off switch
You have three lighting modes to choose from: steady light, momentary light, and strobe. Additionally, you can adjust the brightness across five levels, select from various colours, and use a dedicated switch to turn the backlight on or off.
DIY switch panel labels
Includes 140 stickers for labelling each switch and its connection!
Magnetic Charging Cradle
With its smart magnetic cradle, your switch panel stays charged and ready to go without the clutter of cords and tangled cables. Just place the unit onto the dock and it automatically connects for a stable, reliable charge. No fiddly plugs or USB connections – it’s smooth, wireless, and streamlined.
Built for reliable high-current performance, this heavy-duty 75mm² cable features flexible silicone insulation, corrosion-resistant tinned copper conductors and an included MEGA fuse with spare – making it the ideal connection for your KickAss 2200W Bi-Directional Inverter Charger.
Complete your inverter setup with the KickAss 2200W Inverter Premium Wiring Kit, designed specifically for use with the KickAss 2200W Bi-Directional Inverter Charger. The heavy-duty 75mm² cable provides a reliable high-current connection, with tinned copper conductors offering excellent conductivity and added corrosion resistance for demanding 12V, mobile and off-grid applications.
A flexible silicone outer sheath makes the cable easier to route and install, particularly in tight or confined spaces. The kit also includes a high-current MEGA fuse for essential circuit protection, plus a spare for added convenience. It’s a purpose-built wiring solution for creating a reliable, professional inverter installation in caravans, camper trailers, 4WDs and other off-grid power setups.
The KickAss Remote Smart Lithium Battery Display Unit is compatible with the KickAss Smart and Ultra-X series batteries. Simple plug-and-play via the RJ45 connector, it allows you to monitor State of Charge (SOC), voltage, real-time current, and temperature of either a single battery or multiple batteries connected in parallel or series. Includes 5m extension cable. No shunt required!
The KickAss Remote Smart Lithium Battery Display Unit is compatible with the KickAss Smart and Ultra-X series batteries. Simple plug-and-play via the RJ45 connector, it allows you to monitor State of Charge (SOC), voltage, real-time current, and temperature of either a single battery or multiple batteries connected in parallel or series. Includes 5m extension cable.
Take full control of your battery system with the KickAss Battery Display Monitor – your window into real-time performance, protection, and peace of mind.
Monitor Your Battery Like a Pro
Never guess your battery’s health again. With a full-colour screen, you can instantly view:
Built-In Battery Management System (BMS)
The integrated KickAss BMS keeps your battery safe — actively protecting against:
Stay alerted with smart error messages and stay in control from your display or compatible mobile device.
Easy Flush-Mount Design
Install it where you need it most. Whether it's in your canopy, van, or camper setup, the flush-mount design with included screws and universal hole spacing makes installation fast and secure.
Compact Dimensions
The KickAss Battery Display Monitor isn’t just for looks – it’s your off-grid command centre. Whether you're heading bush or running gear off your canopy, this screen keeps your system protected and your trips worry-free.
Control and monitor your KickAss Bi-Directional Inverter Charger from a convenient location. This plug-and-play remote features an OLED screen displaying real-time AC output power, dedicated status LEDs, flexible flush or surface mounting and an included two-metre RJ45 cable. Compatible with both 2200W and 3200W models.
Put convenient inverter control and monitoring within easy reach with this remote for KickAss 2200W and 3200W Bi-Directional Inverter Chargers. Switch your inverter on and off without needing direct access to the unit, while the integrated OLED screen displays real-time AC output power so you can keep an eye on appliance loads at a glance. Dedicated LED indicators also provide quick confirmation of bypass and battery-charging status.
Designed for a clean, flexible installation, the inverter remote can be flush mounted or surface mounted using the included frame, making it easy to position where it works best in your caravan, camper trailer, 4WD or off-grid setup. The included two-metre RJ45 cable provides a simple plug-and-play connection, while multi-remote capability lets multiple connected remotes work together for convenient inverter control from different locations.
These 400mm linking cables allow you to connect batteries in series or parallel to build a battery bank, increasing your power capacity. 12V, rated to 100amps. Appropriate for 4WDs & light commercial vehicles.
400mm Length Pair (Black & Red) Battery Joiner Pack
Combine batteries in parallel to create a battery bank and boost your power storage capacity. These cables can also be used in series to achieve 24V from two 12V batteries.
Note: Always ensure your batteries are connected correctly for your intended application.
| Length | 400mm |
| Voltage | 12V |
| Current Rating | 100 Amps |
| Cable Size | 2 AWG |
| Lug Hole Size | 8mm |
| Voltage | 12V/24V DC |
| Power | 960W at 12V / 1920W at 24V |
| Maximum Current | 80A Total |
| Operating Temperature | -40°C to 85°C |
| Standby Power | <3mA |
| Battery | Rechargeable |
| Operation | Wireless |
| Weight | 2kg |
| Switch Panel Dimensions | 125mm x 89mm x 14mm |
| Fuse Panel Dimensions | 192mm x 133mm |
| Certification | EN 6100 |
⚠️ Voltage Warning
This switch panel is designed for 12V and 24V Nominal DC electrical systems only. Do NOT connect it to any power source exceeding 24V DC. Using an input voltage higher than 24V may cause permanent damage to the switch panel and will void the warranty.
⚠️ Wiring Warning
Only connect compatible output devices (such as lights, fridges and other 12V/24V accessories) to the panel's output ports. Do NOT connect input devices (such as battery chargers, solar panels or control signals), to the output ports. The switch panel is not designed for these connections. Incorrect wiring may cause permanent damage to the product and will void the warranty.
| Voltage | 12.8V |
| Capacity | 230Ah |
| Cell Type | Prismatic |
| Max Continuous Discharge | 230A |
| Max Continuous Charge | 230A |
| Peak Discharge | 430A (30s) |
| Max Charge Temp | 60°C |
| Min Charge Temp | 0°C |
| Max Discharge Temp | 65°C |
| Min Discharge Temp | -20°C |
| Cycle Life | 4000+ cycles | 80% DoD | 1C Charge / 0.5C Discharge |
| Bluetooth | Yes |
| Remote Display | Optional |
| Parallel / Series | 4 | 4 |
| Parallel / Series Remote Monitoring | Bluetooth | Remote Display |
| Dimensions (Battery) | 300 x 215 x 225mm |
| Dimensions (with Terminals and Housing) | 360 x 215 x 265mm |
| Weight | 23.5 kg |
| Certifications | IEC62619 |
| Warranty | 5 years |
| DC Input Voltage | 10.5–15 VDC |
| Charger Output Voltage | AGM 14.8V | STD 14.4V | GEL 14.2V | LiFePO4 14.4V |
| Charger Input Power | 1800W Fast Charge | 600W Slow Charge |
| Supported Battery Chemistries | AGM, Standard (STD), GEL, LiFePO4 |
| AC Input Voltage | 196–264 VAC (nominal 230V / 50Hz) |
| AC Output Power | 2200W | 230VAC ±5% | 50Hz ±1 | Pure Sine Wave |
| AC Output Surge Power | 4400W |
| Inverter Efficiency | ≥88% |
| Transfer Time | 15ms max |
| Standby Power | ≤20mA |
| USB | 2 x USB-A (18W Max) |
| Bluetooth | Yes |
| Communications | RS485 |
| Operating Temperature | -20 to +40°C |
| Dimensions | 439mm x 277mm x 96mm |
| Weight | 7.7kg |
| Certifications | CISPR14 | CISPR32 | IEC60335-1 | IEC60335-2-29 | AS/NZS4763 | AS/NZS4268 |
| Input Voltage | 9-16V |
| Communications | RS485 |
| Standby Power | 10mA |
| Operating Temperature | -20 to +50°C |
| Dimensions | 79mm x 68mm x 20mm |
| Weight | TBC |
| Certifications | RCM |
| Wire Size | 75mm² |
| Cable Length | 1000mm |
| Insulation | Silicone |
| Conductor | Tinned Copper |
| KickAss 12/24V 12 Gang Wireless Switch Panel with Magnetic Charging Cradle - MKII | |
| KickAss Smart 12V 230Ah Ultra-X Lithium Compact Deep Cycle Battery LiFePO4 | |
| KickAss Smart Lithium Battery Remote Display Unit + 5m Extension Cable Bundle | |
| KickAss 12V to 230V Pure Sine Wave 2200W Bi-Directional Inverter-Charger + Integrated Bluetooth |
Take your off-grid power capabilities to the next level with the KickAss Twin Smart 230Ah Lithium Complete Dual Battery Kit. This powerhouse combo features two KickAss Smart 12V 230Ah Ultra-X Lithium Compact Deep Cycle Batteries, paired with a 12V to 230V Pure Sine Wave 2200W Bi-Directional Inverter-Charger, and a comprehensive setup of premium wiring kits and controllers. With Bluetooth integration for remote monitoring and control, this kit provides everything you need for reliable power supply whether you're touring Australia’s rugged outback, or setting up at your favourite off-grid campsite. Enjoy seamless integration and performance, backed by KickAss reliability.
