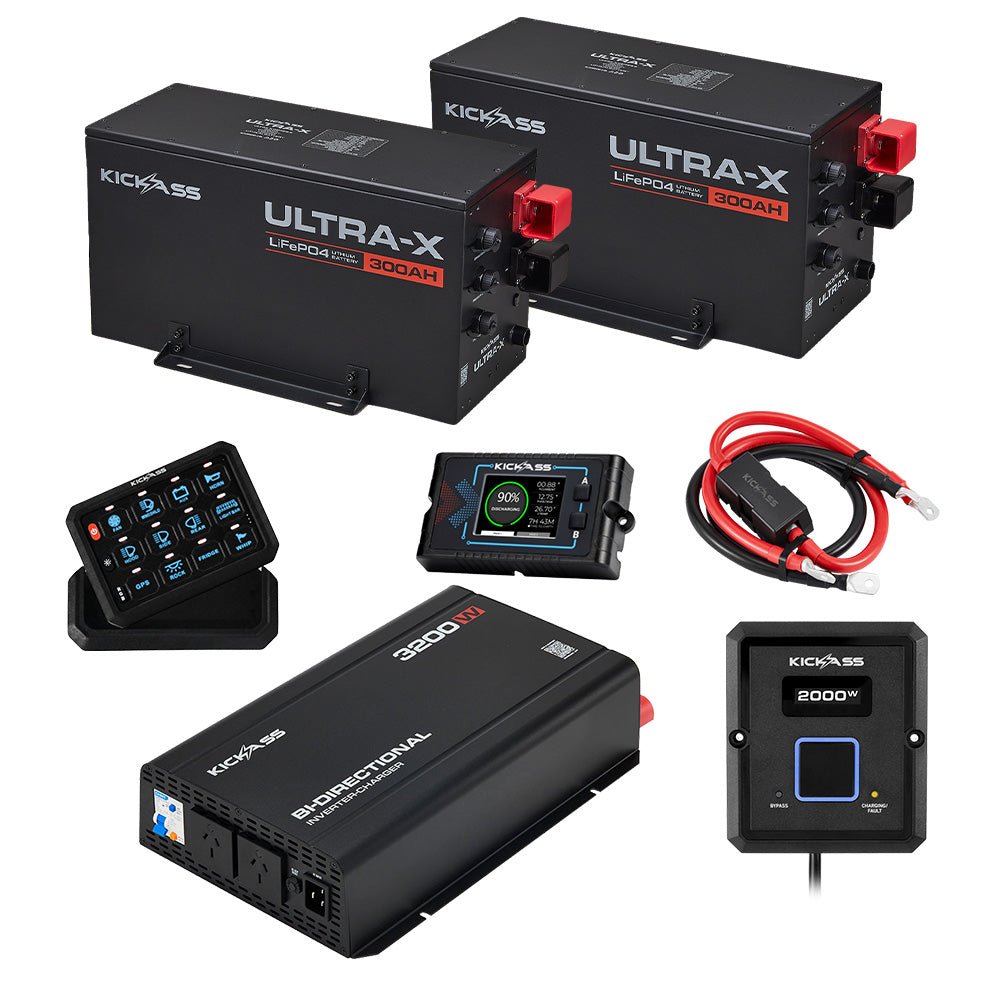

Maximise your off-grid power with this comprehensive bundle featuring 600Ah lithium capacity, top-tier inverter-charger, and full wiring kit.
Everything that is included in this KickAss kit!

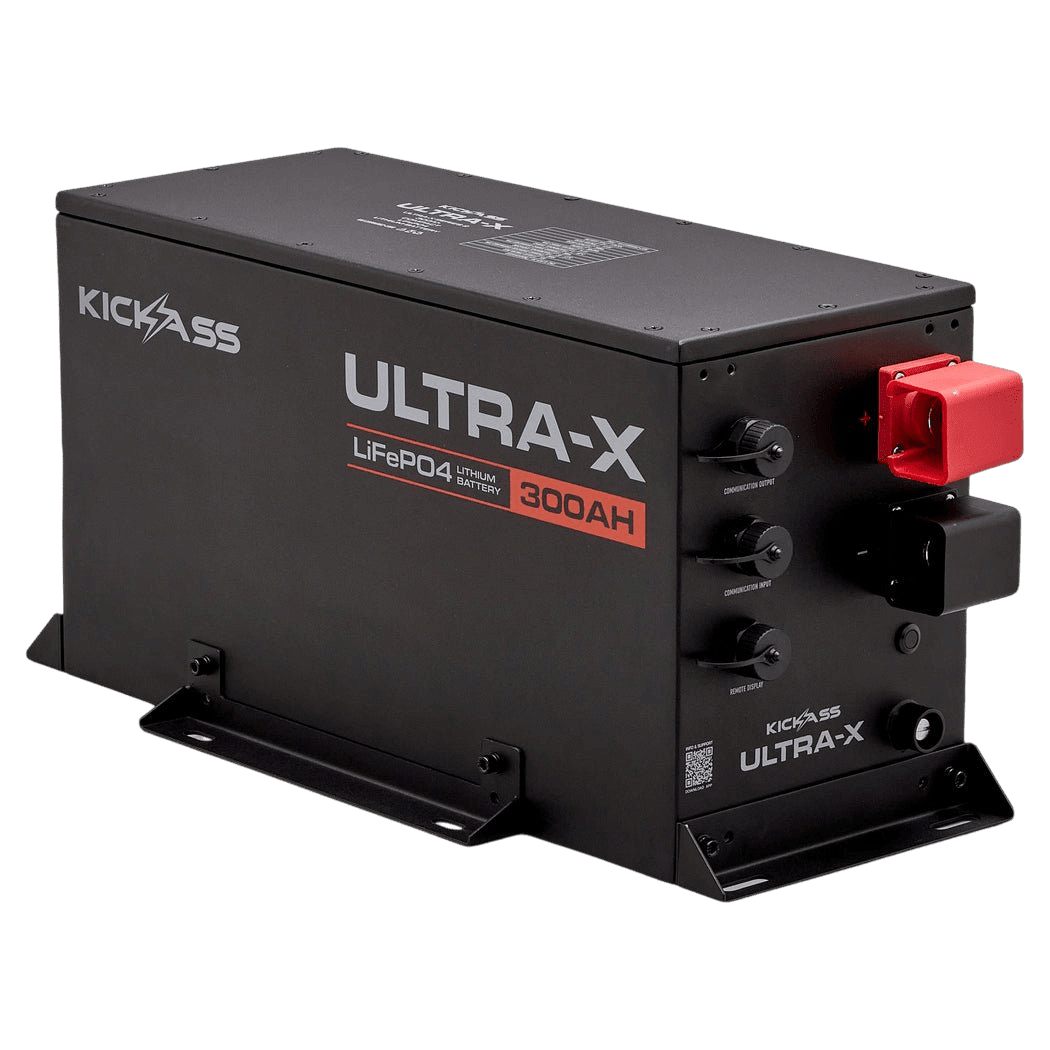

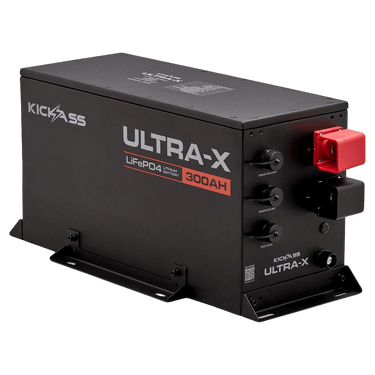

The first release in the new Series 2 Ultra-X battery range, this 300Ah lithium power house packs 300Ah of usable capacity into a compact design that can be installed anywhere from under beds in caravans to the back of ute tubs. Connect up to four in parallel or series & monitor the entire battery bank remotely via Bluetooth – no external shunt required. Supports AS/NZS:3001 compliance.
The KickAss Smart 12V 300Ah Ultra-X Lithium Compact Deep Cycle Battery LiFePO4 is the first battery in the second series of our premium Ultra-X range, building on everything customers already love. This second series introduces a new look along with key upgrades including an IP65-rated enclosure, integrated Low Voltage Recovery (LVR) button, and supports AS/NZS 3001.2 compliant installations. It's the next evolution of KickAss Ultra-X Lithium Batteries, delivering the same premium performance with even more capability.
With 300Ah of usable capacity and a 300A continuous discharge, it's built to power demanding off-grid setups, making it the ideal battery to pair with a 3000W inverter for running fridges, induction cooktops, coffee machines, power tools, lighting and other 12V and 240V appliances at the same time. This high-performance 12V lithium battery gives you more power without taking up valuable space.
Its compact form factor opens up installation options that simply aren't possible with many large-capacity batteries. Mount it neatly beneath caravan beds or bench seats, inside ute tubs under roller covers, within canopies or in camper trailers. A built-in vent means that the battery supports AS/NZS 3001 compliant installations, while the rugged metal housing, IP65 rating and intelligent Battery Management System ensure reliable performance in harsh Australian conditions.
Bluetooth monitoring lets you check battery status, capacity, voltage, temperature and current directly from your smartphone, while the optional Remote Display provides the same information for those who prefer a dedicated screen. If you accidentally run your battery too flat, then the integrated Low Voltage Recovery (LVR) button makes it easy to reawaken the BMS after an over-discharge, helping you get back on the road with the touch of a button.
As your power needs grow, your battery system can grow with them. Connect up to four Ultra-X 300Ah lithium batteries in series or parallel to create a powerful battery bank, then monitor the entire system through the KickAss app or Remote Display without needing an external shunt. The KickAss Ultra-X 300Ah LiFePO4 Battery delivers a cleaner, simpler and smarter way to build a scalable off-grid power system.

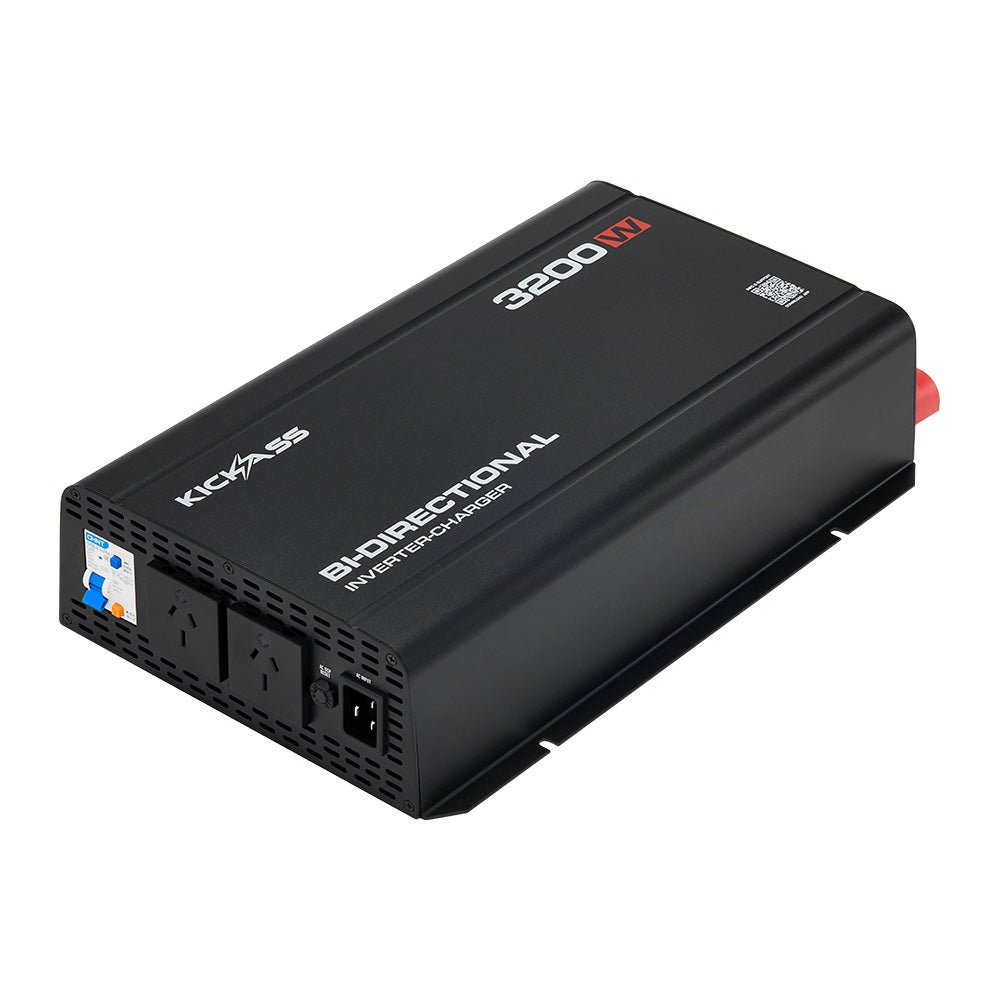

Built for larger setups and power-hungry appliances, this 3200W pure sine wave inverter-charger delivers clean, stable power when you need serious capacity. It rapidly recharges your battery from shore power via 2200W AC ultra-fast charging, with Bluetooth monitoring, plug-and-play install, built-in safety protection, and support for multiple battery chemistries.
The KickAss 3200W Bi-Directional Inverter-Charger delivers mains-quality power for larger setups and high-demand appliances. Combining a 3200W pure sine wave inverter with a 2200W AC ultra-fast charger, it provides both AC power and battery charging without the need for separate devices, additional wiring or extra installation space.
The 3200W pure sine wave inverter converts 12V DC battery power into clean, stable 230V AC power, making it suitable for demanding appliances, sensitive electronics, motor-driven equipment and inductive loads. When connected to shore power, the automatic transfer switch powers connected loads directly from the AC supply while the built-in 2200W AC charger provides up to 180A of charging current.
Bluetooth monitoring and control via the KA Charge app allows you to select battery chemistry, choose a charging mode, switch the unit on or off and view up to 32 hours of performance history. An optional remote switch with OLED display and LED indicators provides additional control and system status monitoring.
Dynamic power adjustment technology balances charging current against connected AC loads, helping keep equipment powered without overloading the available AC supply.
Plug-and-play AC connectivity includes an IEC input and two AC outlets, eliminating the need for hardwiring. Integrated RCBO protection provides overload and earth leakage protection, while intelligent variable-speed cooling fans help regulate operating temperature and minimise unnecessary fan noise.
The compact slimline design is suited to space-limited vehicle and off-grid installations. The unit supports LiFePO4, AGM, CAL and GEL battery chemistries and also includes a USB-A output for charging compatible phones, tablets and other devices.
Note: An additional switch panel must be purchased separately. Panels must be the same model to pair – for example, two 8-Gang panels or two 12-Gang panels. Different models cannot be synced together.

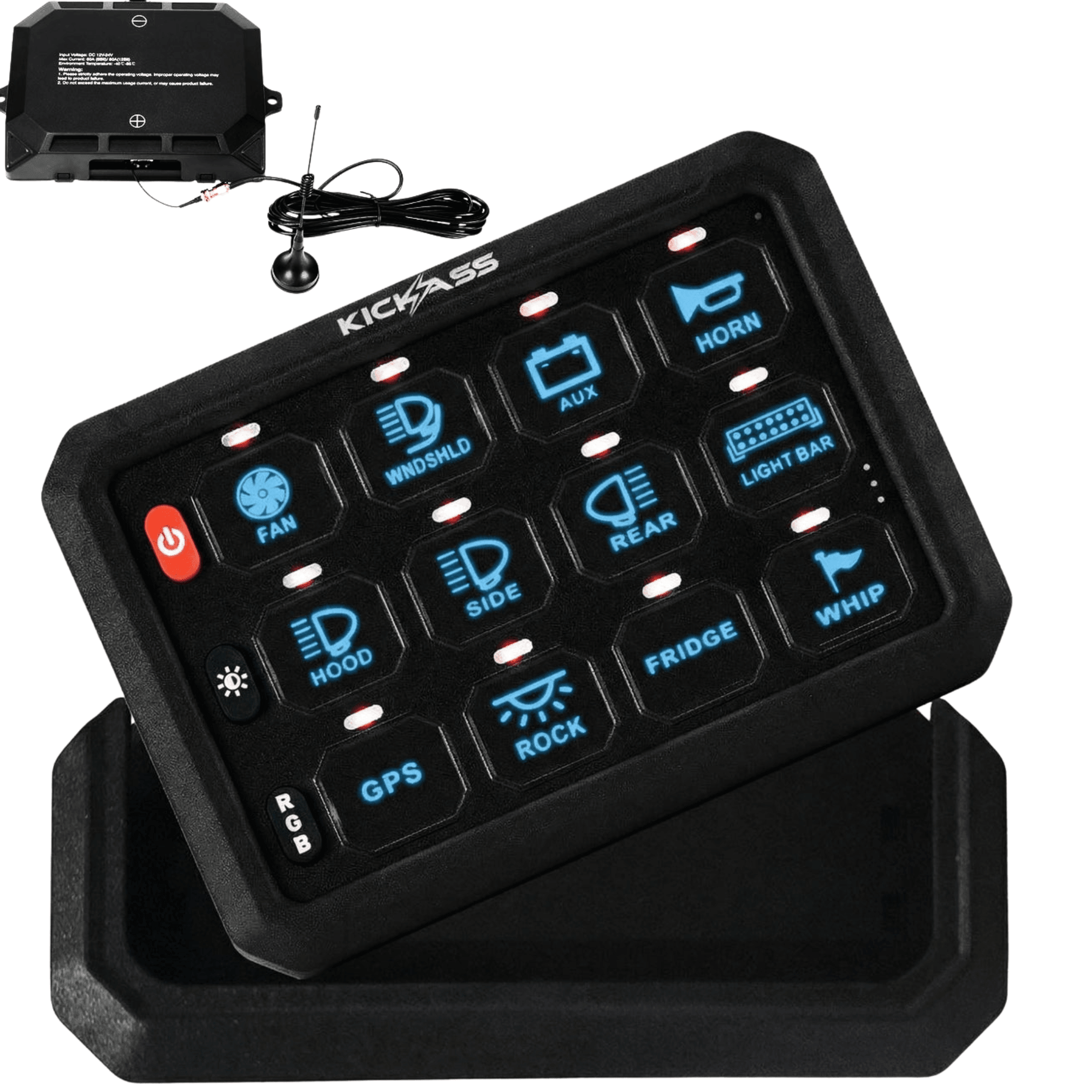

Enjoy full control of your 12V system from one simple device. The KickAss 12 Gang Switch Panel gives you complete control of up to 12 circuits and lets you manage all your gear from up to 60 metres away. When you’re ready to recharge, simply slot it into the magnetic charging cradle – no USB connections, no tangled cables. Just a tidy, wireless setup.
NOTE: Not compatible with previous MKI control box and switch panels. A complete new MKII control box and switch panel upgrade is required.
KickAss Features:
Have full control of up to 12 circuits
Control all of your 12V appliances and gear from this one handy unit. The 12 switches are RGB programmable, and backlit for easy viewing.
3 Programmable Switch Modes
Choose from three switch modes: Toggle, Momentary, or Pulsed, giving you flexibility and control over your devices.
RGB Backlighting
Customise the look of your 12 Gang Switch Panel by adjusting the brightness and selecting from a range of colours to suit your personal preferences. The panel also comes with 50 individual graphic labels, helping you align your switch setup with your configuration.
Wireless control
Control your DC appliances from up to 60 meters away – far beyond the typical range of Bluetooth. No apps to download, no need for your phone, and no hassle with tricky cable routing between the panel & the control box. Just grab the panel, and you’re good to go.
Rechargeable battery
The switch panel features a built-in rechargeable battery, so you won’t need to worry about the hassle or cost of replacing disposable batteries - just recharge it using the included USB cable.
The battery charges completely in 2-3 hours and can last up to 5-6 days on a full charge. You can easily monitor the battery status with the handy indicator, which clearly shows three separate levels: low, medium, and full.
High current capability
The 12 Gang Switch Panel delivers a high current capacity, managing up to 80A at both 12V and 24V. This allows you to run both high and low current devices at the same time, such as speakers, camping fridges, lights, winches, air compressors, and more.
Multi battery capability
The control box switch provides two power options: you can connect to either the starter battery via ACC (Accessory power) or to the auxiliary battery. If you want to run your electrical devices, such as your horn, lights, and radio, exclusively in ACC mode, choosing the ACC setup will enable you to do just that.
IP65 Dust & Water Resistance Rating
Encased in aluminium and rated IP65, the 12 Gang Switch Panel is built for outdoor adventures. It’s designed to handle some dust and moisture exposure, but should not be completely submerged in water.
Double sided outlet
The switch panel comes with a current control box that divides the output into two sections, offering flexible wiring options and reducing wire clutter. It includes five 30A, two 20A, two 15A, and three 10A outlets, with one of each type positioned on each side of the panel.
Prewired ACC fuse tap
The pre-wired ACC fuse adapter simplifies connecting the control box to your vehicle’s fuse box, eliminating the need for cutting, splicing, or damaging your existing wiring. Speedy, straightforward installation!
Enhanced safety features
The 12 Gang Switch Panel comes with a 60/80A circuit breaker, blade fuses (including a spare), and compact solid-state relays. These features safeguard the switch panel from any potential damage from thermal issues, overloads, and excessive currents.
Multiple mounting options
Includes two bracket mounting options for both the switch panel and control box. All necessary mounting hardware is provided, along with instructions and recommendations for the best placement within your vehicle.
Adjustable lighting & on/off switch
You have three lighting modes to choose from: steady light, momentary light, and strobe. Additionally, you can adjust the brightness across five levels, select from various colours, and use a dedicated switch to turn the backlight on or off.
DIY switch panel labels
Includes 140 stickers for labelling each switch and its connection!
Magnetic Charging Cradle
With its smart magnetic cradle, your switch panel stays charged and ready to go without the clutter of cords and tangled cables. Just place the unit onto the dock and it automatically connects for a stable, reliable charge. No fiddly plugs or USB connections – it’s smooth, wireless, and streamlined.
Power your 3200W inverter setup with heavy-duty cabling built to handle serious current. This premium wiring kit pairs 95mm² tinned copper cable with a flexible silicone sheath for easier routing and installation, plus a MEGA fuse and spare. Purpose-built for the KickAss 3200W Bi-Directional Inverter Charger.
Give your KickAss 3200W Bi-Directional Inverter Charger the heavy-duty connection it needs. This premium inverter wiring kit uses substantial 95mm² tinned copper cable to support high-current power transfer, while helping resist corrosion in tough touring and off-grid environments. It’s a purpose-built solution for high-powered inverter installations in caravans, camper trailers, 4WDs and other 12V setups.
Despite its heavy-duty construction, the cable features a flexible silicone outer sheath that makes routing through your setup easier, including around bends and through tighter spaces. A high-current MEGA fuse is included for circuit protection, along with a spare, giving you the key cabling and protection components needed for a clean, dependable 3200W inverter installation.
The KickAss Remote Smart Lithium Battery Display Unit is compatible with the KickAss Smart and Ultra-X series batteries. Simple plug-and-play via the RJ45 connector, it allows you to monitor State of Charge (SOC), voltage, real-time current, and temperature of either a single battery or multiple batteries connected in parallel or series. Includes 5m extension cable. No shunt required!
The KickAss Remote Smart Lithium Battery Display Unit is compatible with the KickAss Smart and Ultra-X series batteries. Simple plug-and-play via the RJ45 connector, it allows you to monitor State of Charge (SOC), voltage, real-time current, and temperature of either a single battery or multiple batteries connected in parallel or series. Includes 5m extension cable.
Take full control of your battery system with the KickAss Battery Display Monitor – your window into real-time performance, protection, and peace of mind.
Monitor Your Battery Like a Pro
Never guess your battery’s health again. With a full-colour screen, you can instantly view:
Built-In Battery Management System (BMS)
The integrated KickAss BMS keeps your battery safe — actively protecting against:
Stay alerted with smart error messages and stay in control from your display or compatible mobile device.
Easy Flush-Mount Design
Install it where you need it most. Whether it's in your canopy, van, or camper setup, the flush-mount design with included screws and universal hole spacing makes installation fast and secure.
Compact Dimensions
The KickAss Battery Display Monitor isn’t just for looks – it’s your off-grid command centre. Whether you're heading bush or running gear off your canopy, this screen keeps your system protected and your trips worry-free.
Control and monitor your KickAss Bi-Directional Inverter Charger from a convenient location. This plug-and-play remote features an OLED screen displaying real-time AC output power, dedicated status LEDs, flexible flush or surface mounting and an included two-metre RJ45 cable. Compatible with both 2200W and 3200W models.
Put convenient inverter control and monitoring within easy reach with this remote for KickAss 2200W and 3200W Bi-Directional Inverter Chargers. Switch your inverter on and off without needing direct access to the unit, while the integrated OLED screen displays real-time AC output power so you can keep an eye on appliance loads at a glance. Dedicated LED indicators also provide quick confirmation of bypass and battery-charging status.
Designed for a clean, flexible installation, the inverter remote can be flush mounted or surface mounted using the included frame, making it easy to position where it works best in your caravan, camper trailer, 4WD or off-grid setup. The included two-metre RJ45 cable provides a simple plug-and-play connection, while multi-remote capability lets multiple connected remotes work together for convenient inverter control from different locations.
| Voltage | 12V/24V DC |
| Power | 960W at 12V / 1920W at 24V |
| Maximum Current | 80A Total |
| Operating Temperature | -40°C to 85°C |
| Standby Power | <3mA |
| Battery | Rechargeable |
| Operation | Wireless |
| Weight | 2kg |
| Switch Panel Dimensions | 125mm x 89mm x 14mm |
| Fuse Panel Dimensions | 192mm x 133mm |
| Certification | EN 6100 |
⚠️ Voltage Warning
This switch panel is designed for 12V and 24V Nominal DC electrical systems only. Do NOT connect it to any power source exceeding 24V DC. Using an input voltage higher than 24V may cause permanent damage to the switch panel and will void the warranty.
⚠️ Wiring Warning
Only connect compatible output devices (such as lights, fridges and other 12V/24V accessories) to the panel's output ports. Do NOT connect input devices (such as battery chargers, solar panels or control signals), to the output ports. The switch panel is not designed for these connections. Incorrect wiring may cause permanent damage to the product and will void the warranty.
| DC Input Voltage | 10.5–15 VDC |
| Charger Output Voltage | AGM 14.8V | STD 14.4V | GEL 14.2V | LiFePO4 14.4V |
| Charger Output Power | 2200W Fast Charge - 165A DC Output | 800W Slow Charge - 50A DC Output |
| Supported Battery Chemistries | AGM, Standard (STD), GEL, LiFePO4 |
| AC Input Voltage | 196–264 VAC (nominal 230V / 50Hz) |
| AC Output Power | 3200W | 230VAC ±5% | 50Hz ±1 | Pure Sine Wave |
| AC Output Surge Power | 6400W |
| AC Max Input Current | 15A |
| Inverter Efficiency | ≥88% (tested 88.9%) |
| Transfer Time | Inverter -> Grid 10ms Max | Grid -> Inverter 15ms Max |
| THD | ≤4% |
| Standby Power | ≤20mA |
| USB | 2 x USB-A (18W Max) |
| Bluetooth | Yes |
| Communications | RS485 |
| Operating Temperature | -20 to +40°C |
| Dimensions | 478mm x 277mm x 96mm |
| Weight | 9.0kg |
| Protection | Integrated RCBO | USB SC Protection | DC UVP/OVP | DC Reverse Polarity Protection | AC Overload Protection | AC SC Protection | AC UVP/OVP | OTP/UTP |
| Certifications | CISPR14 | CISPR32 | IEC60335-1 | IEC60335-2-29 | AS/NZS4763 | AS/NZS4268 |
| Voltage | 12.8V |
| Capacity | 300Ah |
| Cell Type | Prismatic |
| Max Continuous Discharge | 300A |
| Max Continuous Charge | 250A |
| Peak Discharge | 660A @ 30 Seconds |
| Ingress Protection | IP65 |
| Max Charge Temp | 60°C |
| Min Charge Temp | 0°C |
| Max Discharge Temp | 65°C |
| Min Discharge Temp | -20°C |
| Cycle Life | 4000+ |
| Bluetooth | Yes |
| Remote Display | Optional |
| Parallel / Series Remote Monitoring | Yes, up to 4 |
| Dimensions (Battery with terminals) | 242 x 180 x 460 |
| Dimensions (With Mounting Brackets) | 242 x 180 x 500 |
| Weight | 30kg |
| Certifications | IEC 62619, UN38.3, FCC, EMC |
| Input Voltage | 9-16V |
| Communications | RS485 |
| Standby Power | 10mA |
| Operating Temperature | -20 to +50°C |
| Dimensions | 79mm x 68mm x 20mm |
| Weight | TBC |
| Certifications | RCM |
| Wire Size | 95mm² |
| Cable Length | 1000mm |
| Insulation | Silicone |
| Conductor | Tinned Copper |
| KickAss 12/24V 12 Gang Wireless Switch Panel with Magnetic Charging Cradle - MKII | |
| KickAss Smart Lithium Battery Remote Display Unit + 5m Extension Cable Bundle | |
| KickAss 12V to 230V Pure Sine Wave 3200W Bi-Directional Inverter-Charger + Integrated Bluetooth | |
| KickAss Smart 12V 300Ah Ultra-X Lithium Compact Deep Cycle Battery LiFePO4 - Series 2 |
Take your off-grid adventures to the next level with the KickAss Twin 12V Smart Lithium 300Ah Bundle. This powerful package includes two 300Ah Ultra-X Lithium Compact Deep Cycle Batteries, a 3200W Bi-Directional Inverter-Charger with Bluetooth, and a high-performance 60A DCDC Charger with Solar MPPT. Seamlessly manage your power with the 12 Gang Wireless Switch Panel and Smart Remote Displays. Whether you're powering up your campsite or tackling tough trails, this bundle guarantees you won't run out of juice. Built tough for the Australian outdoors, it’s everything you need for reliable power wherever your journey takes you.
