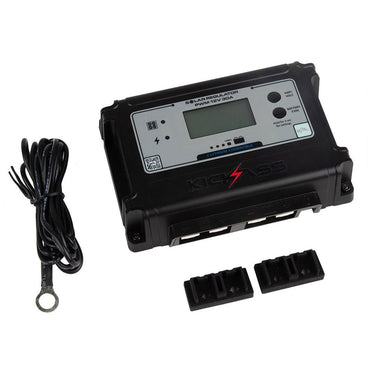

KickAss 30A PWM Solar Regulator

KickAss 30A PWM Solar Regulator

Support Page 30A PWM Solar Controller Manual

KickAss 12V 30A PWM Solar Controller Feature Overview

Automatic 5 Stage Smart Charging

Advanced algorithms enhance the overall charging performance of the 12V PWM Solar Controller. The charging cycle includes a float stage that automatically restarts once the battery drops below the required voltage.

Anderson Style Connectors for Plug & Play (Optional Extra)

Don't let a dodgy connection ruin your weekend away. The Anderson style connectors provide a secure, solid connection that delivers uncompromising charge.

Lightweight & Portable

Weighing only 40 grams, the KickAss 30A PWM is an ultralight solar controller perfect for pairing with the portable 160W Solar Blanket. Ideal for anyone needing a lightweight, portable solution for their 12V solar setup.

LCD Display for Solar Input Monitoring

The crystal-clear display allows you to easily view charge status, battery voltage, overall charged capacity, battery type, charge percentage, battery temperature, and fault codes.

Lithium Activation Mode

If your lithium battery drops below the safety voltage parameters of the BMS, the lithium activation mode will trigger, causing the PWM controller to charge the battery until it reaches the cut-in voltage and resumes normal charging cycles automatically.

Multi-Chemistry Battery Compatibility

Compatible with AGM, Gel, Sealed Lead Acid, Wet, Lead Crystal, Li-Ion Series, and LiFePO4 batteries. Perfect for charging various battery types including starter, deep cycle, marine, powersports, and more.

Battery Temperature Sensor

If a fault occurs with your battery, the temperature probe senses overheating and limits the current output to prevent overcharging.

IP65 Dust & Water Resistant

Protected against dust and water, featuring dust covers for the terminals when not in use. Note: This unit is not waterproof and should not be permanently mounted outdoors.

The KickAss 30A PWM Solar Regulator is designed to handle up to 30 amps of current and works with 12V battery systems. It supports solar panels with a maximum open circuit voltage of 25V, making it ideal for a wide range of 12V off-grid setups.
This regulator uses efficient Pulse Width Modulation (PWM) technology to safely charge your battery to 100%, ensuring reliable power management for your camping or off-grid adventures. Its compact, plug-and-play design means you can easily integrate it into your existing 12V system without hassle.

Yes, the KickAss 30A PWM Solar Regulator includes seven different battery charge profiles: Lead Crystal, WET (Lead Acid Flooded), Calcium, Lithium Iron Phosphate (LiFePO4), Gel, LI-LION series, and AGM batteries.
This versatility means you can confidently use it with most common 12V battery chemistries. Simply select the correct battery type via the easy-to-use Battery Type button to optimise charging performance and extend your battery’s lifespan.

The regulator offers two connection options: plug-and-play using Anderson connectors or hardwired using M5 screw terminals. Installation involves mounting the regulator on a flat surface, connecting the battery with a 40A fuse on the positive cable, and connecting the solar panel input with appropriate cable sizing.
For plug-and-play, connect the battery lead first, select your battery type, then connect the solar panel in shade. For hardwired setups, ensure cables are correctly sized and securely tightened, and keep the solar panel unplugged until all connections are complete. This straightforward installation ensures safe and efficient operation.

The KickAss 30A PWM Solar Regulator includes multiple built-in protections: overvoltage, short circuit, reverse polarity, and thermal protection. It also features an external battery temperature sensor to optimise charging and prevent overheating by stopping charging if temperatures exceed safe limits.
These safety measures ensure your battery and solar system remain protected under all conditions, giving you peace of mind while you enjoy your off-grid power setup in the Australian outdoors.

Absolutely. The regulator is fully sealed with an IP65 rating, making it dust and water resistant for outdoor use. It has a solid-state design with no cooling fans, ensuring reliable operation even in tough Australian outback conditions.
This rugged construction means you can mount it on your caravan, camper, or outdoor panel without worry, confident that it will withstand dust, rain, and heat while delivering consistent solar charging performance.

The regulator features a large digital LCD screen that shows battery voltage, charge current, overall charged capacity (Amp hours), battery type, charge percentage, battery temperature, and fault codes. It also uses coloured LEDs to indicate charging status and battery condition.
This clear, real-time information helps you monitor your system’s performance at a glance, ensuring you always know the state of your battery and solar charging, making your off-grid power management hassle-free.

Yes, it includes a Lithium BMS "Wake up" feature that automatically reactivates the battery’s BMS. This ensures seamless compatibility with lithium batteries, including Lithium Iron Phosphate (LiFePO4) and LI-LION series batteries.
This smart feature helps maintain optimal charging and protects your lithium battery’s health, giving you confidence that your advanced battery technology is fully supported and efficiently managed.

For best results, mount the regulator close to the battery, use correctly sized cables as per the manual’s cable size chart, and install a 40A fuse or circuit breaker on the positive battery cable. Also, keep the solar panel unplugged during connection to avoid sparks.
Following these steps ensures safe, efficient operation and maximises the lifespan of your system components. The regulator’s plug-and-play design and clear instructions make installation straightforward, even for first-time users.
