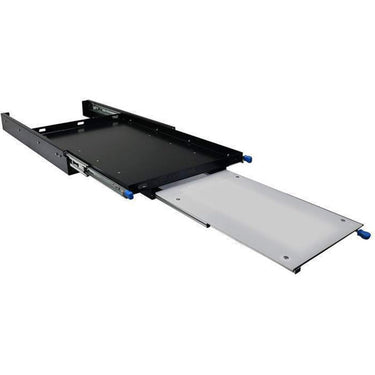

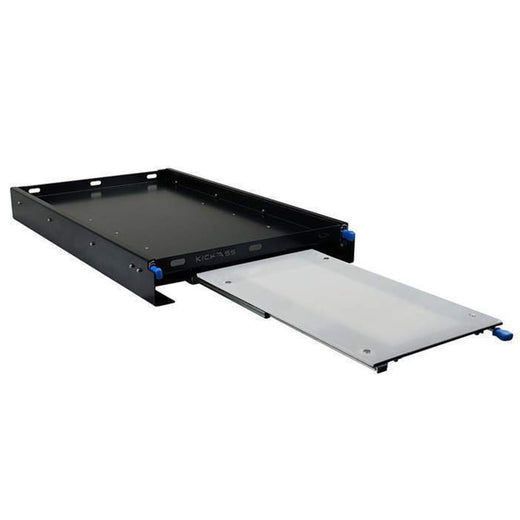

The KickAss Heavy Duty Fridge Slide just got even better—with a built-in slide-out table. Prepare meals, place your drink, or unpack food conveniently, right where you need it!

This is in addition to an already impressive list of features and benefits.

Key Features:

• Heavy duty 125kg ball runner rating
• Double-sided lock-in lock-out system
• Pre-assembled for quick and easy installation
• Steel with black powder coating and stainless steel rails
• Quick release tie-down straps with specially engineered hooks to fit side handles
• Sealed and dust resistant
• Includes Nylock nuts
• Laser cut assembly holes

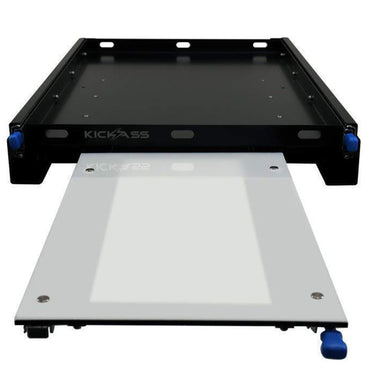

• Built-in slide-out table

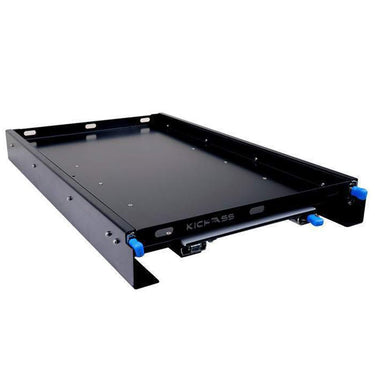

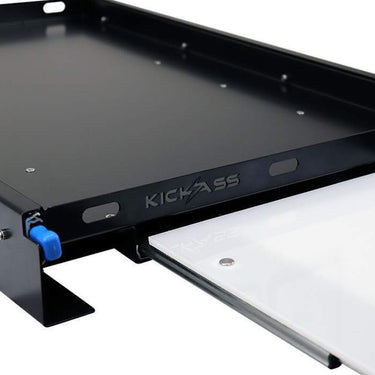

The slide is pre-assembled and can be installed horizontally in your vehicle cab or canopy. Built from black powder-coated steel and stainless steel rails, it includes a double-sided lock-in lock-out system. The mounting tray suits a wide range of fridge footprints and features dustproof roller bearings for full slide extension while supporting up to 125kg.

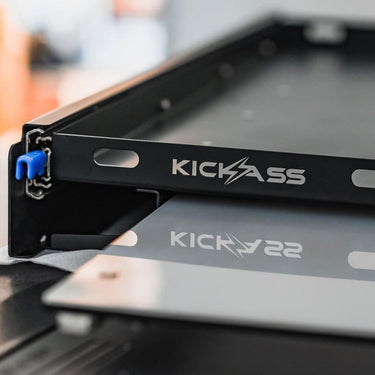

Bonus tie-down straps ensure your fridge stays secure when in transit. To lock the slide back into position, depress the blue latches, return the unit to place, and then release the latches. Slamming the slide may wear out the locking catches and could void your warranty.

Compatible With:

KickAss

• KICKASS Portable Fridge Freezer Uni Zone 48L
• KICKASS Portable Fridge Freezer Dual Zone 42L
• KICKASS Portable Fridge Freezer 50L
• KICKASS Portable Fridge Freezer 70L
• KICKASS Portable Fridge Freezer Dual Zone 75L

• myCOOLMAN Recreational 55L Dual Zone Fridge/Freezer

EvaKool

• 45L & 47L Evakool Fibreglass Fridge Freezers
• Evakool TMX Travelmate TMX35, TMX45, TMX50, TMX55, TMX65, TMX75
• SK45, SK55, SK65 SupaKool Fridge/Freezers
• 30L & 50L Evakool Glacier Fridge/Freezers
• 45L, 55L, 65L, 80L Evakool Glacier Metal Fridge/Freezers
• 61L Glacier G61 Fridge/Freezer

Note: Previously manufactured EVAKOOL KickAss branded fridges will only fit in KickAss slides once the protective feet are removed.

Engel

• MT17F (15L)
• MT27F (21L)
• MT35FP (32L Digital Platinum)
• MR40F (38L ECLIPSE)
• MT45FCP / MT45FP (40L Combi and Digital Platinum)

Waeco (Dometic)

• CFX 28
• CFX 35W
• CFX 40W
• CFX 50W
• CFX 65W

...and many more.

The KickAss Fridge Slide is designed to support fridges weighing up to 80 kilograms, including contents. This makes it ideal for medium-sized fridges commonly used in off-grid and adventure setups. Its robust black powder-coated steel frame ensures durable and reliable support for your fridge during travel and use.

The inner fridge tray measures 810mm long by 480mm wide, while the overall fridge frame dimensions are 850mm long, 540mm wide, and 90mm high. These measurements accommodate a wide range of medium-sized fridges, providing a secure fit and easy access with the slide-out design.

Installation requires drilling six 7mm holes to mount M6 T nuts, which secure the slide rails to a flat, stable surface at least 12cm thick. The slide comes with six M6 bolts, washers, and captive T nuts, plus four nylon straps to firmly secure your fridge. Using the included allen key and an electric drill, you can complete installation efficiently.

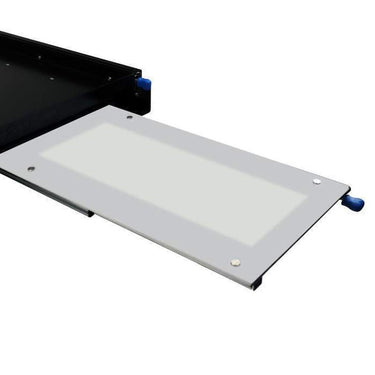

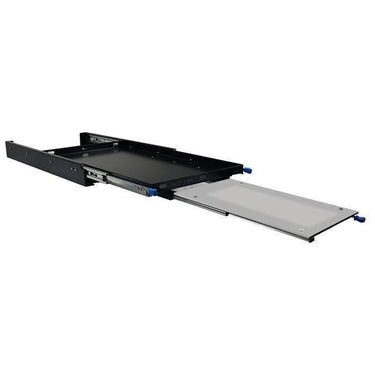

Yes, the built-in slide-out table is activated by depressing a right-hand lever on the front, allowing the tray to smoothly pull forward and lock securely. This design ensures safe, convenient access to your fridge or workspace without risk of accidental movement during use.

The slide includes a lever mechanism to smoothly extend and lock the tray, preventing damage from heavy pushing. It must be securely bolted to a flat, even surface and the fridge firmly tied down with the supplied straps to avoid tipping or sliding, ensuring safe operation during travel and use.

The slide is compatible with medium-sized fridges up to 80kg that fit within the 810mm by 480mm tray size. While it suits most standard off-grid and adventure fridges, ensure your fridge dimensions and weight comply with these limits for optimal performance and safety.

You will need a pen or marker to mark drill points, an electric drill with a 7mm drill bit to create mounting holes, and an allen key to tighten bolts. These common tools make installation straightforward, allowing you to securely mount the slide for reliable use.

The slide includes four 750mm nylon straps with black powder-coated cam lock buckles to tightly secure your fridge to the tray. This prevents any movement or tipping during travel, giving you peace of mind that your fridge stays firmly in place on rough terrain or bumpy roads.
