KickAss Fridge Slide with Built In Slide Out Table - Large

Introducing the all new KickAss Premium Heavy Duty Fridge Slide! We have engineered the slide to have a built-in slide-out table. Prepare meals, sit your drink or unpack food at your convenience!

Key Features:

• Heavy duty 200kg ball runner rating
• Double sided lock-in lock-out system
• Pre-assembled for quick & easy installation
• Steel with black powder coating and stainless rails
• Quick Release tie down straps with specially engineered hooks to fit side handles
• Pre-assembled
• Sealed dust resistant
• Nylock Nuts
• Laser Cut Assembly Holes
• Built in Slide-out table

The slide is pre-assembled and can be installed in your vehicle cab or canopy horizontally. It is constructed from black powder-coated steel and stainless steel rails with a double-sided lock-in lock-out system. The mounting tray allows for quick installations and suits a wide variety of fridge footprints. It features dustproof roller bearings that allow for maximum slide extension while maintaining a 200kg slide ball runner rating. You get bonus tie-down straps to ensure your fridge is secured when using the slide and travelling to your next destination.

*When locking the slide back in, the blue latches should be depressed, the unit returned to position and the latches released. Slamming the slide back into place without depressing the blue latches will result in the locking catches wearing out and may void your warranty*

Compatible With:

KickAss Portable Fridge Freezer Dual Zone 75L - KAF-75DZ

KickAss Portable Fridge Freezer Dual Zone 95L - KAF-95DZ

myCOOLMAN Recreational 78L Dual Zone Fridge/Freezer

The KickAss Fridge Slide is designed to hold fridges weighing up to 80 kilograms, including contents, with an inner tray size of 905mm long by 545mm wide and overall frame dimensions of 945mm by 600mm by 113mm high. This generous size and weight capacity make it ideal for large fridges used in off-grid or adventure setups. Its sturdy black powder-coated steel frame ensures durability and reliable support for your fridge during travel and use.

Installation requires drilling six 7mm holes to fit M6 T nuts, then securing the slide with six M6 bolts and washers using an Allen key. The slide must be mounted on a flat, stable surface at least 12cm thick, with the rails fully extended during installation for proper alignment. Tighten the four supplied nylon straps to secure your fridge firmly on the slide. This method ensures a safe, stable setup that keeps your fridge secure on any adventure.

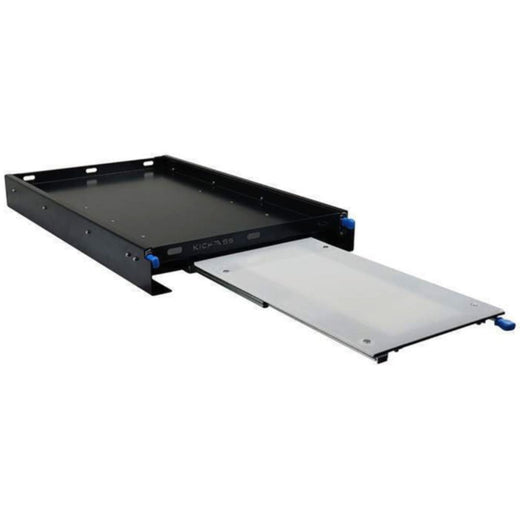

Yes, the built-in slide-out table is integrated into the fridge slide and can be smoothly pulled out by depressing the right-hand lever on the front. This feature provides a handy workspace or prep area alongside your fridge, enhancing convenience without needing extra equipment. Just ensure you use the lever to avoid damage and enjoy the added functionality on your trips.

Absolutely, the slide is engineered to securely hold fridges up to 80kg with four heavy-duty nylon straps and a robust powder-coated steel frame. When properly installed and tied down, it prevents tipping or sliding even on uneven terrain. This design prioritises safety and stability, giving you peace of mind during your off-road adventures.

You will need a pen or marker for marking drill points, an electric drill with a 7mm bit for drilling the mounting holes, and an Allen key to tighten the M6 bolts. These common tools make installation straightforward, allowing you to set up your fridge slide quickly and securely for immediate use.

To operate the slide, fully open it by pressing lightly on the blue handle, then use the right-hand lever on the front to pull the tray forward and lock it in place. Avoid heavy pushing without the lever to prevent damage or injury. This smooth, controlled operation ensures your fridge and slide remain in perfect working order for years of reliable use.

The KickAss Fridge Slide is designed specifically for fridges up to 80kg and is not suitable for commercial use. Its heavy-duty steel construction and secure mounting system are optimised for recreational and off-grid applications, providing excellent performance and durability for most adventure and camping fridges within the specified weight limit.

The slide is constructed from black powder-coated steel, which offers excellent corrosion resistance and strength. This premium material ensures long-lasting durability in harsh outdoor environments, protecting your investment and maintaining the slide’s sleek appearance and reliable function over many adventures.
