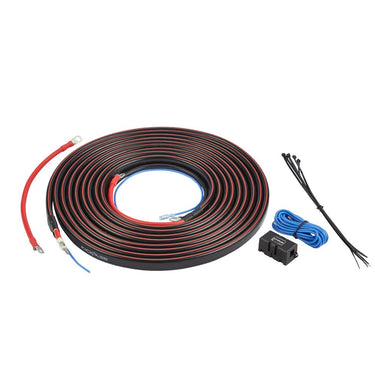

KickAss PowerBoss to Alternator Wiring Kit (8m)
Pickup available at Acacia Ridge Store
Usually ready in 1 hour
The 8m cable supports plug and play connection between the PowerBoss and the vehicle alternator. The 3-core cable is comprised of 2 x 6AWG power conductors and a 14 AWG IGN wire.
SPECIFICATIONS
Technical Details
| Main Cable Length | 8m - 3 Core |
| Ignition Cable Extension | 3m - 14AWG Single Core |
| Cable Size - 3 Core | 2x 6AWG (13.5mm²), 1x 14AWG (1.8mm²) |
| Insulation Material | Inner - Silicon / Outer - PVC |
| Rated Temperature | Max. 105°C |
| Alternator Connection | Ring Terminals - M8 - Battery / M6 - Fuse |
| Powerboss Connection | Power terminals - Bootlace crimp | Ignition - bare wire |
| Fuse | 80A MIDI Fuse with Holder |
User Manual & Support Docs
Detailed Description
Plug and Play Wiring Kit Alternator to PowerBoss: Connect your PowerBoss directly to the vehicle's alternator for seamless integration and reliable performance.
Pre-Crimped Terminals: All terminations come pre-crimped, ensuring a quick and hassle-free installation without the need for additional tools.
80A Midi Fuse: Includes an 80A midi fuse in a weatherproof housing, perfect for safe and reliable underbonnet installation.
Premium Heavy Duty Cable: Features durable 6AWG cable for long-lasting, high-capacity power delivery.
