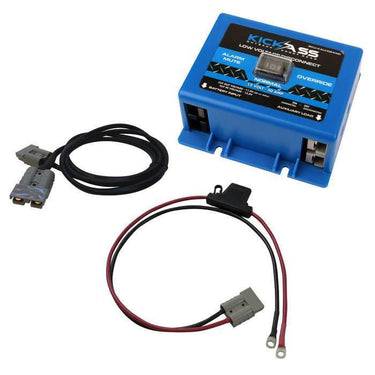

KickAss Low Voltage Disconnect LVD with Inline Fuse

KICKASS^® have taken the hassle out of installing an LVD to your 12V system!

Protect your valuable batteries from over-discharge with this simple-to-install system with Anderson style connectors. You no longer have to hardwire an LVD unit into your system.

Once connected, the LVD will allow output power to run your load as normal. The LED status will indicate what state of charge the battery is at while discharging. The device will cut out at 11 Volts which will protect your battery from over-discharge. To reconnect the device, the LVD needs to sense 13 Volts to ensure that the battery has accepted charge before the load is reconnected.

3 WAY SWITCH SETTINGS

NORMAL - The LVD device will disconnect and isolate the load from the battery at 11 Volts. Once the LVD senses 11 Volts, the Low Voltage Alarm will sound for 60 seconds before disconnecting. To reconnect the device once it has been disconnected, the LVD needs to sense 13 Volts before the load will connect to the battery again.

ALARM MUTE - This function is to manually mute the low voltage alarm if required. On this setting the LVD will still operate the same as ‘Normal Mode’ but the low voltage alarm will not sound.

OVERRIDE - This function is to manually override the LVD sensing and will simply connect the battery to the load without the protection of cutting out. This feature should only be used in Emergency situations when required.

2.5m of 8B&S* Twin Core 50 Amp Anderson to Anderson Extension Lead

Minimise Voltage drop and extend the range of your Anderson style plug by 2.5m with our Super Heavy Duty

Perfect for use with Portable 12V Dual Battery Systems and Solar Panels

Note: B&S is an industry term that identifies cable size and is not conductor cross-sectional area or diameter.

KICKASS^® MAXI Fuse Anderson Cable

We have developed and designed our all-new KICKASS^® MAXI Fuse Anderson cable to be the perfect solution for connecting up a battery to just about anything. This cable provides the ultimate circuit protection ensuring your battery is fused correctly through an 80A inline MAXI Fuse thus preventing a major meltdown should you ever have a short circuit in your system.

The length of this cable has been specially designed to provide adequate reach when connecting to the vehicle starting battery. The provided length allows the cable to be expertly run through the battery compartment and connect to other cables such as dual battery wiring. The MAXI Fuse holder is weatherproof and integrated into the cable making it very easy and fast to install - there is no need to spend time mounting like traditional fuse holders or circuit breakers.

The cable includes a 50 Amp Anderson style connector at one end providing a seamless connection to any device or electrical systems such as battery boxes or solar panels that use Anderson style connectors. At the other end of the cable, two high-quality 8mm ring terminals simply connect to your battery making this cable the main fused connection point. A spare 80A MAXI Fuse is also included with the cable so you have a backup if needed.

Features

• In-line weatherproof MAXI Fuse holder with 80A MAXI Fuse
• Length 750mm
• Cable type: Twin 8B&S (7.71mm2) Red / Black Sheathed
• 1 x 80A MAXI Fuse pre-installed in holder
• 1 x 80A MAXI Fuse spare
• 8mm ring terminals

See links below for replacement fuses:

Spare 50A MAXI Fuse - Red
