KickAss Dual Sensing Voltage Sensitive Relay 12V & Fuse Kit
Pickup available at Acacia Ridge Store
Usually ready in 1 hour
1 Year Warranty
This product is covered by an Australian warranty and easy in-store or online returns.
Description
The KICKASS team have done it again! A new design in Voltage Sensitive Relays unlike anything currently on the market!
A unique dual sensing VSR for charging an auxiliary battery system while ensuring that your vehicle's starter battery is isolated when there is no charge from the alternator. Quick connect anderson style plugs allow for easy installation, no hard wiring! Side moulded mounting points allow flexibility for installation whether it be under the bonnet or anywhere else in your 4wd, caravan or camper. The units are also water resistant and can even be used for marine applications.
The dual sensing function intelligently detects the charge of both the auxiliary and cranking batteries and allows for current to flow back in the case where the starting battery is low, or an external charger is connected to the auxiliary battery such as AC or Solar.
The VSR is also fitted with an override switch for those sticky situations when you're cranking battery has been discharged and you need to transfer charge back from you auxillary battery.
- Easy connection via input and output Anderson style plugs
- Charge your Auxiliary Battery without the risk of discharging Start Battery
- Protect electronics on Auxiliary Battery circuit from engine start up spikes
- Fully automatic operation
- Override Switch (Engages Relay regardless of sense voltage)
- Indication Light Wire (Active when VSR is engaged)
- Override Wire (Activated by + Positive Ignition Feed)
- Dual Sensing (Senses voltage of start and auxiliary batteries)
This Package includes 2 x KICKASS Inline Maxi Fuse holders, Ring terminal to anderson style plug
1 x 2.5m Metre Anderson to Anderson extension lead
Specifications
Additional specifications can be found in the detailed description of the product(s) below.
User Manual and Support
| KickAss Automative Inline Maxi Fuse Holder with Anderson Plug | |
| KickAss Quick Connect Dual Sensing VSR | |
| KickAss 8B&S Extension Lead with Anderson Style Connectors - 2.5m |
KickAss has warehouses located on both the East and West Coast of Australia. Express orders are dispatched same business day if ordered before 12pm AEST. Standard orders are dispatched within 2-3 business days. Deliveries are made during business hours, Monday to Friday.
At KickAss, we take full control of our product journey - from concept to creation - by designing, engineering, and manufacturing our own batteries and 12V accessories in our wholly owned facilities located in Australia, China, and the USA. This end-to-end approach allows us to maintain strict quality standards, drive innovation, and deliver unbeatable value. By owning our production facilities, we ensure every product that carries the KickAss name is built tough, tested rigorously, and ready for off-grid adventure.
Change your mind? No worries, our quick & easy online or in-store returns process has you covered. Learn more.

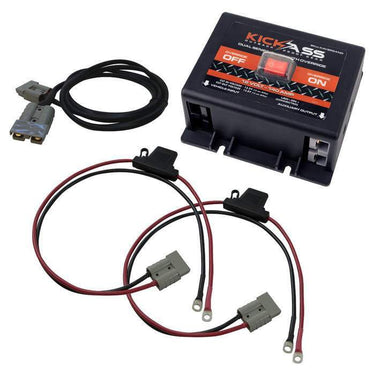

Everything that is included in this KickAss kit!
2 x KickAss Automative Inline Maxi Fuse Holder with Anderson Plug
This heavy duty cable features weatherproof casing to protect the fuse from dust and damage. The durable 8 B&S cable is encased in a smooth PVC outer layer for protection and ease of use.
KICKASS® MAXI Fuse Anderson Cable
The KICKASS® MAXI Fuse Anderson Cable is the perfect solution for connecting a battery to virtually any device. It offers superior circuit protection through an inline 80A MAXI Fuse, safeguarding against short circuits and potential system damage.
With a purpose-designed length, this cable easily reaches vehicle starting batteries and integrates seamlessly with dual battery setups. The built-in weatherproof MAXI Fuse holder simplifies installation, eliminating the need for mounting traditional fuse holders or circuit breakers.
One end of the cable features a 50 Amp Anderson style connector for effortless connection to battery boxes, solar panels, or other compatible devices. The other end includes high-quality 8mm ring terminals for secure battery attachment. A spare 80A MAXI Fuse is included for added convenience.
Features:
- In-line weatherproof MAXI Fuse holder with 80A MAXI Fuse
- Length: 750mm
- Cable type: Twin 8B&S (7.71mm²) Red/Black Sheathed
- 1 x 80A MAXI Fuse pre-installed in holder
- 1 x 80A MAXI Fuse spare
- 8mm ring terminals
See links below for replacement fuses:
Spare 50A MAXI Fuse - Red
1 x KickAss Quick Connect Dual Sensing VSR
KickAss Voltage Sensitive Relays allow two batteries to be charged at the same time. Comes with Anderson style connectors for easy installation, and override switch for battery equalisation.
The KICKASS team have done it again! A new design in Voltage Sensitive Relays unlike anything currently on the market!
This product is a unique dual-sensing VSR for charging an auxiliary battery system while ensuring that your vehicle's starter battery is isolated when there is no charge from the alternator. Quick-connect Anderson-style plugs allow for easy installation—no hard wiring needed. Side-moulded mounting points offer flexible installation, whether under the bonnet or elsewhere in your 4WD, caravan, or camper. The unit is also water-resistant and suitable for marine applications.
The dual-sensing function intelligently detects the charge of both the auxiliary and cranking batteries, allowing current to flow back when the start battery is low or when an external charger (such as AC or solar) is connected to the auxiliary battery.
The VSR also features an override switch—ideal for emergencies when your cranking battery is discharged and you need to transfer charge from your auxiliary battery.
The Basics on How It Works
When the vehicle's engine is running, the alternator charges the start battery. Once the start battery reaches 13.2V, the VSR connects both batteries, allowing them to charge simultaneously.
When the engine is off and charging stops, the start battery voltage drops. Once it falls below 12.8V, the VSR disconnects the batteries, preventing the auxiliary battery from draining the starter battery.
Key Features:
- Easy connection via input and output Anderson-style plugs
- Charge your auxiliary battery without discharging the start battery
- Protects electronics on the auxiliary circuit from engine start-up spikes
- Fully automatic operation
- Override switch (engages relay regardless of sense voltage)
- Indication light wire (active when VSR is engaged)
- Override wire (activated by positive ignition feed)
- Dual sensing (monitors both start and auxiliary battery voltage)
1 x KickAss 8B&S Extension Lead with Anderson Style Connectors - 2.5m
Increase flexibility when positioning your solar panels or 12V gear with this extension lead. Fitted with Anderson-style connectors to ensure a strong, secure fit and minimal voltage drop across the line.
2.5m of 8B&S Twin Core 50 Amp Anderson to Anderson Extension Lead
Minimise voltage drop and extend the range of your Anderson style plug by 2.5m with our super heavy duty extension lead.
Perfect for use with portable 12V dual battery systems and solar panels.
Note: B&S is an industry term that identifies cable size and is not the conductor's cross-sectional area or diameter.
