KickAss DCDC Trailer + 8.0m Plug & Play Wiring Kit Bundle
$
473
95
In stock
Fast Dispatch
30 Day Returns
Pickup available at Acacia Ridge Store
Usually ready in 1 hour

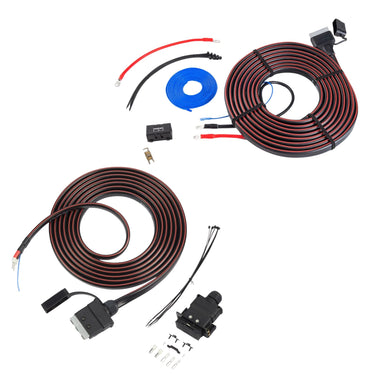

INCLUDED IN THIS KIT
KickAss DCDC Trailer + 8.0m Plug & Play Wiring Kit Bundle
$
473
95
WHAT'S INCLUDED?
Everything that is included in this KickAss kit!
1 x KickAss Trailer Wiring Kit - Supports connection between a 3 Pin trailer mounted connector and the PowerBoss
1 x KickAss Trailer Wiring Kit - Supports connection between a 3 Pin trailer mounted connector and the PowerBoss
The KickAss Trailer Wiring Kit provides a plug and play solution between the PowerBoss in a trailer or caravan and the drawbar. The kit comes with a heavy duty surface mount hard cover for the 3-pin Anderson connector to be installed on the vehicle's tow bar. The hard cover is weather resistant and provides a secure locking mechanism.
Plug and Play Wiring Kit for Trailer and Caravan Installations: This kit simplifies PowerBoss trailer and caravan setups by providing a dedicated wiring solution from the PowerBoss to the draw bar. It includes a heavy-duty 3-pin Anderson cover that seamlessly integrates with 6.5m and 8m KickAss Heavy Duty Plug and Play DCDC Wiring Kits.
Off-Road Ready Housing: The surface mount hard cover ensures secure installation of the 3-pin Anderson connector from the vehicle’s alternator, making it ideal for rugged off-road conditions.
Compatible with KickAss 3 Pin DCDC Wiring Kits: Complete your trailer or caravan installation by pairing the KickAss DCDC to trailer wiring kit with either the 6.5m or 8m kits.
1 x KickAss Heavy Duty Plug and Play DCDC Wiring Kit - 8m
1 x KickAss Heavy Duty Plug and Play DCDC Wiring Kit - 8m
Easily connect your 12V dual battery system with this 3-pin Anderson-style connector featuring an integrated ignition wire. Ideal for DC/DC chargers, battery boxes, and auxiliary battery setups.
Simplify your 12V dual battery setup with this 3-pin Anderson-style connector, featuring a built-in ignition wire for hassle-free installation. Ideal for linking DC/DC chargers, battery boxes, and auxiliary batteries.
SPECIFICATIONS
Technical Details
KickAss Trailer Wiring Kit - Supports connection between a 3 Pin trailer mounted connector and the PowerBoss
| Main Cable Length | 6.5m - 3 Core |
| Ignition Cable Extension | 3m - 14AWG Single Core |
| Cable Size - 3 Core | 2x 6AWG (13.5mm²), 1x 14AWG (1.8mm²) |
| Insulation Material | Inner - Silicon / Outer - PVC |
| Rated Temperature | Max. 105°C |
| Alternator Connection | Ring Terminals - M8 - Battery / M6 - Fuse |
| Anderson Connection | Anderson Pins |
| Fuse | 80A MIDI Fuse with Holder |
KickAss Heavy Duty Plug and Play DCDC Wiring Kit - 8m
| Main Cable Length | 8M - 3 Core |
| Ignition Cable Extension | 3M - 14AWG Single Core |
| Cable Size - 3 Core | 2x 6AWG (13.5mm²), 1x 14AWG (1.8mm²) |
| Insulation Material | Inner - Silicon / Outer - PVC |
| Rated Temperature | Max. 105°C |
| Ring Terminals | M8 - Battery / M6 - Fuse |
| Fuse | 80A MIDI Fuse with Holder |
| Connections | 3 Pin Anderson Style / Bullet |
User Manual & Support Docs
| KickAss Heavy Duty Plug and Play DCDC Wiring Kit - 8m |
Detailed Description
Power your setup with confidence using this complete DCDC wiring solution. The KickAss DCDC Trailer Wiring Kit connects your 3-pin trailer-mounted connector directly to the Power Boss, while the Heavy Duty 8.0m Plug & Play DCDC Wiring Kit provides extra length for larger vehicles or extended trailer setups. Built tough for reliable off-grid power.
