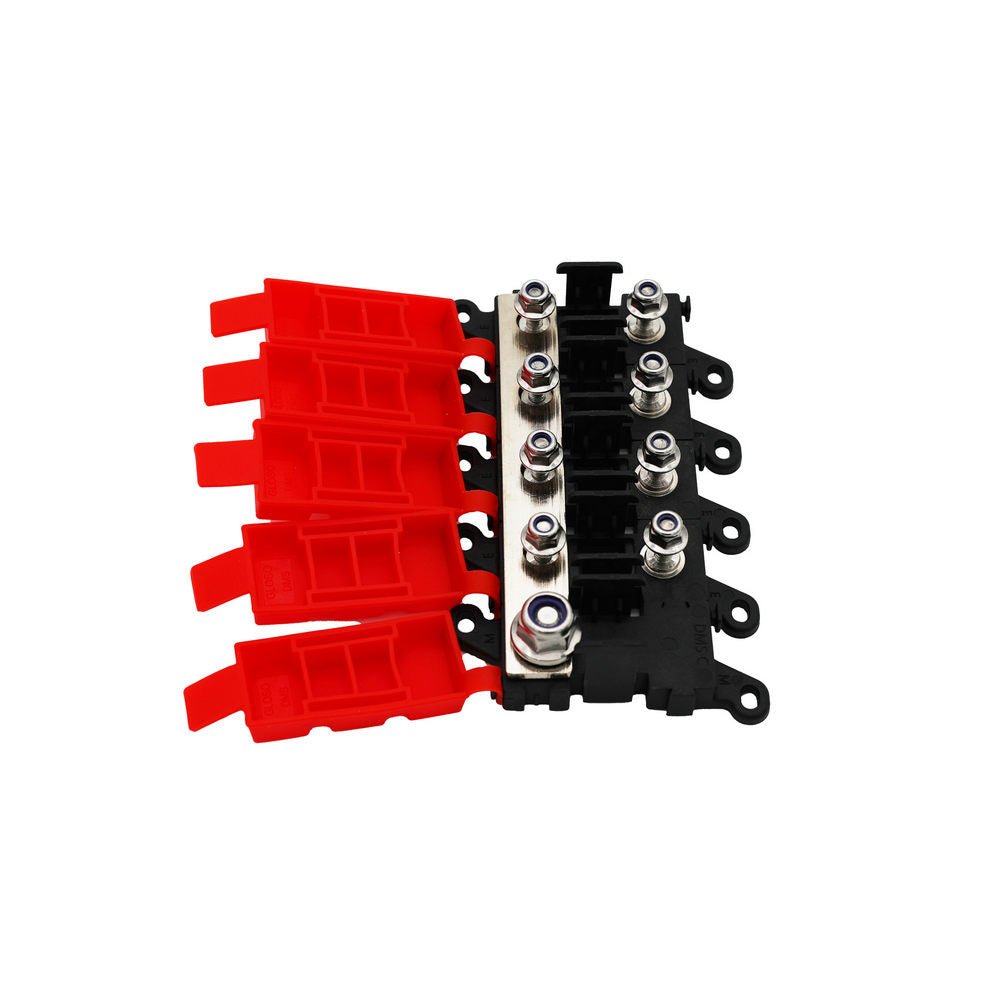

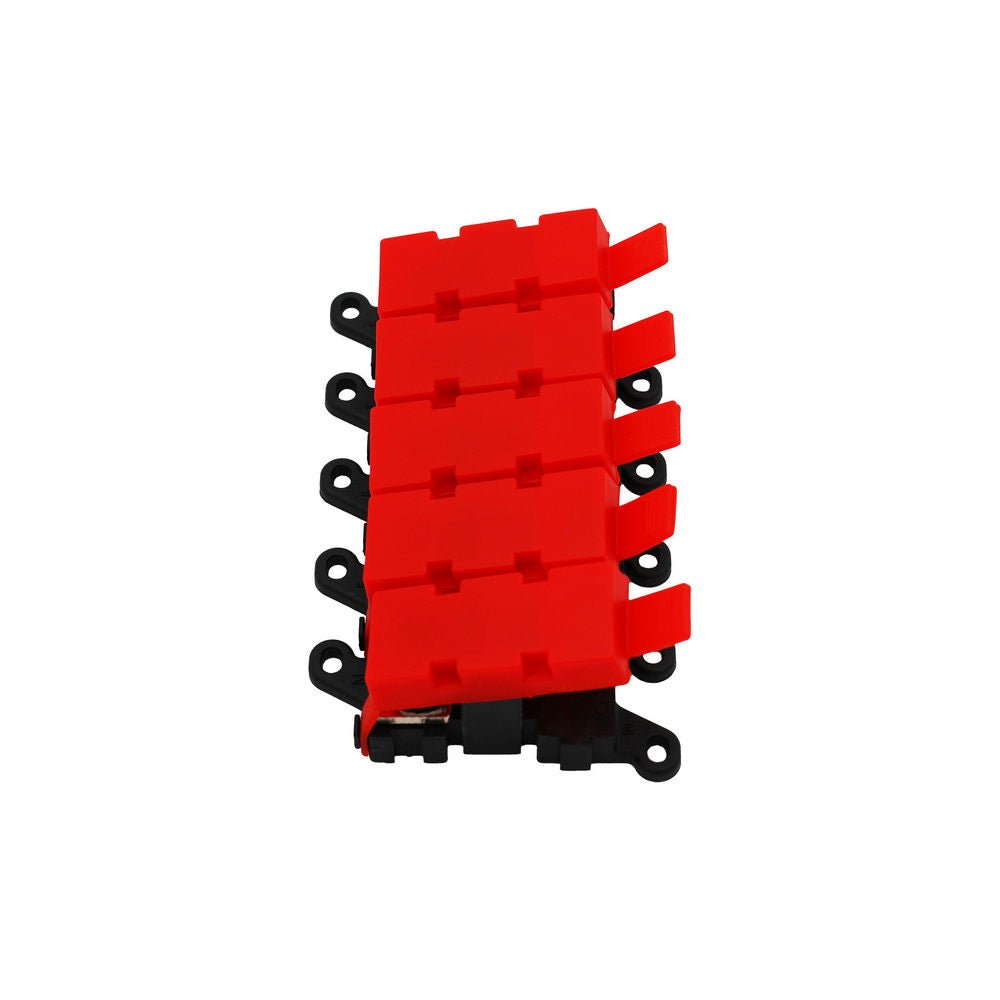

KickAss Bus Bar Combo 4 post
Rated 4.8 out of 5 stars
5
$
39
95
In stock
Fast Dispatch
30 Day Returns
4-Post Power Distribution
Heavy-Duty & High-Current Ready
Ideal for 4WD, Marine & Off-Grid
Pickup available at Acacia Ridge Store
Usually ready in 1 hour
1 Year Warranty
This product is covered by a 1 Year Limited Warranty.
SPECIFICATIONS
Technical Details
| Product Weight | 228.9g |
| Product Dimensions | 134 ร 80 ร 27mm |
| Covered Maximum Current | 145A |
| Uncovered Maximum Current | 200A |
| Maximum Total Combined Rating | 400A Continuous |
| Operating Temperature Range | -40ยฐC (-40ยฐF) to 85ยฐC (185ยฐF) |
| Mounting Torque | 22 in-lbs (2.5 Nm) |
| Fuse Module Torque | M5, 44 in-lbs (5 Nm) |
| Input Module Torque | M8, 88 in-lbs (10 Nm) |
| Cap Material | Silicone Rubber, 200ยฐC Max |
| Base Material | PPS, 94V0 Grade, 230ยฐC Max |
| Stud (Input Unit) | M8 Stainless Steel with Keps Nut |
| Studs (Midi Fuse Block) | M5 Stainless Steel with K-Nuts |
| Plastic Flammability Rating | V0 |
User Manual & Support Docs
Detailed Description
The KickAss 4 Post Bus Bar Combo provides a neat, secure way to distribute power in your 12V system. It simplifies wiring and keeps connections organised. Built with durable materials for high-current applications, itโs ideal for custom 4WD, caravan, marine, and off-grid installations.
