KickAss 6-Circuit Fuse Block with Standard Blade Fuse, Busbar, and Cover
Rated 4.5 out of 5 stars
8
$
32
95
In stock
Fast Dispatch
30 Day Returns
6-Circuit Fuse Block with Labelled Layout
All-In-One Protection & Mounting Kit
Designed for Custom 12V Systems
Pickup available at Acacia Ridge Store
Usually ready in 1 hour
1 Year Warranty
This product is covered by a 1 Year Limited Warranty.
SPECIFICATIONS
Technical Details
| Dimensions | 125 x 85 x 38mm |
| Product Weight | 200g |
| Maximum Operating Voltage | 32V DC |
| Maximum Operating Amperage (per circuit) | 30 A |
| Maximum Operating Amperage (per block) | 100 A |
| Mounting | #8 Screw (M4) |
| Input Voltage | 32A Max |
| Input Current | 100A Max Combined |
| Number Circuits | 6 |
| Mounting Terminals | M4 |
User Manual & Support Docs
Detailed Description

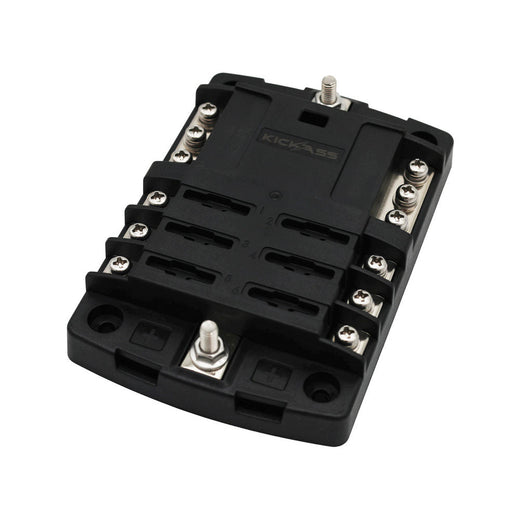

Tidy up your 12V wiring with this KickAss 6-circuit fuse block. It includes standard blade fuses, a built-in busbar, clear protective cover, mounting screws, and pre-printed stickers for easy circuit labelling. Ideal for custom setups, it keeps your system organised, protected, and easy to troubleshoot.
