KickAss 350W TOPCon+ Fixed Solar Panel Bundle with 40A MPPT, Extension Cable & Mounting Kit

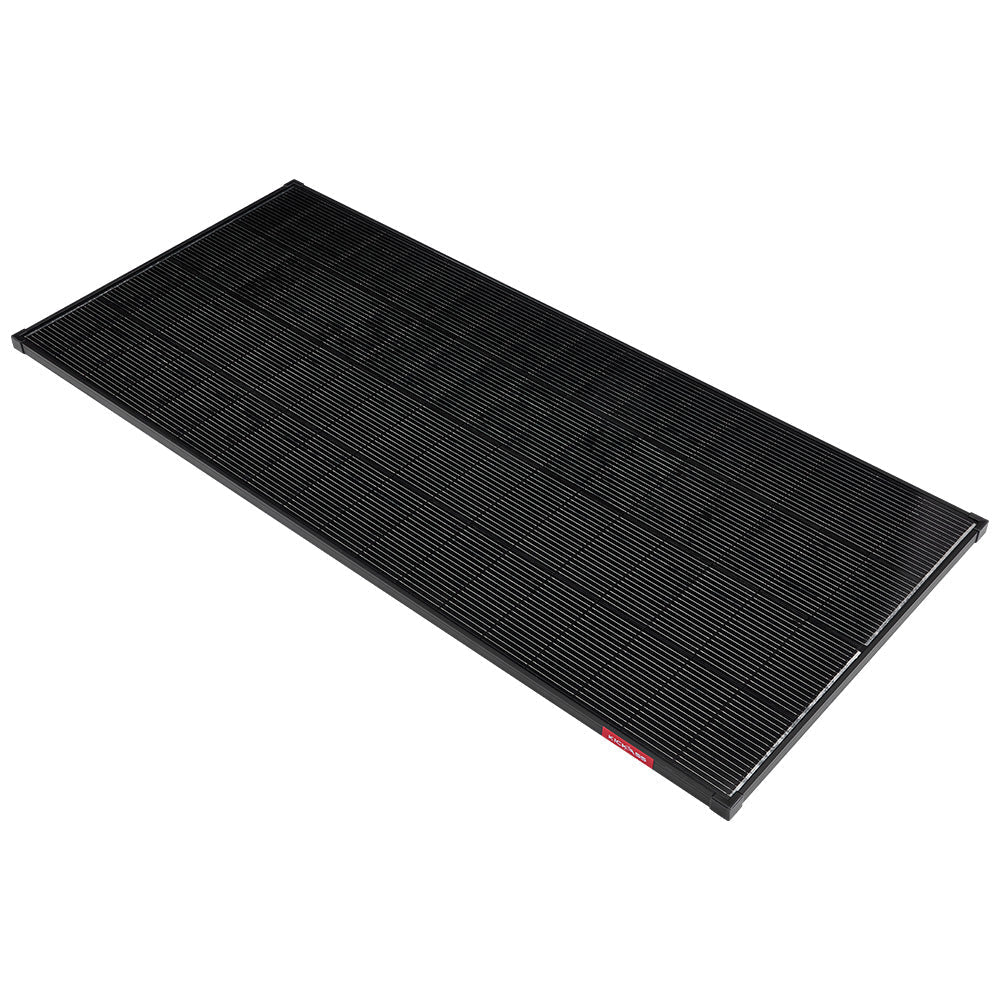

The largest of our fixed solar panel range, the KickAss 12V 350W TOPCon+ Fixed Solar Panel is built for larger setups – whether that's a large caravan, a dual-cab canopy, a boat, or a permanent off-grid installation.

N-Type TOPCon Solar Cell Technology
Inside every KickAss 350W panel are N-Type TOPCon monocrystalline solar cells – representing the cutting edge of mainstream solar technology. TOPCon solar dramatically reduces energy loss at the cell level, allowing more of the sun's energy to be converted into usable power rather than lost as heat. The practical outcome is a panel that outperforms conventional alternatives across a wide range of real-world conditions – including intense heat and variable cloud cover.

Engineered for the Long Haul
The KickAss 350W solar panel features toughened tempered glass which forms a resilient outer surface capable of handling impacts, dust abrasion, and the relentless UV exposure of the Australian sun. The heavy-duty aluminium frame provides structural rigidity and corrosion resistance, making it equally at home on a coastal boat as it is on a dusty outback track.

IP68 Rated Protection & MC4 Connectivity
The KickAss 350W carries a full IP68 rating, ensuring the panel's junction box and connections remain sealed and protected even in demanding environments. Industry-standard MC4 connectors complete the picture, providing a secure, weatherproof electrical connection that makes integration with your existing charge controller, battery bank, or solar array straightforward and reliable.

Up to 25% Conversion Efficiency
With a conversion efficiency of up to 25%, you get more energy captured from the same surface area, faster charging times, and a solar system that works extremely efficiently. For larger installations where power demand is high, that efficiency advantage compounds quickly – keeping batteries fuller for longer and reducing reliance on alternative charging sources.

Consistent Output When Conditions Aren't Perfect
Thanks to the TOPCon cell technology, this panel maintains strong output in partial shade, overcast conditions, and low-light environments. It will produce power during early morning, late afternoon, and cloudy days.

Parallel & Series Compatible
Larger solar setups often involve multiple panels, and the KickAss 350W supports both parallel and series wiring configurations to give you maximum flexibility. Whether you're building a high-capacity system from scratch or expanding an existing array, this panel can be integrated in whichever configuration best suits your power requirements and battery setup.

Advanced 18-Busbar Technology
A greater number of busbars reduces the distance electrical current must travel across each cell, lowering resistive losses and improving overall efficiency. It also distributes mechanical stress more evenly across the cell surface – enhancing long-term durability and reducing susceptibility to microcracks.

Straightforward Permanent Installation
Despite its size and output capacity, the KickAss 350W is designed to install without fuss. Pre-drilled mounting holes are factory-fitted to the frame, making permanent installation to caravans, canopies, camper trailers, boats, and fixed structures clean and straightforward.

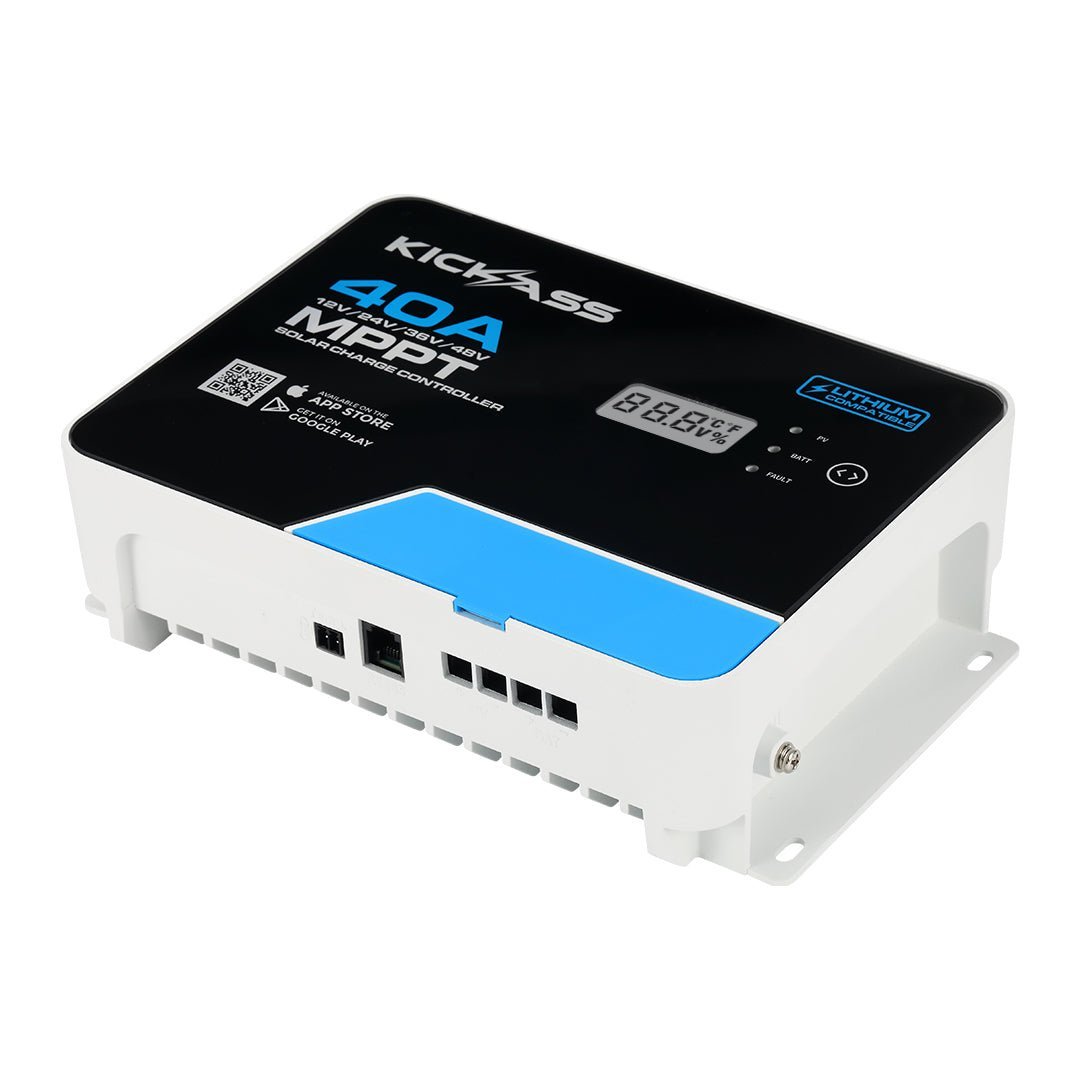

KickAss 40A 12V/24V/36V/48V MPPT Solar Charge Controllers Features Overview

The KickAss 40A 12/24V MPPT Solar Controller uses the latest dual-peak and multi-peak tracking technology available today.

Highly Efficient MPPT

With a tracking efficiency of at least 99.5% and a peak conversion efficiency of 98%, you can be confident that your dual battery system is receiving the optimal charge.

The KickAss 12/24V MPPT Solar Controller series accurately identifies and tracks multiple power points, and includes built-in self-diagnostic technology to help prevent damage from installation and system failures.

Battery Temperature Sensor

Equipped with a temperature sensing probe, the KickAss 12/24V MPPT Solar Controller can limit the current output to your battery, preventing overheating and overcharging if a fault occurs with the connected battery.

LCD Display

The easy-to-read LCD display shows all crucial charging information dynamically (note that the LCD is not backlit).

Pair with

• KickAss Remote Control LCD Display For MPPT Controllers
• KickAss Bluetooth MPPT Module

These devices allow for convenient viewing of your controller in tight spaces and can connect to the KA Solar App on your smartphone for added convenience.

**Please Note: this unit is not a full battery management system, it is simply an MPPT with a load output**

Key features

• 99.5% tracking efficiency
• 98% peak conversion efficiency
• Built-in self-diagnostic technology
• LCD easy read display
• LED indicators for charging, battery, load, and faults
• RJ12 communication interface
• Temperature sensing probe
• Lithium compatible

Protective features

• Input power limit protection
• Battery reverse polarity protection
• Solar input high voltage protection
• Load overpower protection
• Load short circuit protection
• Reverse charge protection
• Over temperature protection for internal heat protection of the MPPT unit
• Over temperature protection for your battery (temperature sensing probe must be attached)

Do not get the controller wet, as it is not waterproof and will be damaged by moisture.

This device is a charge controller, not a complete battery management system. It is designed to power small accessories like LED lights. However, the load output is dependent on the solar input (daylight and darkness) and does not provide a consistent power supply suitable for running appliances like a fridge or freezer. Therefore, we advise against connecting electronics that need stable and reliable power directly to the MPPT Solar Controller. Instead, all accessories should be connected directly to your battery bank using appropriately fused circuits.

x2 Anderson to Bootlace Ferrule Connectors Included
The unit comes with x2 Anderson to Bootlace Ferrule Connectors – the Anderson plug makes setup simple, while the bootlace ferrule ensures a clean, secure fit into the controller’s terminals.

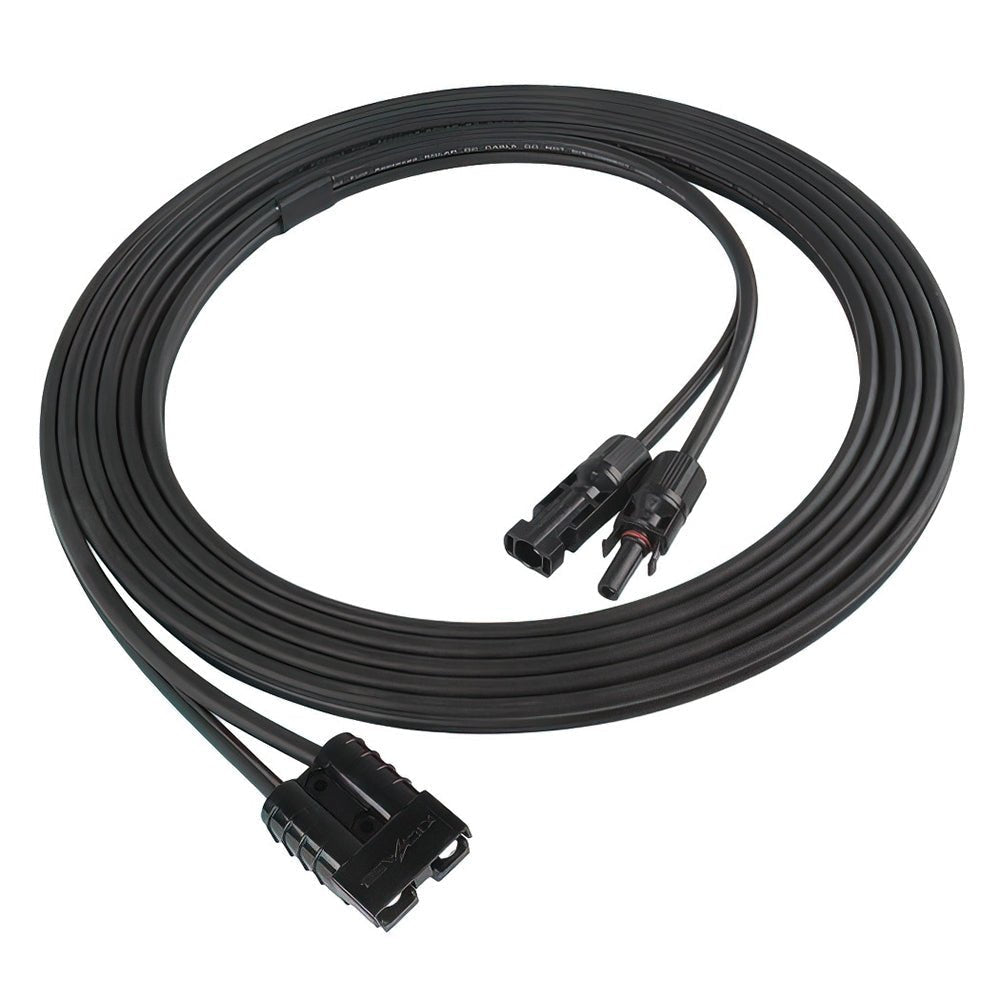

Heavy Duty Twin Core 10B&S Cable

Individually insulated and encased in a smooth PVC outer, providing added strength.

Pre-Crimped Anderson Terminals for Ease of Install

Setting up your solar has never been easier with the KickAss Solar Panel PV to Anderson Solar 5M Extension Cable. It can be plugged straight into your KickAss DCDC charger on your battery box, control hub, or directly into your MPPT/PWM solar controller. MC4 compatible.

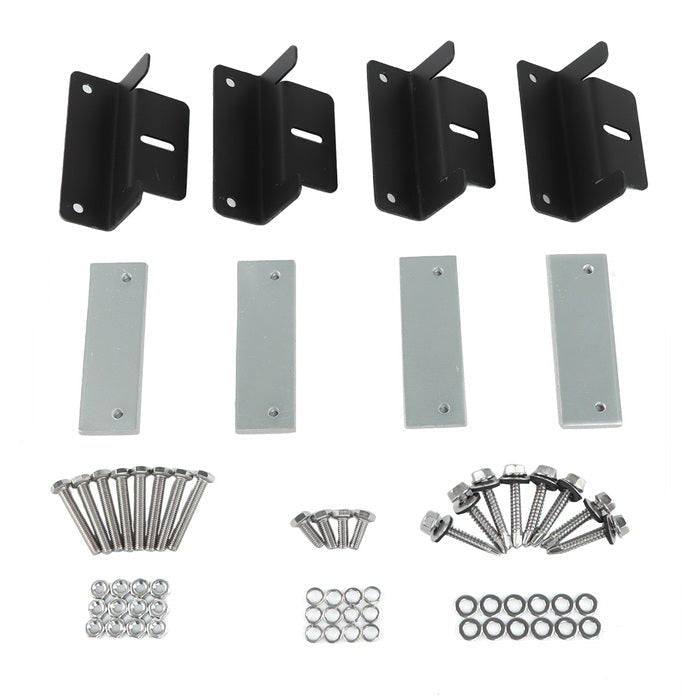

Mounting Kit for the KickAss Fixed Glass Solar Panel Range

Constructed from strong, light weight aluminium and contains all bolts, nuts and washers required for mounting.

What's Included:

• 4 x Aluminium Solar Panel Mounting Brackets
• 4 x Threaded Aluminium Mounting Bars
• 8 x M6 x 40mm Stainless Bolts
• 4 x M6 x 16mm Stainless Bolts
• 8 x M6 x 38mm Self Tapping Screws
• 12 x Stainless Steel Nuts
• 12 x Stainless Steel Spring Washer
• 12 x Stainless Steel Washer

This mounting kit has everything you need to make it easy to affix your KickAss Fixed Glass Solar Panel to the roof of your vehicle. The compact design maintains the aerodynamics of your vehicle.
