KickAss 210W Ultra Slim Fixed Glass Solar Panel + 40A MPPT Solar Charge Controller Bundle
Description
Take control of your power needs with the KickAss 210W Ultra Slim Fixed Glass Solar Panel + KickAss 40A MPPT Solar Charge Controller Bundle. Perfect for camping, caravanning, or any off-grid adventures, this bundle combines high-performance solar solutions to keep your batteries charged and your devices powered up.
KickAss 210W Ultra Slim Fixed Glass Solar Panel
This ultra-slim, fixed glass solar panel delivers reliable, high-output solar performance with a sleek, compact design. Whether you’re mounting it on your caravan, 4WD, or boat, it’s engineered to endure Australia’s harshest conditions.
- High Efficiency: Advanced monocrystalline cells for optimal performance.
- Durable Design: Corrosion-resistant aluminium frame and toughened glass withstands harsh environments.
- Weather Resistant: IP65-rated junction box protects against water and dust.
KickAss 40A MPPT Solar Charge Controller
Ensure maximum efficiency with this smart MPPT solar charge controller. Designed to maximise energy harvest, this controller adjusts to varying sunlight conditions to deliver optimal charging performance.
- Advanced MPPT Technology: Boosts efficiency by up to 30% compared to PWM controllers.
- Multi-Voltage Compatibility: Supports 12V, 24V, 36V, and 48V systems.
- Safety Features: Integrated protection against overcharging, short circuits, and reverse polarity.
KickAss Solar Panel PV to Anderson Solar 5m Extension Cable
Make installation seamless with this high-quality extension cable. Designed to connect your solar panel to the charge controller, it offers durability and flexibility for a hassle-free setup.
- Heavy Duty: 6mm² cable ensures low power loss.
- Anderson-Compatible: Reliable connection for secure power transfer.
- Ample Length: 5m cable for flexible installations.
Specifications
Additional specifications can be found in the detailed description of the product(s) below.
User Manual and Support
| KickAss 12V 210W Ultra Slim Fixed Glass Solar Panel | |
| KickAss Solar Panel PV to Anderson Extension Cable - 5m | |
| KickAss 40A 12V/24V/36V/48V MPPT Solar Charge Controller |
KickAss has warehouses located on both the East and West Coast of Australia. Express orders are dispatched same business day if ordered before 12pm AEST. Standard orders are dispatched within 2-3 business days. Deliveries are made during business hours, Monday to Friday.
At KickAss, we take full control of our product journey - from concept to creation - by designing, engineering, and manufacturing our own batteries and 12V accessories in our wholly owned facilities located in Australia, China, and the USA. This end-to-end approach allows us to maintain strict quality standards, drive innovation, and deliver unbeatable value. By owning our production facilities, we ensure every product that carries the KickAss name is built tough, tested rigorously, and ready for off-grid adventure.
Change your mind? No worries, our quick & easy online or in-store returns process has you covered. Learn more.

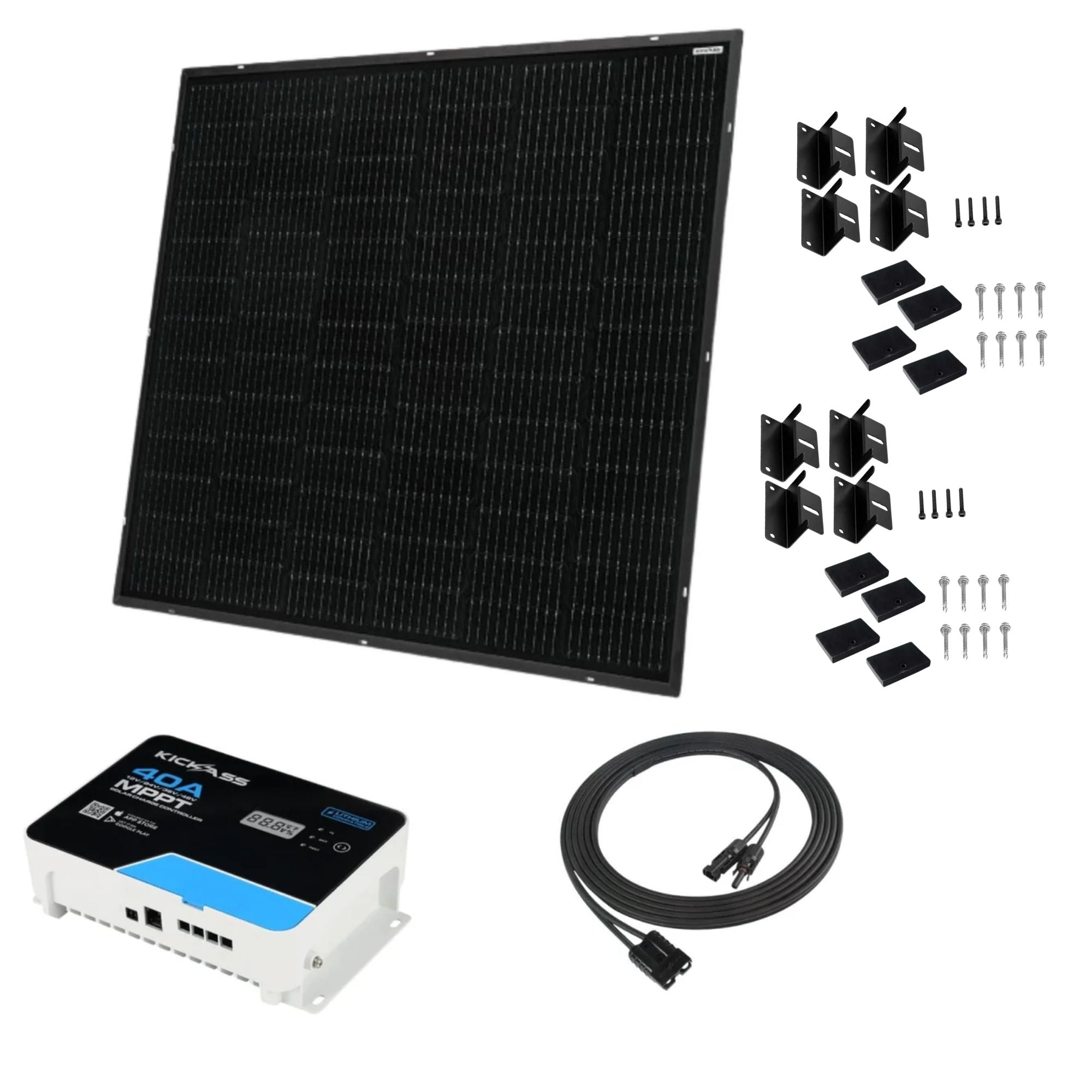

Everything that is included in this KickAss kit!
1 x KickAss 12V 210W Ultra Slim Fixed Glass Solar Panel
Out of Stock
Weighing just 8kg, the KickAss 210W Ultra Thin Fixed Glass Solar Panel is ideal for mounting on your 4WD or boat. Built with A-grade monocrystalline PERC cells and multi busbar tech, it delivers top performance even in low light. With a high 53V VOC, it pairs perfectly with a KickAss MPPT controller for charging 12V, 24V or 48V battery systems.
KickAss Features:
- Lightweight – 8kg
- High 53V VOC
- Ultra thin design
- Monocrystalline PERC cells
- Multi Busbar Technology
- Bypass Diode
- Full Tempered Glass Protection
- Aluminium Alloy Frame
- Series Configuration
- Mounting Brackets & Accessories Included
- 3 year warranty
Super Lightweight
Weighing just 8kg, this solar panel is incredibly light, and won’t add extra weight to your vehicle or impact your fuel efficiency.
Ultra thin design
This ultra thin 210W solar panel is a sleek, durable solution or those seeking efficient solar power. It’s perfect for compact spaces, and delivers reliable energy in a lightweight design. Perfect for installing on the roof of your 4WD, trailer or caravan.
High 53V VOC
With a 53V VOC, this panel can be paired with a KickAss MPPT Solar Charge Controller to charge large Kickass 12V high capacity LiFePo4 batteries and 24V or 48V battery systems. The high voltage ensures optimal performance and fast charging, even when the panels are partially shaded.
Monocrystalline PERC cells
These solar panels combine our KickAss ultra-efficient A-grade monocrystalline solar cells with additional PERC technology. PERC is an innovation which adds an extra layer onto the back of the solar cell. This layer reflects unused light back into the solar cell, which improves efficiency, reduces loss, and puts more energy into your battery.
Multi Busbar Technology
These ultra thin panels are constructed using multiple busbars, meaning that the electrons generated by sunlight have shorter distances to travel before being collected. This reduces resistance and power losses, resulting in higher overall efficiency. If a solar cell is partially damaged, then the multiple busbar technology also means that energy can still be collected by additional busbars, making the overall system extremely durable and resilient.
Bypass Diode
The bypass diode ensures the panels will continue to produce power even when partially shaded. This makes them ideal for rooftop installations, where sunlight conditions may vary.
2mm Thick Full Tempered Glass
The panel features a 2mm protective layer of full tempered glass. This protective layer allows more sunlight in, and also enhances their strength and durability. The perfect balance of durability, efficiency, and streamlined convenience.
Lightweight Aluminium Alloy Frame
The aluminium frame is less than 6mm thick, minimising wind resistance and helping to boost your vehicle’s fuel efficiency. Plus, it keeps your vehicle's overall height low – perfect for streamlined travel.
Series Configuration
If you want even more power, link multiple panels in series to boost your overall output. The panels can handle up to 1500V of direct current – perfect if you want to run the KickAss Quickfire BBQ and Induction Cooktop.
Mounting Gear Included
The KickAss 210W Ultra Slim Fixed Glass Solar Panel comes with Z-shaped mounting brackets and accessories, so you’ll have the gear you need to get it installed.
3 year warranty
We’re so confident in the performance of this product that it comes with a 3-year warranty guarantee – so your investment is protected.
1 x KickAss Solar Panel PV to Anderson Extension Cable - 5m
Makes installing solar panels a breeze. Specially engineered to be paired with our KickAss DC/DC Charger and KickAss 170W, 250W, or 350W Fixed Glass Solar Panels, this extension cable is completely plug & play. MC4 compatible.
Heavy Duty Twin Core 10B&S Cable
Individually insulated then encased in a smooth PVC outer. Providing added strength.
Pre-Crimped Anderson Terminals For Ease Of Install
Setting up your solar has never been easier with the KickAss Solar Panel PV to Anderson Solar 5M Extension Cable. Can easily be plugged straight into your KickAss DCDC charger on your battery box or on your control or connect directly into your MPPT/PWM Solar controller.
MC4 compatible.
1 x KickAss 40A 12V/24V/36V/48V MPPT Solar Charge Controller
Harvest more energy! This ultra versatile 40A MPPT charger will charge 12V, 24V, 36V & 48V battery systems. Monitor your system remotely via the Bluetooth App or an optional remote display screen.
KickAss 40A 12V/24V/36V/48V MPPT Solar Charge Controllers Features Overview
The KickAss 40A 12/24V MPPT Solar Controller uses the latest dual-peak and multi-peak tracking technology available today.
Highly Efficient MPPT
With a tracking efficiency of at least 99.5% and a peak conversion efficiency of 98%, you can be confident that your dual battery system is receiving the optimal charge.
The KickAss 12/24V MPPT Solar Controller series accurately identifies and tracks multiple power points, and includes built-in self-diagnostic technology to help prevent damage from installation and system failures.
Battery Temperature Sensor
Equipped with a temperature sensing probe, the KickAss 12/24V MPPT Solar Controller can limit the current output to your battery, preventing overheating and overcharging if a fault occurs with the connected battery.
LCD Display
The easy-to-read LCD display shows all crucial charging information dynamically (note that the LCD is not backlit).
Pair with
- KickAss Remote Control LCD Display For MPPT Controllers
- KickAss Bluetooth MPPT Module
These devices allow for convenient viewing of your controller in tight spaces and can connect to the KA Solar App on your smartphone for added convenience.
**Please Note: this unit is not a full battery management system, it is simply an MPPT with a load output**
Key features
- 99.5% tracking efficiency
- 98% peak conversion efficiency
- Built-in self-diagnostic technology
- LCD easy read display
- LED indicators for charging, battery, load, and faults
- RJ12 communication interface
- Temperature sensing probe
- Lithium compatible
Protective features
- Input power limit protection
- Battery reverse polarity protection
- Solar input high voltage protection
- Load overpower protection
- Load short circuit protection
- Reverse charge protection
- Over temperature protection for internal heat protection of the MPPT unit
- Over temperature protection for your battery (temperature sensing probe must be attached)
Do not get the controller wet, as it is not waterproof and will be damaged by moisture.
This device is a charge controller, not a complete battery management system. It is designed to power small accessories like LED lights. However, the load output is dependent on the solar input (daylight and darkness) and does not provide a consistent power supply suitable for running appliances like a fridge or freezer. Therefore, we advise against connecting electronics that need stable and reliable power directly to the MPPT Solar Controller. Instead, all accessories should be connected directly to your battery bank using appropriately fused circuits.
