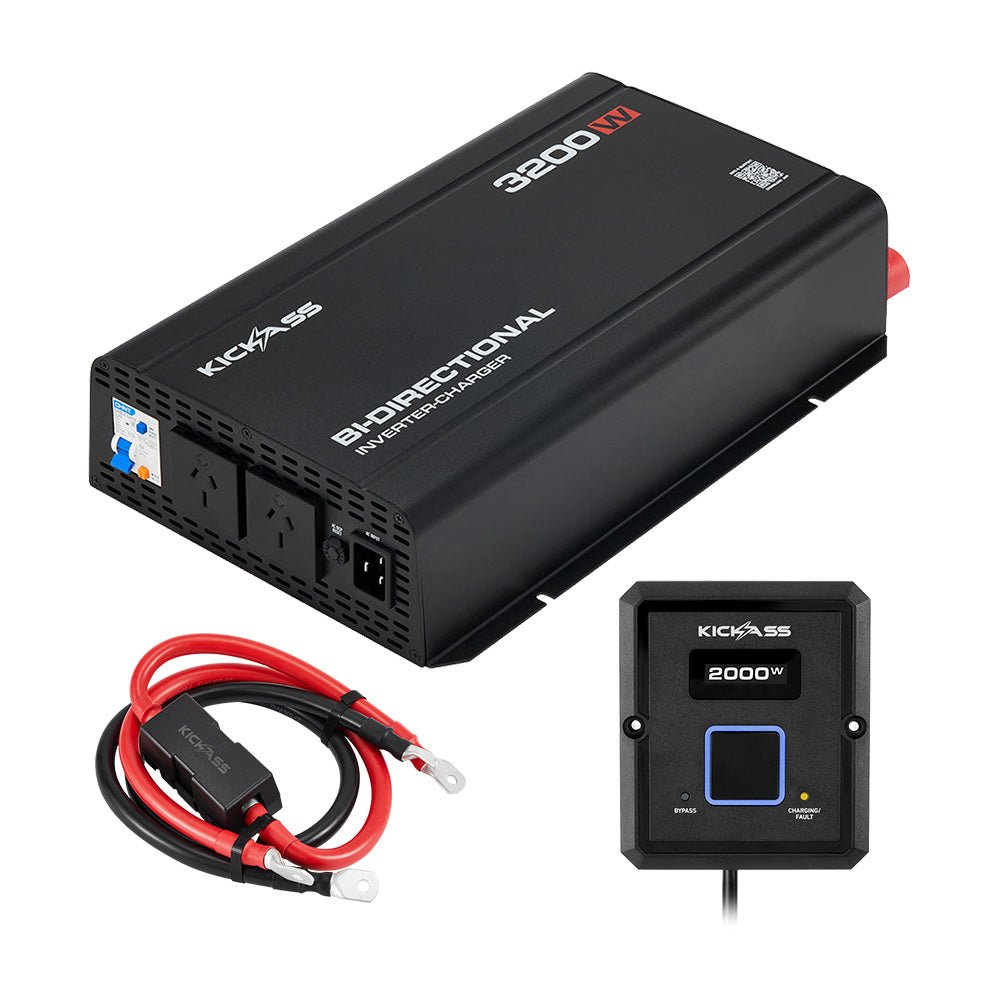

KickAss 12V to 230V Pure Sine Wave 3200W Bi-Directional Inverter-Charger Bundle with Wiring Kit & Remote

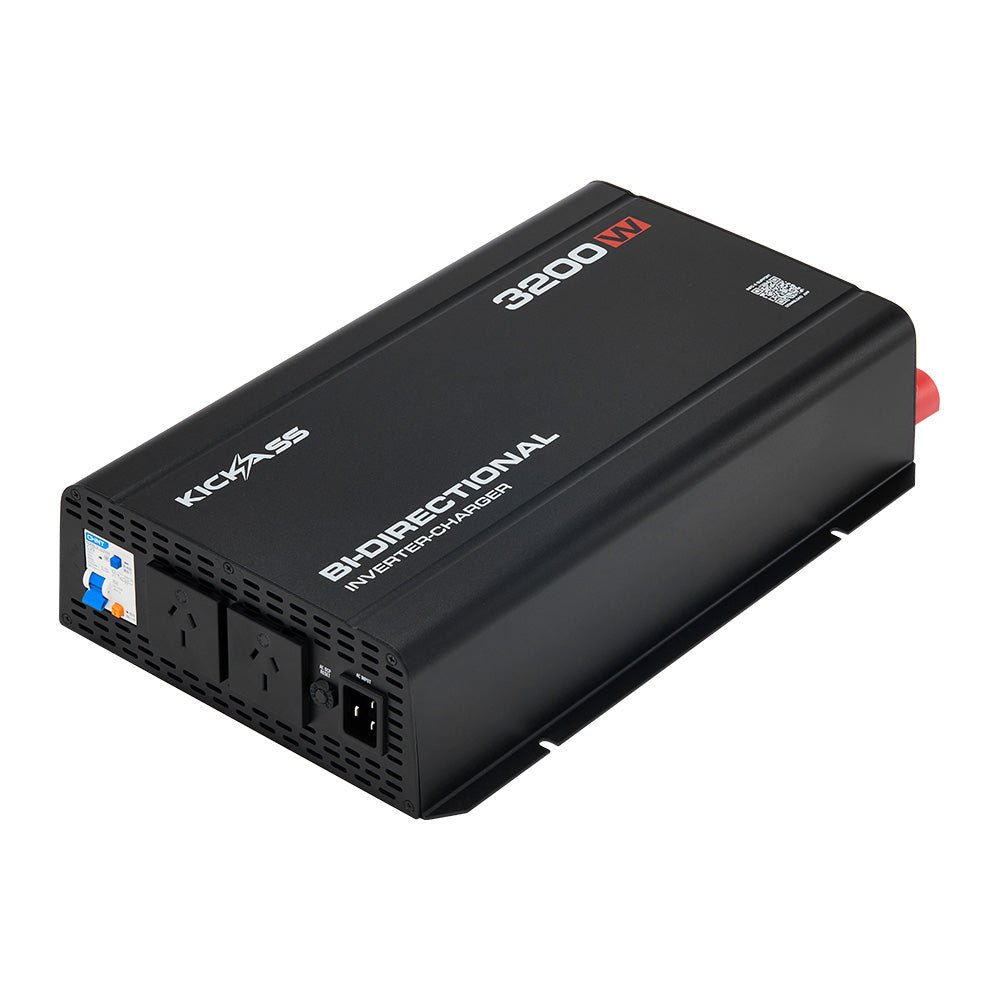

The KickAss 3200W Bi-Directional Inverter-Charger delivers mains-quality power for larger setups and high-demand appliances. Combining a 3200W pure sine wave inverter with a 2200W AC ultra-fast charger, it provides both AC power and battery charging without the need for separate devices, additional wiring or extra installation space.

The 3200W pure sine wave inverter converts 12V DC battery power into clean, stable 230V AC power, making it suitable for demanding appliances, sensitive electronics, motor-driven equipment and inductive loads. When connected to shore power, the automatic transfer switch powers connected loads directly from the AC supply while the built-in 2200W AC charger provides up to 180A of charging current.

Bluetooth monitoring and control via the KA Charge app allows you to select battery chemistry, choose a charging mode, switch the unit on or off and view up to 32 hours of performance history. An optional remote switch with OLED display and LED indicators provides additional control and system status monitoring.

Dynamic power adjustment technology balances charging current against connected AC loads, helping keep equipment powered without overloading the available AC supply.

Plug-and-play AC connectivity includes an IEC input and two AC outlets, eliminating the need for hardwiring. Integrated RCBO protection provides overload and earth leakage protection, while intelligent variable-speed cooling fans help regulate operating temperature and minimise unnecessary fan noise.

The compact slimline design is suited to space-limited vehicle and off-grid installations. The unit supports LiFePO4, AGM, CAL and GEL battery chemistries and also includes a USB-A output for charging compatible phones, tablets and other devices.

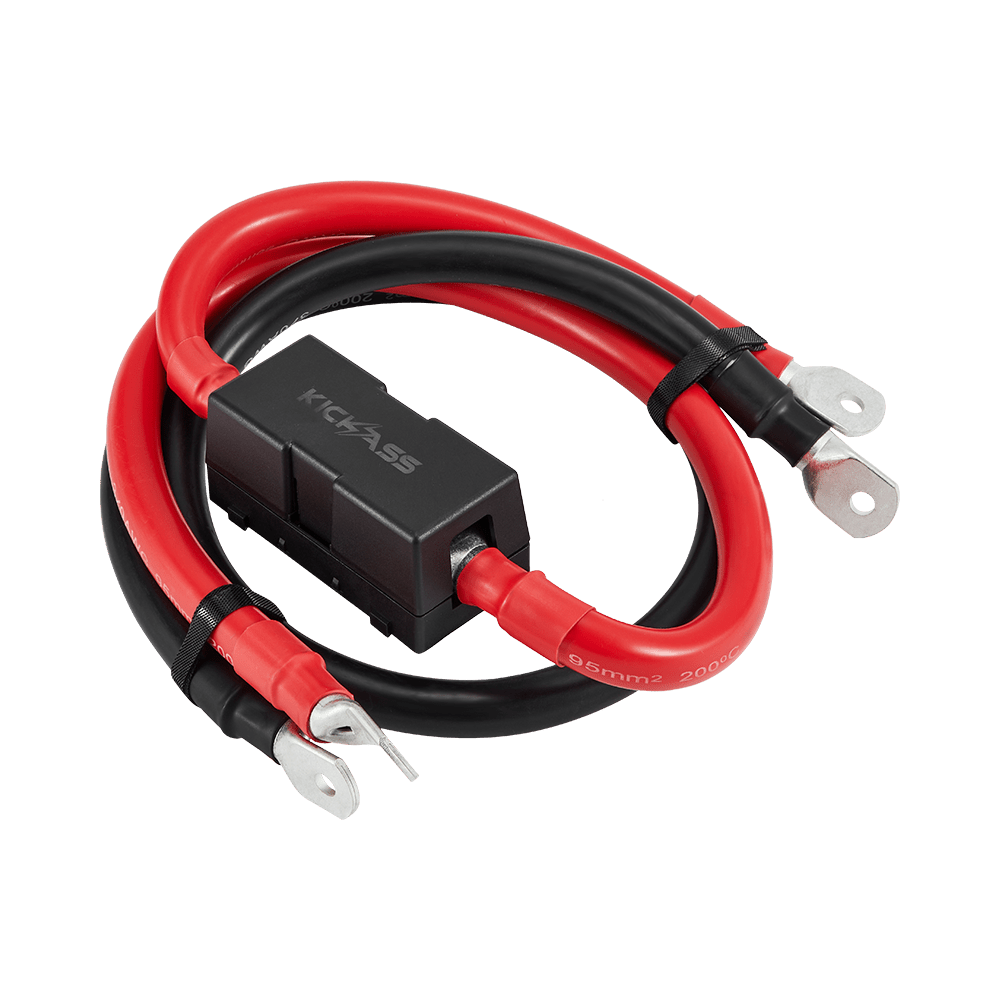

Give your KickAss 3200W Bi-Directional Inverter Charger the heavy-duty connection it needs. This premium inverter wiring kit uses substantial 95mm² tinned copper cable to support high-current power transfer, while helping resist corrosion in tough touring and off-grid environments. It’s a purpose-built solution for high-powered inverter installations in caravans, camper trailers, 4WDs and other 12V setups.

Despite its heavy-duty construction, the cable features a flexible silicone outer sheath that makes routing through your setup easier, including around bends and through tighter spaces. A high-current MEGA fuse is included for circuit protection, along with a spare, giving you the key cabling and protection components needed for a clean, dependable 3200W inverter installation.

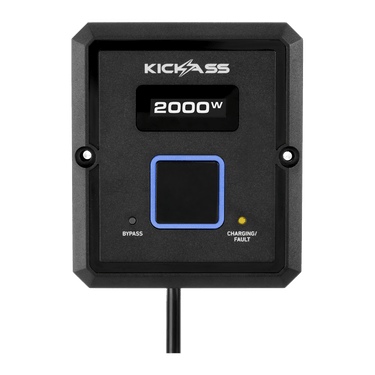

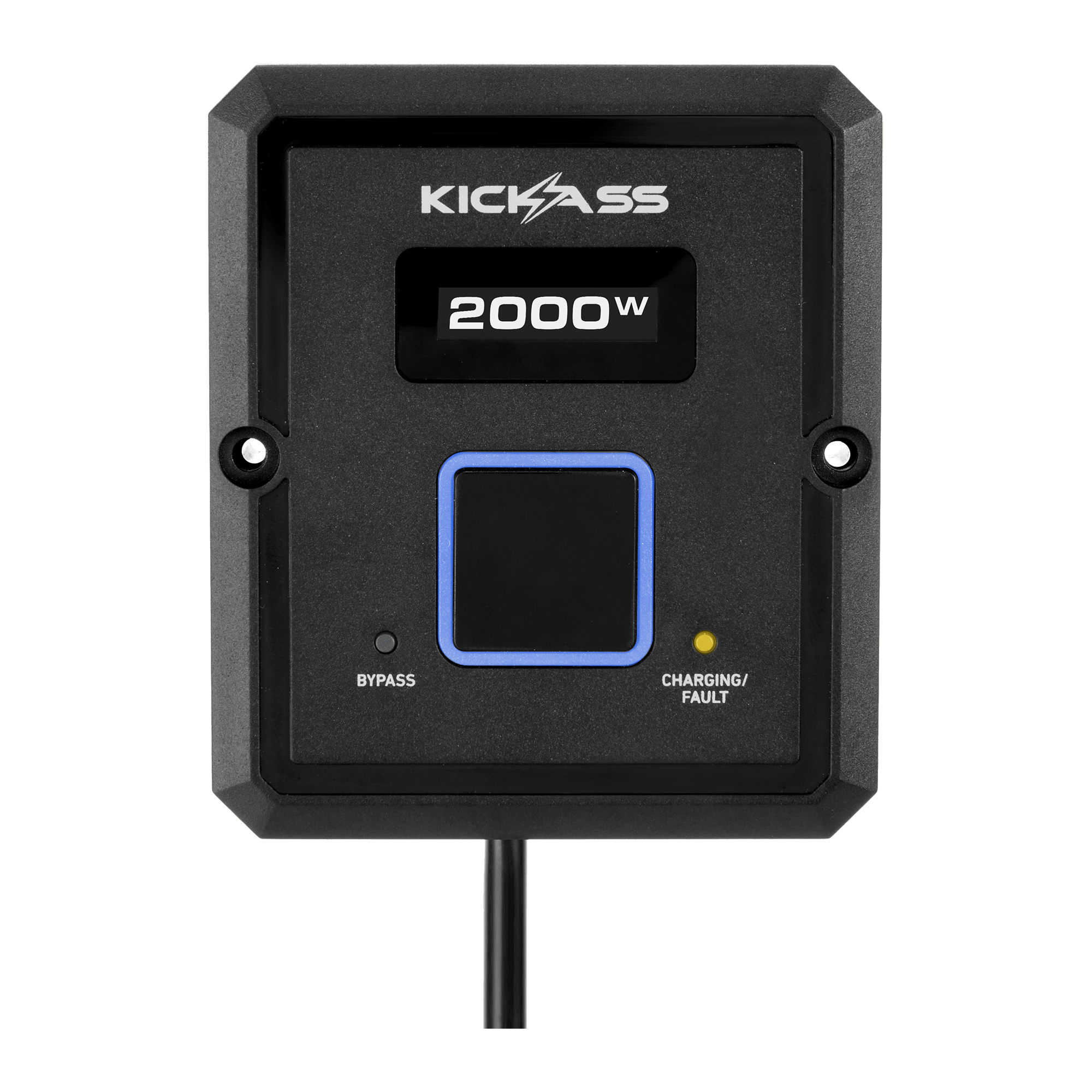

Put convenient inverter control and monitoring within easy reach with this remote for KickAss 2200W and 3200W Bi-Directional Inverter Chargers. Switch your inverter on and off without needing direct access to the unit, while the integrated OLED screen displays real-time AC output power so you can keep an eye on appliance loads at a glance. Dedicated LED indicators also provide quick confirmation of bypass and battery-charging status.

Designed for a clean, flexible installation, the inverter remote can be flush mounted or surface mounted using the included frame, making it easy to position where it works best in your caravan, camper trailer, 4WD or off-grid setup. The included two-metre RJ45 cable provides a simple plug-and-play connection, while multi-remote capability lets multiple connected remotes work together for convenient inverter control from different locations.
