Take full control of your 12V setup with the KickAss Control Hub + 40A DCDC Charger - smart power management, efficient charging, and rugged durability.

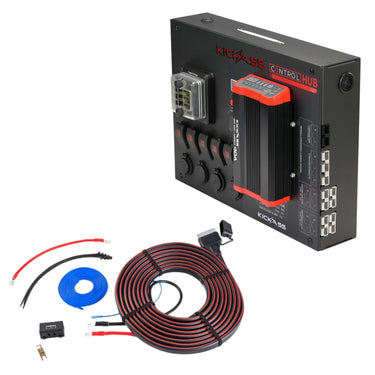

Everything that is included in this KickAss kit!
This KickAss control hub lets you easily control all your 12V gear, plus you can charge your auxiliary battery with the pre-installed 40Amp DC/DC charger. Perfect for 4WD canopy & DIY setups.
KickAss 12V Control Hub with 40A DCDC Charger
The ultimate power management solution for your dual battery system and off-grid setup. This all-in-one unit integrates a 40A DCDC charger, power distribution for up to 15 devices, and advanced safety features to keep your adventures powered.
Key Features:
Effortless power, wherever adventure takes you!
This 3-pin Anderson-style connector with built-in ignition wire makes connecting your 12V dual battery system easy. Perfect for wiring DC/DC chargers, battery boxes & auxiliary batteries.
This 3-pin Anderson-style connector with built-in ignition wire makes connecting your 12V dual battery system easy. Perfect for wiring DC/DC chargers, battery boxes & auxiliary batteries.
| Main Cable Length | 6.5M - 3 Core |
| Ignition Cable Extension | 3M - 14AWG Single Core |
| Cable Size - 3 Core | 2x 6AWG (13.5mm²), 1x 14AWG (1.8mm²) |
| Insulation Material | Inner - Silicon / Outer - PVC |
| Rated Temperature | Max. 105°C |
| Ring Terminals | M8 - Battery / M6 - Fuse |
| Fuse | 80A MIDI Fuse with Holder |
| Connections | 3 Pin Anderson Style / Bullet |
| Cig Socket Outputs | 2 x 10A |
| USB Outputs | 2 x USB-A | 1 x USB-C | 1 x QC3.0 |
| Anderson Input / Outputs | 4 (50A Shared) |
| Anderson Inputs | 3 Pin Alternator | Unregulated Solar |
| Rocker Switches | 5 (Fused) |
| DCDC-MPPT | |
| Alternator Input Voltage Range | 9-32V DC |
| Solar Input Voltage Range | 10-32V DC |
| Maximum Input Current | 47A |
| Maximum Continuous Charging Current | 40A |
| Maximum Output Power | 500W |
| No Load Current Draw | <15 mA |
| Efficiency | Approx. 93% when full load |
| Ambient Operating Temperature | -20 °C to +80 °C |
| Recommended Battery Capacity | |
| Lead Acid (WET, GEL, AGM, CAL) | 200 – 500Ah |
| LiFePO4 | 50 – 500Ah |
| Charge Profile | |
| Compatible Battery Type | GEL | WET | AGM | CAL | LiFePO4 |
| Alternator Input Conditions | |
| Input Voltage (Ignition OFF) | CUT IN 13.2V | CUT OUT 12.6V | CUT IN 26.4V | CUT OUT 25.2V |
| Input Voltage (Ignition ON) | CUT IN 12.2V | CUT OUT 10.5V | CUT IN 24.4V | CUT OUT 21.0V |
| Control Hub Dimensions | 400mm(W) x 305mm(L) x 85mm(H) |
| Control Hub Dimensions (up to the circuit breaker) | 400mm(W) x 305mm(L) x 110mm(H) |
| Control Hub Dimensions (up to the charger) | 400mm(W) x 305mm(L) x 130mm(H) |
| KickAss Heavy Duty Plug and Play DCDC Wiring Kit - 6.5m | |
| KickAss 12V Control Hub / Panel with 40A DCDC Charger |
Take full control of your 12V power system with the KickAss 12V Control Hub / Panel With 40A DCDC Charger + Heavy-Duty Wiring Kit Bundle. Designed for serious adventurers, tradies, and off-grid setups, this system provides seamless power distribution, smart charging, and reliable connectivity to keep your gear running efficiently.
The KickAss 12V Control Hub with 40A DCDC Charger is the ultimate power management solution, featuring multiple output options, advanced battery monitoring, and intelligent charging from both your vehicle and solar panels. The integrated 40A DCDC MPPT Charger optimises power input, ensuring your battery stays charged whether you’re driving or parked off-grid.
For a robust and secure installation, the KickAss Heavy-Duty 6.5m Plug & Play DCDC Wiring Kit provides high-quality, pre-terminated connections, making setup fast, easy, and durable. Built for rugged conditions, this wiring kit ensures stable and reliable power flow to all your essential 12V devices.
Perfect for 4WD canopies, caravans, campers, and off-grid setups, this bundle delivers efficient power control and smart energy management in one easy-to-install kit.
Upgrade to the KickAss 12V Control Hub + 40A DCDC Charger Bundle for complete 12V power control and effortless energy management.
