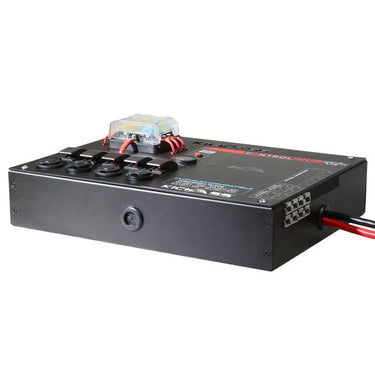

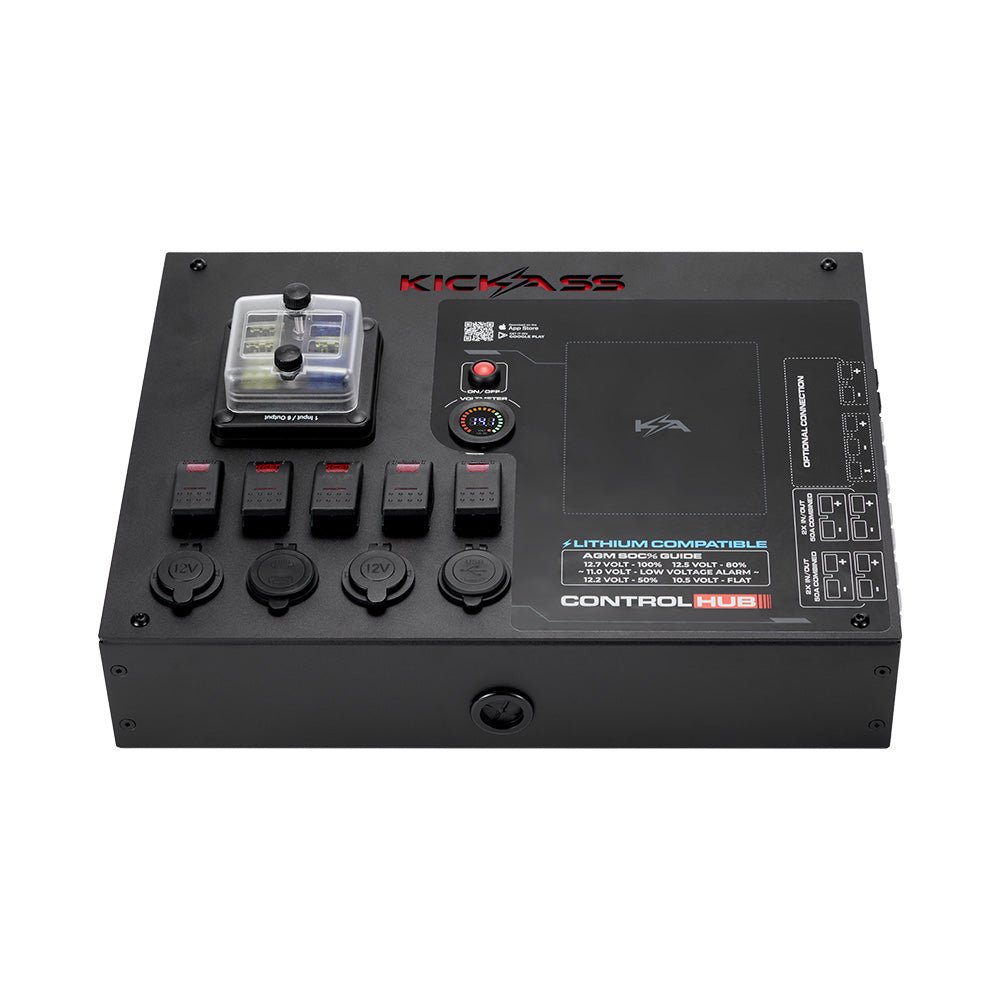

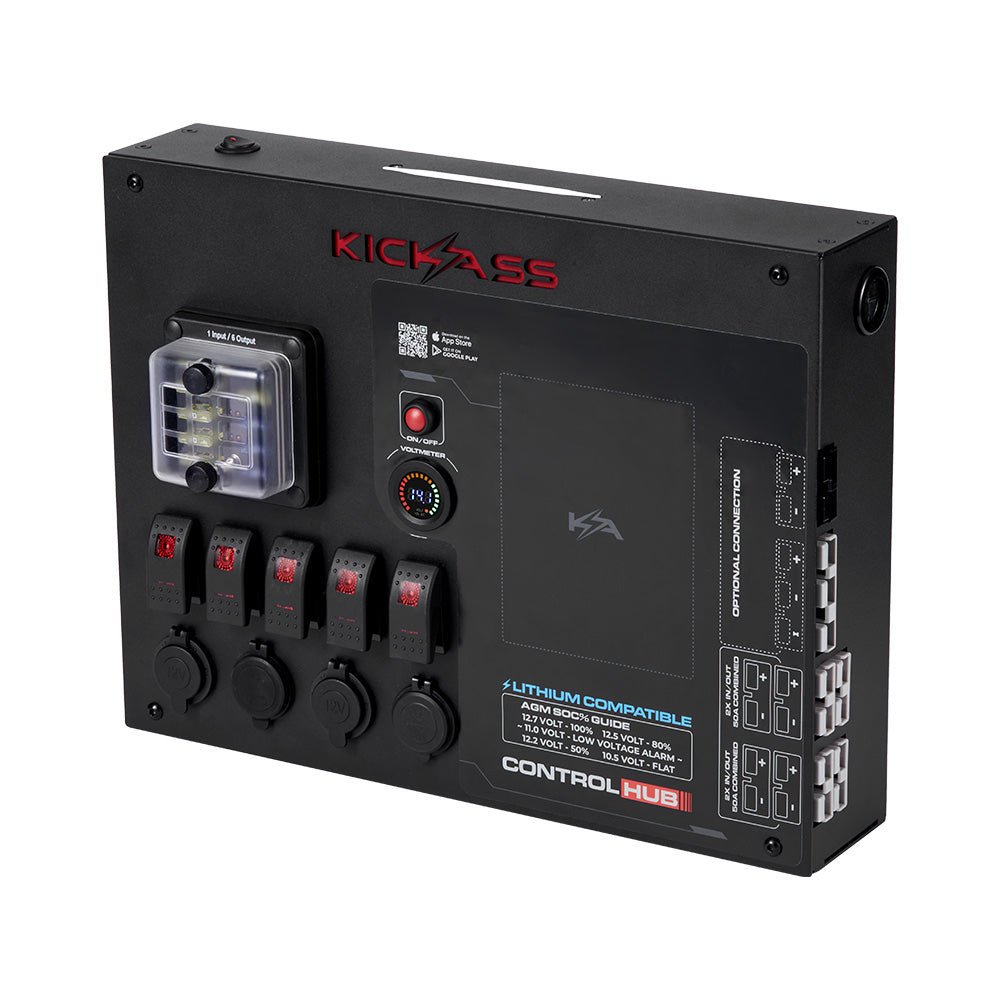

KickAss 12V Control Hub / Panel
This KickAss control hub lets you easily control all your 12V gear. Perfect for 4WD canopy and DIY setups. Features accessory switches, USB ports, Anderson-style plugs, cig-sockets and more.
Pickup available at Acacia Ridge Store
Usually ready in 1 hour
1 Year Warranty
This product is covered by a 1 Year Limited Warranty.
Description

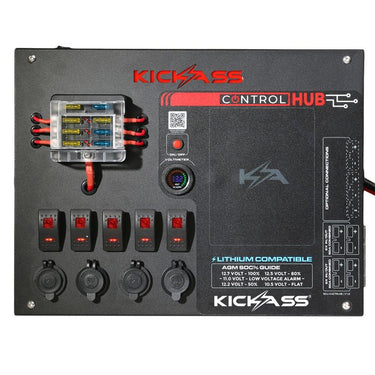

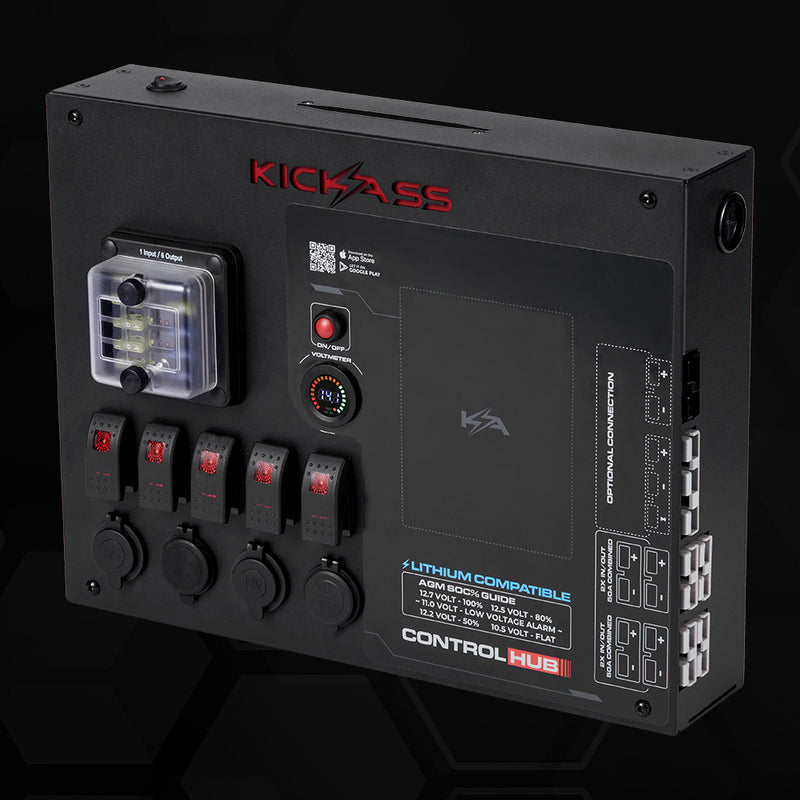

Customisable Control Panel
Designed by KickAss engineers with all the essentials for your 12V setup, including accessory switches, USB ports, and Cig sockets. Ideal for canopies, vans, or motorhomes—fully customisable to suit your needs.

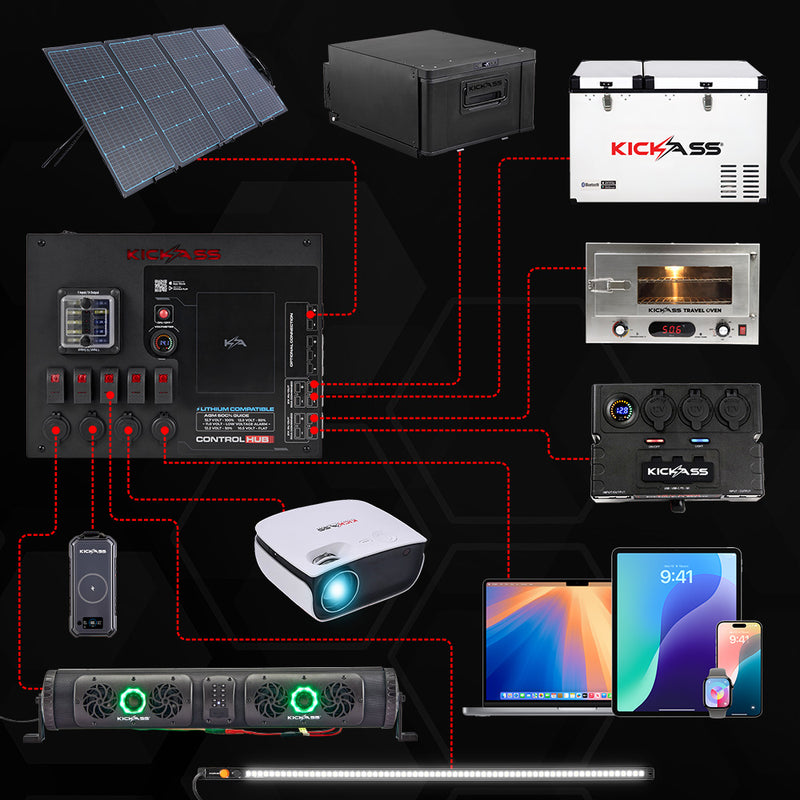

Power up to 15 Different Appliances at Once!

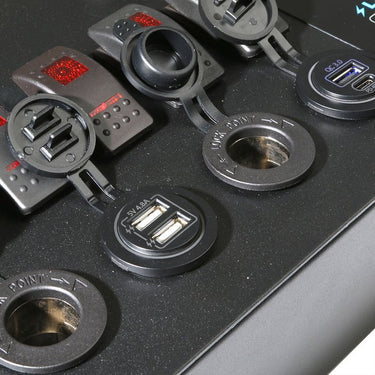

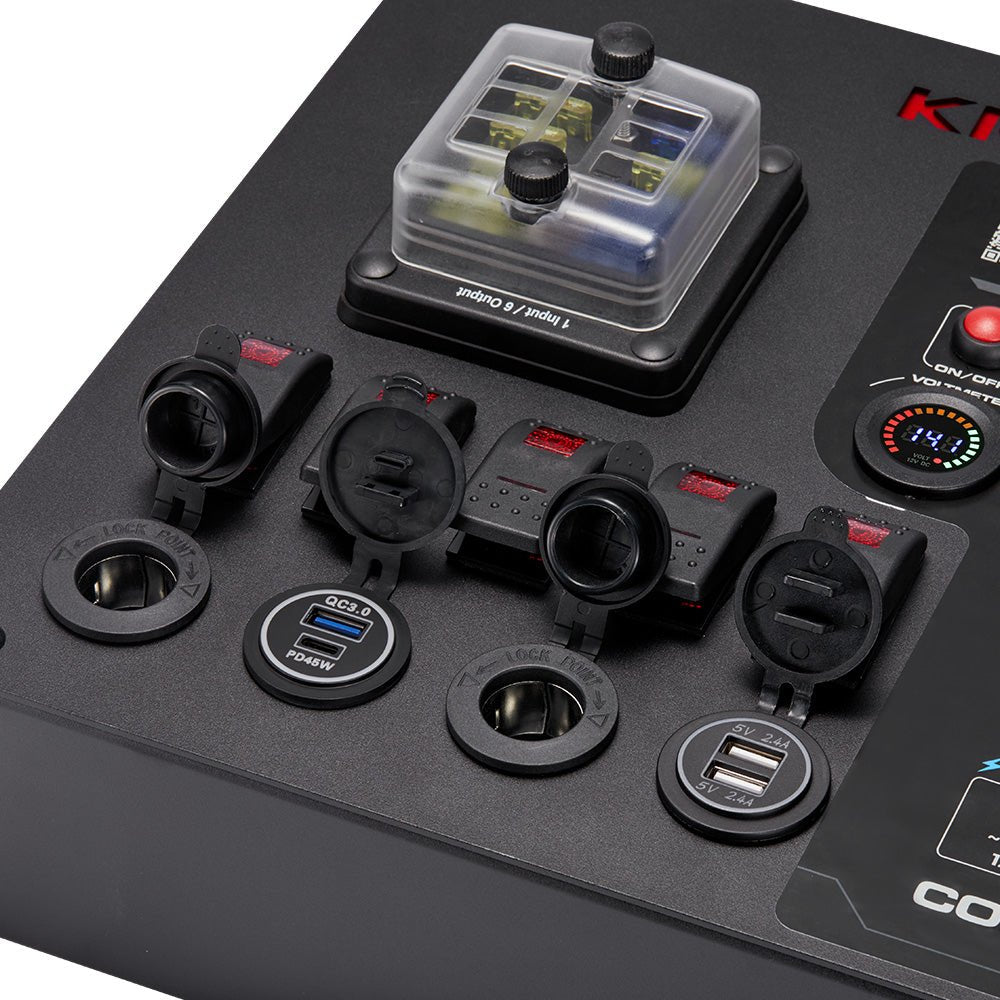

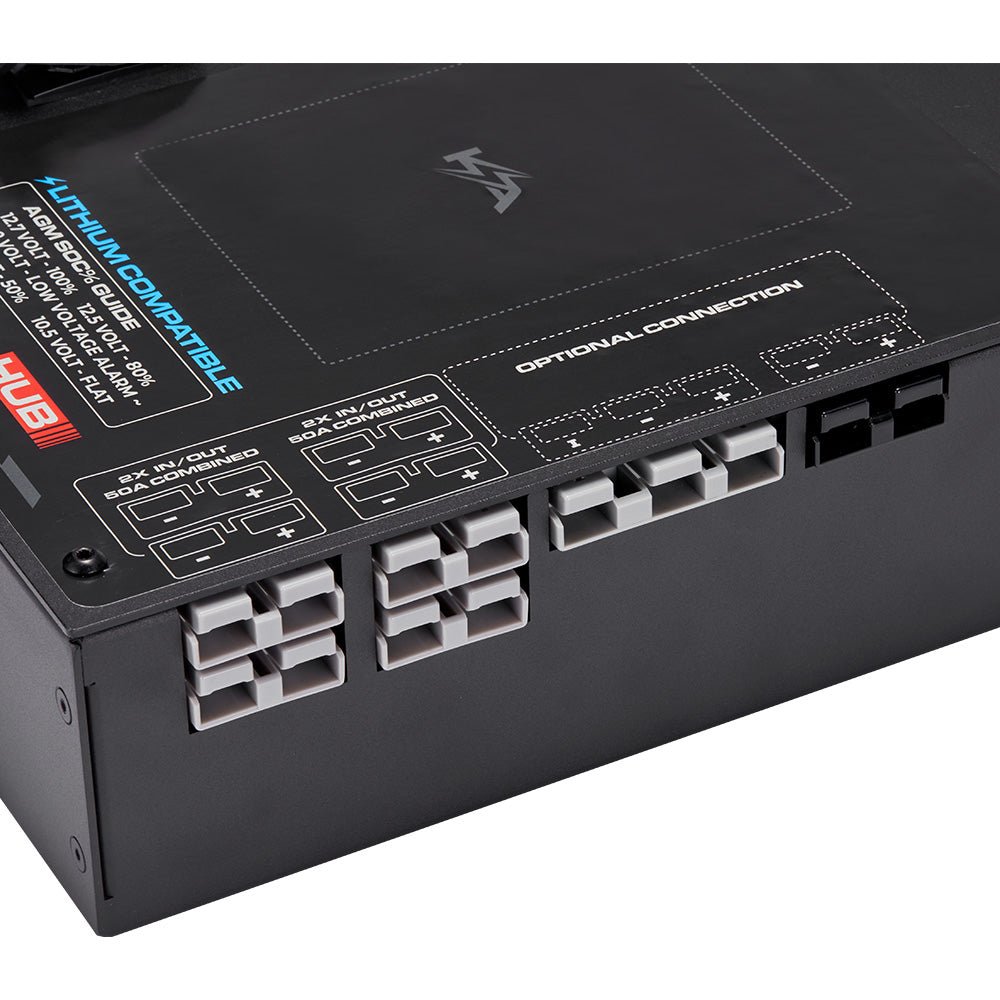

This panel offers more connections than any other on the market: 4 x flush mount Anderson Style connectors, 2 x Cig sockets, 2 x 4.8A USB ports, 1 x QC3.0 USB, and 1 x USB-C port—power for the whole family.

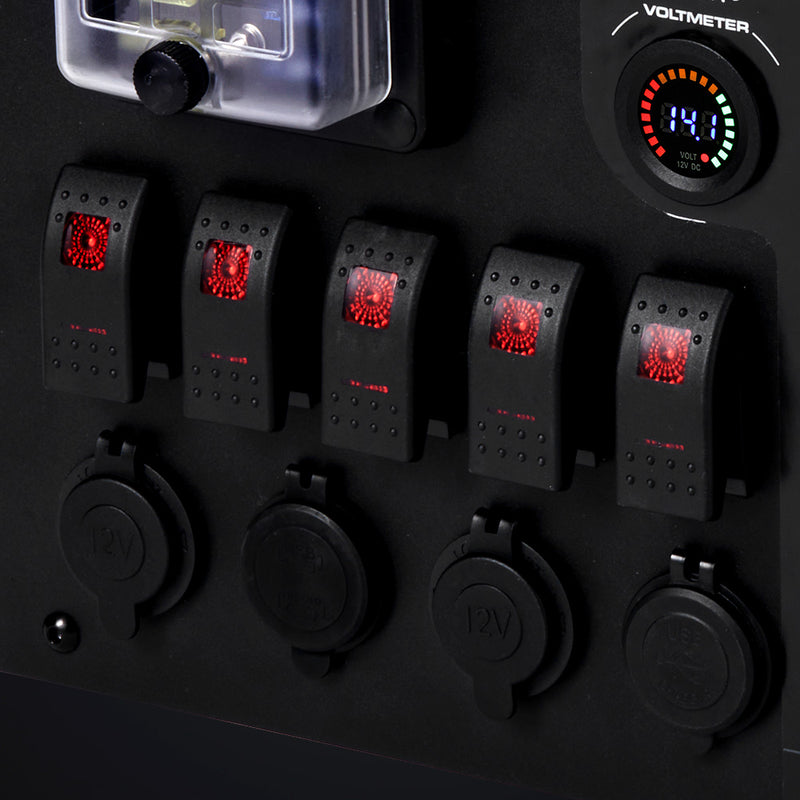

Five Light-Up Rocker Switches
Easily control your accessories day or night with five backlit rocker switches. Each switch includes a replaceable fuse for battery protection.
Heavy Duty Cables for Higher Current Loads
Pre-wired with upgraded, fully fused cables for a vibration-free, secure connection between your battery and accessories.

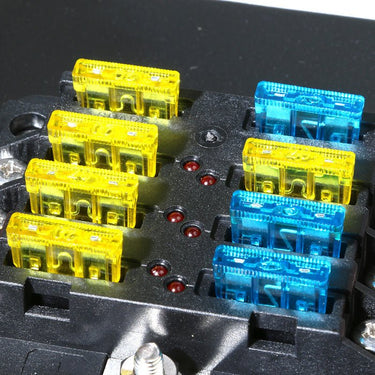

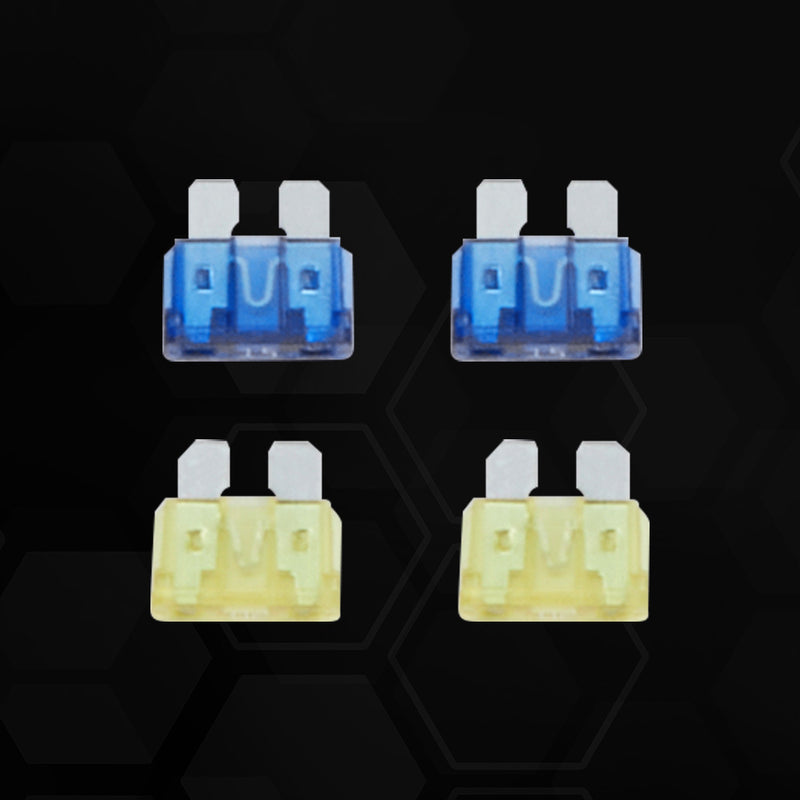

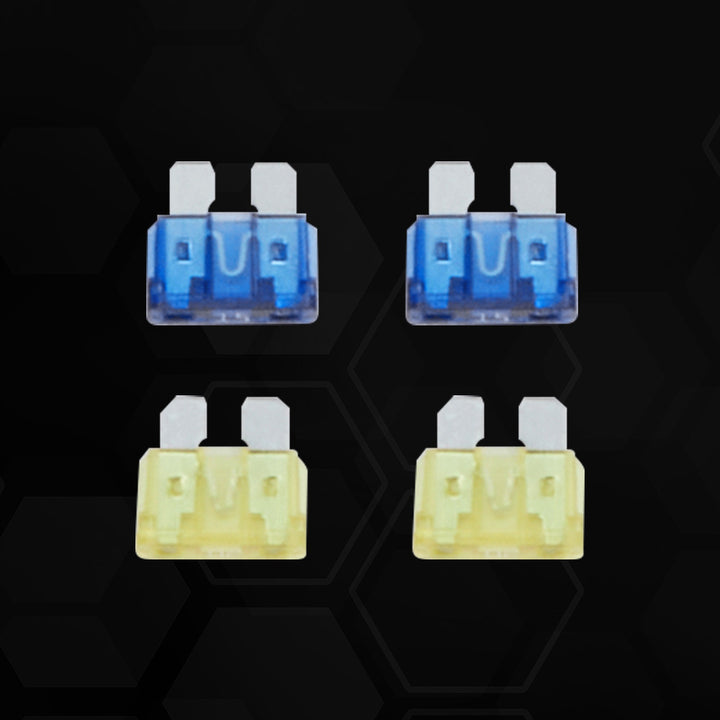

Includes Extra Fuses for Your Convenience
Stay prepared with spare fuses and a 6-way external fuse panel for quick, easy replacements when you need them most.

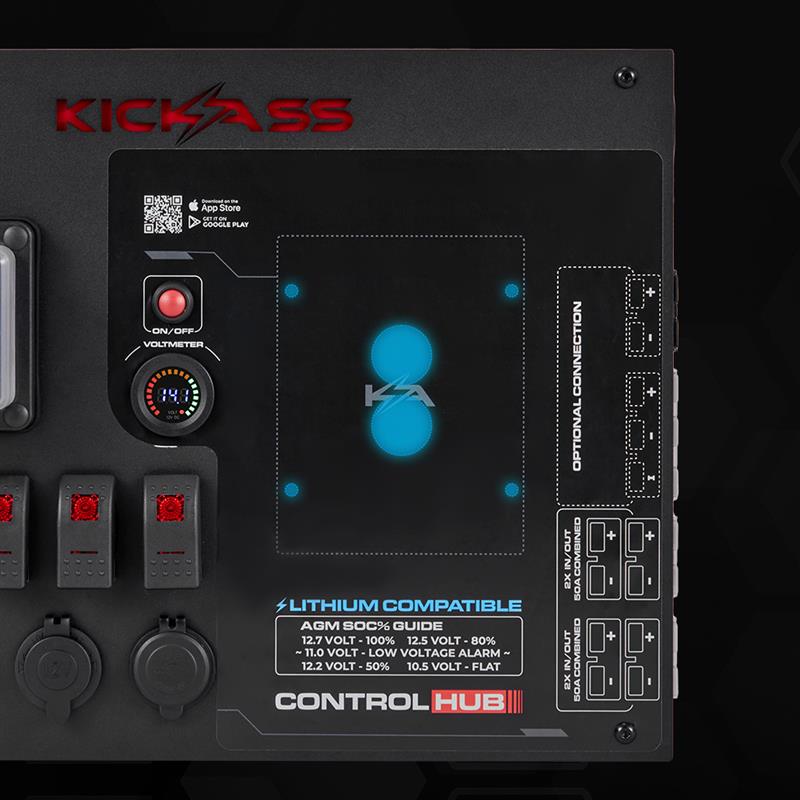

Pre-Drilled Holes for Mounting
Mount your DCDC charger or other gear with ease thanks to pre-drilled holes and a removable foam block—ideal for growing your 12V system step by step.

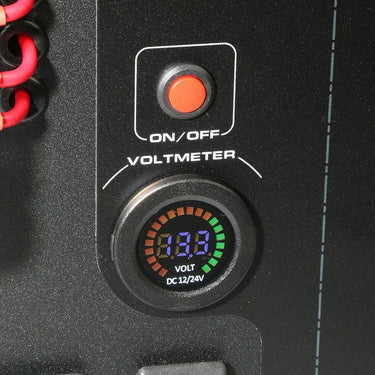

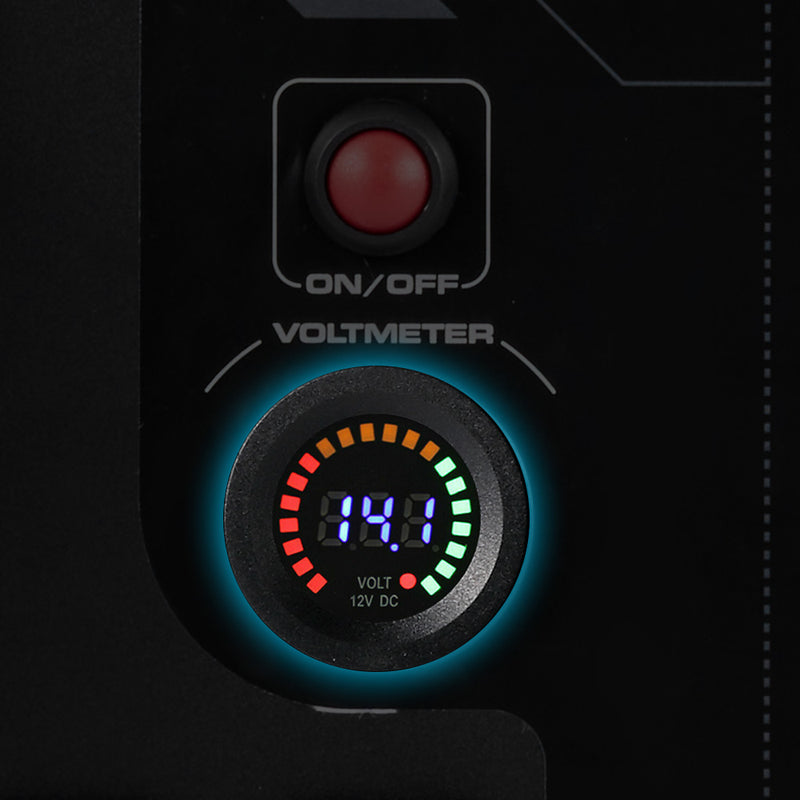

Alarmed Low Voltage Disconnect
Protect your battery from discharging below 11V with a built-in audible alarm. Includes a dedicated switch to mute the alarm and resume normal function.
Designed to Look KickAss

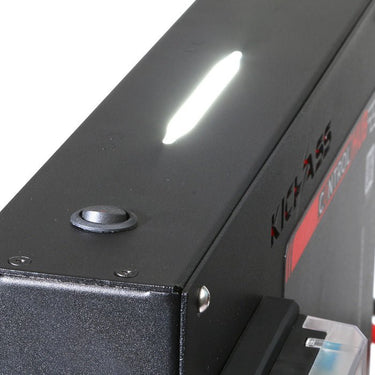

Sleek matte black, powder-coated aluminium with LED light and switch adds style and functionality to your setup.

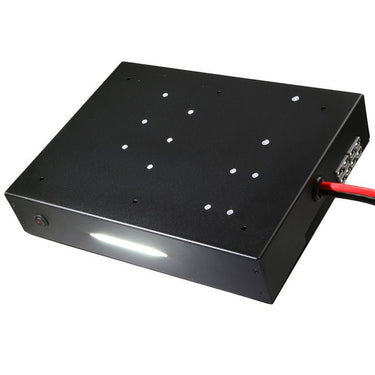

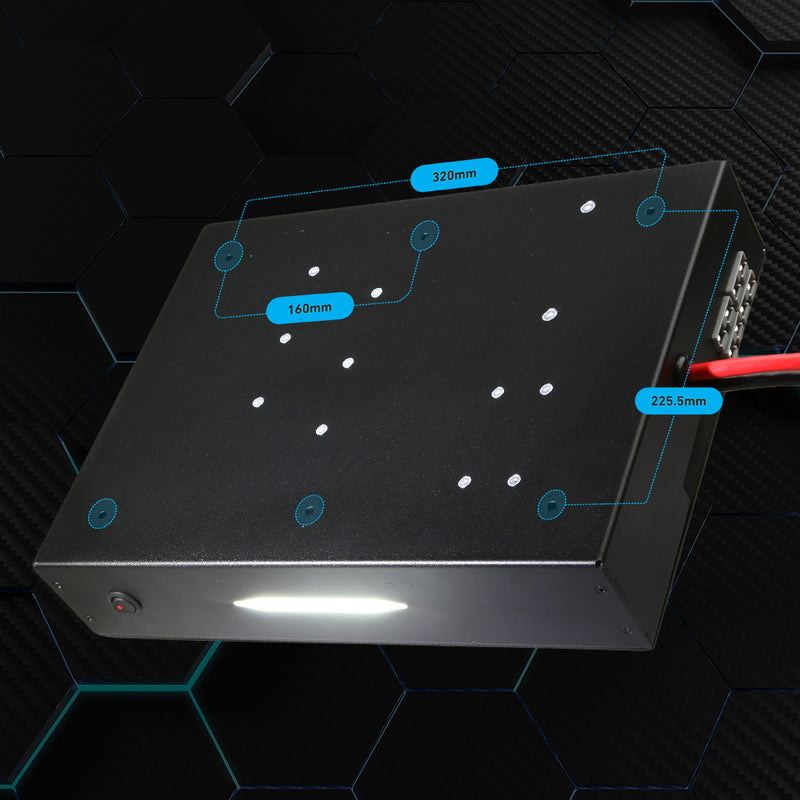

Versatile Mounting Options

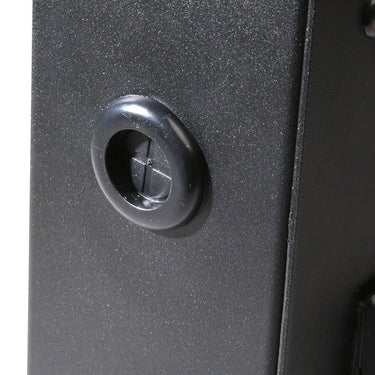

Mount the unit using pop rivets, bolts, or screws via 6 pre-drilled holes. Three cable entry points offer flexible routing for all input and output wiring.
Specifications
| Dimensions | 400 x 305 x 110mm (Includes fuse height) |
| Weight | 4.15kg |
| Construction | Powder Coated Aluminum |
| Lid Thickness | 2mm |
| Box Thickness | 1.5mm |
| Voltage | 12V |
| Max Current | 120A |
| Low Voltage Alarm | Below 11.0V |
| Battery Connection | 1.5m |
| Light | LED Flush Mount |
| Cable Size | |
| Battery Connection Leads | 4 AWG |
| Optional DCDC Charger Connection | 8 AWG |
| Anderson Plug Connections | 8 AWG |
| Fuse Box Connection | 10 AWG |
| Switch Connections | 12 AWG |
| Cigarette and USB Socket Connections | 12 AWG |
| Fuse Sizes | |
| 4x Anderson Style Plugs | 50A |
| Optional DCDC Connection | 50A |
| Light & Volt Meter | 5A |
| Switch 1 & 2 | 20A |
| Switch 3 | 20A |
| Switch 4 | 20A |
| Switch 5 | 20A |
| Cigarette 1 & 2x 2.4A USB | 15A |
| Cigarette 2 & QC3.0 USB + Type C PD | 15A |
| Spare Fuse 1 | 20A |
| Spare Fuse 2 | 15A |
| Switch Rating | 20A |
| Cigarette Socket | 10A |
| USB | |
| USB Rating | 2.4A |
| USB QC3.0 Rating | 18W |
| USB Type C Rating | 45W |
User Manual and Support
KickAss has warehouses located on both the East and West Coast of Australia. Express orders are dispatched same business day if ordered before 12pm AEST. Standard orders are dispatched within 2-3 business days. Deliveries are made during business hours, Monday to Friday.
At KickAss, we take full control of our product journey - from concept to creation - by designing, engineering, and manufacturing our own batteries and 12V accessories in our wholly owned facilities located in Australia, China, and the USA. This end-to-end approach allows us to maintain strict quality standards, drive innovation, and deliver unbeatable value. By owning our production facilities, we ensure every product that carries the KickAss name is built tough, tested rigorously, and ready for off-grid adventure.
Change your mind? No worries, our quick & easy online or in-store returns process has you covered. Learn more.
Designed by KickAss engineers with all the essentials for your 12V setup, including accessory switches, USB ports, and Cig sockets. Ideal for canopies, vans, or motorhomes - fully customisable to suit your needs.
This panel offers more connections than any other on the market: 4 x flush mount Anderson Style connectors, 2 x Cig sockets, 2 x 4.8A USB ports, 1 x QC3.0 USB, and 1 x USB-C port - power for the whole family.
Control all of your accessories at once with the five backlit rocker switches, easy to see at both day or night. Each switch features a replaceable fuse to protect your battery.
The pre-drilled holes and removable foam block to mount give you the freedom to mount your own DCDC Charger. Perfect for building your 12V setup one step at a time.
When setting off on your next adventure it is always best to be prepared. The easily accessible 6-way external fuse panel means you can replace a blown fuse faster than ever.
Use pop rivets, bolts or screws to surface mount the unit via the 6 pre-drilled holes. The three different cable entry points give you the freedom to choose the direction of all your input/output cables.

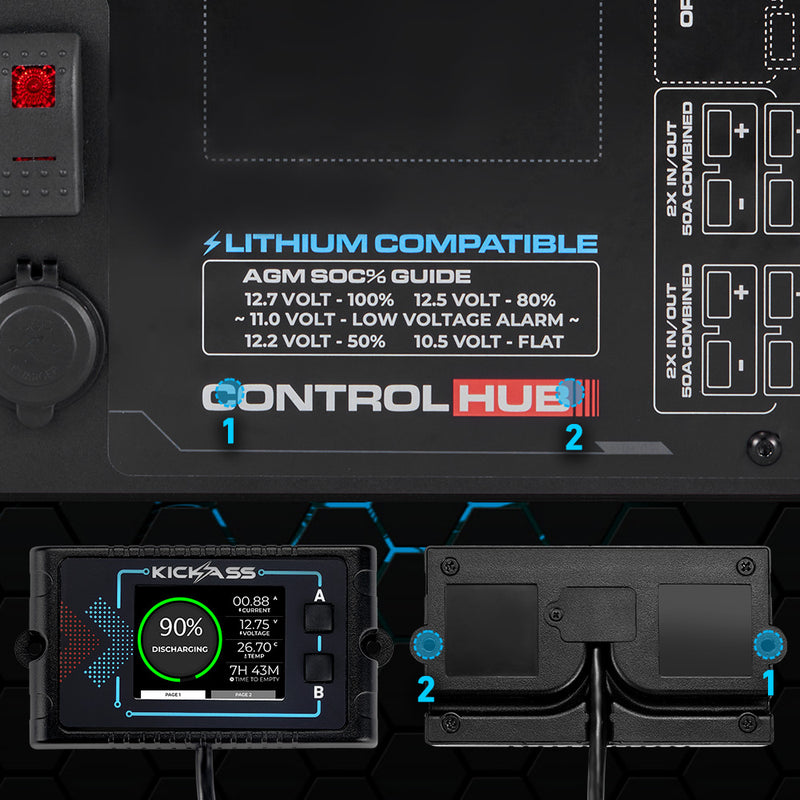

Designed to perfectly mount the KickAss Lithium Battery Remote Display Unit. No additional drilling required. Monitor your KickAss Lithium Battery from your Control Hub.
Protect your battery from draining below 11V with the built-in audible low voltage alarm. Featuring a dedicated on/off switch to mute the alarm and resume normal functions.

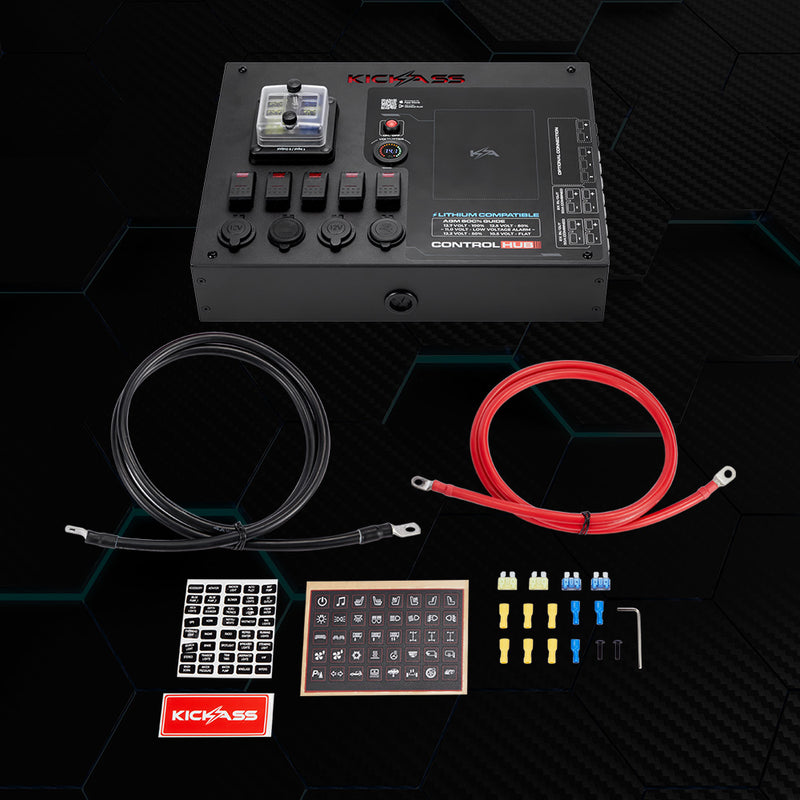

- 1x Control Hub
- 1x 1.5M Battery Cables
- 3MM Hex Key
- Midi Fuse
- Mini Blade Fuse
- STD Blade Fuse
- Blue Blade Terminals
- Yellow Blade Terminals
- Blue Ring Terminals
- Yellow Ring Terminals
See why our customers are all in—these reviews speak for themselves!
Frequently Asked Questions
What is the maximum current the KickAss 12V Control Hub can handle, and how many devices can I power at once?
This means you can confidently run your entire off-grid setup—from lighting and fridges to charging devices—without worrying about overloading the system. The control hub’s heavy-duty internal wiring and dedicated fuses ensure stable, reliable power distribution for all your accessories.
Can I use the KickAss Control Hub with my solar panels and alternator?
This compatibility allows seamless integration with your solar panels and vehicle alternator, optimising battery charging while you’re on the move or parked. The unit’s IP66 rating ensures durability in outdoor environments, while the built-in isolator control protects your battery system.
How do I install and set up the KickAss 12V Control Hub in my vehicle or camper?
Installation is straightforward for professionals or experienced DIYers, with clear wiring diagrams and instructions in the manual. The bottom and side cable glands simplify cable management, while the backlit rocker switches and LED voltmeter make operation intuitive once installed.
What safety features does the KickAss 12V Control Hub have to protect my battery and equipment?
These safety measures ensure your battery and connected devices are protected from overloads, short circuits, and voltage drops. The powder-coated aluminium enclosure with a secure lid keeps internal components safe from dust and moisture, enhancing durability and reliability.
What types of batteries are compatible with the KickAss 12V Control Hub and its DCDC charger?
This wide compatibility means you can use the control hub with most common 12V battery types found in caravans, campervans, and off-grid setups. The charger’s adjustable absorption and float voltages ensure your battery is charged efficiently and safely according to its chemistry.
How do the USB ports on the KickAss Control Hub perform for charging my devices?
With multiple USB options including QC3.0 and USB-C PD, you can quickly charge a variety of devices simultaneously without needing extra adapters. The ports are integrated into the control panel for easy access, making it ideal for modern off-grid lifestyles where device charging is essential.
Is the KickAss 12V Control Hub suitable for harsh outdoor conditions?
This rugged design makes the control hub perfect for adventure vehicles, campervans, and off-grid setups exposed to dust, moisture, and vibration. Combined with proper mounting and ventilation, it offers reliable performance in demanding outdoor conditions.
How do the backlit rocker switches on the KickAss Control Hub enhance usability?
These switches let you manage lighting, pumps, fridges, or other 12V devices from a central panel, simplifying your setup and reducing wiring complexity. The fuse protection on each switch adds an extra layer of security for your electrical system.
