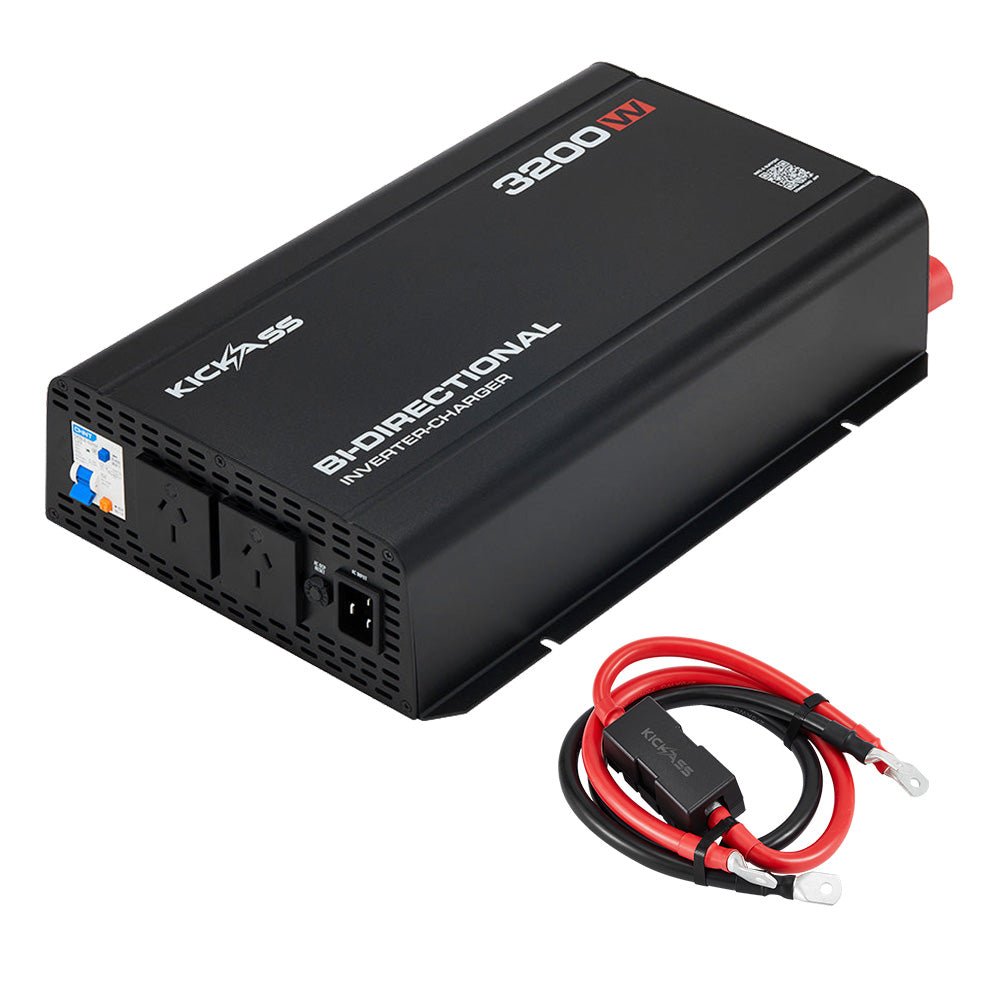

Experience seamless off-grid power with the KickAss 12V 3200W Inverter-Charger and Premium Wiring Kit, perfect for robust power needs.
Everything that is included in this KickAss kit!
Built for larger setups and power-hungry appliances, this 3200W pure sine wave inverter-charger delivers clean, stable power when you need serious capacity. It rapidly recharges your battery from shore power via 2200W AC ultra-fast charging, with Bluetooth monitoring, plug-and-play install, built-in safety protection, and support for multiple battery chemistries.

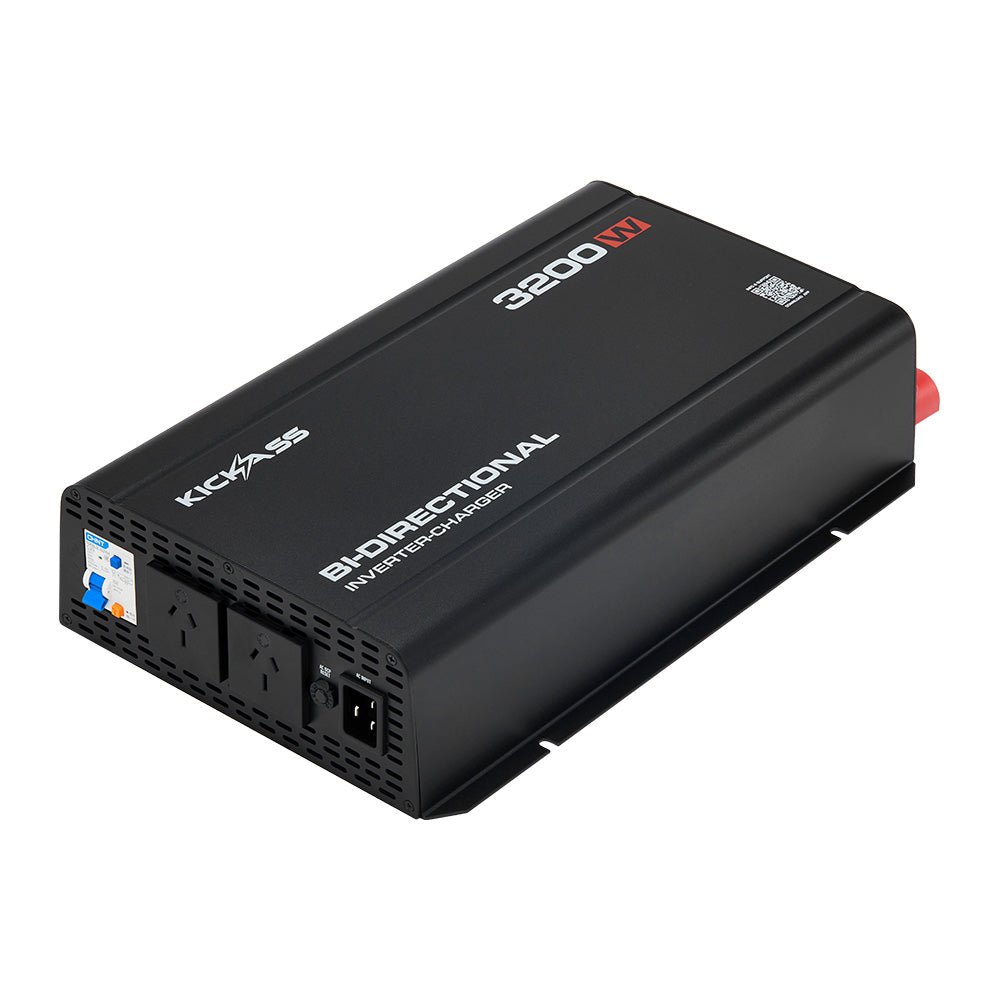

The KickAss 3200W Bi-Directional Inverter-Charger delivers mains-quality power for larger setups and high-demand appliances. Combining a 3200W pure sine wave inverter with a 2200W AC ultra-fast charger, it provides both AC power and battery charging without the need for separate devices, additional wiring or extra installation space.
The 3200W pure sine wave inverter converts 12V DC battery power into clean, stable 230V AC power, making it suitable for demanding appliances, sensitive electronics, motor-driven equipment and inductive loads. When connected to shore power, the automatic transfer switch powers connected loads directly from the AC supply while the built-in 2200W AC charger provides up to 180A of charging current.
Bluetooth monitoring and control via the KA Charge app allows you to select battery chemistry, choose a charging mode, switch the unit on or off and view up to 32 hours of performance history. An optional remote switch with OLED display and LED indicators provides additional control and system status monitoring.
Dynamic power adjustment technology balances charging current against connected AC loads, helping keep equipment powered without overloading the available AC supply.
Plug-and-play AC connectivity includes an IEC input and two AC outlets, eliminating the need for hardwiring. Integrated RCBO protection provides overload and earth leakage protection, while intelligent variable-speed cooling fans help regulate operating temperature and minimise unnecessary fan noise.
The compact slimline design is suited to space-limited vehicle and off-grid installations. The unit supports LiFePO4, AGM, CAL and GEL battery chemistries and also includes a USB-A output for charging compatible phones, tablets and other devices.

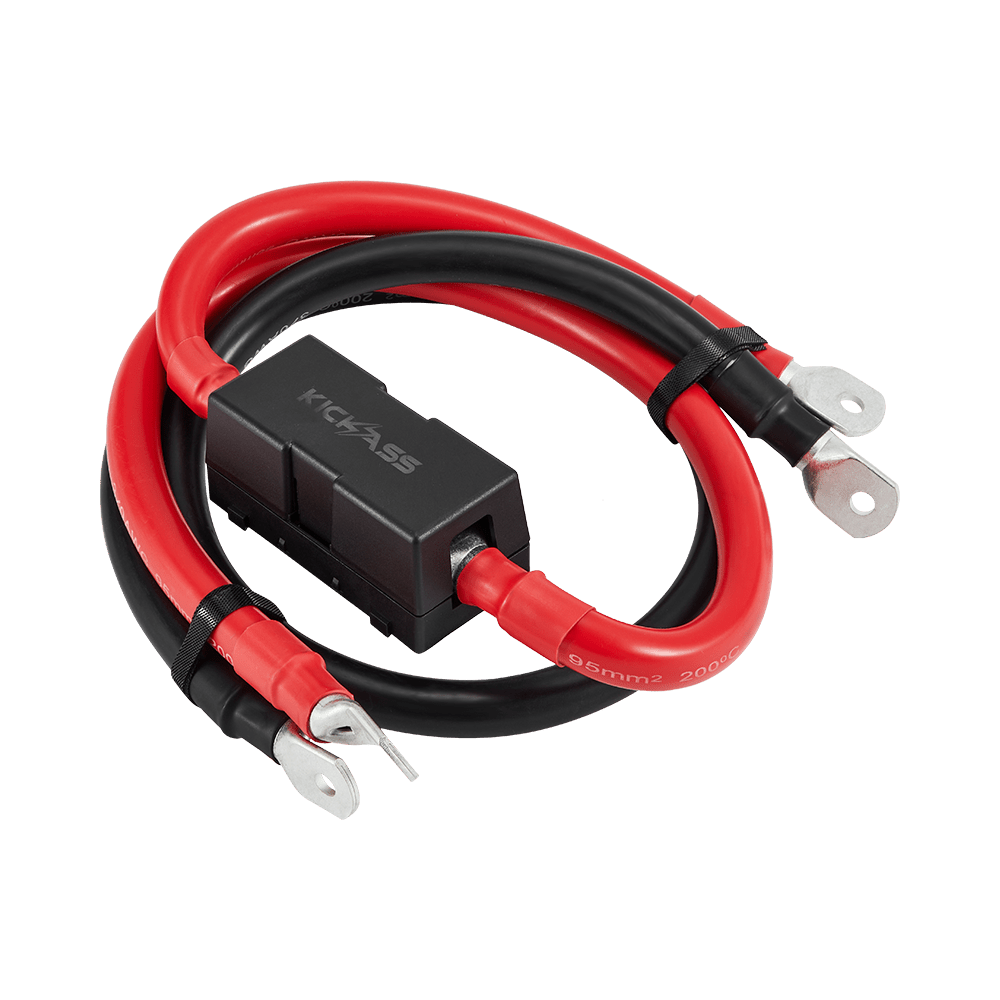

Power your 3200W inverter setup with heavy-duty cabling built to handle serious current. This premium wiring kit pairs 95mm² tinned copper cable with a flexible silicone sheath for easier routing and installation, plus a MEGA fuse and spare. Purpose-built for the KickAss 3200W Bi-Directional Inverter Charger.
Give your KickAss 3200W Bi-Directional Inverter Charger the heavy-duty connection it needs. This premium inverter wiring kit uses substantial 95mm² tinned copper cable to support high-current power transfer, while helping resist corrosion in tough touring and off-grid environments. It’s a purpose-built solution for high-powered inverter installations in caravans, camper trailers, 4WDs and other 12V setups.
Despite its heavy-duty construction, the cable features a flexible silicone outer sheath that makes routing through your setup easier, including around bends and through tighter spaces. A high-current MEGA fuse is included for circuit protection, along with a spare, giving you the key cabling and protection components needed for a clean, dependable 3200W inverter installation.
| DC Input Voltage | 10.5–15 VDC |
| Charger Output Voltage | AGM 14.8V | STD 14.4V | GEL 14.2V | LiFePO4 14.4V |
| Charger Output Power | 2200W Fast Charge - 165A DC Output | 800W Slow Charge - 50A DC Output |
| Supported Battery Chemistries | AGM, Standard (STD), GEL, LiFePO4 |
| AC Input Voltage | 196–264 VAC (nominal 230V / 50Hz) |
| AC Output Power | 3200W | 230VAC ±5% | 50Hz ±1 | Pure Sine Wave |
| AC Output Surge Power | 6400W |
| AC Max Input Current | 15A |
| Inverter Efficiency | ≥88% (tested 88.9%) |
| Transfer Time | Inverter -> Grid 10ms Max | Grid -> Inverter 15ms Max |
| THD | ≤4% |
| Standby Power | ≤20mA |
| USB | 2 x USB-A (18W Max) |
| Bluetooth | Yes |
| Communications | RS485 |
| Operating Temperature | -20 to +40°C |
| Dimensions | 478mm x 277mm x 96mm |
| Weight | 9.0kg |
| Protection | Integrated RCBO | USB SC Protection | DC UVP/OVP | DC Reverse Polarity Protection | AC Overload Protection | AC SC Protection | AC UVP/OVP | OTP/UTP |
| Certifications | CISPR14 | CISPR32 | IEC60335-1 | IEC60335-2-29 | AS/NZS4763 | AS/NZS4268 |
| Wire Size | 95mm² |
| Cable Length | 1000mm |
| Insulation | Silicone |
| Conductor | Tinned Copper |
| KickAss 12V to 230V Pure Sine Wave 3200W Bi-Directional Inverter-Charger + Integrated Bluetooth |
Maximise your off-grid adventures with the KickAss 12V 3200W Pure Sine Wave Bi-Directional Inverter-Charger, bundled with the Premium Wiring Kit. This powerhouse inverter-charger not only provides you with the ability to convert DC to AC power effortlessly but also features integrated Bluetooth for seamless monitoring. Paired with the 95mm2 wiring kit, you'll experience a seamless installation process, ensuring your power setup is efficient and reliable, ready to tackle even the most demanding Australian conditions.
