Go off-grid with confidence with the KickAss 12V 300Ah Ultra-X Lithium Complete Dual Battery Kit, featuring a powerful inverter, DCDC charger, and wiring.

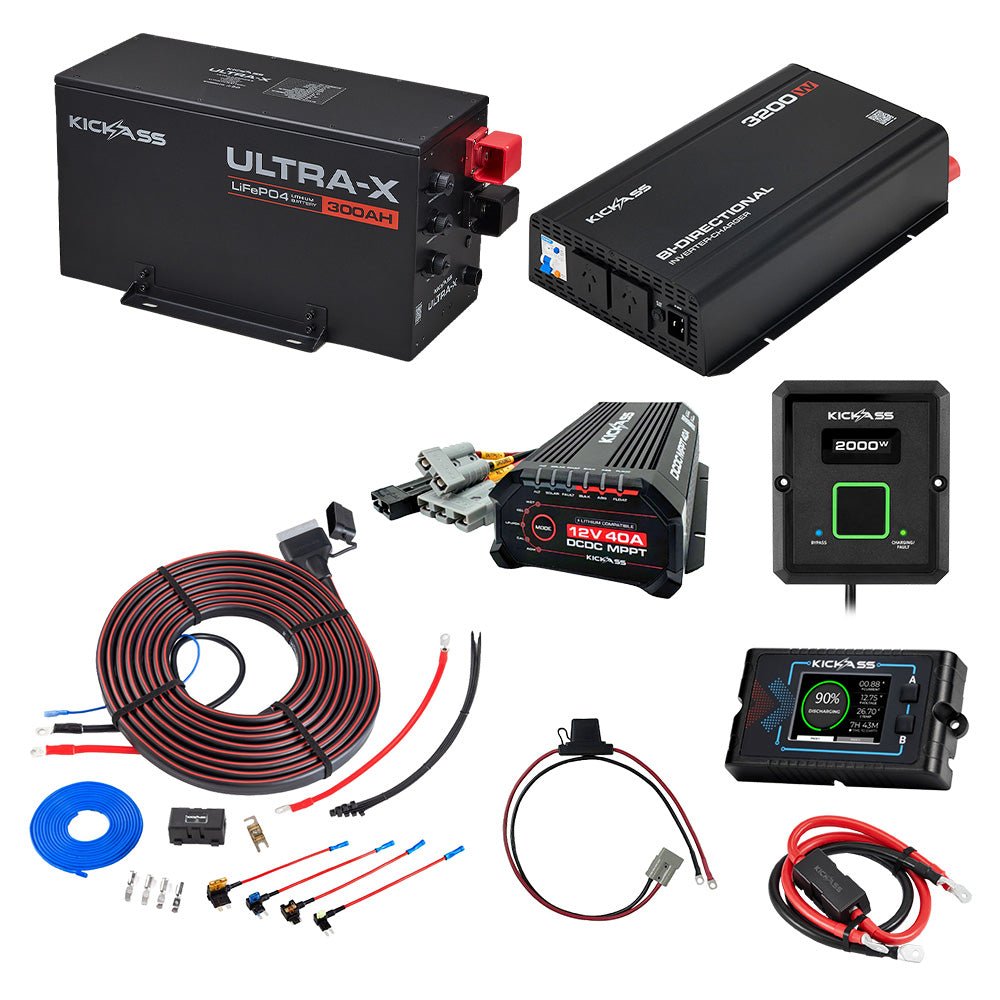

Everything that is included in this KickAss kit!
The first release in the new Series 2 Ultra-X battery range, this 300Ah lithium power house packs 300Ah of usable capacity into a compact design that can be installed anywhere from under beds in caravans to the back of ute tubs. Connect up to four in parallel or series & monitor the entire battery bank remotely via Bluetooth – no external shunt required. Supports AS/NZS:3001 compliance.

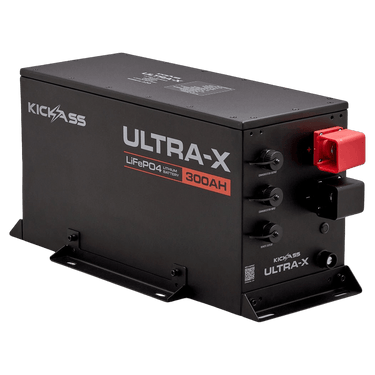

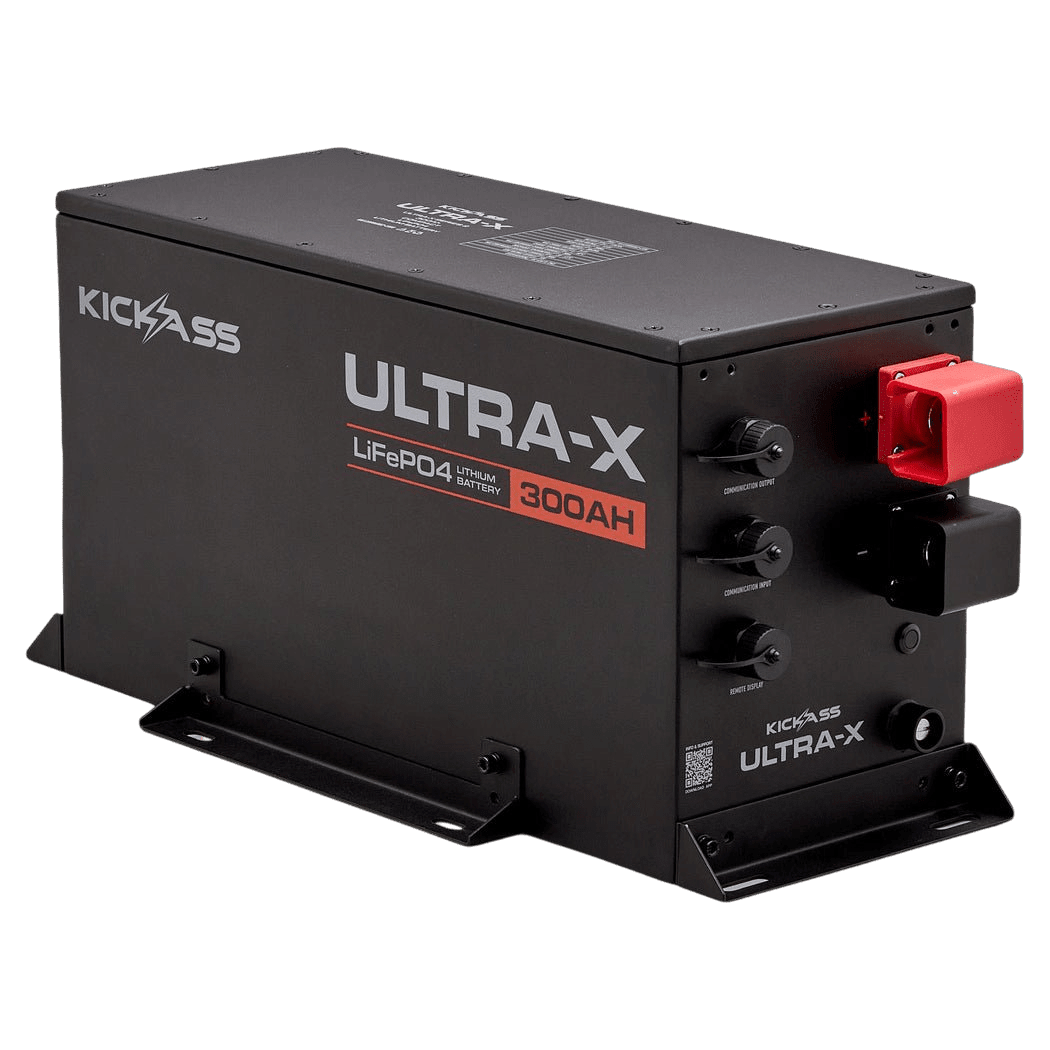

The KickAss Smart 12V 300Ah Ultra-X Lithium Compact Deep Cycle Battery LiFePO4 is the first battery in the second series of our premium Ultra-X range, building on everything customers already love. This second series introduces a new look along with key upgrades including an IP65-rated enclosure, integrated Low Voltage Recovery (LVR) button, and supports AS/NZS 3001.2 compliant installations. It's the next evolution of KickAss Ultra-X Lithium Batteries, delivering the same premium performance with even more capability.
With 300Ah of usable capacity and a 300A continuous discharge, it's built to power demanding off-grid setups, making it the ideal battery to pair with a 3000W inverter for running fridges, induction cooktops, coffee machines, power tools, lighting and other 12V and 240V appliances at the same time. This high-performance 12V lithium battery gives you more power without taking up valuable space.
Its compact form factor opens up installation options that simply aren't possible with many large-capacity batteries. Mount it neatly beneath caravan beds or bench seats, inside ute tubs under roller covers, within canopies or in camper trailers. A built-in vent means that the battery supports AS/NZS 3001 compliant installations, while the rugged metal housing, IP65 rating and intelligent Battery Management System ensure reliable performance in harsh Australian conditions.
Bluetooth monitoring lets you check battery status, capacity, voltage, temperature and current directly from your smartphone, while the optional Remote Display provides the same information for those who prefer a dedicated screen. If you accidentally run your battery too flat, then the integrated Low Voltage Recovery (LVR) button makes it easy to reawaken the BMS after an over-discharge, helping you get back on the road with the touch of a button.
As your power needs grow, your battery system can grow with them. Connect up to four Ultra-X 300Ah lithium batteries in series or parallel to create a powerful battery bank, then monitor the entire system through the KickAss app or Remote Display without needing an external shunt. The KickAss Ultra-X 300Ah LiFePO4 Battery delivers a cleaner, simpler and smarter way to build a scalable off-grid power system.
Built for larger setups and power-hungry appliances, this 3200W pure sine wave inverter-charger delivers clean, stable power when you need serious capacity. It rapidly recharges your battery from shore power via 2200W AC ultra-fast charging, with Bluetooth monitoring, plug-and-play install, built-in safety protection, and support for multiple battery chemistries.

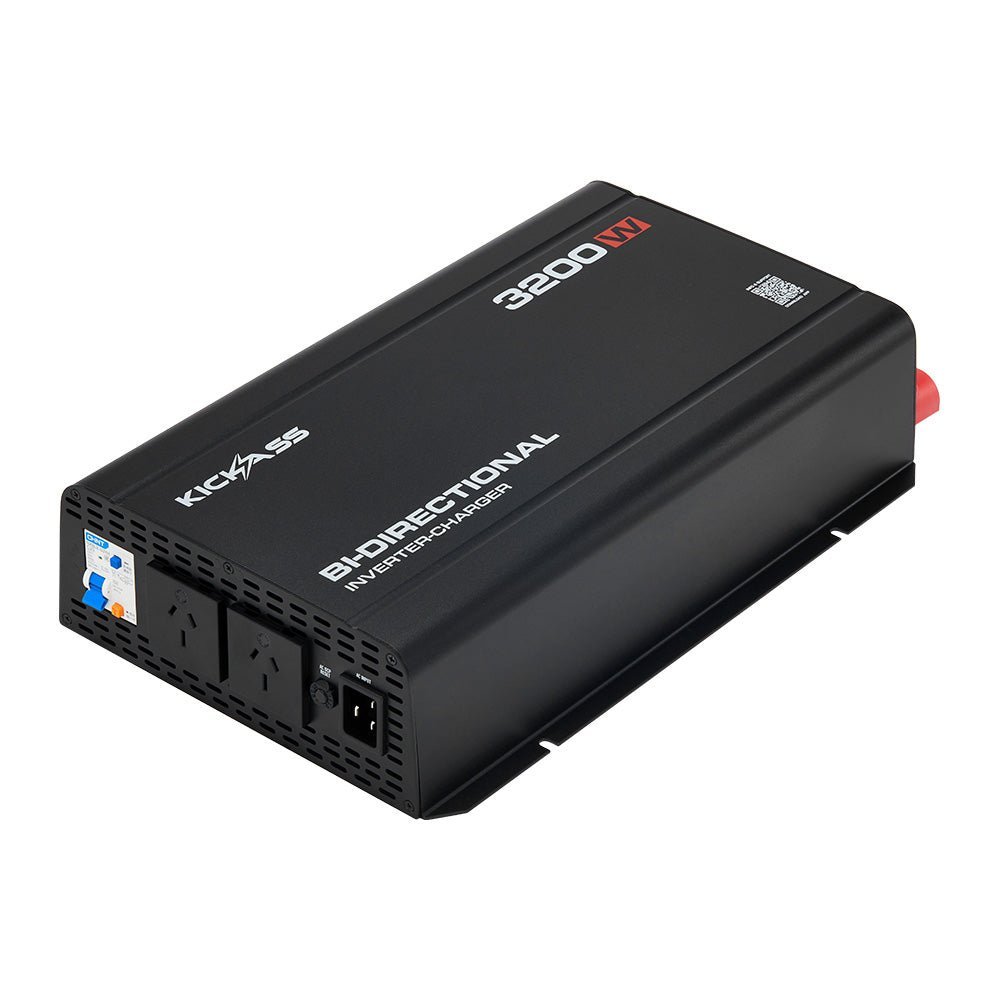

The KickAss 3200W Bi-Directional Inverter-Charger delivers mains-quality power for larger setups and high-demand appliances. Combining a 3200W pure sine wave inverter with a 2200W AC ultra-fast charger, it provides both AC power and battery charging without the need for separate devices, additional wiring or extra installation space.
The 3200W pure sine wave inverter converts 12V DC battery power into clean, stable 230V AC power, making it suitable for demanding appliances, sensitive electronics, motor-driven equipment and inductive loads. When connected to shore power, the automatic transfer switch powers connected loads directly from the AC supply while the built-in 2200W AC charger provides up to 180A of charging current.
Bluetooth monitoring and control via the KA Charge app allows you to select battery chemistry, choose a charging mode, switch the unit on or off and view up to 32 hours of performance history. An optional remote switch with OLED display and LED indicators provides additional control and system status monitoring.
Dynamic power adjustment technology balances charging current against connected AC loads, helping keep equipment powered without overloading the available AC supply.
Plug-and-play AC connectivity includes an IEC input and two AC outlets, eliminating the need for hardwiring. Integrated RCBO protection provides overload and earth leakage protection, while intelligent variable-speed cooling fans help regulate operating temperature and minimise unnecessary fan noise.
The compact slimline design is suited to space-limited vehicle and off-grid installations. The unit supports LiFePO4, AGM, CAL and GEL battery chemistries and also includes a USB-A output for charging compatible phones, tablets and other devices.
Charge your dual battery system fast with this 40A DCDC Charger. Ideal for lithium & lead acid batteries, it suits medium to large setups. Solar MPPT, Bluetooth, lithium wakeup, and multi-stage charging – all in a tough, IP66-rated, plug & play unit built for Aussie conditions. Note this charger requires the KickAss Heavy Duty Wiring Kit or 6AWG cable from the starter battery.
Powerful 40A Dual Battery Charging
With a high 40A output, this charger is perfect for keeping larger lithium and lead acid battery systems topped up and ready for action. It ensures fast, safe charging for demanding off-road or touring applications.
Bluetooth Monitoring & App Control
Connect your charger to your smartphone via Bluetooth to monitor performance in real time. The KickAss App gives you complete visibility over charging status, voltages, current flow, and system alerts – all from your pocket.
Simple Plug & Play Installation
Thanks to Anderson-style connectors, installation is quick and hassle-free with no complex wiring required. It’s designed for DIY setups and easy integration into your existing system.
Dual Input: Alternator & Solar Charging
Charge from your vehicle’s alternator while driving or connect a solar panel when stationary – this charger handles both. Its built-in MPPT solar regulator ensures maximum efficiency when using solar input.
Built for Aussie Conditions
Rated IP66, the KickAss 40A DCDC Charger is waterproof, dustproof, and rugged enough to handle corrugated tracks, extreme heat, and remote adventures. It’s built tough for Australian conditions.
Compatible with 12V & 24V Alternators
Highly versatile, this charger is compatible with both 12V and 24V alternators, making it suitable for a wide range of vehicle types including trucks, commercial vehicles, and 4WDs.
Adjustable Max Input Current – Hybrid Compatible
The maximum input current can be configured via the Bluetooth app, allowing the charger to limit the draw from your vehicle’s alternator, without reducing the maximum charge current when charging from solar. This makes it ideal for some hybrid vehicles or those with low-output alternators, helping prevent overload and ensuring stable, efficient charging without placing strain on your electrical system.
Smart Alternator Ready
Modern vehicles with smart alternators are no problem. The unit supports both smart and fixed-voltage alternators and includes an ignition trigger wire to start or stop charging based on engine status.
Lithium Battery Compatible
Fully lithium-ready, this charger includes an automatic lithium wakeup function that can safely restore LiFePO4 batteries from low voltage protection or sleep mode – no manual intervention needed.
Advanced Multi-Stage Charging
Precision charging algorithms help extend the life of your auxiliary battery. The charger delivers multi-stage charging tailored to the battery type, helping maintain peak performance over the long haul.
Starter Battery Isolation
To protect your starting battery, the charger only delivers current to your auxiliary battery when the engine is running, and automatically disconnects when the vehicle is off – eliminating unwanted drain.
Supports Multiple Battery Chemistries
Whether you’re using lithium, AGM, wet, gel, or calcium batteries, this charger has you covered. It’s a versatile solution designed to support a wide range of battery types.
Perfect for 4WDs, caravans, camper trailers, and off-grid touring setups, the KickAss 40A DCDC Charger with Solar MPPT and Bluetooth delivers intelligent charging for serious adventurers.
This 3-pin Anderson-style connector with built-in ignition wire makes connecting your 12V dual battery system easy. Perfect for wiring DC/DC chargers, battery boxes & auxiliary batteries.
This 3-pin Anderson-style connector with built-in ignition wire makes connecting your 12V dual battery system easy. Perfect for wiring DC/DC chargers, battery boxes & auxiliary batteries.
Power your 3200W inverter setup with heavy-duty cabling built to handle serious current. This premium wiring kit pairs 95mm² tinned copper cable with a flexible silicone sheath for easier routing and installation, plus a MEGA fuse and spare. Purpose-built for the KickAss 3200W Bi-Directional Inverter Charger.
Give your KickAss 3200W Bi-Directional Inverter Charger the heavy-duty connection it needs. This premium inverter wiring kit uses substantial 95mm² tinned copper cable to support high-current power transfer, while helping resist corrosion in tough touring and off-grid environments. It’s a purpose-built solution for high-powered inverter installations in caravans, camper trailers, 4WDs and other 12V setups.
Despite its heavy-duty construction, the cable features a flexible silicone outer sheath that makes routing through your setup easier, including around bends and through tighter spaces. A high-current MEGA fuse is included for circuit protection, along with a spare, giving you the key cabling and protection components needed for a clean, dependable 3200W inverter installation.
Control and monitor your KickAss Bi-Directional Inverter Charger from a convenient location. This plug-and-play remote features an OLED screen displaying real-time AC output power, dedicated status LEDs, flexible flush or surface mounting and an included two-metre RJ45 cable. Compatible with both 2200W and 3200W models.
Put convenient inverter control and monitoring within easy reach with this remote for KickAss 2200W and 3200W Bi-Directional Inverter Chargers. Switch your inverter on and off without needing direct access to the unit, while the integrated OLED screen displays real-time AC output power so you can keep an eye on appliance loads at a glance. Dedicated LED indicators also provide quick confirmation of bypass and battery-charging status.
Designed for a clean, flexible installation, the inverter remote can be flush mounted or surface mounted using the included frame, making it easy to position where it works best in your caravan, camper trailer, 4WD or off-grid setup. The included two-metre RJ45 cable provides a simple plug-and-play connection, while multi-remote capability lets multiple connected remotes work together for convenient inverter control from different locations.
The KickAss Remote Smart Lithium Battery Display Unit is compatible with the KickAss Smart and Ultra-X series batteries. Simple plug-and-play via the RJ45 connector, it allows you to monitor State of Charge (SOC), voltage, real-time current, and temperature of either a single battery or multiple batteries connected in parallel or series. Includes 5m extension cable. No shunt required!
The KickAss Remote Smart Lithium Battery Display Unit is compatible with the KickAss Smart and Ultra-X series batteries. Simple plug-and-play via the RJ45 connector, it allows you to monitor State of Charge (SOC), voltage, real-time current, and temperature of either a single battery or multiple batteries connected in parallel or series. Includes 5m extension cable.
Take full control of your battery system with the KickAss Battery Display Monitor – your window into real-time performance, protection, and peace of mind.
Monitor Your Battery Like a Pro
Never guess your battery’s health again. With a full-colour screen, you can instantly view:
Built-In Battery Management System (BMS)
The integrated KickAss BMS keeps your battery safe — actively protecting against:
Stay alerted with smart error messages and stay in control from your display or compatible mobile device.
Easy Flush-Mount Design
Install it where you need it most. Whether it's in your canopy, van, or camper setup, the flush-mount design with included screws and universal hole spacing makes installation fast and secure.
Compact Dimensions
The KickAss Battery Display Monitor isn’t just for looks – it’s your off-grid command centre. Whether you're heading bush or running gear off your canopy, this screen keeps your system protected and your trips worry-free.
This heavy duty cable features weatherproof casing to protect the fuse from dust and damage. The durable 8 B&S cable is encased in a smooth PVC outer layer for protection and ease of use.
KickAss MAXI Fuse Anderson Cable
The KickAss MAXI Fuse Anderson Cable is the perfect solution for connecting a battery to virtually any device. It offers superior circuit protection through an inline 80A MAXI Fuse, safeguarding against short circuits and potential system damage.
With a purpose-designed length, this cable easily reaches vehicle starting batteries and integrates seamlessly with dual battery setups. The built-in weatherproof MAXI Fuse holder simplifies installation, eliminating the need for mounting traditional fuse holders or circuit breakers.
One end of the cable features a 50 Amp Anderson style connector for effortless connection to battery boxes, solar panels, or other compatible devices. The other end includes high-quality 8mm ring terminals for secure battery attachment. A spare 80A MAXI Fuse is included for added convenience.
Features:
See links below for replacement fuses:
Spare 50A MAXI Fuse - Red
| Length | 830mm |
| Cable Type | 8B&S (8.3mm²) single core |
| MAXI Fuse Rating | 80A |
| Ring Terminals | 8mm Ring Terminals |
| Main Cable Length | 6.5M - 3 Core |
| Ignition Cable Extension | 3M - 14AWG Single Core |
| Cable Size - 3 Core | 2x 6AWG (13.5mm²), 1x 14AWG (1.8mm²) |
| Insulation Material | Inner - Silicon / Outer - PVC |
| Rated Temperature | Max. 105°C |
| Ring Terminals | M8 - Battery / M6 - Fuse |
| Fuse | 80A MIDI Fuse with Holder |
| Connections | 3 Pin Anderson Style / Bullet |
| Charger Output Voltage Range | 3–16V DC |
| Alternator Input Voltage Range | 9–32V DC |
| Solar Input Voltage Range | 9–32V DC |
| Maximum Input Current | 56A |
| Maximum Continuous Charging Current | 40A |
| Recommended Output Fuse Size | 50A |
| No Load Current Draw | 10 mA |
| Battery Chemistry | LiFePO4 | AGM | GEL | CAL | WET |
| Efficiency | Solar - 99% Max | Alternator - 92% Max |
| Operating Temperature | -20 °C to +80 °C |
| Ingress Protection | IP66 |
| Certifications | RCM Mark | FCC |
| Recommended Battery Capacity | |
| Lead Acid (WET, GEL, AGM, CAL) | 160 – 500Ah |
| LiFePO4 | 50 – 500Ah |
| Charge Profile | |
| Absorption Voltage | GEL - 14.1V | WET - 14.4V | AGM - 14.7V | CAL - 15.3V | LiFePO4 - 14.5V |
| Float Voltage | GEL - 13.5V | WET - 13.4V | AGM - 13.4V | CAL - 13.6V | LiFePO4 - NA |
| Minimum Auxiliary Battery Voltage | GEL/WET/AGM/CAL - 9V | LiFePO4 - 0V |
| Alternator Charge Conditions | |
| 12V Alternator Input (Ignition OFF) | CUT-IN 13.2V | CUT-OUT 12.6V |
| 12V Alternator Input (Ignition ON) | CUT-IN 12.2V | CUT-OUT 10.5V |
| 24V Alternator Input (Ignition OFF) | CUT-IN 26.4V | CUT-OUT 25.2V |
| 24V Alternator Input (Ignition ON) | CUT-IN 24.4V | CUT-OUT 21V |
| Warranty | 2 Year |
| DC Input Voltage | 10.5–15 VDC |
| Charger Output Voltage | AGM 14.8V | STD 14.4V | GEL 14.2V | LiFePO4 14.4V |
| Charger Output Power | 2200W Fast Charge - 165A DC Output | 800W Slow Charge - 50A DC Output |
| Supported Battery Chemistries | AGM, Standard (STD), GEL, LiFePO4 |
| AC Input Voltage | 196–264 VAC (nominal 230V / 50Hz) |
| AC Output Power | 3200W | 230VAC ±5% | 50Hz ±1 | Pure Sine Wave |
| AC Output Surge Power | 6400W |
| AC Max Input Current | 15A |
| Inverter Efficiency | ≥88% (tested 88.9%) |
| Transfer Time | Inverter -> Grid 10ms Max | Grid -> Inverter 15ms Max |
| THD | ≤4% |
| Standby Power | ≤20mA |
| USB | 2 x USB-A (18W Max) |
| Bluetooth | Yes |
| Communications | RS485 |
| Operating Temperature | -20 to +40°C |
| Dimensions | 478mm x 277mm x 96mm |
| Weight | 9.0kg |
| Protection | Integrated RCBO | USB SC Protection | DC UVP/OVP | DC Reverse Polarity Protection | AC Overload Protection | AC SC Protection | AC UVP/OVP | OTP/UTP |
| Certifications | CISPR14 | CISPR32 | IEC60335-1 | IEC60335-2-29 | AS/NZS4763 | AS/NZS4268 |
| Voltage | 12.8V |
| Capacity | 300Ah |
| Cell Type | Prismatic |
| Max Continuous Discharge | 300A |
| Max Continuous Charge | 250A |
| Peak Discharge | 660A @ 30 Seconds |
| Ingress Protection | IP65 |
| Max Charge Temp | 60°C |
| Min Charge Temp | 0°C |
| Max Discharge Temp | 65°C |
| Min Discharge Temp | -20°C |
| Cycle Life | 4000+ |
| Bluetooth | Yes |
| Remote Display | Optional |
| Parallel / Series Remote Monitoring | Yes, up to 4 |
| Dimensions (Battery with terminals) | 242 x 180 x 460 |
| Dimensions (With Mounting Brackets) | 242 x 180 x 500 |
| Weight | 30kg |
| Certifications | IEC 62619, UN38.3, FCC, EMC |
| Input Voltage | 9-16V |
| Communications | RS485 |
| Standby Power | 10mA |
| Operating Temperature | -20 to +50°C |
| Dimensions | 79mm x 68mm x 20mm |
| Weight | TBC |
| Certifications | RCM |
| Wire Size | 95mm² |
| Cable Length | 1000mm |
| Insulation | Silicone |
| Conductor | Tinned Copper |
| KickAss Automotive Inline Maxi Fuse Holder with Anderson Plug | |
| KickAss Heavy Duty Plug and Play DCDC Wiring Kit - 6.5m | |
| KickAss Smart Lithium Battery Remote Display Unit + 5m Extension Cable Bundle | |
| KickAss Smart 12V/24V 40A DCDC Charger With Solar MPPT + Integrated Bluetooth + Pre-Wired Anderson | |
| KickAss 12V to 230V Pure Sine Wave 3200W Bi-Directional Inverter-Charger + Integrated Bluetooth | |
| KickAss Smart 12V 300Ah Ultra-X Lithium Compact Deep Cycle Battery LiFePO4 - Series 2 |
Transform your off-grid adventures with the KickAss 12V 300Ah Ultra-X Lithium Complete Dual Battery Kit. This powerful bundle includes the Smart 300Ah Ultra-X Lithium Battery, a 3200W Bi-Directional Inverter-Charger, and a 40A DCDC Charger with MPPT Solar function; ensuring you have reliable power whenever you need it. The companion heavy duty wiring kits ensure seamless setup, while the remote display units keep you informed about your system's performance. Designed for Australian conditions, this complete kit is built to take your 4WD or camping trips to the next level, providing peace of mind and unmatched capability.
