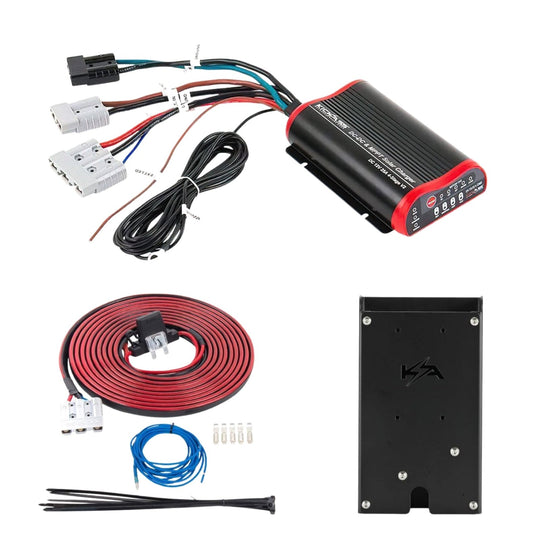

KickAss 12V/24V 25A DCDC Charger with Solar MPPT & Pre-Wired Anderson Plug
Charge your secondary battery from your alternator. Connect your DCDC charger easily with the 3-pin Anderson connector. Dust and waterproof, compatible with lithium. Ideal for small to medium batteries.
Pickup available at Acacia Ridge Store
Usually ready in 1 hour
1 Year Warranty
This product is covered by a 1 Year Limited Warranty.
Description
Welcome to the next generation of DCDC vehicle battery charging. KickAss has developed and delivered an onboard vehicle charging solution like no other. Engineered for durability and expertly designed for charging performance, the KickAss DC-DC charger is the new weapon of choice in dual battery systems.
KickAss DC charging at a glance:
The True 4-stage charging features BULK, ABSORPTION, FLOAT and PULSE modes with advanced algorithms enhancing the overall charging performance of auxiliary batteries. This ensures your auxiliary battery is charged the correct way, enabling it to reach maximum charge capacity while also maintaining optimal performance. With a powerful 25 Amp maximum output, it provides fast and effective charging.
This charger overcomes issues caused by smart charging systems and variable voltage alternators in modern vehicles, delivering a consistent output to your auxiliary battery. It ensures reliable charging in both new and older vehicles, helping to maintain and extend battery life.
Inbuilt isolation prevents your auxiliary battery from draining your start battery when the vehicle is off. Smart tech detects charging status automatically, so no manual switching is needed — it's all handled for you from the moment you start your engine.
KickAss DCDC Features
Three Pin Anderson Style Connector
Easily connect your 12V DCDC Charger with the new three-pin Anderson connection, combining positive alternator, negative ground, and ignition wires. Fully compatible with standard two-pin Anderson connectors.
Lithium BMS Sleep Mode Recovery Feature
In Lithium Mode, if the battery drops below safe voltage and enters sleep mode, the charger will initiate recovery mode. It will trickle charge until the cut-in voltage is reached, then resume normal charging. This function helps revive lithium batteries protected by a built-in Battery Management System (BMS).
The charger will display fault codes for open circuit output if the battery is asleep. To attempt recovery, you must select 'LITHIUM' using the 'MODE' button before connecting the charger.
How to wake a lithium battery:
- Disconnect all loads from the lithium battery.
- Connect alternator or solar input to the DCDC Charger.
- Connect the output from the charger to the battery.
- The charger will flash all battery types; BULK and PULSE LEDs stay lit for 30 seconds before Recovery Mode starts.
- When the source (e.g. Solar) is active and LITHIUM flashes, recovery is in progress.
- Once voltage recovers, the charger resumes normal operation and loads can be reconnected.
Maximum Solar Gains with Integrated MPPT
Charge your auxiliary battery from solar using the integrated MPPT solar controller. Ideal for caravans and campers, it ensures efficient solar charging even without the vehicle running.
Plug & Play by Design
Quick installation with Plug & Play Anderson-style connectors — even faster when used with a KickAss wiring kit or battery box.
Crisp LED Display and Control
Bright, easy-to-read LED indicators show charging status and mode. Set battery type easily with the soft-touch MODE button.
Multi Battery Type Compatibility
Compatible with GEL, AGM, WET, CALCIUM, and LITHIUM (LiFePO4) batteries for flexible dual battery setups.
Ultra Compatible
Works with 24V systems for charging 12V batteries, and supports smart alternators with a dedicated voltage sense wire.
Fully Sealed, IP67
Built tough with full water and dust sealing to IP67. Internals are coated for extreme durability against corrosion and moisture.
The Best Protection, Ever!
Includes built-in safety features:
- Short Circuit Protection
- Reverse Polarity Protection
- Over Voltage Protection
- Over Temperature Protection
- Temperature Compensation
KickAss is proud to bring you the next generation in onboard charging, designed to
Specifications
| Charger model | KADCDC25-AND |
| Alternator Input Voltage | 9-32V DC |
| Input Current (no load) | 20mA |
| Efficiency | App. 95% |
| External LED output current | 4mA |
| Output current | Input 9-11V DC 20A Input 11-32V DC 25A |
| Minimum auxiliary battery voltage | 9V DC |
| Input Fuse Rating | 50A |
| Output Fuse Rating | 50A |
| Maximum Output Power | 368W |
| Solar Input Minimum Voltage | 9V DC |
| Solar Input Maximum Current | 25A |
| Solar Input Maximum Voltage | 32V DC |
| Ambient Operating Temperature | -10°C to +80°C |
| Dimensions | 165 x 120 x 40 mm |
| Weight | 1.11kg |
| Time Delay Function | There is a 30 second delay before the charger will cut in or out |
| IP Rating | IP67 |
Battery Type Specifications
| Battery Type | GEL, AGM, WET, CALCIUM | LITHIUM |
| Battery Capacity Range | 75-300AH | 50-250AH |
Battery Operation Voltage Specifications
| Voltage Type | 12V DC | 24V DC | ||
| Integrated Isolator Cut In / Cut Out Voltage |
CUT IN 13.2V |
CUT OUT 12.6V |
CUT IN 26.4V |
CUT OUT 25.2V |
| Integrated Isolator (Ignition Override On) |
CUT IN 12.2V |
CUT OUT 11.6V |
CUT IN 24.4V |
CUT OUT 23.2V |
KICKASS constantly improves and innovates its products and we may from time to time discontinue or update product specifications without notice.
