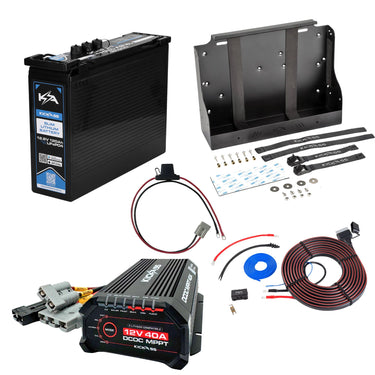

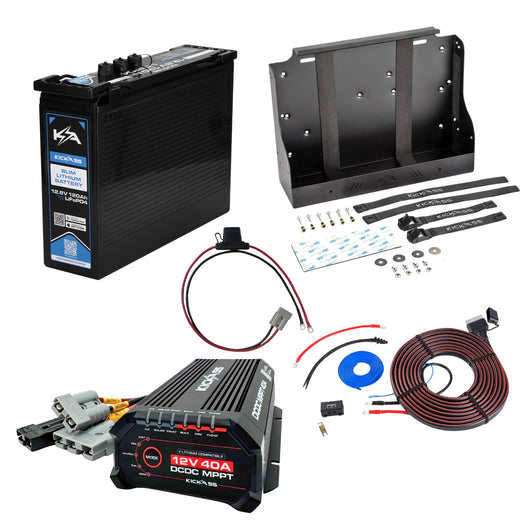

KickAss 120Ah Slimline Lithium Battery Kit with Tray, 40A DCDC, Fuse and Wiring Kit

KickAss Premium Plug & Play DC-DC Wiring Kit

Introducing the ultimate dual battery system wiring kit, now featuring a three-pin 50 Amp Anderson-style connector with ignition wire. The team at KickAss has carefully developed this premium plug-and-play wiring kit for ultra-easy DIY installations. It’s packed with high-quality components to ensure your setup is smooth and professional.

The kit is fully plug-and-play for any system using Anderson connectors for charging input and includes everything needed for a professional wiring installation. It now comes with our famous Maxifuse cable pre-installed into 6 metres of heavy-duty 8 B&S cable, providing 50A of circuit protection. The new three-pin Anderson plug allows for easier installation by integrating an ignition wire directly into the connector—eliminating the need to run multiple cables through your vehicle.

The cable is pre-crimped with Anderson connector terminals, making it simple to feed through holes and grommets. Once installed, you just clip on the three-pin Anderson connector. The kit also includes cable ties for securing cables, a spare 80A Maxifuse, a 3-metre ignition tail wire, and spare Anderson terminals.

Backwards Compatibility

The three-pin Anderson connector is backwards compatible, allowing a two-pin Anderson connection to work even if the ignition wire is not connected.

The KickAss Premium DC-DC wiring kit is specifically designed for our DC-DC chargers and is not compatible with VSRs.

For Other Installations, Please Use Our Dual Battery Wiring Kit When:

• Wiring to a battery system in the cargo area of the vehicle
• Installing VSRs – see our KAVSRAND kit fully compatible with this setup
• Connecting KickAss battery boxes and power packs
• Connecting auxiliary batteries – using KickAss Maxifuse Cable and optional VSR

This Kit Includes:

• 6 x 50 Amp Anderson terminals
• 1 x 50 Amp 3-Pin Anderson connector
• 1 x 80Amp spare Maxifuse
• 10 x Black cable ties (300mm)
• 1 x 3m tail ignition cable

KickAss MAXI Fuse Anderson Cable

The KickAss MAXI Fuse Anderson Cable is the perfect solution for connecting a battery to virtually any device. It offers superior circuit protection through an inline 80A MAXI Fuse, safeguarding against short circuits and potential system damage.

With a purpose-designed length, this cable easily reaches vehicle starting batteries and integrates seamlessly with dual battery setups. The built-in weatherproof MAXI Fuse holder simplifies installation, eliminating the need for mounting traditional fuse holders or circuit breakers.

One end of the cable features a 50 Amp Anderson style connector for effortless connection to battery boxes, solar panels, or other compatible devices. The other end includes high-quality 8mm ring terminals for secure battery attachment. A spare 80A MAXI Fuse is included for added convenience.

Features:

• In-line weatherproof MAXI Fuse holder with 80A MAXI Fuse
• Length: 750mm
• Cable type: Twin 8B&S (7.71mm²) Red/Black Sheathed
• 1 x 80A MAXI Fuse pre-installed in holder
• 1 x 80A MAXI Fuse spare
• 8mm ring terminals

See links below for replacement fuses:

Spare 50A MAXI Fuse - Red

Powerful 40A Dual Battery Charging

With a high 40A output, this charger is perfect for keeping larger lithium and lead acid battery systems topped up and ready for action. It ensures fast, safe charging for demanding off-road or touring applications.

Bluetooth Monitoring & App Control

Connect your charger to your smartphone via Bluetooth to monitor performance in real time. The KickAss App gives you complete visibility over charging status, voltages, current flow, and system alerts – all from your pocket.

Simple Plug & Play Installation

Thanks to Anderson-style connectors, installation is quick and hassle-free with no complex wiring required. It’s designed for DIY setups and easy integration into your existing system.

Dual Input: Alternator & Solar Charging

Charge from your vehicle’s alternator while driving or connect a solar panel when stationary – this charger handles both. Its built-in MPPT solar regulator ensures maximum efficiency when using solar input.

Built for Aussie Conditions

Rated IP66, the KickAss 40A DCDC Charger is waterproof, dustproof, and rugged enough to handle corrugated tracks, extreme heat, and remote adventures. It’s built tough for Australian conditions.

Compatible with 12V & 24V Alternators

Highly versatile, this charger is compatible with both 12V and 24V alternators, making it suitable for a wide range of vehicle types including trucks, commercial vehicles, and 4WDs.

Adjustable Max Input Current – Hybrid Compatible

The maximum input current can be configured via the Bluetooth app, allowing the charger to limit the draw from your vehicle’s alternator, without reducing the maximum charge current when charging from solar. This makes it ideal for some hybrid vehicles or those with low-output alternators, helping prevent overload and ensuring stable, efficient charging without placing strain on your electrical system.

Smart Alternator Ready

Modern vehicles with smart alternators are no problem. The unit supports both smart and fixed-voltage alternators and includes an ignition trigger wire to start or stop charging based on engine status.

Lithium Battery Compatible

Fully lithium-ready, this charger includes an automatic lithium wakeup function that can safely restore LiFePO4 batteries from low voltage protection or sleep mode – no manual intervention needed.

Advanced Multi-Stage Charging

Precision charging algorithms help extend the life of your auxiliary battery. The charger delivers multi-stage charging tailored to the battery type, helping maintain peak performance over the long haul.

Starter Battery Isolation

To protect your starting battery, the charger only delivers current to your auxiliary battery when the engine is running, and automatically disconnects when the vehicle is off – eliminating unwanted drain.

Supports Multiple Battery Chemistries

Whether you’re using lithium, AGM, wet, gel, or calcium batteries, this charger has you covered. It’s a versatile solution designed to support a wide range of battery types.

Perfect for 4WDs, caravans, camper trailers, and off-grid touring setups, the KickAss 40A DCDC Charger with Solar MPPT and Bluetooth delivers intelligent charging for serious adventurers.

KickAss 12V 120Ah LiFePO4 Lithium Battery & Remote Display Unit Feature Overview

Monitor Your Battery Status: Never question your lithium battery's health again! The colour screen takes the guesswork out of battery maintenance. Monitor your battery temperature, voltage, current draw, time to empty, charge status and more.

Safe Lithium Iron Phosphate Chemistry (LiFePO4): LiFePO4 is one of the most stable and safest 12V lithium chemistries available. This means KickAss LiFePO4 batteries are safe even for the toughest of tracks, with 200+ battery cycles at 100% depth of discharge.

More Usable Capacity: Unlike AGM batteries that can only safely use up to 50% capacity, the KickAss 120Ah Lithium Battery can safely use up to 80% capacity, giving you a full 96 usable amps.

Lightweight: Weighing only 14.3kg—about half the weight of a similar sized sealed lead acid battery—makes it far easier to move and install the KickAss 12V Lithium Battery into your setup.

KickAss Integrated Battery Management System (BMS): The KickAss BMS ensures your battery remains safely within all parameters, protecting your 12V lithium battery from short circuits, low voltage, overloads and more.

Durable ABS Casing: With high tensile strength and superb resistance to impacts and chemical erosion, our high-quality ABS container ensures long lifespan.

120AH KickAss Slimline Battery Tray

Built specifically for our range of Slimline batteries, our brand-new slimline battery trays are the solution to securing your KickAss slimline battery. These KickAss battery trays are perfect for installation behind the rear seats of a modern 4WD dual cab, or in its canopy.

Behind Seat Battery Tray

Store your battery out of sight and maximise storage space for your other belongings.

Heavy Duty Slimline Battery Mount

Constructed with a lightweight & strong aluminium frame to protect and secure your battery. A heavy duty slim battery tray designed for the toughest Australian Terrain.

Hold-Down Straps

Our slimline battery holder features 2 heavy duty straps that hold your battery in place. These can easily be detached, allowing easy access your battery.

Factory Mounting Holes

Simply mount your slim battery tray via the factory mounting holes. Comes with all bolts and screws included, so you don’t have to shop around for extras.

Please Note - Please check the product specifications before purchase. KickAss is not responsible or liable for any modification performed on your vehicle.
