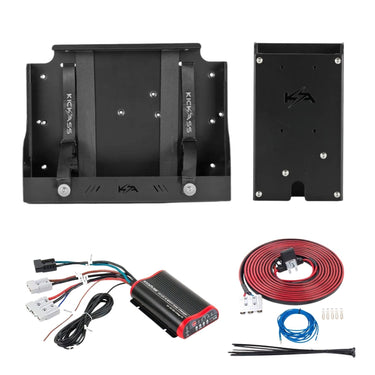

KickAss 120Ah Slimline Battery Tray + Accessory Panel + 25A DCDC Charger + Wiring Kit Bundle

KickAss Premium Plug & Play DC-DC Wiring Kit

Introducing the ultimate dual battery system wiring kit, now featuring a three-pin 50 Amp Anderson-style connector with ignition wire. The team at KickAss has carefully developed this premium plug-and-play wiring kit for ultra-easy DIY installations. It’s packed with high-quality components to ensure your setup is smooth and professional.

The kit is fully plug-and-play for any system using Anderson connectors for charging input and includes everything needed for a professional wiring installation. It now comes with our famous Maxifuse cable pre-installed into 6 metres of heavy-duty 8 B&S cable, providing 50A of circuit protection. The new three-pin Anderson plug allows for easier installation by integrating an ignition wire directly into the connector—eliminating the need to run multiple cables through your vehicle.

The cable is pre-crimped with Anderson connector terminals, making it simple to feed through holes and grommets. Once installed, you just clip on the three-pin Anderson connector. The kit also includes cable ties for securing cables, a spare 80A Maxifuse, a 3-metre ignition tail wire, and spare Anderson terminals.

Backwards Compatibility

The three-pin Anderson connector is backwards compatible, allowing a two-pin Anderson connection to work even if the ignition wire is not connected.

The KickAss Premium DC-DC wiring kit is specifically designed for our DC-DC chargers and is not compatible with VSRs.

For Other Installations, Please Use Our Dual Battery Wiring Kit When:

• Wiring to a battery system in the cargo area of the vehicle
• Installing VSRs – see our KAVSRAND kit fully compatible with this setup
• Connecting KickAss battery boxes and power packs
• Connecting auxiliary batteries – using KickAss Maxifuse Cable and optional VSR

This Kit Includes:

• 6 x 50 Amp Anderson terminals
• 1 x 50 Amp 3-Pin Anderson connector
• 1 x 80Amp spare Maxifuse
• 10 x Black cable ties (300mm)
• 1 x 3m tail ignition cable

Welcome to the next generation of DCDC vehicle battery charging. KickAss has developed and delivered an onboard vehicle charging solution like no other. Engineered for durability and expertly designed for charging performance, the KickAss DC-DC charger is the new weapon of choice in dual battery systems.

KickAss DC charging at a glance:

The True 4-stage charging features BULK, ABSORPTION, FLOAT and PULSE modes with advanced algorithms enhancing the overall charging performance of auxiliary batteries. This ensures your auxiliary battery is charged the correct way, enabling it to reach maximum charge capacity while also maintaining optimal performance. With a powerful 25 Amp maximum output, it provides fast and effective charging.

This charger overcomes issues caused by smart charging systems and variable voltage alternators in modern vehicles, delivering a consistent output to your auxiliary battery. It ensures reliable charging in both new and older vehicles, helping to maintain and extend battery life.

Inbuilt isolation prevents your auxiliary battery from draining your start battery when the vehicle is off. Smart tech detects charging status automatically, so no manual switching is needed — it's all handled for you from the moment you start your engine.

KickAss DCDC Features

Three Pin Anderson Style Connector
Easily connect your 12V DCDC Charger with the new three-pin Anderson connection, combining positive alternator, negative ground, and ignition wires. Fully compatible with standard two-pin Anderson connectors.

Lithium BMS Sleep Mode Recovery Feature
In Lithium Mode, if the battery drops below safe voltage and enters sleep mode, the charger will initiate recovery mode. It will trickle charge until the cut-in voltage is reached, then resume normal charging. This function helps revive lithium batteries protected by a built-in Battery Management System (BMS).

The charger will display fault codes for open circuit output if the battery is asleep. To attempt recovery, you must select 'LITHIUM' using the 'MODE' button before connecting the charger.

How to wake a lithium battery:

1. Disconnect all loads from the lithium battery.
2. Connect alternator or solar input to the DCDC Charger.
3. Connect the output from the charger to the battery.
4. The charger will flash all battery types; BULK and PULSE LEDs stay lit for 30 seconds before Recovery Mode starts.
5. When the source (e.g. Solar) is active and LITHIUM flashes, recovery is in progress.
6. Once voltage recovers, the charger resumes normal operation and loads can be reconnected.

Maximum Solar Gains with Integrated MPPT
Charge your auxiliary battery from solar using the integrated MPPT solar controller. Ideal for caravans and campers, it ensures efficient solar charging even without the vehicle running.

Plug & Play by Design
Quick installation with Plug & Play Anderson-style connectors — even faster when used with a KickAss wiring kit or battery box.

Crisp LED Display and Control
Bright, easy-to-read LED indicators show charging status and mode. Set battery type easily with the soft-touch MODE button.

Multi Battery Type Compatibility
Compatible with GEL, AGM, WET, CALCIUM, and LITHIUM (LiFePO4) batteries for flexible dual battery setups.

Ultra Compatible
Works with 24V systems for charging 12V batteries, and supports smart alternators with a dedicated voltage sense wire.

Fully Sealed, IP67
Built tough with full water and dust sealing to IP67. Internals are coated for extreme durability against corrosion and moisture.

The Best Protection, Ever!
Includes built-in safety features:

• Short Circuit Protection
• Reverse Polarity Protection
• Over Voltage Protection
• Over Temperature Protection
• Temperature Compensation

KickAss is proud to bring you the next generation in onboard charging, designed to

Our battery tray accessory panel attaches to the KickAss Slim Battery Tray, and allows you to mount accessories together with your setup.

Secure your KickAss DCDC Charger, LVD, Circuit Breakers and more with this Battery Tray Accessory Panel. Pre-drilled holes make it easy to mount your KickAss gear.

120AH KickAss Slimline Battery Tray

Built specifically for our range of Slimline batteries, our brand-new slimline battery trays are the solution to securing your KickAss slimline battery. These KickAss battery trays are perfect for installation behind the rear seats of a modern 4WD dual cab, or in its canopy.

Behind Seat Battery Tray

Store your battery out of sight and maximise storage space for your other belongings.

Heavy Duty Slimline Battery Mount

Constructed with a lightweight & strong aluminium frame to protect and secure your battery. A heavy duty slim battery tray designed for the toughest Australian Terrain.

Hold-Down Straps

Our slimline battery holder features 2 heavy duty straps that hold your battery in place. These can easily be detached, allowing easy access your battery.

Factory Mounting Holes

Simply mount your slim battery tray via the factory mounting holes. Comes with all bolts and screws included, so you don’t have to shop around for extras.

Please Note - Please check the product specifications before purchase. KickAss is not responsible or liable for any modification performed on your vehicle.
