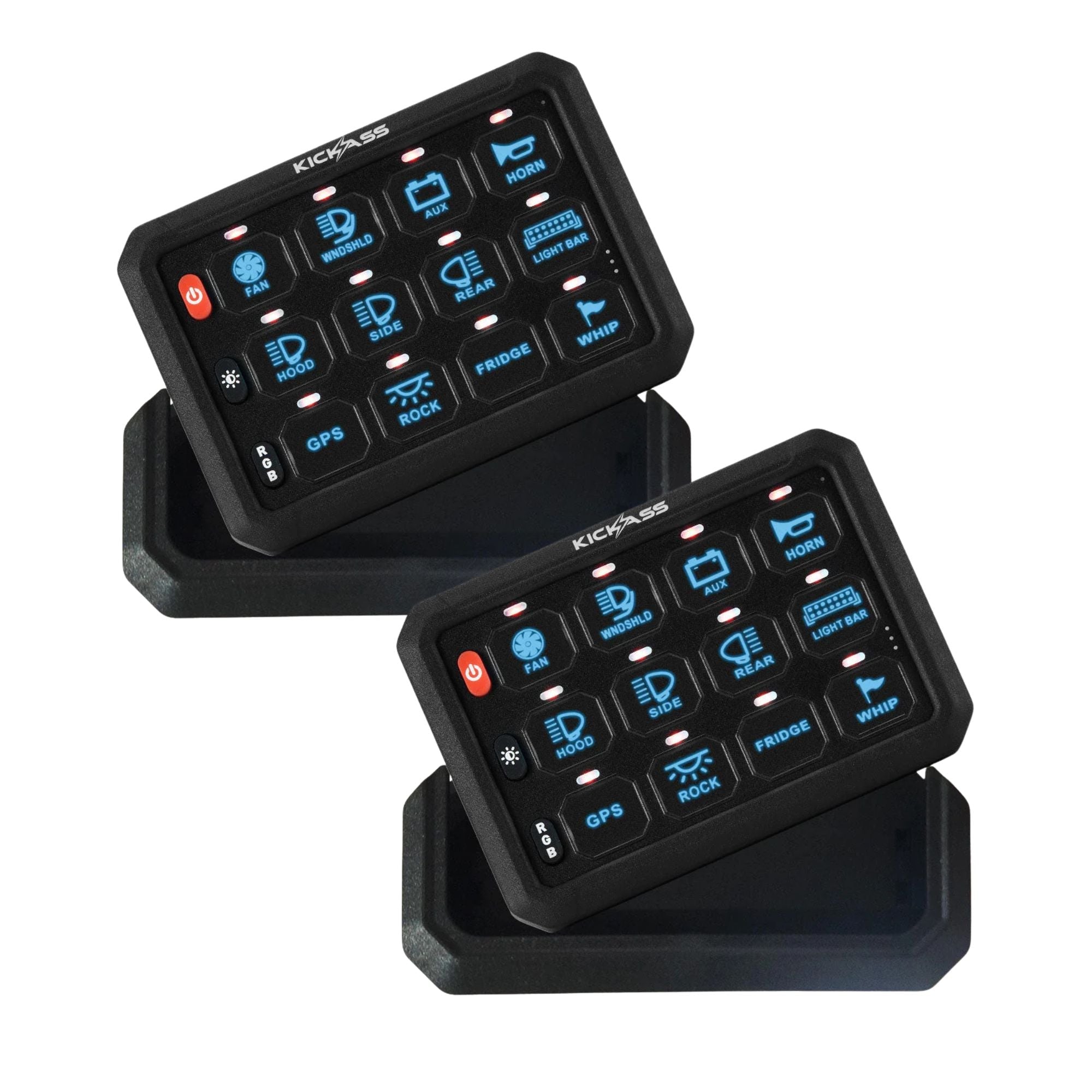

KickAss 12 Gang Wireless Switch Panel MKII + Second Control Panel with Magnetic Charging Cradle Bundle
Pickup available at Acacia Ridge Store
Usually ready in 1 hour
Description
Specifications
Additional specifications can be found in the detailed description of the product(s) below.
User Manual and Support
| KickAss 12V 12 Gang Wireless Switch Panel MKII - Second Control Panel Only | |
| KickAss 12/24V 12 Gang Wireless Switch Panel with Magnetic Charging Cradle |
KickAss has warehouses located on both the East and West Coast of Australia. Express orders are dispatched same business day if ordered before 12pm AEST. Standard orders are dispatched within 2-3 business days. Deliveries are made during business hours, Monday to Friday.
At KickAss, we take full control of our product journey - from concept to creation - by designing, engineering, and manufacturing our own batteries and 12V accessories in our wholly owned facilities located in Australia, China, and the USA. This end-to-end approach allows us to maintain strict quality standards, drive innovation, and deliver unbeatable value. By owning our production facilities, we ensure every product that carries the KickAss name is built tough, tested rigorously, and ready for off-grid adventure.
Change your mind? No worries, our quick & easy online or in-store returns process has you covered. Learn more.
Everything that is included in this KickAss kit!
1 x KickAss 12V 12 Gang Wireless Switch Panel MKII - Second Control Panel Only
Add a second 12-Gang MKII panel to your setup for easy dual-location control of the same accessories. It links seamlessly with your main panel via the control box, mirroring switch states in real time. With a strong 433MHz wireless signal and up to 30m range, you get smooth, reliable operation across larger vehicles and canopies.
Upgrade your system with a second KickAss 12V 12-Gang Wireless Switch Panel MKII for handy control of the same accessories from two locations. Ideal for larger 4WDs, caravans, RVs, canopies and marine setups, this additional panel gives you convenient access wherever you need it.
Real-time state synchronisation keeps both panels perfectly in step. Any switch pressed on one panel is instantly mirrored on the other through the main control box, ensuring both always show the correct on/off status. A dedicated 433MHz wireless connection delivers strong, stable communication with minimal interference, offering up to 30 metres of range for extended installations.
The panel integrates seamlessly via the MKII control box for fast, responsive performance, while the matching MKII design and backlit buttons maintain a clean, consistent look throughout your setup. It is the ideal addition for anyone wanting smoother, smarter and more accessible 12V control.
1 x KickAss 12/24V 12 Gang Wireless Switch Panel with Magnetic Charging Cradle
Enjoy full control of your 12V system from one simple device. The KickAss 12 Gang Switch Panel gives you complete control of up to 12 circuits and lets you manage all your gear from up to 60 metres away. When you’re ready to recharge, simply slot it into the magnetic charging cradle – no USB connections, no tangled cables. Just a tidy, wireless setup.
KickAss Features:
- Have full control of up to 12 circuits
- 3 programmable switch modes
- RGB Backlighting
- Wireless control
- Magnetic charging cradle (NEW!)
- Rechargeable battery
- High current capability
- Multi battery capability
- IP65 Dust & Water Resistant Rating
- Double sided outlet
- Prewired ACC fuse tap
- Enhanced safety features
- Multiple mounting options
- Adjustable lighting & on/off switch
- DIY switch panel labels
Have full control of up to 12 circuits
Control all of your 12V appliances and gear from this one handy unit. The 12 switches are RGB programmable, and backlit for easy viewing.
3 Programmable Switch Modes
Choose from three switch modes: Toggle, Momentary, or Pulsed, giving you flexibility and control over your devices.
RGB Backlighting
Customise the look of your 12 Gang Switch Panel by adjusting the brightness and selecting from a range of colours to suit your personal preferences. The panel also comes with 50 individual graphic labels, helping you align your switch setup with your configuration.
Wireless control
Control your DC appliances from up to 60 meters away – far beyond the typical range of Bluetooth. No apps to download, no need for your phone, and no hassle with tricky cable routing between the panel & the control box. Just grab the panel, and you’re good to go.
Rechargeable battery
The switch panel features a built-in rechargeable battery, so you won’t need to worry about the hassle or cost of replacing disposable batteries - just recharge it using the included USB cable.
The battery charges completely in 2-3 hours and can last up to 5-6 days on a full charge. You can easily monitor the battery status with the handy indicator, which clearly shows three separate levels: low, medium, and full.
High current capability
The 12 Gang Switch Panel delivers a high current capacity, managing up to 80A at both 12V and 24V. This allows you to run both high and low current devices at the same time, such as speakers, camping fridges, lights, winches, air compressors, and more.
Multi battery capability
The control box switch provides two power options: you can connect to either the starter battery via ACC (Accessory power) or to the auxiliary battery. If you want to run your electrical devices, such as your horn, lights, and radio, exclusively in ACC mode, choosing the ACC setup will enable you to do just that.
IP65 Dust & Water Resistance Rating
Encased in aluminium and rated IP65, the 12 Gang Switch Panel is built for outdoor adventures. It’s designed to handle some dust and moisture exposure, but should not be completely submerged in water.
Double sided outlet
The switch panel comes with a current control box that divides the output into two sections, offering flexible wiring options and reducing wire clutter. It includes five 30A, two 20A, two 15A, and three 10A outlets, with one of each type positioned on each side of the panel.
Prewired ACC fuse tap
The pre-wired ACC fuse adapter simplifies connecting the control box to your vehicle’s fuse box, eliminating the need for cutting, splicing, or damaging your existing wiring. Speedy, straightforward installation!
Enhanced safety features
The 12 Gang Switch Panel comes with a 60/80A circuit breaker, blade fuses (including a spare), and compact solid-state relays. These features safeguard the switch panel from any potential damage from thermal issues, overloads, and excessive currents.
Multiple mounting options
Includes two bracket mounting options for both the switch panel and control box. All necessary mounting hardware is provided, along with instructions and recommendations for the best placement within your vehicle.
Adjustable lighting & on/off switch
You have three lighting modes to choose from: steady light, momentary light, and strobe. Additionally, you can adjust the brightness across five levels, select from various colours, and use a dedicated switch to turn the backlight on or off.
DIY switch panel labels
Includes 140 stickers for labelling each switch and its connection!
Magnetic Charging Cradle
With its smart magnetic cradle, your switch panel stays charged and ready to go without the clutter of cords and tangled cables. Just place the unit onto the dock and it automatically connects for a stable, reliable charge. No fiddly plugs or USB connections – it’s smooth, wireless, and streamlined.
