KickAss 12V / 24V 360°, 3 Speed Caravan Fan - White

KickAss 12V / 24V 360°, 3 Speed Caravan Fan - White

Support Page User Manual

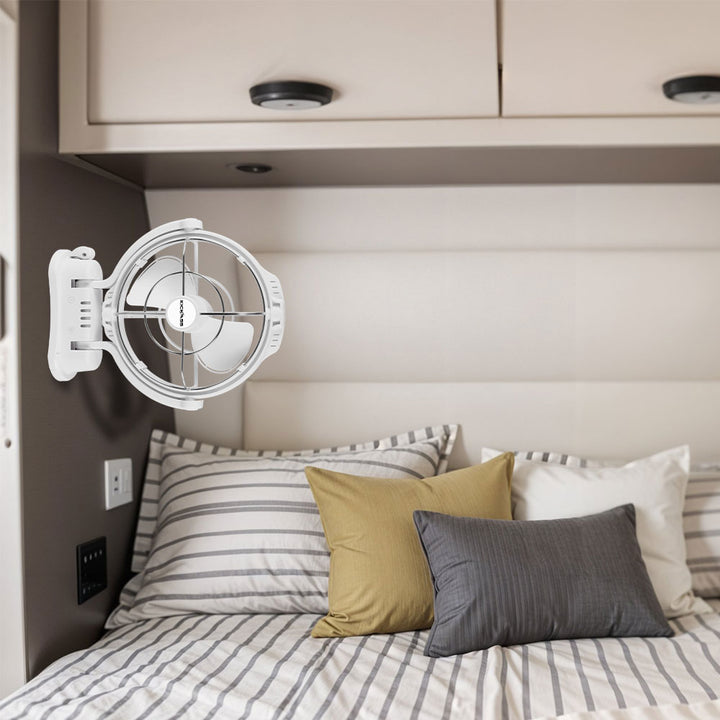

Reliable Cooling, Designed for Permanent Installation

The KickAss 12V / 24V 360° Three-Speed Fan is purpose-built for permanent mounting in caravans, motorhomes, camper trailers, sheds and off-grid setups. Its secure, low-profile design means once it’s installed, it stays put – no unpacking, setting up or packing away required. Just cool, consistent airflow whenever you need it.

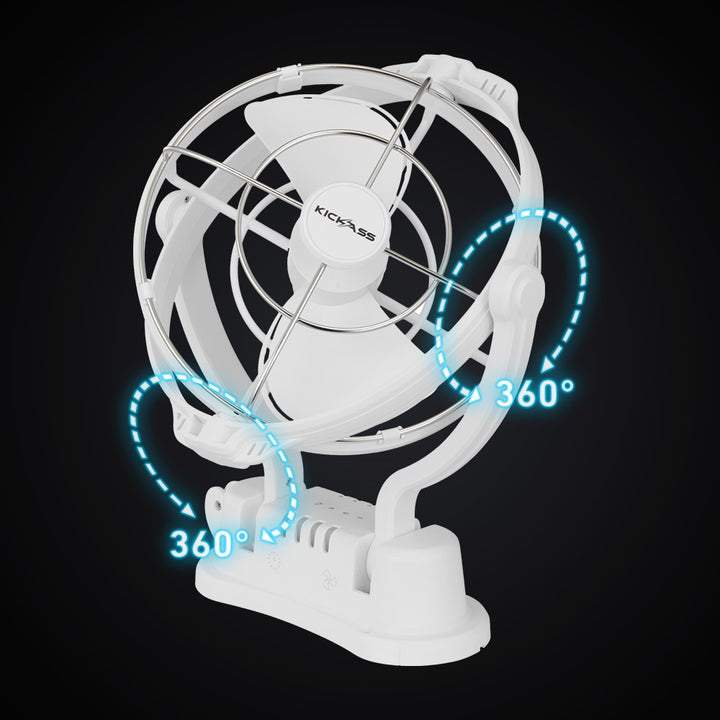

Full 360° Swivelling Airflow

This fan delivers true 360-degree airflow. Tilt it up, down or spin it around to direct cool air exactly where you want it. It’s ideal for awkward spaces or keeping air moving throughout your entire living area.

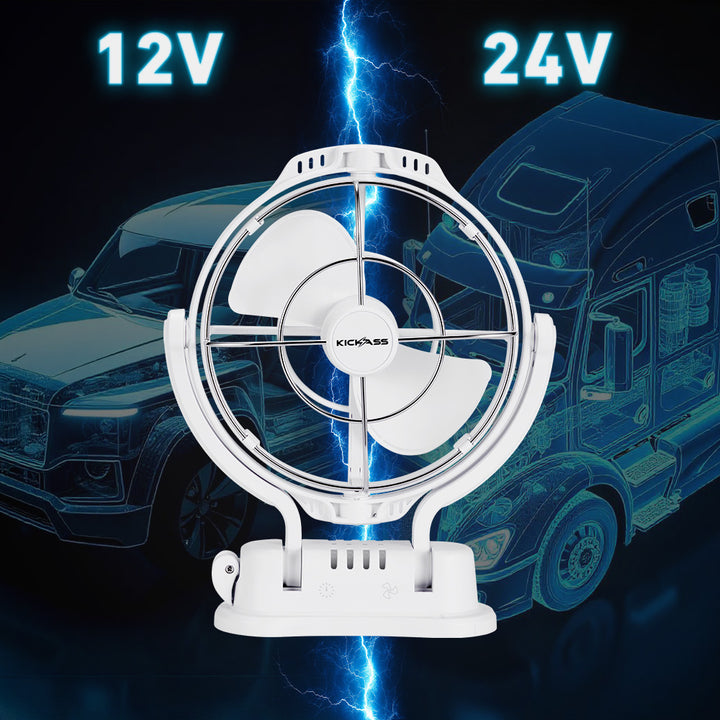

Automatically Detects 12V or 24V

No need to worry about voltage compatibility – the fan features built-in auto-sensing technology that works seamlessly with both 12V and 24V systems. Whether you’re installing in a caravan, 4WD, or off-grid cabin, it’s plug-and-play ready.

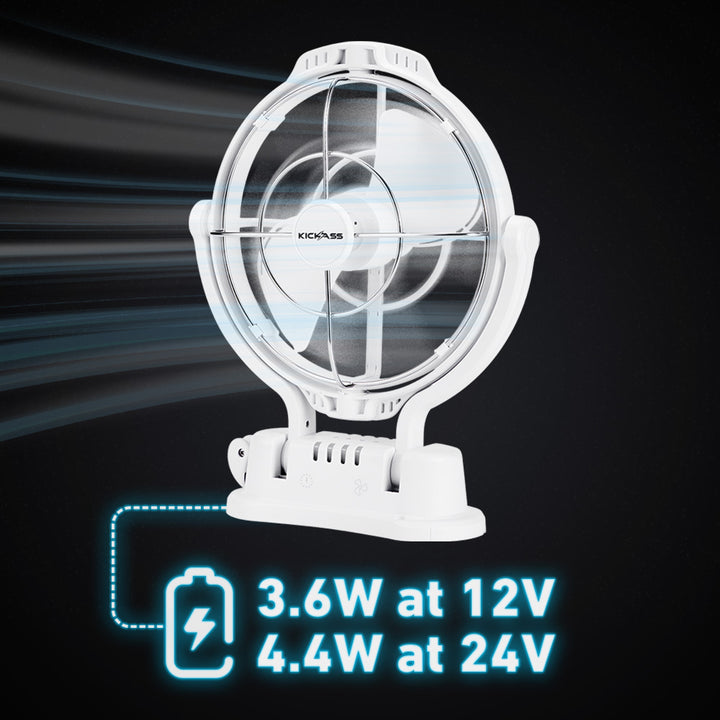

Low Power Draw for Off-Grid Setups

Designed with efficiency in mind, the fan draws just 3.6W at 12V and 4.4W at 24V, making it perfect for solar and battery-powered systems. It keeps you cool without putting strain on your setup – ideal for long-term off-grid living or overnight use.

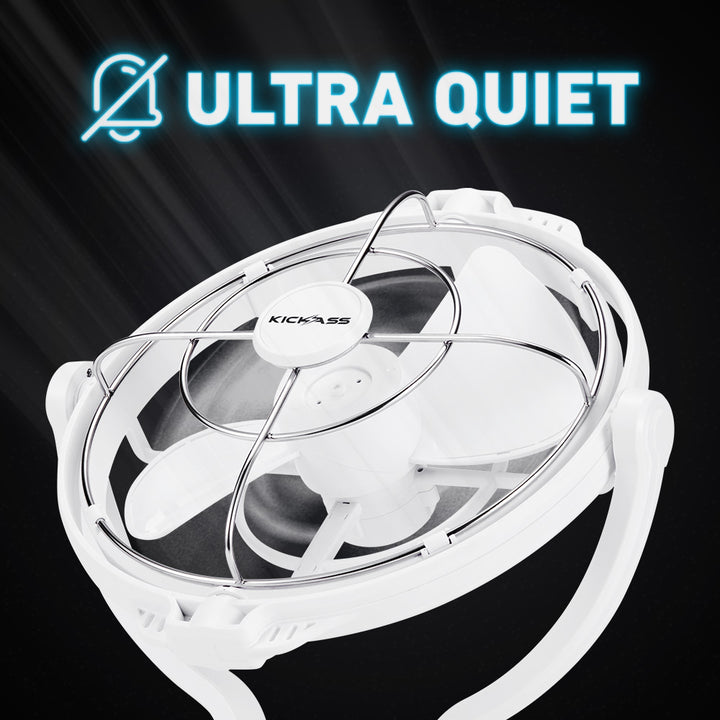

Whisper-Quiet Operation

Engineered for minimal noise, this fan runs ultra-quiet even at higher speeds. It’s the perfect companion for peaceful sleep, focused work, or simply relaxing in comfort without the distraction of a loud motor.

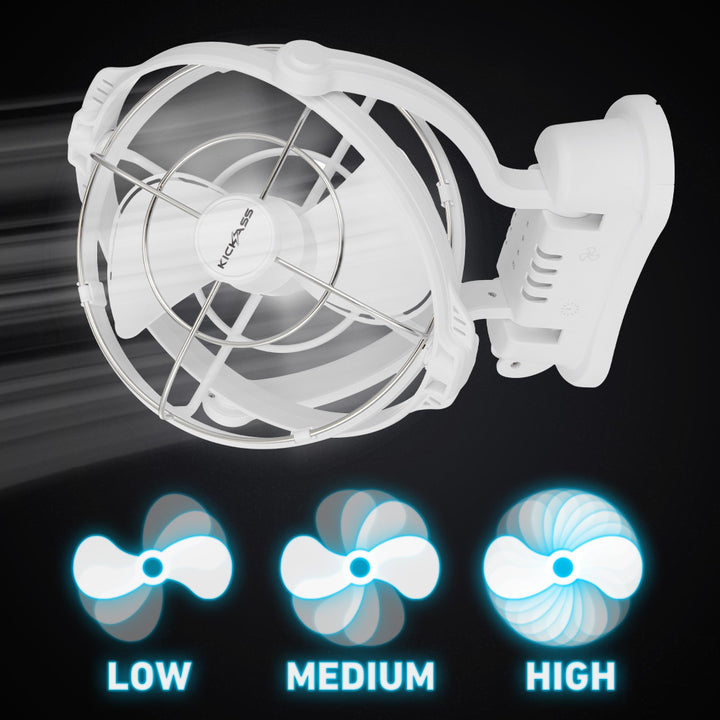

Three Fan Speeds

Tailor the breeze to your needs with three speed settings. Choose a low setting for gentle airflow, medium for everyday use, or high when you need more powerful cooling on hot summer days.

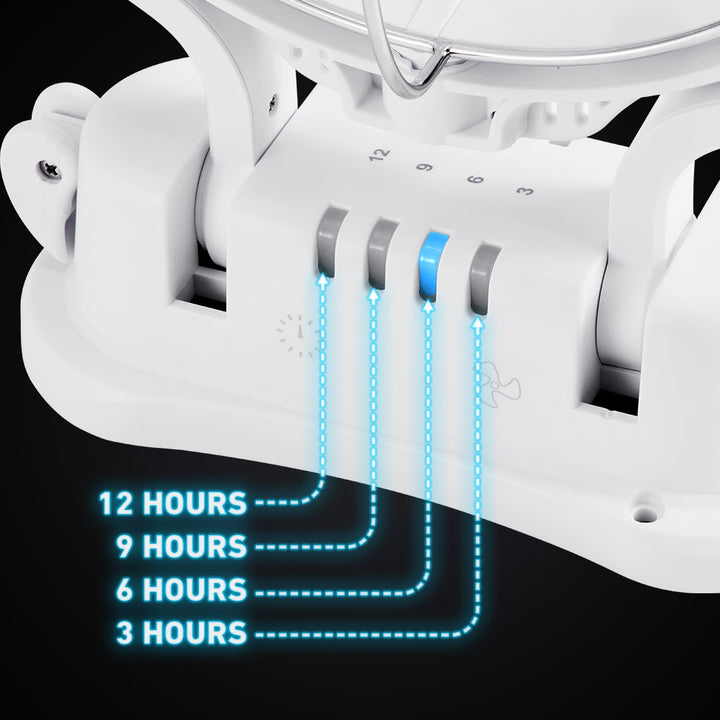

Four Built-In Timer Options

Save power and enjoy peace of mind with the fan’s four timer settings. Easily program it to turn off after 3, 6, 9 or 12 hours – a great feature for overnight cooling or leaving the fan running without worrying about battery drain.

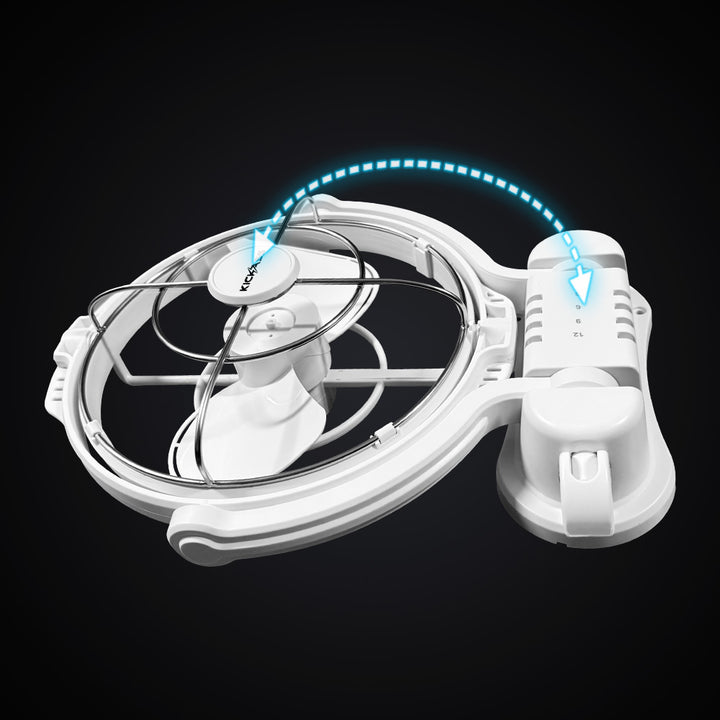

Folds Down Flat for Tidy Storage

When not in use, the fan folds flat against the wall or mounting surface. This space-saving design is ideal for compact caravans or sheds where every bit of space matters.

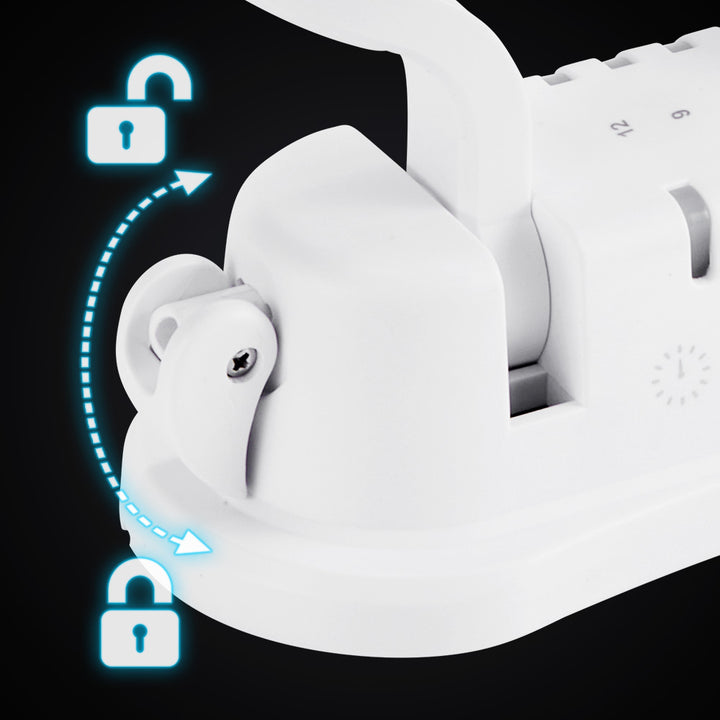

Precision Cam Lock for a Secure Fit

The integrated cam lock ensures the fan stays firmly in place once mounted. Even on rough roads or corrugated tracks, it won’t shake, wobble or come loose – making it ideal for travel and mobile use.

The KickAss caravan fan delivers complete 360° directional airflow with three adjustable speeds reaching up to 1700 RPM on high. Its gimbaled design allows flexible directional cooling, ensuring even air circulation around your caravan, RV, or vehicle for maximum comfort.

Yes, the KickAss fan is dual-voltage compatible, working seamlessly with both 12V and 24V power sources. It draws an average current of 0.5A and requires a 5A fuse for safe operation, making it versatile for various caravan, RV, or vehicle electrical systems.

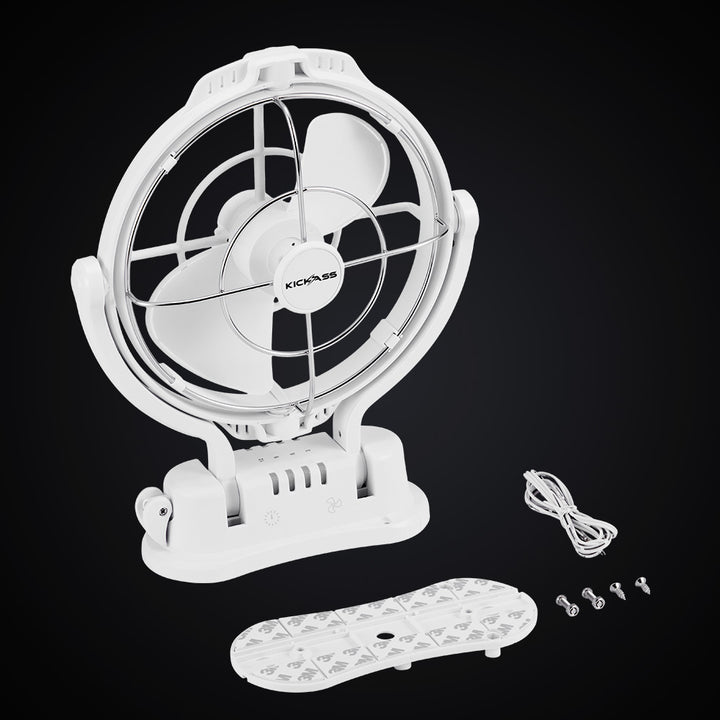

Installation involves mounting the fan on a stable surface using the included mounting plate, two nuts and bolts, and two self-tapping screws. The precision cam lock securely holds the fan in place, even during vibrations or bumps experienced while travelling.

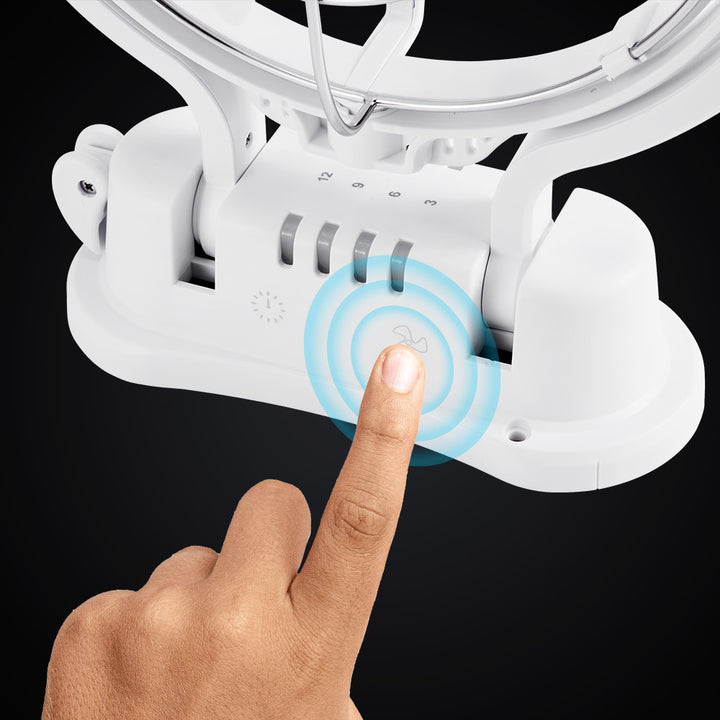

The fan features a touch control panel with a SPEED CONTROL button cycling through off, low (1100 RPM), medium (1400 RPM), and high (1700 RPM) speeds. The TIMER button offers auto-off settings at 3, 6, 9, or 12 hours for hands-free operation.

The fan includes a precision cam lock to keep it securely mounted, a built-in timer to prevent unnecessary continuous operation, and requires a 5A fuse to protect the electrical system. It also advises keeping clear of the blades and avoiding moisture exposure to ensure safe, reliable use.

Clean the fan regularly by turning off power and unplugging it first. Use a vacuum cleaner to remove dust from blades, grille, and vents, then wipe with a soft, dry or slightly damp cloth. Avoid harsh chemicals, water immersion, or sharp objects to protect the fan’s finish and internal parts.

Yes, the KickAss caravan fan is designed for quiet operation, making it ideal for uninterrupted sleep and relaxation. Its three speed settings allow you to choose a gentle airflow at low speeds (1100 RPM) that won’t disturb your rest.

If the fan won’t turn on, check that the power source is delivering correct voltage and inspect the 5A fuse and wiring for damage or loose connections. If it stops unexpectedly, the timer may have powered it down; simply restart without the timer or check the power supply and fuse.
