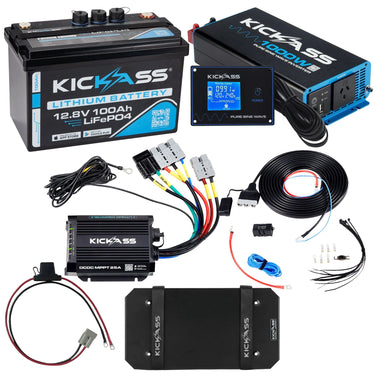

KickAss 100Ah Complete Smart Lithium Dual Battery Kit

KickAss Premium Plug & Play DC-DC Wiring Kit

Introducing the ultimate dual battery system wiring kit, now featuring a three-pin 50 Amp Anderson-style connector with ignition wire. The team at KickAss has carefully developed this premium plug-and-play wiring kit for ultra-easy DIY installations. It’s packed with high-quality components to ensure your setup is smooth and professional.

The kit is fully plug-and-play for any system using Anderson connectors for charging input and includes everything needed for a professional wiring installation. It now comes with our famous Maxifuse cable pre-installed into 6 metres of heavy-duty 8 B&S cable, providing 50A of circuit protection. The new three-pin Anderson plug allows for easier installation by integrating an ignition wire directly into the connector—eliminating the need to run multiple cables through your vehicle.

The cable is pre-crimped with Anderson connector terminals, making it simple to feed through holes and grommets. Once installed, you just clip on the three-pin Anderson connector. The kit also includes cable ties for securing cables, a spare 80A Maxifuse, a 3-metre ignition tail wire, and spare Anderson terminals.

Backwards Compatibility

The three-pin Anderson connector is backwards compatible, allowing a two-pin Anderson connection to work even if the ignition wire is not connected.

The KickAss Premium DC-DC wiring kit is specifically designed for our DC-DC chargers and is not compatible with VSRs.

For Other Installations, Please Use Our Dual Battery Wiring Kit When:

• Wiring to a battery system in the cargo area of the vehicle
• Installing VSRs – see our KAVSRAND kit fully compatible with this setup
• Connecting KickAss battery boxes and power packs
• Connecting auxiliary batteries – using KickAss Maxifuse Cable and optional VSR

This Kit Includes:

• 6 x 50 Amp Anderson terminals
• 1 x 50 Amp 3-Pin Anderson connector
• 1 x 80Amp spare Maxifuse
• 10 x Black cable ties (300mm)
• 1 x 3m tail ignition cable

KickAss Features:

• 1000W Continuous Output
• Pure Sine Wave
• 94% Maximum Efficiency
• Multi-level Protection
• Surge Power: 2000W in 2 Seconds
• Intelligent Fan
• Integrated Charging Port
• Multiple Mounting Options
• Optional Remote Control Display

1000W Continuous Output

Seamlessly convert 12V DC power from your battery into 240V AC power to run everyday household appliances. Your next camping trip will be even better with essentials like a coffee machine or electric BBQ.

Pure Sine Wave

This inverter produces a clean and stable pure sine wave that replicates AC power from a home wall socket. It's safe for sensitive electronics like laptops, Starlink, and CPAP machines, while also reducing electromagnetic interference and extending equipment life. It runs so quietly you'll barely hear it.

94% Maximum Efficiency

Designed for high efficiency, the inverter converts power at up to 94% efficiency, minimising energy waste and making the most of your battery’s capacity.

Multi-level Protection

Advanced safety features protect you, your inverter, and your devices. The system continuously monitors input and output, automatically triggering protection modes in unsafe conditions. Protection includes over-voltage, overload, overcurrent, short circuit, and reverse polarity safeguards.

Surge Power: 2000W in 2 Seconds

With a peak surge capacity of 2000W for up to 2 seconds, the inverter is ideal for devices with a high inrush current such as power tool chargers, microwaves, and induction cooktops.

Intelligent Fan

The dynamic, intelligent fan system adjusts automatically to keep the inverter cool, ensuring maximum efficiency and reliable performance without overheating.

Integrated Charging Port

Easily recharge small gadgets with the built-in 5V 2.1A USB port—ideal for phones, tablets, and accessories.

Multiple Mounting Options

Featuring four convenient mounting points, the inverter is easy to securely install in your camper, caravan, or canopy.

Optional Remote Control Display

KickAss Features:

• Bluetooth Mobile App
• Remote Display Screen (optional)
• Parallel & Series Configuration
• 100A Continuous Discharge
• Intelligent BMS
• A-Grade LiFePO4 Battery Chemistry
• Lightweight
• Substantial Useable Capacity
• Certification

Bluetooth Mobile App

Easily monitor your system with your smartphone. The convenient Bluetooth app displays data from your 100Ah battery, including Voltage, Current, State of Charge, Temperature, and other useful information provided by the BMS. If you need even more power, up to four batteries can be connected in series or parallel to boost your output. The Bluetooth app will then connect with each battery simultaneously and provide data on the entire battery bank as a single unit, without the need for an external shunt.

Remote Display Screen (optional)

Enhance your lithium battery setup with our optional LED remote display screen. This convenient add-on allows you to monitor your battery’s performance in hard-to-reach installations, or in high-use areas like your camp kitchen. If you have connected multiple batteries in series or parallel via a data cable, the RDU will show the combined information of the entire battery bank without the need for an external shunt. Data displayed includes SOC, current, time to full charge, and time to empty for the entire bank. Eliminate guesswork and stay on top of your power usage more easily.

Parallel & Series Configuration

The 100Ah lithium battery can be connected to other batteries in series or parallel to create a more powerful battery bank. Configure up to 48V systems in series or 400Ah systems in parallel. This flexibility allows you to build the power system you need, whether you're running high-power inverters or expanding your off-grid setup.

100A Continuous Discharge With 200A Pulse Discharge

The 100A discharge BMS provides ample power to run multiple devices simultaneously, and the 200A pulse discharge makes this battery ideal for inverters that require a high charge capacity. For increased discharge rates, connect multiple batteries in parallel – achieve 200A with 2 batteries (2000W inverter), 300A with 3 batteries (3000W inverter), and so on.

Intelligent BMS

The cutting-edge BMS features 11 layers of hardware and software protection to ensure safe battery operation at all times.

KickAss Pure Sine Wave Inverter Remote Display Panel Feature Overview

Real-Time Monitoring

Unexpected power fluctuations can damage your equipment and waste valuable energy. With real-time monitoring, you can track your energy generation and power usage, spotting any problems early. This keeps your setup running smoothly and efficiently at all times.

Remote Control

Monitor and manage your power consumption from a distance—for example, from the front seat while your inverter is installed in the back of your truck. The included 3-metre cable allows you to access and control your inverter system easily.

Fault Diagnostics

When a system malfunction occurs, diagnosing the problem can be challenging and time-consuming. The KickAss Inverter Remote Display automatically identifies and reports inverter faults, providing detailed diagnostics to simplify troubleshooting.

Intuitive User Interface

The display screen is clear and easy to navigate. View energy metrics, adjust settings, and set alerts with confidence—no guesswork, just clear and precise information.

Compatible with Most KickAss Inverters

The remote display unit is compatible with KickAss 2000W and 3000W inverters (not compatible with 700W or 1200W models). Seamlessly integrate it into your current setup or upgrade your system with ease.

Please note: This remote display is not compatible with older red KickAss 700W, 1200W, 2000W, or 3000W inverters.

KickAss MAXI Fuse Anderson Cable

The KickAss MAXI Fuse Anderson Cable is the perfect solution for connecting a battery to virtually any device. It offers superior circuit protection through an inline 80A MAXI Fuse, safeguarding against short circuits and potential system damage.

With a purpose-designed length, this cable easily reaches vehicle starting batteries and integrates seamlessly with dual battery setups. The built-in weatherproof MAXI Fuse holder simplifies installation, eliminating the need for mounting traditional fuse holders or circuit breakers.

One end of the cable features a 50 Amp Anderson style connector for effortless connection to battery boxes, solar panels, or other compatible devices. The other end includes high-quality 8mm ring terminals for secure battery attachment. A spare 80A MAXI Fuse is included for added convenience.

Features:

• In-line weatherproof MAXI Fuse holder with 80A MAXI Fuse
• Length: 750mm
• Cable type: Twin 8B&S (7.71mm²) Red/Black Sheathed
• 1 x 80A MAXI Fuse pre-installed in holder
• 1 x 80A MAXI Fuse spare
• 8mm ring terminals

See links below for replacement fuses:

Spare 50A MAXI Fuse - Red
