Anderson Style Connector - 50A, High Current, Black
Pickup available at Acacia Ridge Store
Usually ready in 1 hour
1 Year Warranty
This product is covered by a 1 Year Limited Warranty.

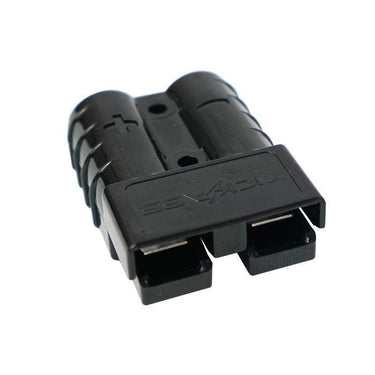

This Anderson-compatible plug/socket is genderless, and therefore can be used as either a plug or a socket. Fully insulated, rated to 50 amps, made from durable polycarbonate.
SPECIFICATIONS
Technical Details
| Contact Rating | 50A |
| Contact Wire Size | 6 AWG |
| Colour | Black |
| Voltage Rating | 600V (AC or DC) |
| Max Wire Insulation Diameter | 11mm |
| Contact Retention Force | 22.7kg |
| Operating Temperature | -20°C to 120°C |
User Manual & Support Docs
| Anderson Style Connector - 50A, High Current, Black |
Detailed Description
The Anderson-compatible plug/socket can be used as either a plug or a socket. It is fully insulated and rated at 50 AMPS with 600V AC or DC operation. Made from durable polycarbonate.
The Anderson style connectors use a single-piece housing that provides a cost-effective, durable, and safe connection.
**Please NOTE** Black Anderson plugs are interconnectable with Black and Grey Anderson plugs only.
These Anderson Plugs are genderless and provide everything you need to connect your automotive gear, fridge, or solar panel to your KICKASS® battery by following the instructions below.
Installation Instructions
PLEASE ENSURE THAT INSTRUCTIONS ARE UNDERSTOOD PRIOR TO FITMENT
- Use a stripping tool or Stanley knife to carefully strip back the cable sheathing if it is a twin-core cable.
- Using a stripping tool, carefully strip back 1 cm of insulation from each single-core cable (positive and negative).
- Attach the Anderson connector terminal lugs to the stripped cable ends. Use a crimping tool to crimp the terminal lugs securely onto the cable.
- Ensure the terminal lugs are crimped correctly by checking that they are fixed in place and cannot be pulled off.
- With the terminal lug lip facing up, attach the Anderson plug, ensuring the positive and negative cables are inserted into their designated sides (pos + and neg -).
- Push the cables all the way through until the terminal lug lip latches over the spring clip and clicks into place.
- Check both cables are fixed by gently pulling each one individually to ensure the latch is over the spring clip and secure.
*NOTE* To remove the cables from the Anderson plug once installed, use a small flathead screwdriver to push the spring clip down while pulling the cable out from the back of the plug.
Anderson plugs are quick and easy to install and reduce the number of parts you need to handle. These plugs are available in multiple colours including green, yellow, blue, grey, and black.
