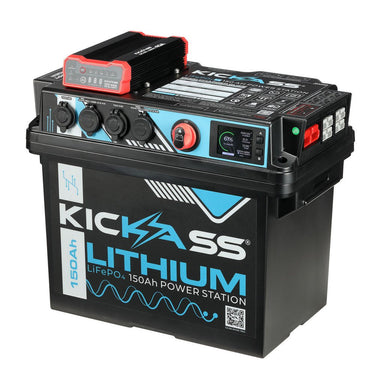

KickAss 150Ah Lithium Power Station with 40A DCDC Charger

KickAss 150Ah Lithium Power Station with 40A DCDC Charger

Support Page User Manual

KickAss 150Ah Lithium Battery Box Power Station with 40A DCDC Charger Overview

Comes with an integrated 40A DCDC charger built into the battery box lid, so you can charge your battery straight from the lid without any complex installations. Lightning fast, on-the-go charging! The 150Ah battery will recharge in under 4 hours.

Integrated Battery Cells + BMS in the Battery Base

This battery box is unrivalled, holding more power than any other battery box on the market. It’s not just a battery box, it’s a game changer!

150A BMS discharge

The 150A continuous discharge will effortlessly power larger inverters, right up to 1200W.

150Ah, A-grade prismatic cells

Delivers 150A continuous discharge without decreasing the life of the battery. The battery cells have a cycle life of >3000 cycles at 0.5C discharge/charge rate – so you get more power and epic value.

Integrated smart display

The display unit allows you to monitor your battery’s performance at a glance. The BMS provides details on voltage, current, state of charge, temperature, and safety information. No more guesswork – just immediate, up-to-date data. You’ll even get an audible and visual alarm if your state of charge gets low!

Bluetooth App

Monitor your battery from the convenience of your smartphone. The handy Bluetooth app will display data from your battery box, so you can keep on top of voltage, current, state of charge, temperature and any relevant warnings.

Multiple charging plugs and features

Super-fast USB charging, plus loads of other charging ports and sockets, so you can charge all your 12V devices at warp speed. All ports are integrated directly into the battery box, so you can plug and play.

You get: 2x USB socket outputs, 2x USB ports (USBA-2.4A + USBC-45W PD), 6x Anderson input/output, an Anderson Solar Input, and a 3 Pin Anderson Alternator Input.

Lightweight

Not only is this awesome battery half the weight of an AGM equivalent, you get double the capacity. Can’t ask for more than that!

Integrated tie-down slots

The integrated tie-down slots enable multiple mounting methods, making it easy to install your battery in your chosen spot. The tie-down slots are compatible with KickAss battery box mounting trays, and for some mounting methods eliminate the need for a battery tray altogether.

11 levels of safety in the BMS

The integrated BMS offers 11 levels of battery protection, so you’ll have peace of mind knowing that your power source is secure, protected, and will always operate safely.

The KickAss 150Ah Lithium Power Station offers a 150Ah LiFePO4 battery with a nominal voltage of 12.8V, delivering 1920Wh of energy and supporting a maximum continuous discharge current of 150A. This capacity ensures reliable, long-lasting power for your off-grid adventures.
This means you can confidently run multiple devices or appliances simultaneously, with the built-in Battery Management System (BMS) protecting the battery from overcurrent, overvoltage, and temperature extremes to maximise battery life and performance.

Yes, the Power Station includes a 40A DC-DC charger input compatible with vehicle alternators and a dedicated solar input for solar panel connection. It supports up to 150A max charge current and allows you to charge the battery efficiently while on the move or from renewable sources.
This flexibility means you can keep your battery topped up during travel or off-grid stays, using either your vehicle’s alternator or solar panels, making it ideal for extended adventures without access to mains power.

To set up, connect the red cable to the positive terminal and the black cable to the negative terminal, then connect the RJ45 data cable from the lid to the base. Secure the lid with the provided bolts and washers, and select Lithium as the battery type on the DC-DC charger by holding the MODE button for 5 seconds.
This straightforward installation process ensures your Power Station is correctly assembled and configured for optimal performance, with clear steps to get you up and running quickly and safely.

The Power Station has a 150A internal Battery Management System (BMS) that provides overcurrent, overvoltage, undervoltage, temperature, and short circuit protection. The lid must remain closed during charging to maintain safety, and the BMS will automatically trigger protection modes if limits are exceeded.
These comprehensive safety features ensure your battery operates within safe parameters, protecting both the unit and your connected devices, giving you peace of mind during use in any environment.

Yes, the Power Station features Bluetooth compatibility with the KickAss app available on Android and iOS, allowing you to monitor battery status, charge levels, and other key metrics remotely via your smartphone.
This connectivity enhances user experience by providing real-time data and alerts, helping you manage your power usage efficiently and stay informed no matter where you are.

The Power Station includes multiple output options: two 2.4A USB-A ports, two 45W USB-C Power Delivery (PD) ports, and two 10A cigarette sockets, plus a 12V 40A high current output.
With this variety of ports, you can power or charge a wide range of devices from smartphones and laptops to larger 12V appliances, making it a versatile power solution for camping, work sites, or emergency backup.

The battery itself weighs 17.65kg and comes with carry handles and an optional mounting tray with tie-down straps for secure transport and installation.
Despite its substantial capacity, the design focuses on portability and ease of use, allowing you to move and secure the Power Station conveniently for your off-grid or adventure needs.

The Power Station can be safely charged in temperatures from 0ºC to 55ºC and discharged between -20ºC and 60ºC, ensuring reliable performance in a wide range of climates.
This broad temperature tolerance means you can confidently use the Power Station in diverse Australian environments, from cold mornings to hot summer days, without compromising battery health or safety.
