KickAss Flexicharge 12V 16A ACDC Smart Battery Charger For Lead Acid, AGM & Lithium Batteries

KickAss Flexicharge 12V 16A ACDC Smart Battery Charger For Lead Acid, AGM & Lithium Batteries

Support Page User Manual

KickAss Flexicharge 16A Smart 12V Battery Charger For Lead Acid, AGM & Lithium Batteries Feature Overview

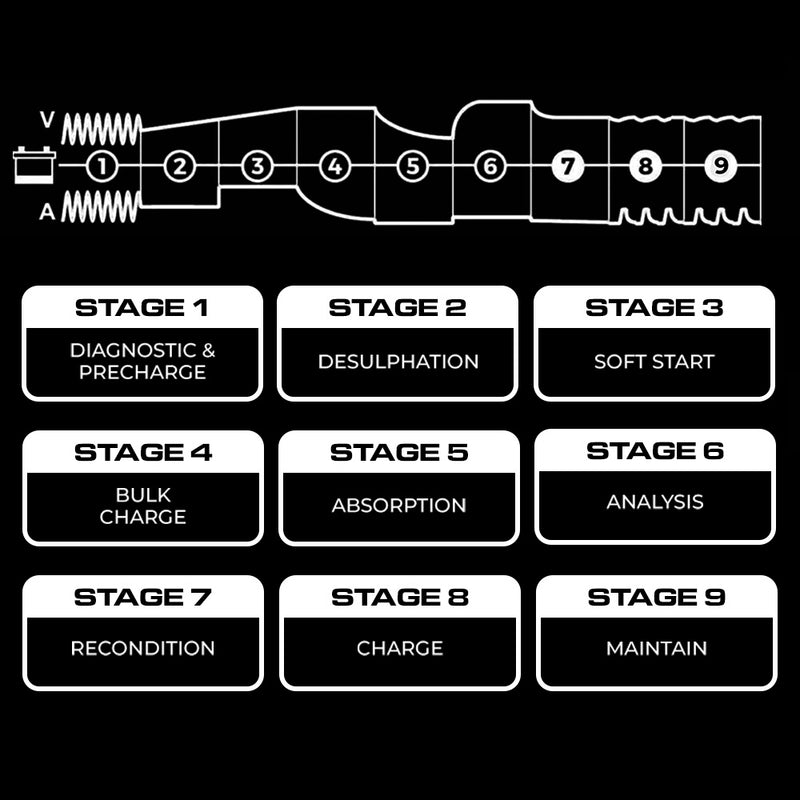

Automatic 9 stage smart charging
The charger is controlled by a high-tech microprocessor that charges the battery in 9 separate stages. The microprocessor senses the requirements of the battery, and delivers the optimal current and voltage. This means your battery charges at maximum efficiency, every time.

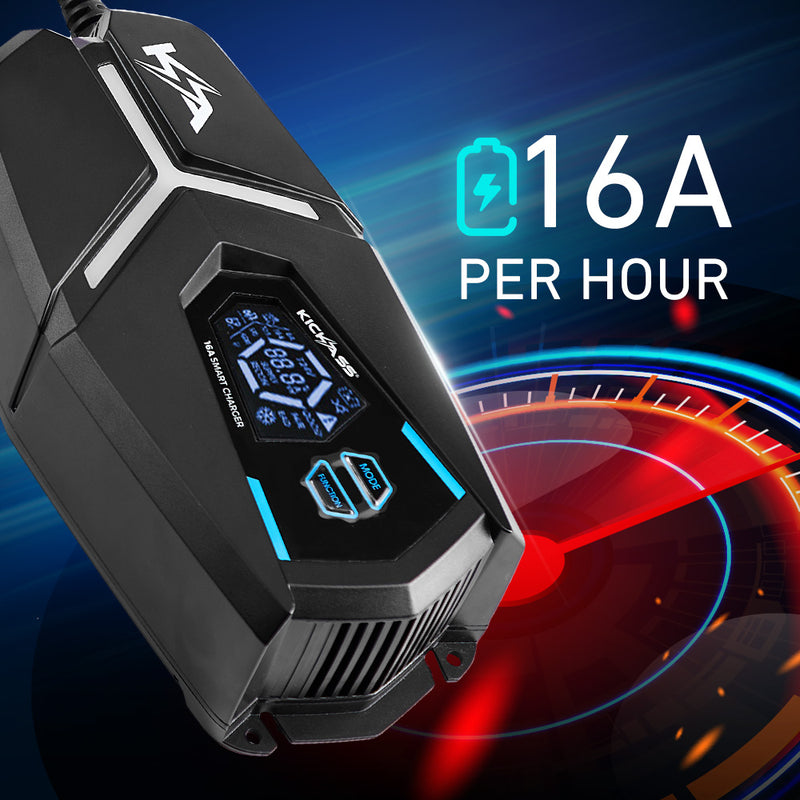

Fast charge 16A peak output
This charger feeds power into your battery at an impressive 16A per hour, meaning you’ll be fully charged sooner. The 9 stage smart charging technology ensures your battery will always receive the optimal current and voltage.

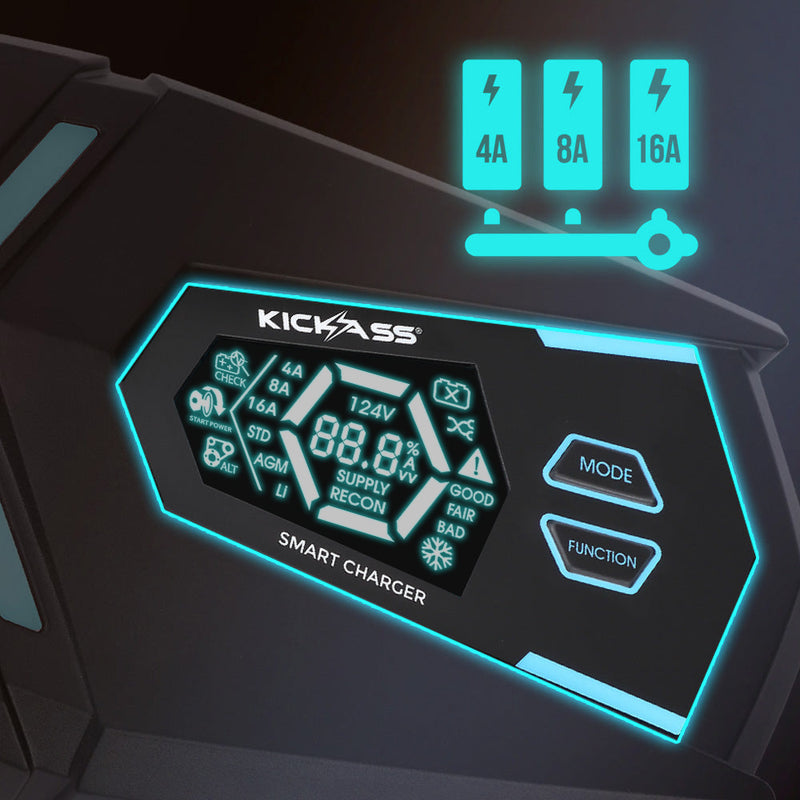

Adjustable output for different battery sizes
The charger has adjustable amperage output for both large and small battery sizes, and can deliver precise charging at 4A, 8A and 16A. The only charger you’ll ever need!

Compatible with multiple battery chemistries
This charger is compatible with most common battery chemistries, including AGM, Gel, Lithium, LiFePO4, and Lead Acid. Additionally, the adjustable amperage output allows you to cater to the unique requirements of your specific battery.

Lithium activation mode
If your lithium battery has dropped below the safety voltage parameters of its BMS, you can use the charger’s Lithium Activation Mode and it will charge your lithium battery until it reaches the cut-in voltage and can re-start normal charging cycles.

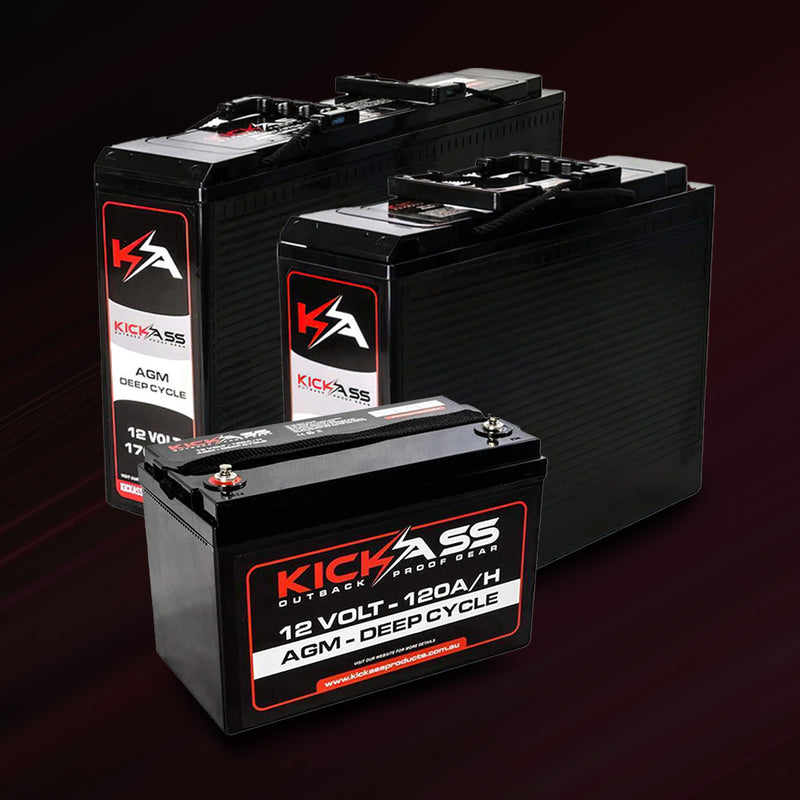

AGM recondition mode
The AGM recondition mode will restore the capacity and performance of your AGM batteries by breaking down any built up lead sulphate deposits. This extends the battery life and improves performance, especially after long periods of disuse or deep discharges.

Multiple protection features
The charger includes multiple protective features to protect your valuable battery, including reverse polarity protection, short circuit protection, and overheating protection.

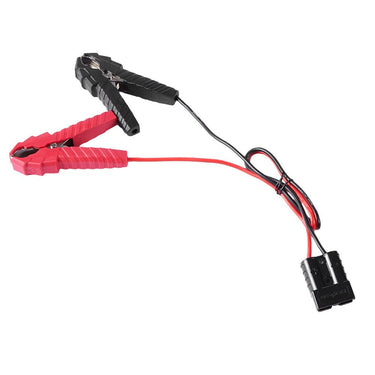

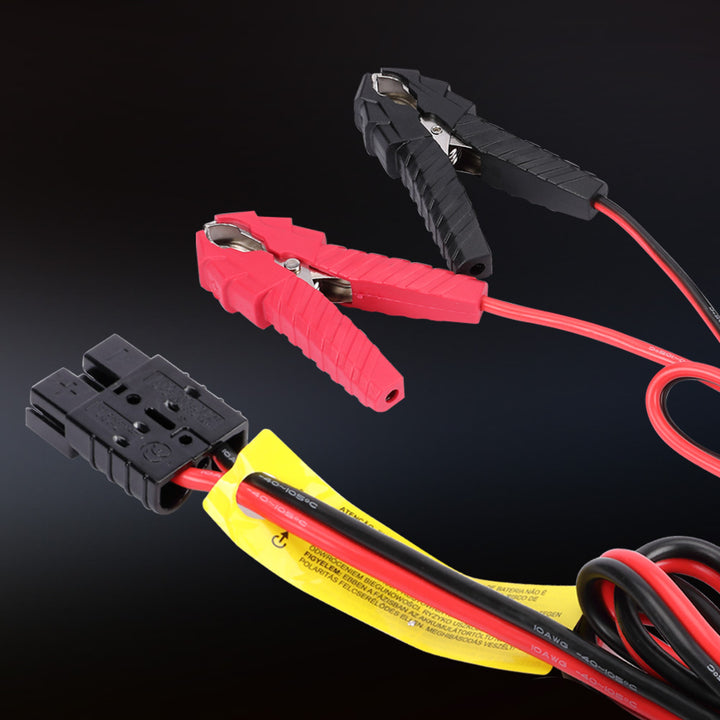

Connect via Anderson connectors or alligator clips
For added convenience and versatility, you can connect via Anderson connectors or alligator clips.

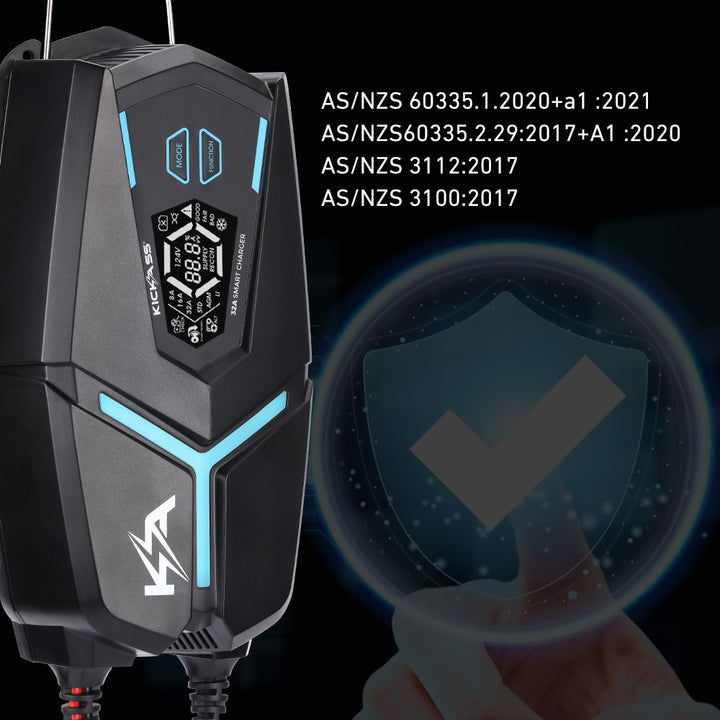

Fully compliant
The battery charger is fully compliant with Australian standards, and offers maximum safety protection.

The KickAss Flexicharge delivers a maximum charging current of 16 amps at 12 volts, with adjustable settings of 4A, 8A, and 16A to suit different battery sizes and types. This flexibility ensures efficient and precise charging for lead acid, AGM, GEL, and LiFePO4 batteries.

Yes, the KickAss Flexicharge is compatible with multiple battery chemistries including lead acid, AGM, GEL, and LiFePO4 lithium batteries. It features dedicated charging modes for each type, including a special Lithium Activation mode for lithium batteries.

To safely charge your battery, first position the charger near your battery and connect it to AC power. Then select the correct battery type and charge current using the Mode button. Finally, connect the alligator clamps or Anderson connector to the battery terminals, positive to red and negative to black.

The KickAss Flexicharge includes reverse polarity protection, short-circuit protection, and overheating protection that reduces current to 2A if the internal temperature reaches 95°C. These features prevent damage to both the charger and your battery.

Yes, the charger has a charge memory feature that remembers your settings and automatically resumes charging in the same mode once mains power is restored, provided the battery clamps remain connected.

The KickAss Flexicharge measures 298mm long, 152mm wide, and 87mm high, and operates safely within a temperature range of -10ºC to 40ºC.

The charger supports both 12V and 24V batteries with selectable charging voltages and currents up to 16A. This versatility allows it to charge a range of battery types and sizes commonly used in vehicles, boats, and off-grid power systems.

The charger offers automatic 9-stage smart charging with modes for standard lead acid, AGM, GEL, and lithium batteries, plus special modes like AGM Recondition and Starter Battery Replacement. Each mode adjusts voltage and current for optimal battery care.
