If you’re setting up an off-grid power system for your 4WD, caravan, camper or remote setup, you’ve probably come across the terms regulated and unregulated solar panels. They sound technical, but the difference is actually quite simple – and choosing the right one can make a big impact on how efficiently your system charges. This article will explore the difference between regulated and unregulated solar panels, and help you decide what’s right for your setup.
What is an unregulated solar panel?
An unregulated solar panel is exactly what it sounds like – a panel that sends raw power straight from the solar cells to whatever it’s connected to.
There’s no built-in control over voltage or current. The panel simply produces as much energy as conditions allow and passes it along.
Because of this, unregulated panels must always be used with an external solar regulator (charge controller) to safely charge a battery. The regulator sits between the panel and the battery and manages the charging process.
Without that regulator, the battery could overcharge, overheat, or suffer permanent damage.
Key characteristics of unregulated panels:
- Deliver raw solar output
- Require an external regulator or solar controller
- Offer more flexibility when building larger systems
- Typically used in permanent or expandable setups
- Often paired with MPPT or PWM charge controllers
Most modern off-grid systems use unregulated panels plus a separate high-quality regulator for maximum performance and control.
What is a regulated solar panel?
A regulated solar panel has a charge controller permanently attached to the back of it. That built-in regulator manages the charging process for you, meaning the panel can connect directly to a battery without needing extra equipment. This makes setup much simpler, especially for smaller or portable systems.
Key characteristics of regulated panels:
- Built-in charge controller
- Can connect directly to a battery
- Simple plug-and-play operation
- Ideal for small, portable setups
- Can be used as a secondary charging source via direct battery connection
- Less flexible for system expansion

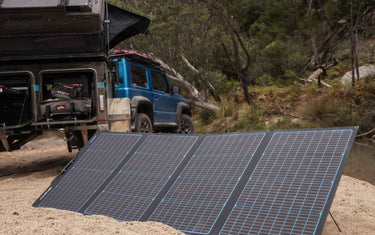

Regulated panels are commonly found in portable folding solar blankets or compact camping panels designed for quick and easy use.
Using a regulated panel as a secondary charging source
Another big advantage of regulated solar panels is that they can be used as a secondary or portable charging source.
Many caravans and canopy setups include a generic input/output Anderson plug that connects directly to the battery. A regulated solar panel can often plug straight into this connection, allowing you to keep charging even when your main solar system isn’t receiving sunlight.
This is especially useful if you want to park your caravan or vehicle in the shade to stay cool, but still place a portable solar panel out in full sun to continue charging your battery.
Important: this only works if the Anderson input is wired directly to the battery. Some power management systems or integrated units (for example, certain inverter or power distribution systems like the KickAss PowerBoss) are not designed to accept direct solar input through their Anderson connections. In those cases, a regulated panel cannot be connected that way.
If you’re unsure how your system is wired, it’s always best to check before plugging in a portable panel.
Which one is better?
Neither is “better” – it depends on how you plan to use your solar system.
Regulated solar panels are great if you want:
- Fast and simple setup
- Minimal wiring or configuration
- A portable or temporary charging solution
- A small system with one battery
Unregulated solar panels are better if you want:
- Maximum charging efficiency
- A more powerful or expandable system
- Custom control over charging performance
- Integration with an MPPT controller
- A permanent off-grid setup
In most serious off-grid builds, unregulated panels paired with a quality MPPT regulator deliver the best performance, especially in changing weather conditions.
But if convenience and portability are your priority, regulated panels are hard to beat.
Why the regulator matters so much
The regulator is what protects your battery and ensures it charges correctly. It controls charging voltage, your charging stages (bulk, absorption, float etc), battery health and lifespan, and also your overall system efficiency. A high-quality regulator can significantly improve how much usable power you get from your solar setup.
That’s why many experienced off-grid users prefer separate regulators – they can upgrade or optimise performance without replacing the panel itself.
Quick comparison
The bottom line
If you want simplicity and portability, go with a regulated solar panel.
If you want performance, scalability, and full control over your charging system, choose an unregulated panel paired with a quality solar regulator.
Either way, solar is one of the best ways to stay powered up off the grid – and choosing the right setup means you’ll get the most from every ray of sunshine.
