When you're out exploring Australia's vast wilderness, reliable power distribution can make the difference between a successful adventure and a frustrating experience. Whether you're running a caravan setup, fitting out your 4WD, or preparing your boat for extended trips, understanding how to properly distribute power from your 12V source is essential knowledge for any serious outdoor enthusiast.
Understanding Your 12V Power System Basics
Before diving into specific distribution solutions, it's crucial to understand the fundamentals of 12V power systems. Most recreational vehicles, boats, and portable setups rely on 12V DC power as their primary electrical source. This voltage is ideal because it's safe to work with, compatible with automotive systems, and efficiently stored in lead-acid or lithium batteries.
Your 12V system typically consists of three main components: the power source (battery or alternator), the distribution network (wiring, fuses, and switches), and the loads (lights, pumps, fridges, and other accessories). The key to a successful setup lies in how effectively you manage the distribution between these elements.
The Importance of Proper Power Distribution
Poor power distribution can lead to numerous problems: blown fuses, voltage drops, overheated wiring, and even electrical fires. More commonly, inadequate distribution results in your equipment not working when you need it most. Imagine your camp lights failing just as the sun sets, or your water pump giving up halfway through washing the dishes.
Proper distribution ensures that each device receives the correct voltage and current while protecting your entire system from overloads and short circuits. It also allows you to monitor and control individual circuits, making troubleshooting much easier when issues arise.

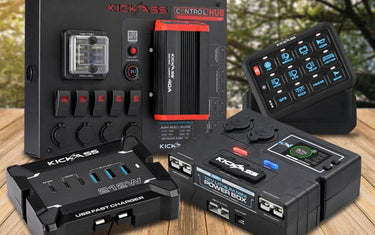

Control Boxes: The Heart of Your Power System
Control boxes serve as the central hub for your 12V power distribution. These units typically combine multiple functions into a single, compact housing, making them ideal for space-conscious installations.
A quality control box will include features such as individual circuit breakers or fuses, voltage monitoring, and sometimes even battery management systems. The beauty of a control box lies in its ability to centralise your power distribution whilst providing protection for each circuit.
When selecting a control box, consider the number of circuits you'll need both now and in the future. It's always wise to choose a unit with more capacity than your immediate requirements, as most adventurers find themselves adding accessories over time. Look for units with clear labelling options and easy access to breakers or fuses for field maintenance.
Marine-grade control boxes are particularly important for boat applications or vehicles that might encounter saltwater environments. These units feature enhanced corrosion resistance and weatherproof sealing to withstand harsh coastal conditions.
Control Panels: Command and Monitoring at Your Fingertips
Control panels take power distribution a step further by adding monitoring and control capabilities directly at your fingertips. These units typically feature individual switches for each circuit, LED indicators showing which circuits are active, and often include voltage or current monitoring displays.
The advantage of a control panel system is the immediate visual feedback it provides. You can quickly see which systems are drawing power, monitor your battery voltage, and individually control each circuit without having to access a separate electrical box. This is particularly valuable in RV applications where the control panel can be mounted in a convenient location inside the living area.
Modern control panels often incorporate digital displays that show not just voltage, but also current draw, battery state of charge, and even individual circuit loads. Some advanced units can interface with smartphone apps, allowing remote monitoring and control of your electrical systems.
When planning your control panel installation, consider the location carefully. You want it easily accessible but protected from weather and accidental activation. Many RV owners mount their control panels near the entry door or in a central galley location where they're convenient but not intrusive.
Switch Panels: Simple, Reliable Circuit Control
For applications where full monitoring isn't necessary, switch panels offer a straightforward solution for circuit control. These panels provide individual switches for each circuit, often with integrated LED indicators to show which circuits are active.
Switch panels are particularly popular in 4WD applications where simplicity and reliability are paramount. They're typically more compact than full control panels and can be mounted in various locations throughout your vehicle. Many 4WD enthusiasts install multiple switch panels: one near the driver's position for essential systems like driving lights and UHF radios, and another in the rear for camp-specific equipment.
The key advantages of switch panels include their robust construction, simple operation, and relatively low cost. They're also easier to waterproof and can handle the vibration and shock associated with off-road driving. Look for panels with high-quality switches rated for automotive use, as cheap switches are often the first component to fail in a 12V system.
Rocker switches are generally preferred over toggle switches in mobile applications as they're less likely to be accidentally activated and can better withstand vibration. Illuminated switches are worth the extra cost as they make it easy to see system status in low-light conditions.
12V to USB Fast Chargers: Keeping Connected in the Digital Age
Modern adventuring isn't complete without our digital devices, making 12V to USB fast chargers an essential component of any power distribution system. These devices convert your 12V power to the 5V USB standard required by smartphones, tablets, GPS units, and other electronics.
Not all USB chargers are created equal. Fast charging capability has become increasingly important as devices become more power-hungry and charging times more critical. Look for chargers that support Quick Charge or Power Delivery standards, which can significantly reduce charging times for compatible devices.
Multiple port chargers are particularly valuable in family setups where several devices need charging simultaneously. Some advanced USB chargers include individual port switching, allowing you to control which ports are active and monitor power consumption per port.
Consider the mounting location for your USB chargers carefully. They should be easily accessible but protected from weather and moisture. Many modern control panels and switch panels include integrated USB charging ports, providing a neat, consolidated solution.
Planning Your Distribution Layout
Effective power distribution starts with proper planning. Begin by listing all the electrical devices you'll be running, noting their current draw and how frequently they'll be used. This helps determine the size and complexity of distribution system you'll need.
Group your loads into logical circuits. For example, you might have separate circuits for lighting, water pumps, fridges, and accessories. This grouping makes troubleshooting easier and allows you to prioritise power usage when battery capacity is limited.
Consider the physical layout of your installation. Long wire runs increase voltage drop and reduce efficiency, so try to locate your distribution system centrally. However, don't compromise accessibility for the sake of a shorter wire run.
Fusing and Circuit Protection
Every circuit in your distribution system should have appropriate protection. Fuses or circuit breakers protect both your equipment and wiring from damage due to overloads or short circuits. The key is selecting the right protection for each circuit.
Fuse ratings should be based on the wire size, not the load. A 10-amp load on 30-amp rated wire should still use a 30-amp fuse to protect the wire from damage. If you need to protect the individual device, that protection should be located as close to the device as possible.
Automatic reset circuit breakers are convenient for loads that might occasionally overload without damage, such as pumps that might stall briefly. Manual reset breakers or fuses are better for critical circuits where you want to investigate any overload condition before resetting.
Installation Best Practices
Professional-quality installation makes a significant difference in system reliability. Use marine-grade tinned copper wire throughout your system, as it resists corrosion much better than standard automotive wire. All connections should be properly crimped and covered with heat-shrink tubing.
Maintain proper wire sizing throughout your system. Undersized wiring causes voltage drops, reduced efficiency, and potential overheating. When in doubt, go up a wire size – the extra cost is minimal compared to the improved performance and safety.
Label everything clearly. Future troubleshooting and modifications will be much easier if every wire and circuit is properly identified. Use a consistent labelling system and maintain a simple wiring diagram for reference.
Maintenance and Troubleshooting
Regular maintenance keeps your power distribution system operating reliably. Check all connections annually for corrosion or looseness, particularly in marine environments. Clean any corrosion with appropriate contact cleaners and apply protective sprays to prevent future problems.
Keep spare fuses and circuit breakers on hand, along with basic electrical testing equipment. A simple multimeter can diagnose most electrical problems and should be part of every adventurer's toolkit.
Monitor your system's performance regularly. Voltage readings, charging rates, and current draws that change over time often indicate developing problems that can be addressed before they cause failures.
Future-Proofing Your System
Technology continues to evolve, and your power needs will likely grow over time. Plan your distribution system with expansion in mind. Choose control boxes and panels with spare capacity, and run extra conductors to key locations during initial installation.
Consider integration with solar charging systems, which are becoming increasingly popular for extended off-grid adventures. Many modern control systems can integrate solar controllers and battery monitors for comprehensive power management.
USB-C and higher-voltage USB standards are becoming more common, so ensure your USB charging solutions can be easily upgraded as device requirements change.
Conclusion
Proper 12V power distribution is fundamental to reliable off-grid electrical systems. Whether you choose 12V control boxes for centralised protection, 12V control panels for comprehensive monitoring, 12V switch panels for simple reliability, or advanced USB charging solutions, the key is selecting components that match your specific needs and installing them professionally.
Remember that electrical systems are only as reliable as their weakest component. Investing in quality distribution equipment and proper installation techniques will provide years of trouble-free operation, letting you focus on enjoying your adventures rather than troubleshooting electrical problems.
Take the time to plan your system properly, choose quality components, and don't cut corners on installation. Your future self will thank you when everything works perfectly, even in the most remote corners of our beautiful country.
