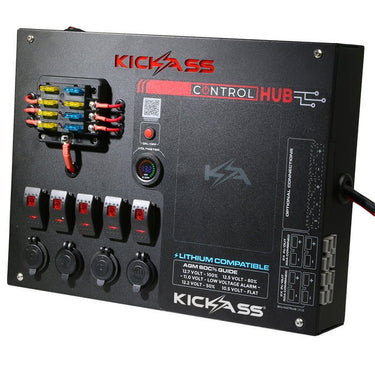

KickAss 12V Control Hub / Panel
Pickup available at Acacia Ridge Store
Usually ready in 1 hour
1 Year Warranty
This product is covered by a 1 Year Limited Warranty.
Description
Customisable Control Panel
Designed by KickAss engineers with all the essentials for your 12V setup, including accessory switches, USB ports, and Cig sockets. Ideal for canopies, vans, or motorhomes—fully customisable to suit your needs.
Power up to 15 Different Appliances at Once!
This panel offers more connections than any other on the market: 4 x flush mount Anderson Style connectors, 2 x Cig sockets, 2 x 4.8A USB ports, 1 x QC3.0 USB, and 1 x USB-C port—power for the whole family.
Five Light-Up Rocker Switches
Easily control your accessories day or night with five backlit rocker switches. Each switch includes a replaceable fuse for battery protection.
Heavy Duty Cables for Higher Current Loads
Pre-wired with upgraded, fully fused cables for a vibration-free, secure connection between your battery and accessories.
Includes Extra Fuses for Your Convenience
Stay prepared with spare fuses and a 6-way external fuse panel for quick, easy replacements when you need them most.
Pre-Drilled Holes for Mounting
Mount your DCDC charger or other gear with ease thanks to pre-drilled holes and a removable foam block—ideal for growing your 12V system step by step.
Alarmed Low Voltage Disconnect
Protect your battery from discharging below 11V with a built-in audible alarm. Includes a dedicated switch to mute the alarm and resume normal function.
Designed to Look KickAss
Sleek matte black, powder-coated aluminium with LED light and switch adds style and functionality to your setup.
Versatile Mounting Options
Mount the unit using pop rivets, bolts, or screws via 6 pre-drilled holes. Three cable entry points offer flexible routing for all input and output wiring.
Specifications
| Dimensions | 400 x 305 x 110mm (Includes fuse height) |
| Weight | 4.15kg |
| Construction | Powder Coated Aluminum |
| Lid Thickness | 2mm |
| Box Thickness | 1.5mm |
| Voltage | 12V |
| Max Current | 120A |
| Low Voltage Alarm | Below 11.0V |
| Battery Connection | 1.5m |
| Light | LED Flush Mount |
| Cable Size | |
| Battery Connection Leads | 4 AWG |
| Optional DCDC Charger Connection | 8 AWG |
| Anderson Plug Connections | 8 AWG |
| Fuse Box Connection | 10 AWG |
| Switch Connections | 12 AWG |
| Cigarette and USB Socket Connections | 12 AWG |
| Fuse Sizes | |
| 4x Anderson Style Plugs | 50A |
| Optional DCDC Connection | 50A |
| Light & Volt Meter | 5A |
| Switch 1 & 2 | 20A |
| Switch 3 | 20A |
| Switch 4 | 20A |
| Switch 5 | 20A |
| Cigarette 1 & 2x 2.4A USB | 15A |
| Cigarette 2 & QC3.0 USB + Type C PD | 15A |
| Spare Fuse 1 | 20A |
| Spare Fuse 2 | 15A |
| Switch Rating | 20A |
| Cigarette Socket | 10A |
| USB | |
| USB Rating | 2.4A |
| USB QC3.0 Rating | 18W |
| USB Type C Rating | 45W |
