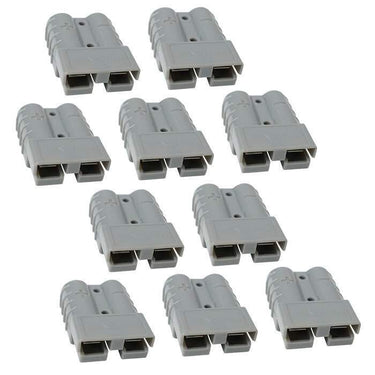

Anderson Style Connectors - Pack of 10
Rated 4.9 out of 5 stars
38
$
49
95
Durable Polycarbonate
Genderless
Use As A Plug Or Socket
Fully Insulated
Rated to 50A
In stock
Fast Dispatch
30 Day Returns
Pickup available at Acacia Ridge Store
Usually ready in 1 hour
Anderson Style Connectors - Pack of 10
$
49
95
1 Year Warranty
This product is covered by an Australian warranty and easy in-store or online returns.
ABOUT THIS ITEM
These Anderson-compatible plug/sockets are genderless, and each therefore can be used as either a plug or a socket. Fully insulated, rated to 50 amps, made from durable polycarbonate. An affordable bundle of ten.
SPECIFICATIONS
Technical Details
| Contact Rating | 50A |
| Contact Wire Size | 6 AWG |
| Colour | Grey |
| Voltage Rating | 600V (AC or DC) |
| Max Wire Insulation Diameter | 11mm |
| Contact Retention Force | 22.7kg |
| Operating Temperature | -20°C to 120°C |
User Manual & Support Docs
| Anderson Style Connectors - Pack of 10 |
Detailed Description
These Anderson Style Plugs are genderless, making them perfect for connecting your portable camping fridge or solar panel to your KICKASS battery.
The Anderson-compatible plug/socket can be used as either a plug or a socket. They are fully insulated, rated to 50 AMPS, and made from durable polycarbonate.
The Anderson style connectors feature a single-piece housing that provides a cost-effective, durable, and safe connection.
**Please NOTE** Anderson plugs are interconnectable with Black and Grey Anderson plugs only.
PLEASE ENSURE THAT INSTRUCTIONS ARE UNDERSTOOD PRIOR TO FITTING
- Use a stripping tool or Stanley knife to carefully strip back the cable sheathing if it is a twin-core cable.
- Using a stripping tool, carefully strip back 1 cm of insulation from each single-core cable (positive and negative).
- Attach the Anderson connector terminal lugs to the stripped cable ends. Using a crimping tool, crimp the terminal lugs securely onto the cable.
- Ensure the terminal lugs are properly crimped by confirming they are fixed in place and cannot be pulled off.
- With the terminal lug lip facing up, attach the Anderson plug, ensuring the positive and negative cables are inserted into their designated sides (pos + and neg -).
- Push the cables all the way through until the terminal lug lip latches over the spring clip at the end of the plug and clicks into place.
- Verify both cables are secure by gently pulling each one individually to ensure the latch is properly engaged.
*NOTE* To remove the cables from the Anderson plug once installed, use a small flathead screwdriver to push the spring clip down while pulling the cable out from the back of the plug.
Anderson plugs are quick and easy to install and reduce the number of parts you need to handle. These plugs come in various colours including green, yellow, blue, grey, and black.
