Understanding Polarity and Reverse Polarity in Off-Grid Setups

When setting up an off-grid power system for your caravan, 4WD, or camping rig, understanding polarity and reverse polarity is crucial for safety and efficiency. Whether you're wiring a 12V battery, connecting solar panels, or running accessories, getting your connections right ensures your gear operates as expected – and avoids costly or dangerous mishaps.

This article will break down what polarity is, how reverse polarity can occur, and what you can do to prevent issues in your off-grid setup.

What is Polarity?

Polarity refers to the direction of electrical flow in a circuit. In a direct current (DC) system, such as a 12V setup in your caravan or 4WD, electricity flows from the positive (+) terminal of a battery to the negative (-) terminal. This is different from alternating current (AC), which changes direction periodically, as used in household power systems.

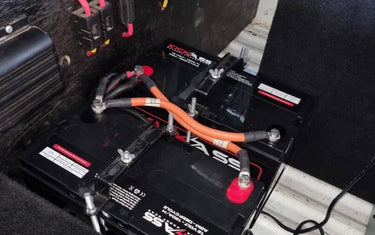

In a correctly wired DC system:

• Red cables usually indicate positive (+)
• Black cables indicate negative (-)
• Power flows in one direction only

Because DC power only flows in one direction, connecting components incorrectly can lead to serious issues. That’s where reverse polarity comes in.

What is Reverse Polarity?

Reverse polarity occurs when the positive and negative wires are accidentally swapped, reversing the direction of current flow. This can happen due to:

• Miswiring a battery or solar panel
• Using incorrect or mismatched connectors
• Accidental connection errors when setting up camp
• Poorly marked or faded wiring labels

In a 12V system, reverse polarity can cause a range of problems, from minor inconveniences to catastrophic damage.

Why is Reverse Polarity Dangerous?

Reverse polarity can:

• Damage sensitive electronics – Many 12V appliances, chargers, and controllers are polarity-sensitive. Connecting them incorrectly may fry internal circuits.
• Blow fuses or trip protection devices – If your setup includes a fuse or circuit breaker, it may immediately cut power to prevent damage.
• Cause overheating and fire risk – Incorrect polarity can result in excessive heat buildup, especially in components that lack built-in protection.
• Render safety features useless – Many power inverters, solar charge controllers, and battery management systems (BMS) rely on correct polarity for their protective functions to work properly.

How to Prevent Reverse Polarity in Your Off-Grid Setup

1. Always Check Your Connections

Before connecting any component, verify the polarity. Many batteries, solar panels, and devices have clearly marked + and - terminals. Double-check before securing cables.

2. Use Colour-Coded Wiring

Stick to red for positive and black for negative. If your setup already has non-standard wiring, label cables clearly with heat-shrink tubing or adhesive markers.

3. Use Anderson Plugs for Quick & Safe Connections

Anderson-style connectors ensure correct polarity because they only fit one way. Using these for major power connections helps prevent accidental swaps.

4. Install Reverse Polarity Protection

Some devices come with built-in reverse polarity protection. However, you can also install inline fuses or diodes to add another layer of security.

5. Test with a Multimeter

A multimeter is an essential tool for any off-grid enthusiast. Use it to check voltage and polarity before connecting devices. Simply set it to DC voltage mode and probe the terminals:

• Red probe to positive (+) and black probe to negative (-) should show a positive reading.
• If the reading is negative, the polarity is reversed.

6. Double-Check Solar Panel Connections

Solar panels often use MC4 connectors, which are keyed to ensure correct polarity. However, some third-party panels or DIY setups may still have mismatched wiring. Always check before plugging into your charge controller.

7. Follow Manufacturer Guidelines

Whenever installing a new piece of 12V gear – whether it’s a KickAss battery box, a DCDC charger, or an inverter – read the user manual. Some devices have internal fuses or relays that may be affected by polarity errors.

8. Use Polarity-Protected Devices

When possible, choose polarity-protected devices that either automatically correct polarity errors or shut down safely to prevent damage. Many modern 12V appliances have this feature built in.

How to Fix a Reverse Polarity Issue

If you suspect you’ve wired something incorrectly, follow these steps:

1. Turn off all power sources – Disconnect batteries, solar panels, and inverters before troubleshooting.
2. Check wiring visually – Look for swapped cables and compare to the manufacturer’s wiring diagrams.
3. Test with a multimeter – Confirm the correct polarity at each connection point.
4. Replace blown fuses – If a fuse has blown, replace it only after correcting the polarity issue.
5. Reconnect and test – Once everything is properly wired, turn the system back on and monitor for any issues.

Final Thoughts

Understanding polarity and reverse polarity is key to maintaining a safe and efficient off-grid power system. A single wiring mistake can lead to damaged gear, blown fuses, or even fire hazards. By taking simple precautions – using colour-coded wiring, Anderson connectors, and a multimeter – you can ensure that your setup runs smoothly every time you head off the grid.

At KickAss Products, we design our 12V gear with safety and ease of use in mind, including built-in protections in many of our power solutions. Whether you're upgrading your dual battery system, adding solar panels, or setting up a full off-grid rig, paying attention to polarity will keep everything running safely and efficiently.

Need expert advice on setting up your 12V system? Drop in to one of our retail stores, or give us a call on (07) 3123 4715 – our team of 12V experts will be happy to help.
